使用手冊
-
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-AMDA1605H-A1 user manual
V10 7.77 MB 2024-03-01 Download
使用手冊

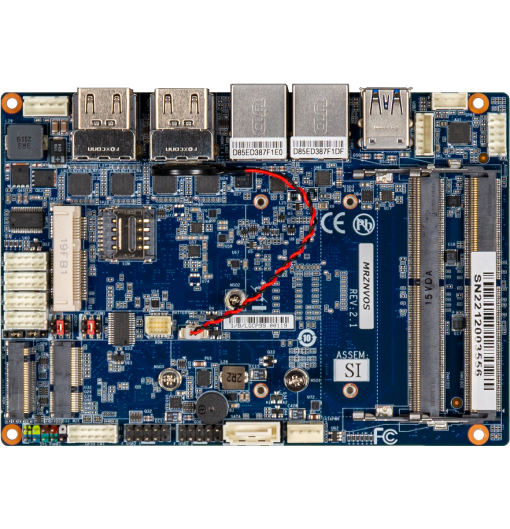

QBiX-Pro-AMDA1605H-A1 integrated with GIGAIPC 3.5" SBC QBiP-1605B, is designed for retail and commercial market with AMD Ryzen™ V1605B processor and support quad independent display output with 4 x HDMI 2.0 ports as well as rich I/O interface of 4 x COM Ports (2 x switchable and 2 x RS-232), 2 x USB 3.2 Gen 1 and 2 x USB 2.0, to be connected to various devices for different working environment.
It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan-less thermal solution and therefore reduces the risk of fan failure. QBiX-Pro-AMDA1605H-A1 is ruggedized, stable and reliable for indoor and outdoor environments.
產品規格
Dimension
178W x 125D x 52.7H(mm)
CPU
AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz
TDP 25W
2MB of shared L2 plus 4MB of shared L3 total
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111HS)
Graphics Support
Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
*Support EDID emulation with AMD graphic driver/utility
(4 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module
Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
4 x HDMI
1 x Power switch
1 x Power & HDD LED
Rear l/O
2 x USB 2.0
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0
Power
+9V~36VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.0kg
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad x 1 (P/N: 25ST3-200060-T5R)
Thermal Pad x 1 (P/N: 25ST3-200051-T5R)
SATA Cable x 1 (P/N: 25CF4-170020-S9R)
Power Cord : Optional (by region)
Power ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
Order Information
6BQP1605AMR-SI (Box packing)
Optional Kit
Wall mount (Optional)
請選擇驅動系統：
-
VGA
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-AMDA1605H-A1_Graphic Driver
27.20.22016.2 823.0 MB 2024-03-29 Download -
Audio
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-AMDA1605H-A1_Realtek Audio Driver
6.0.9257.1 47.3 MB 2024-03-29 Download -
LAN
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-AMDA1605H-A1_1G LAN Driver
10.36.701.2019 10.5 MB 2024-03-29 Download -
Chipset
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-AMDA1605H-A1_Chipset Driver
5.12.0.38 52.0 MB 2024-03-29 Download
驅動程式
-
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-AMDA1605H-A1 user manual
V10 7.77 MB 2024-03-01 Download
