Micro-ATX

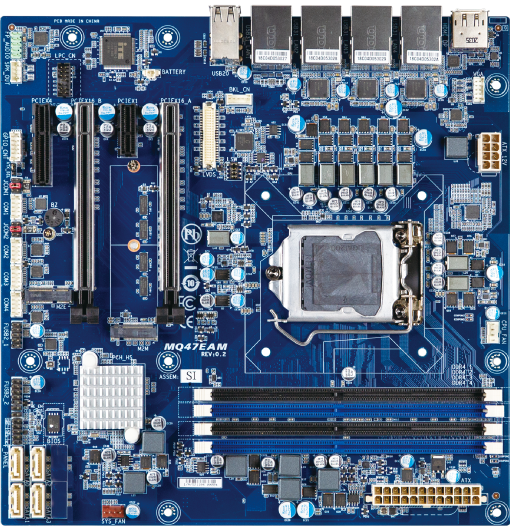

uATX-W48EA
產品特色
Micro-ATX with Intel® W480/W480E Chipset, support 11th/10th Generation Intel® Xeon® W-1200 series/ Core™ i3/ Pentium® & Celeron® Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 16 x USB, 6 x SATA 6Gb/s
• Micro ATX form factor
• Support 11th/10th Generation Intel® Xeon® W-1200 series/ Core™ i3/ Pentium® & Celeron® Processors
• Intel® W480/W480E Express Chipset
• Dual Channel DDR4, 4 x DIMMs
• 4 x GbE LAN Ports
• 6 x SATA 6Gb/s Ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• HDMI 1.4, Display port, D-sub, LVDS for multiple displays
• Realtek® Audio Codec
• Up to 4 x PCIe Gen3 expansion slots
• 16 x USB Ports
• 1 x COM header (RS-232/422/485 & RI/5V/12V)
• 1 x COM header (RS-232 & RI/5V/12V)
• 2 x COM headers (RS-232)
產品規格
Form Factor
Micro ATX
244W x 244D(mm)
CPU
Support for 11th/10th Generation
Intel® Xeon® W-1200 series/ Core™ i3/ Pentium® & Celeron® processors in the LGA1200 package
TDP under 95W
Socket
1 x LGA 1200
Chipset
Intel® W480/W480E Express Chipset
Memory
4 x DDR4 DIMM sockets, Max. Capacity 128GB
Support Dual channel DDR4 2933/2666 MHz memory modules
Ethernet
4 x GbE LAN Ports (1 x Intel® I219LM and 3 x Intel® I211AT)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x Display port, supporting a maximum resolution of 4096x2160 @60Hz
1 x D-sub port, supporting a maximum resolution of 1920x1200 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
6 x SATA 6Gb/s Ports (RAID 0/1/5/10)
Expansion Slots
1 x PCIe x16 (Gen 3x16)(PCIEX16_A)
* The PCIEX16_A slot shares bandwidth with the PCIEX16_B slot.
* The PCIEX16_A slot operates at up to x8 mode when a device is installed in the PCIEX16_B slot.
1 x PCIe x16 (Gen 3x8)(PCIEX16_B)
1 x PCIe x4 (Gen3 x4)
1 x PCIe x1 (Gen3 x1)
1 x 2230 M.2 E-Key (PCIe x1 + USB2.0)
1 x 2280/2242 M.2 M-Key (PCIe x4, SATA 6Gb/s)
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x VGA header
1 x Backlight Control header
1 x AT/ATX mode select jumper
4 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232 & RI/5V/12V)
2 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Buzzer
1 x Clear CMOS jumper
Rear l/O
1 x HDMI
1 x Display Port
4 x RJ45 LAN Ports
8 x USB 3.2 Gen 1
4 x USB 2.0
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 360 x 354 x 390 (mm)
Packing Capacity: 5pcs
Single Box size: 350 x 330 x 65 (mm)
Single Box weight: Approx. 0.65kg
Including:
IO Shield x 1 (P/N: 12AIO-MQ47EA-00R)
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)
Order Information
9MW48EAMMR-SI (Box packing)
Optional Kit
TPM 2.0 module: 9CTM000NR-00
