QBiX Mini系列 (迷你型嵌入式系統)
QM-G510A
- Preliminary
產品特色
Fanless Industrial system including PICO size board with MediaTek Genio 510/ Fanless Design/ Onboard 8GB LPDDR4x/ 1 x HDMI
• System Size : 112W x 75.5D x 30.55H (mm)
• MediaTek Genio 510 (MT8370)
• Onboard 8GB LPDDR4x
• eMMC 64GB
• Fanless design
• Operating Temp. -20°C to 60°C
產品規格
Dimension
112W x 75.5D x 30.55H (mm)
CPU
MediaTek Genio 510 (MT8370)
2 x Arm Cortex-A78, 2.0GHz
6 x Arm Cortex-A55, 2.0GHz
Memory
Onboard 8GB LPDDR4x
Ethernet
Realtek® RTL8211F-CG (10/100/1000 Mbps)
Graphics Support
Arm Mali-G57 MC3 GPU, Support OpenGL ES 1.1/2.0/3.2, and Vulkan 1.0/1.1 :
1 x HDMI 2.0, supporting a maximum resolution of 4096x2160 @60Hz (Android only 1920x1200 @60Hz)
Audio
MT6365 (Integrated)
Storage
eMMC v5.1 64GB (on board)
Expansion Slots
1 x 2230 M.2 E-key slot (PCIe x1, USB2.0), supports WiFi6 : Azurewave AW-XB468NF (IC:MT7921L)
1 x 3052 M.2 B-Key slot (USB3.0), supports 5G : QUECTEL RM500K-CN / RM520N-GL

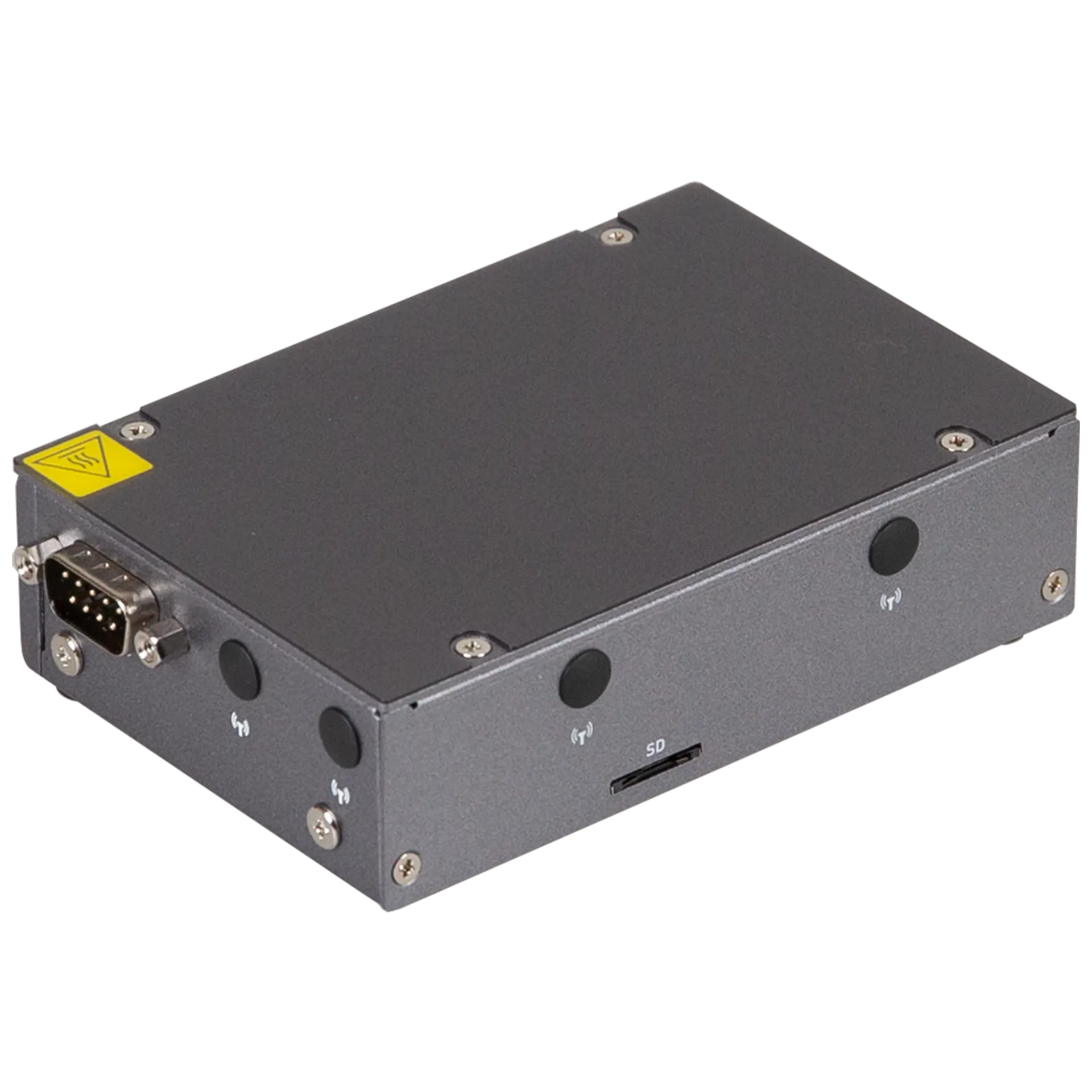

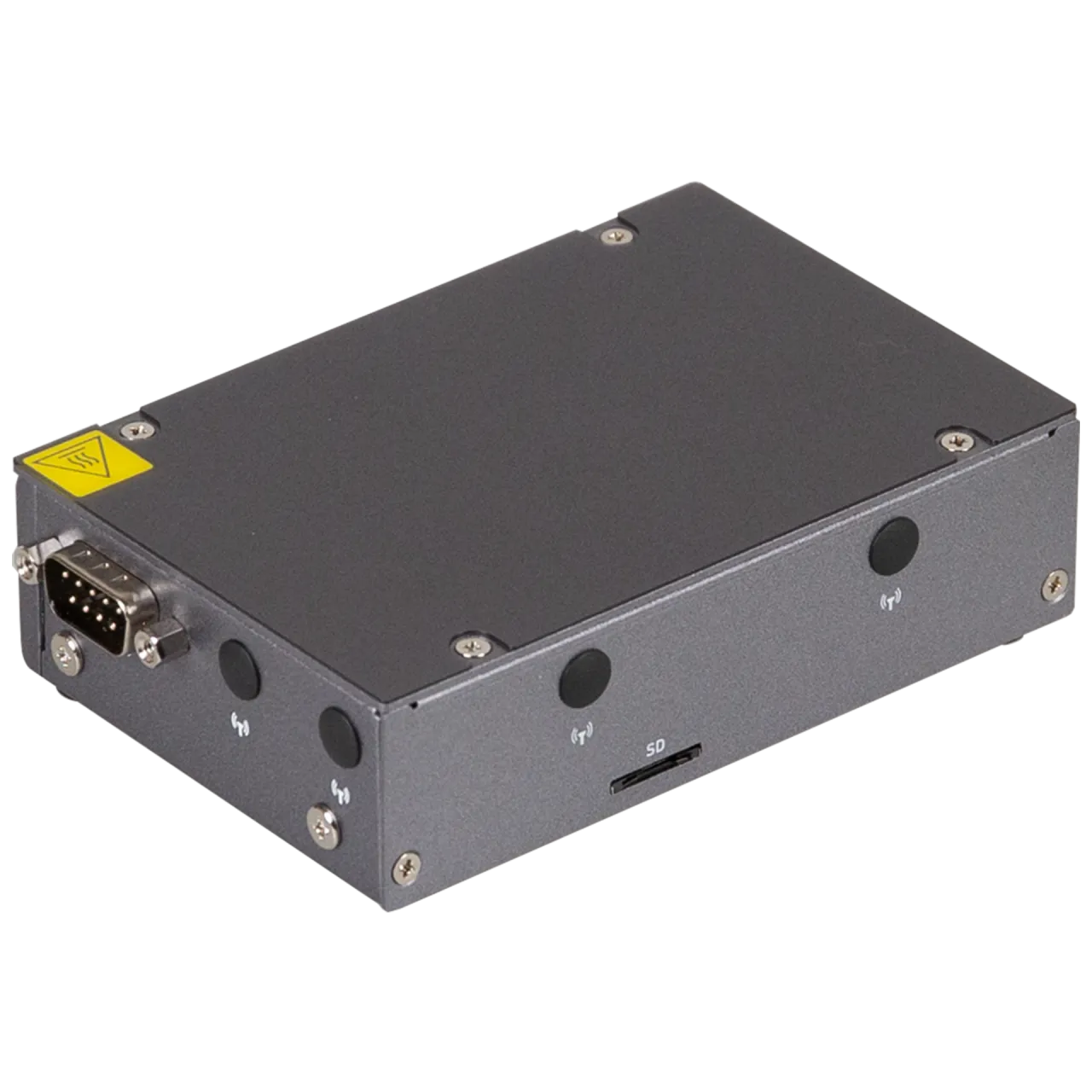

Front I/O
1 x Micro SD Slot
2 x External Antenna Holes (Optional)

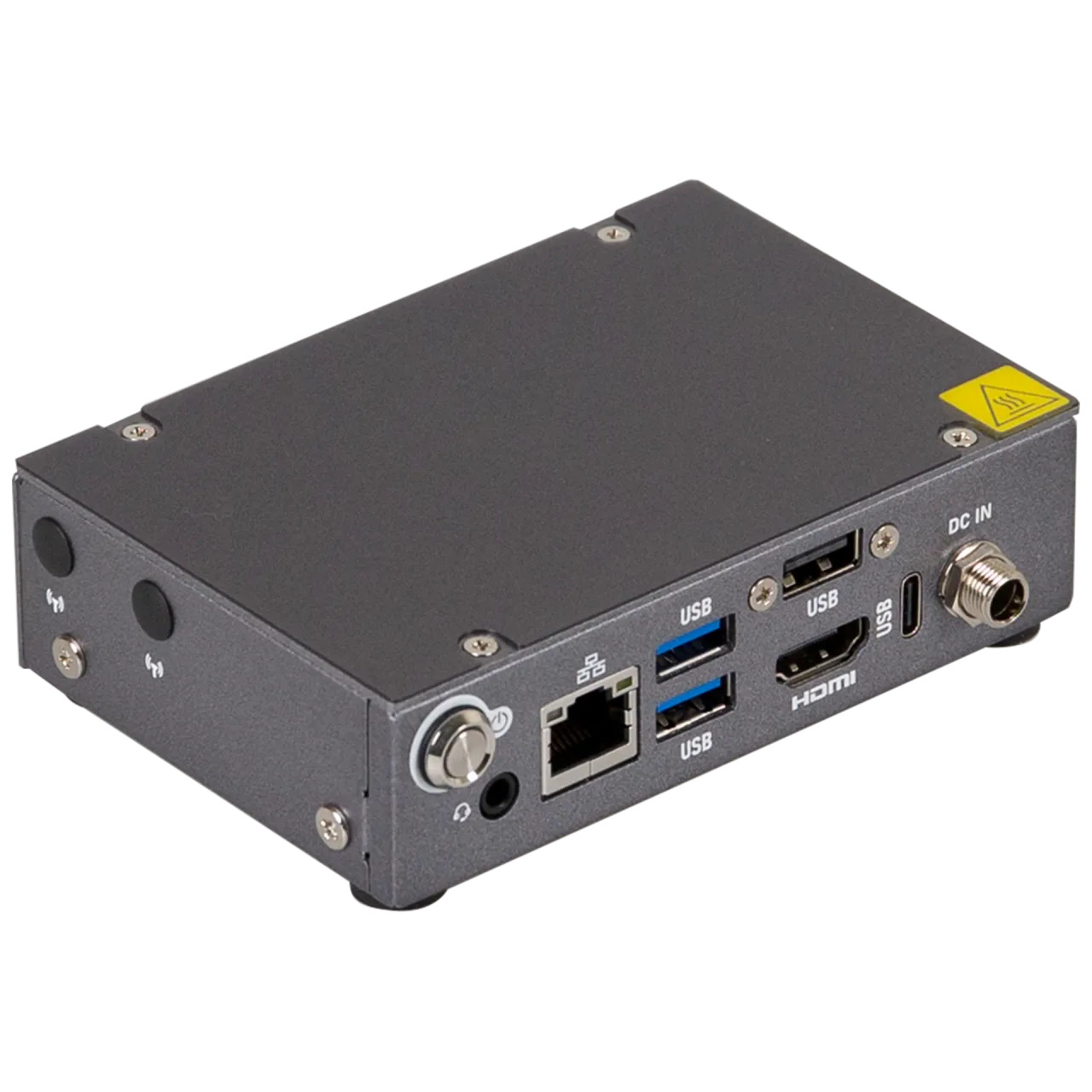

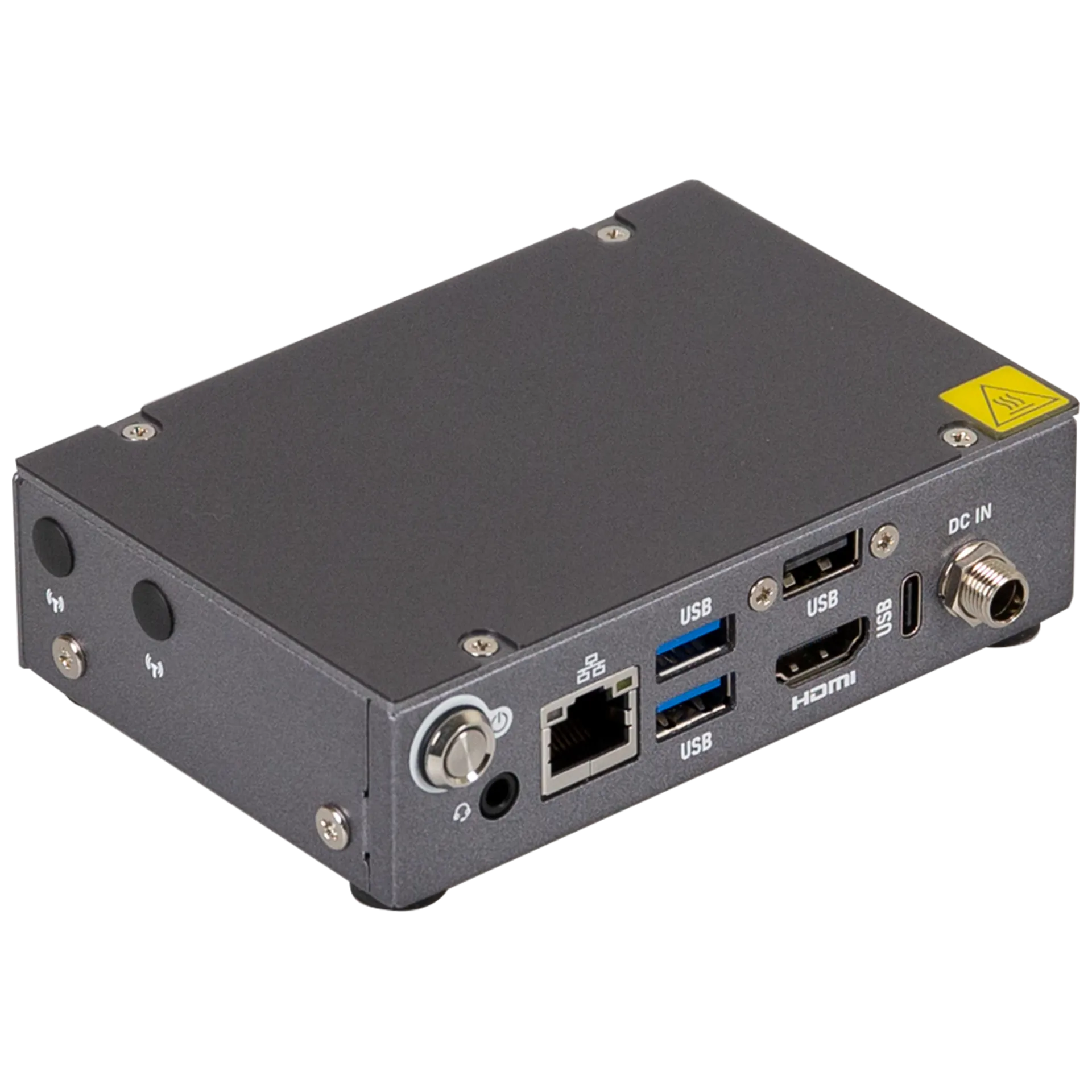

Rear l/O
1 x Power button with LED
1 x Combo audio jack (Headphone & Headset)
1 x RJ45 LAN Port
2 x USB 3.0 Ports (Host)
1 x USB 2.0 Port
1 x USB Type C (OTG)
1 x HDMI
1 x Screw Type DC Jack
Side I/O
1 x GPIO (8 bits)
4 x External Antenna Holes (Optional)
Power
+12~24VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: -20°C to 60°C
Operating humidity: 40°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 60°C @ 95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-29, 50 G, half sine, 11 ms duration
Packing Content
Carton size: 360 x 306 x 220 (mm)
Packing Capacity: 5
Single Box size: 286 x 178 x 66 (mm)
Single Box weight: Approx. 1.0kg
Including:
Power Cord: Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP0-1065W1-A3S)
Wall mount bracket x 2 (P/N:25HBA-G70020-U2R)
Order Information
9BQMG510AMR-SI (Box packing)
Remark
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
