Mini-ITX

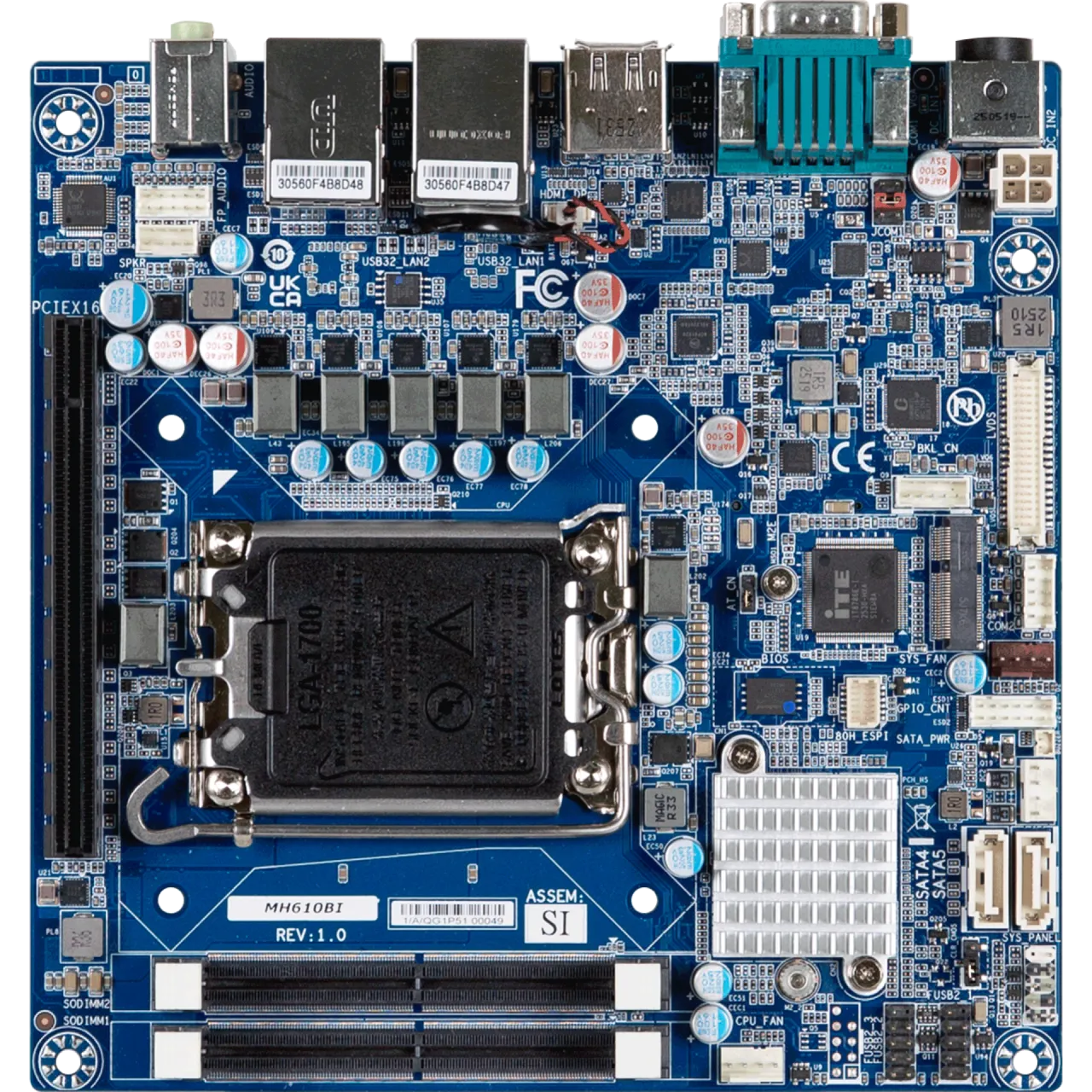

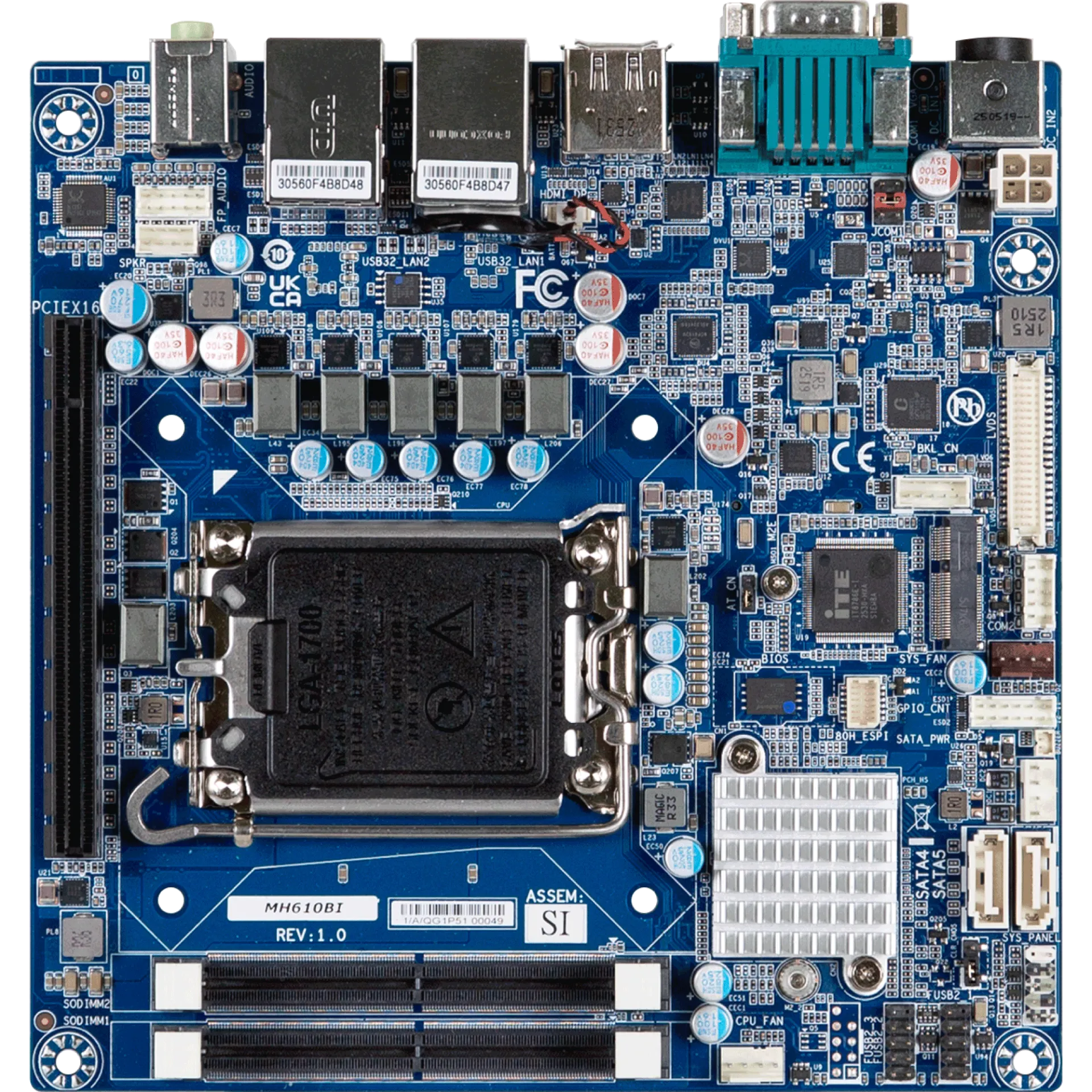

mITX-H610B
- Preliminary
產品特色
Mini-ITX with Intel® H610 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR5 memory, PCIe, 2 x COM, 10 x USB, 2 x SATA 6Gb/s
• Mini-ITX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® H610 Chipset
• Dual Channel DDR5, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 1 x 2.5GbE LAN Port
• 2 x SATA 6Gb/s Ports
• HDMI, Display Port, VGA, LVDS ports for multiple display
• 1 x COM Port (RS-232)
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
產品規格
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W
Socket
1 x LGA 1700
Chipset
Intel® H610 Chipset
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR5 4800/5600 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219LM)
1 x 2.5GbE LAN Port (Intel® I226V)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port
1 x DP port
1 x VGA port
1 x LVDS port
(4 independent display outputs)
Audio
Realtek® Audio codec
Storage
2 x SATA 6Gb/s Ports
RAID
RAID 0/1
Expansion Slots
1 x PCIe x16 (Gen4 x16)
1 x 2280 M.2 M-Key (PCIe x4)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
1 x COM header (RS-232)
1 x GPIO (8-bits) & SMBUS header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer header
1 x AT/ATX mode select jumper

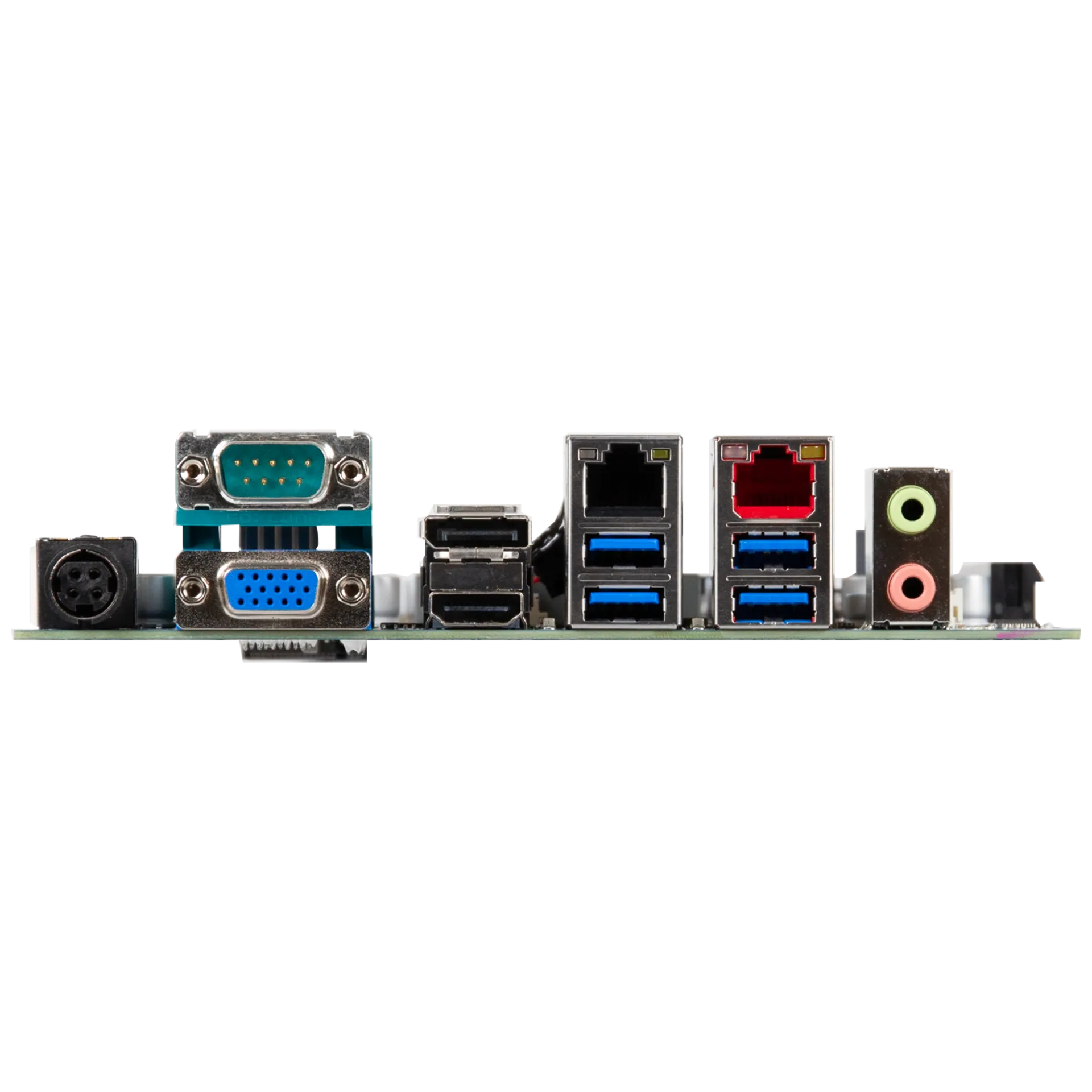

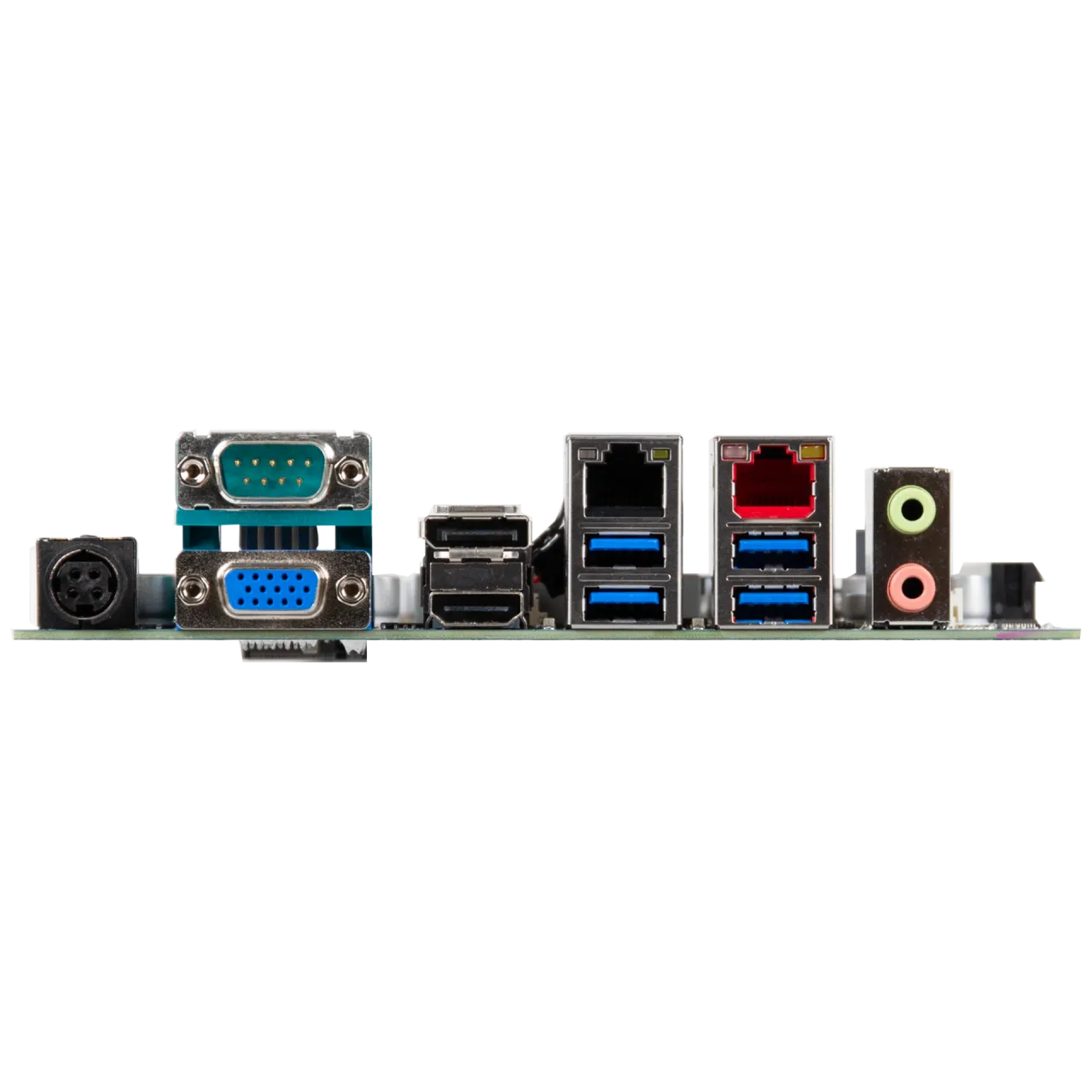

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)
TPM
Onboard TPM 2.0 security chip
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Order Information
9MH610BIMR-SI (Box packing)
Remark
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
