Thin Mini-ITX
iTXL-N150B
- Preliminary
產品特色
Thin Mini-ITX Embedded Motherboard with Intel® Processor N150, Single Channel DDR5 memory, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
• Thin Mini-ITX form factor
• Intel® Processor N150
• Single Channel DDR5, 1 x SO-DIMM
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• HDMI, eDP, LVDS ports for Multiple Display
• 4 x COM Ports (RS-232/422/485 & RI/5V/12V)
產品規格
Form Factor
Thin Mini-ITX
170W x 170D (mm)
CPU
Intel® Processor N150
Intel 7, 4 cores, up to 3.60 GHz
TDP 6W
Socket
1 x FCBGA1264
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111H)
Video
Integrated Graphics Processor - Intel® UHD Graphics support:
2 x HDMI 2.0 port
1 x eDP port
1 x LVDS port
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 3x1, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin ATX main power connector
1 x SATA Power connector (5V only)
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
4 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header for eDP
1 x Backlight Control header for LVDS
1 x AT/ATX mode select jumper
1 x ATX control header

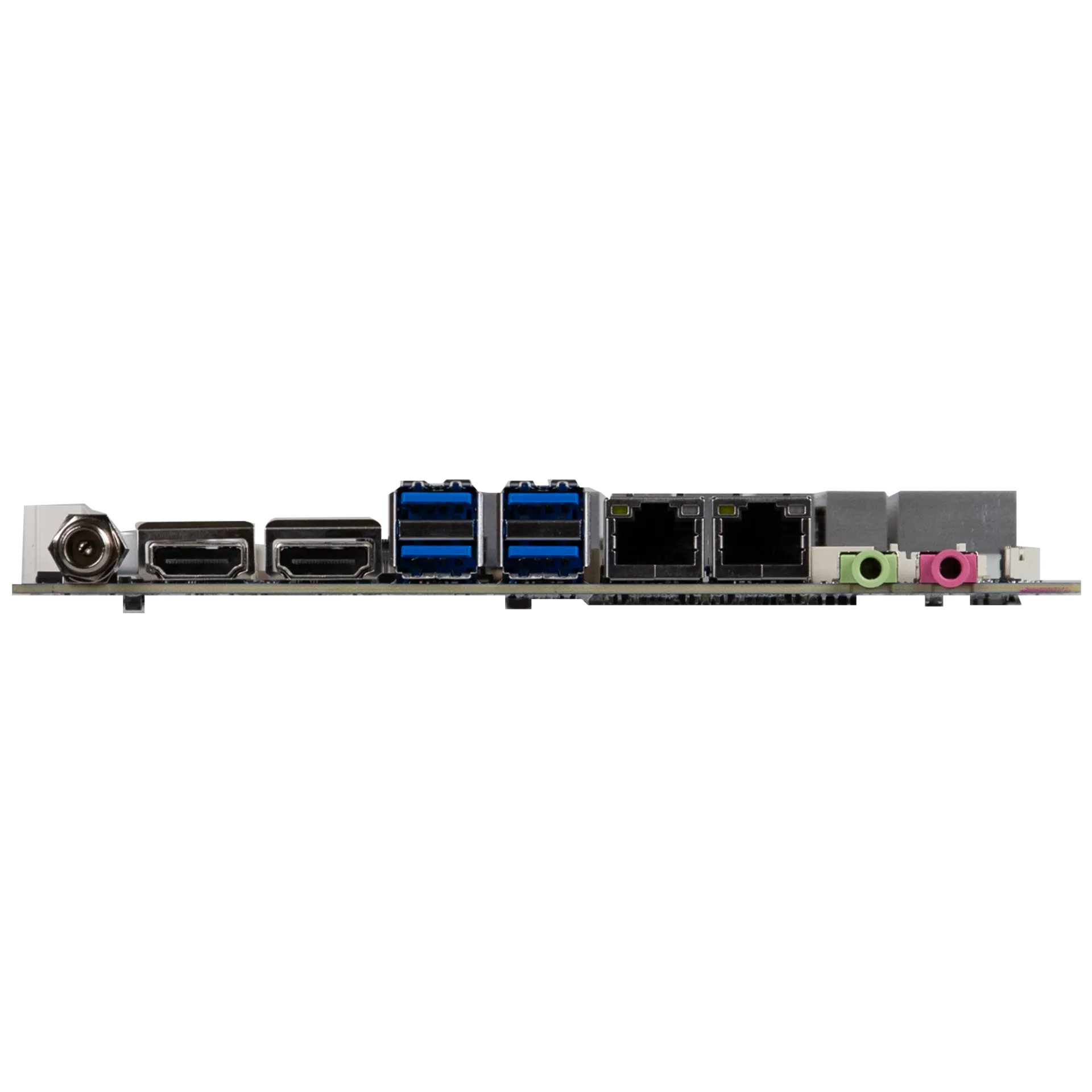

Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V~24VDC)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672VU2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.8kg
Including:
Standard IO Shield x 1 (P/N: 12AIO-MEHLJA-00R)
Low-Profile IO Shield x 1 (P/N: 12AIO-MJPLN0-00R)
SATA Power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MTWN1ATMR-SI (Box packing)
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
