QBiX Pro Series (3.5" Embedded Systems)

QBiX-Pro-APLC4200H-B1

Key Features

Industrial system with Intel® Pentium® N4200 Processor/ 1 x GPIO (8 bits)



• System Size : 178W x 125D x 52.7H(mm)
• Intel® Pentium® N4200 Processor
• Dual Channel DDR3L, 2 x SO-DIMMs
• HDMI, D-sub for Dual display
• 2 x GbE LAN Ports

SHARE
fb_share
linkedin_share

Specification

Dimension

178W x 125D x 52.7H(mm)

CPU

Intel® Pentium® N4200 Processor
14nm, 4 cores, 4 threads, up to 2.5 GHz
TDP 6W

Chipset

SoC

Memory

2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR3L 1866 MHz memory modules

Ethernet

2 x GbE LAN Ports (Realtek® RTL8111H)

Graphics Support

Integrated Graphics Processor - Intel® HD Graphics 505:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays)

(2 independent display outputs)

Audio

Realtek® ALC897

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

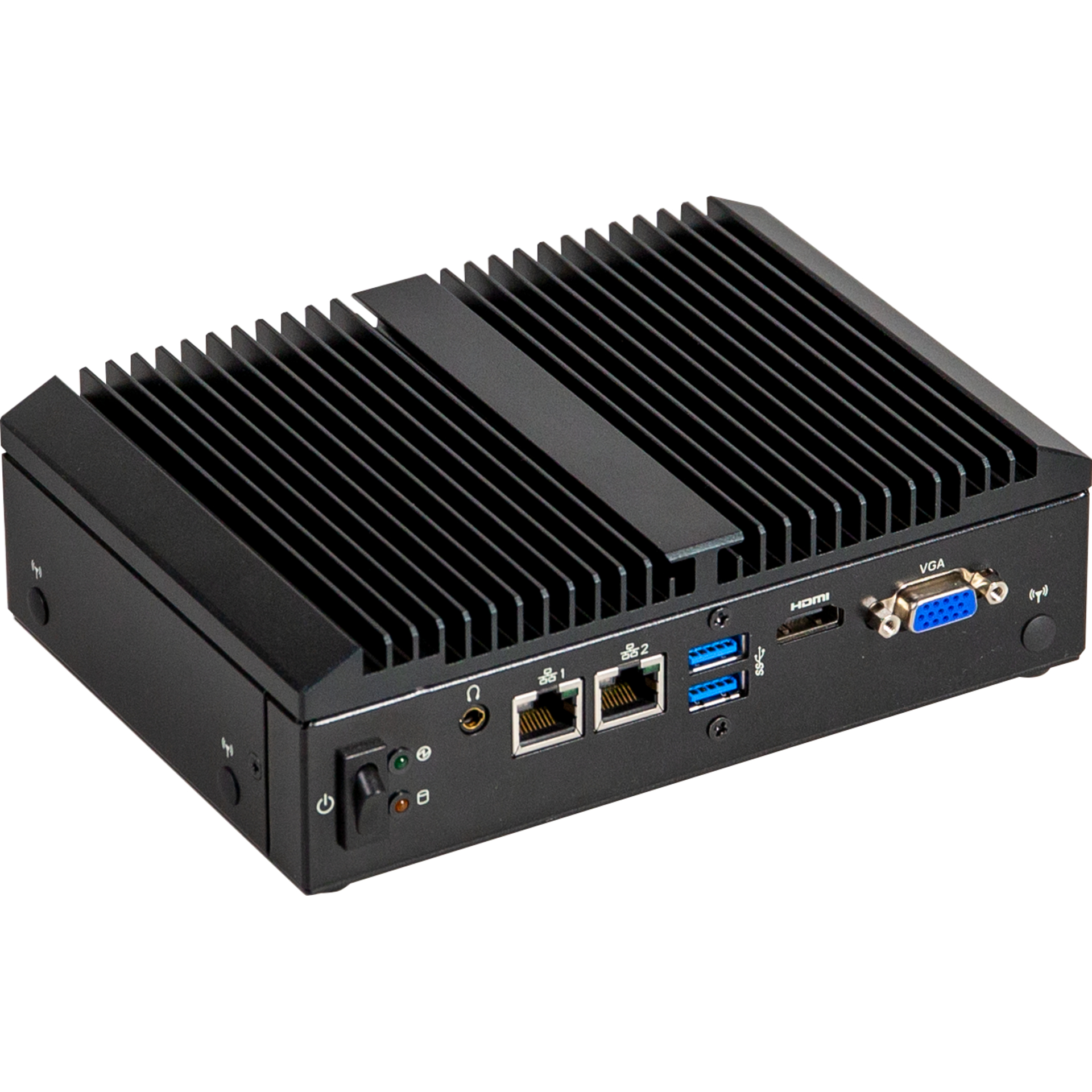

Front I/O

2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
1 x HDMI
1 x VGA
1 x Power switch
1 x Power & HDD LED
1 x Headphone jack

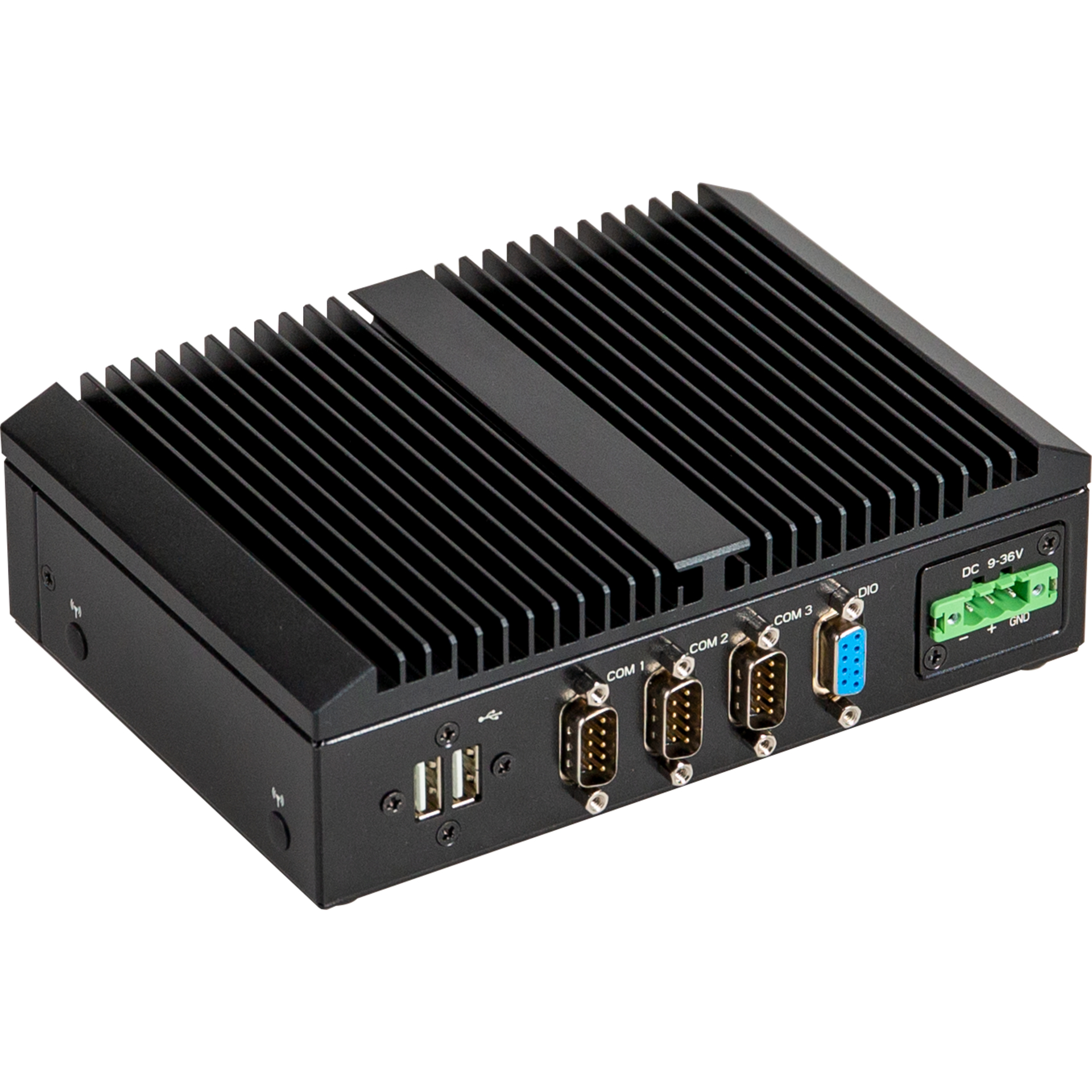

Rear l/O

2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
1 x GPIO (8 bits)
1 x 3-pin Terminal Block

Side I/O

2 x External Antenna Holes (Optional)

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 1.5kg

Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
SATA Cable x 1 (P/N: 25CF4-170020-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)

Order Information

6BQP4200CMR-SI (Box packing)

Optional Kit

TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R

Technical Support

All Downloads
Select Operating System:

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    QBiX-Pro-APLC4200H-B1/B2_Intel® Serial IO Driver
    30.100.1750.1 1.7 MB 2024-04-01 Download
  • VGA

    File Name Version File Size Publish Date Download
    QBiX-Pro-APLC4200H-B1/B2_Graphic Driver
    30.0.101.1191 559.4 MB 2024-04-01 Download
  • Intel® Trusted Execution Engine

    File Name Version File Size Publish Date Download
    QBiX-Pro-APLC4200H-B1/B2_Intel® Trusted Execution Engine Interface
    3.0.0.1115 85.5 MB 2024-04-01 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBiX-Pro-APLC4200H-B1/B2_Realtek Audio Driver
    6.0.9287.1 47.6 MB 2024-04-01 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBiX-Pro-APLC4200H-B1/B2_1G LAN Driver
    10.60.615.2022 4.7 MB 2024-04-01 Download
  • Chipset

    File Name Version File Size Publish Date Download
    QBiX-Pro-APLC4200H-B1/B2_Chipset Driver
    10.1.17.1 2.7 MB 2024-04-01 Download
