QBiX Pro Series (3.5" Embedded Systems)

QBiX-Pro-ADLA1215EH-A1

Key Features

Industrial system with Intel® Core™ i3-1215UE Processor/ Fanless Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI



• System Size : 178W x 125D x 52.7H (mm)
• Intel® Core™ i3-1215UE Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 2 x 2.5GbE LAN Ports

SHARE
fb_share
linkedin_share

Specification

Dimension

178W x 125D x 52.7H(mm)

CPU

Intel® Core™ i3-1215UE Processor
10nm Enhanced Superfin (Intel 7), 6 cores, 8 threads, up to 4.4 GHz

Chipset

SoC

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x 2.5GbE LAN Ports (Intel® I226V)

Graphics Support

Integrated Graphics Processor - Intel® UHD Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® ALC269

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot

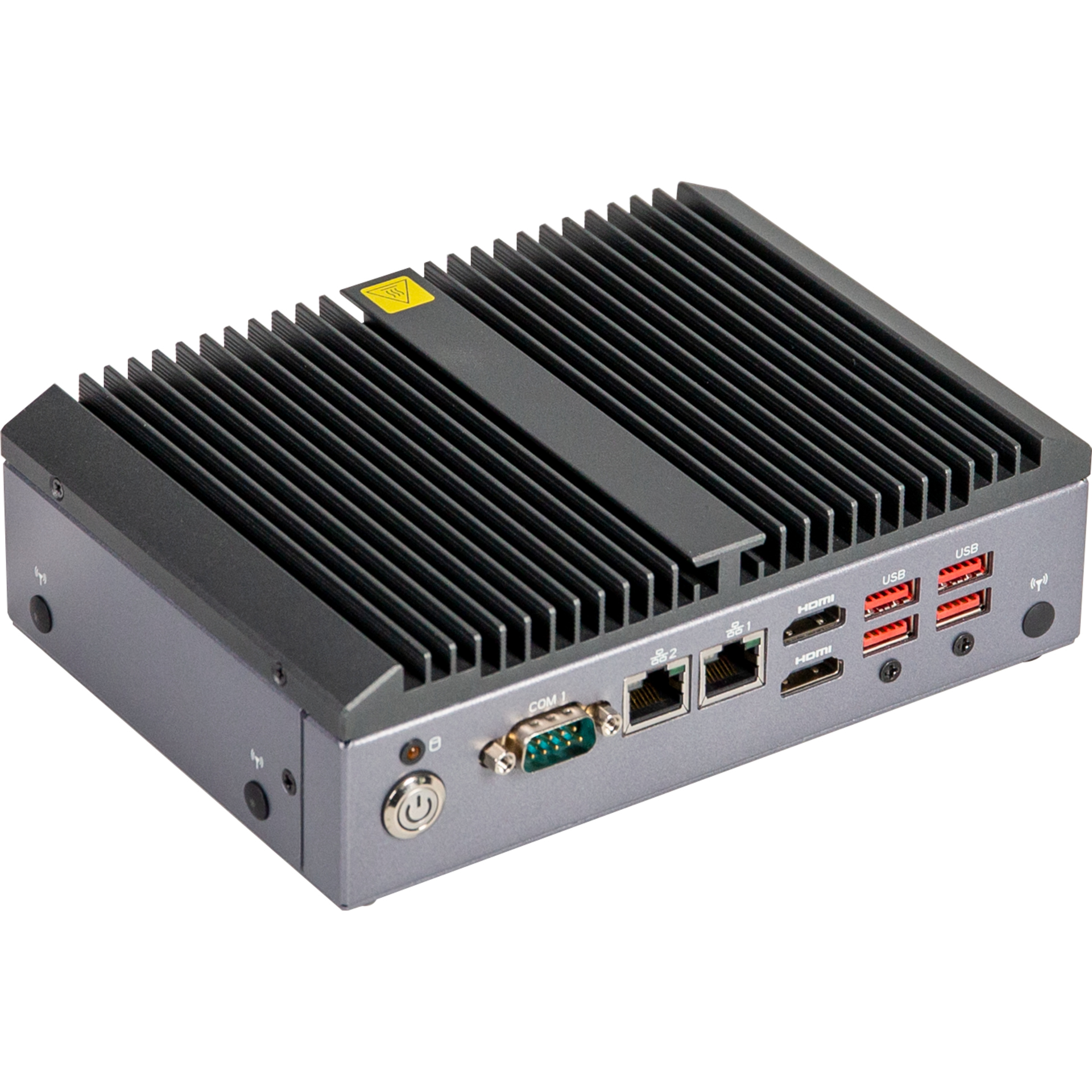

Front I/O

2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x External Antenna Hole (Optional)

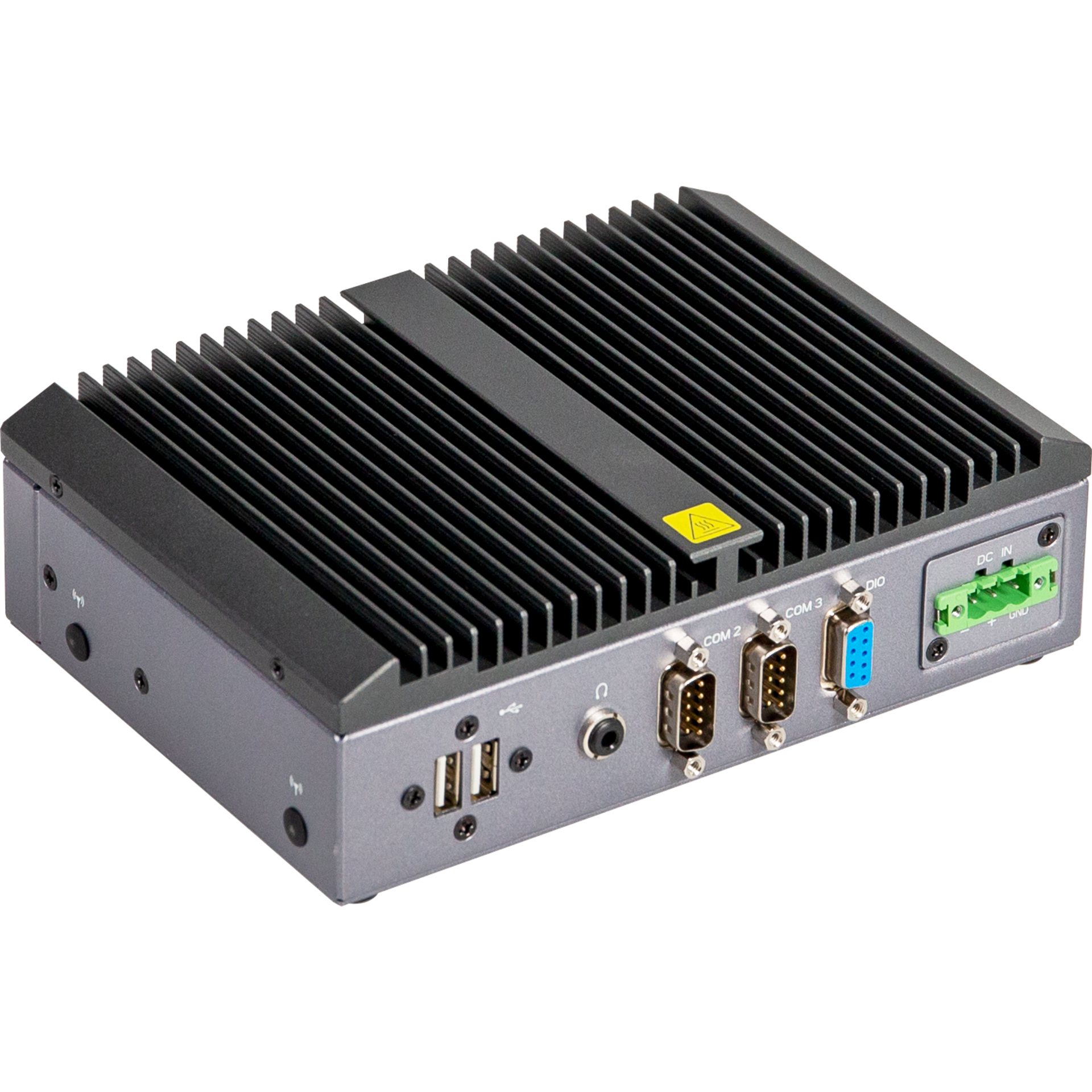

Rear l/O

2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 3-pin Terminal block

Side I/O

2 x External Antenna Holes (Optional)

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)

Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-070000-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)

Mounting

Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)

Order Information

6BQP1215AMR-SI (Box Packing)

Optional Kit

TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R

Technical Support

All Downloads
Select Operating System:

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Intel® Serial IO Driver
    30.100.2221.20 1.836 MB 2024-04-01 Download
  • VGA

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Graphic Driver
    31.0.101.3889 603.2 MB 2024-04-01 Download
  • Intel® Management Engine

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Intel® Management Engine Driver
    2229.3.2.0 710.4 MB 2024-04-01 Download
  • Intel® RST

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Intel® RST Driver
    19.5.0.1037 44.42 MB 2024-04-01 Download
  • Intel® SST

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Intel® SST Driver (BIOS need at least F2 version)
    10.29.0.8467 113.1 MB 2024-04-01 Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Intel® SST Driver Installation SOP
    10.29.0.8467 0.51 MB 2024-04-01 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Realtek Audio Driver
    6.0.9509.1 50.34 MB 2024-04-01 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_2.5G LAN Driver Installation SOP
    1.1.3.28 0.554 MB 2024-04-01 Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_2.5G LAN Driver
    1.1.3.28 0.314 MB 2024-04-01 Download
  • Chipset

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1255H/1235H/1215EH-A1/A2_Chipset Driver
    10.1.36.7 4.606 MB 2024-04-01 Download

    User Manuals

  • File Name Version File Size Publish Date Download
    QBiX-Pro-ADLA1215EH-A1 user manual
    V10 12.9 MB 2024-07-04 Download
