User Manual
-
File Name Version File Size Publish Date Download QBiP-N150C user manualV10 6.1 MB 2026-08-18 Download
User Manuals
QBi Pro (3.5" SBC)
QBiP-N150C
- New
Key Features
3.5" SubCompact Embedded Motherboard with Intel® Processor N150, Single Channel DDR5 memory, 6 x LAN, 2 x COM, 2 x USB 3.2 Gen 2 (10 Gbps), 2 x USB 2.0
• 3.5" SBC
• Intel® Processor N150
• Single Channel DDR5, 1 x SO-DIMM
• 6 x 2.5GbE LAN Ports
• 2 x COM Ports (RS-232)
• TPM on board
QBi Pro (3.5" SBC)
QBiP-N150C
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Processor N150
Intel 7, 4 cores, up to 3.60 GHz
TDP 6W
Socket
1 x FCBGA1264
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
Ethernet
6 x 2.5GbE LAN Ports (Realtek® RTL8125D)
Video
Integrated Graphics Processor - Intel® Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen3x2)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin box power connector (DC in +12V~36VDC)
1 x CPU fan header
1 x COM header (RS-232)
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header

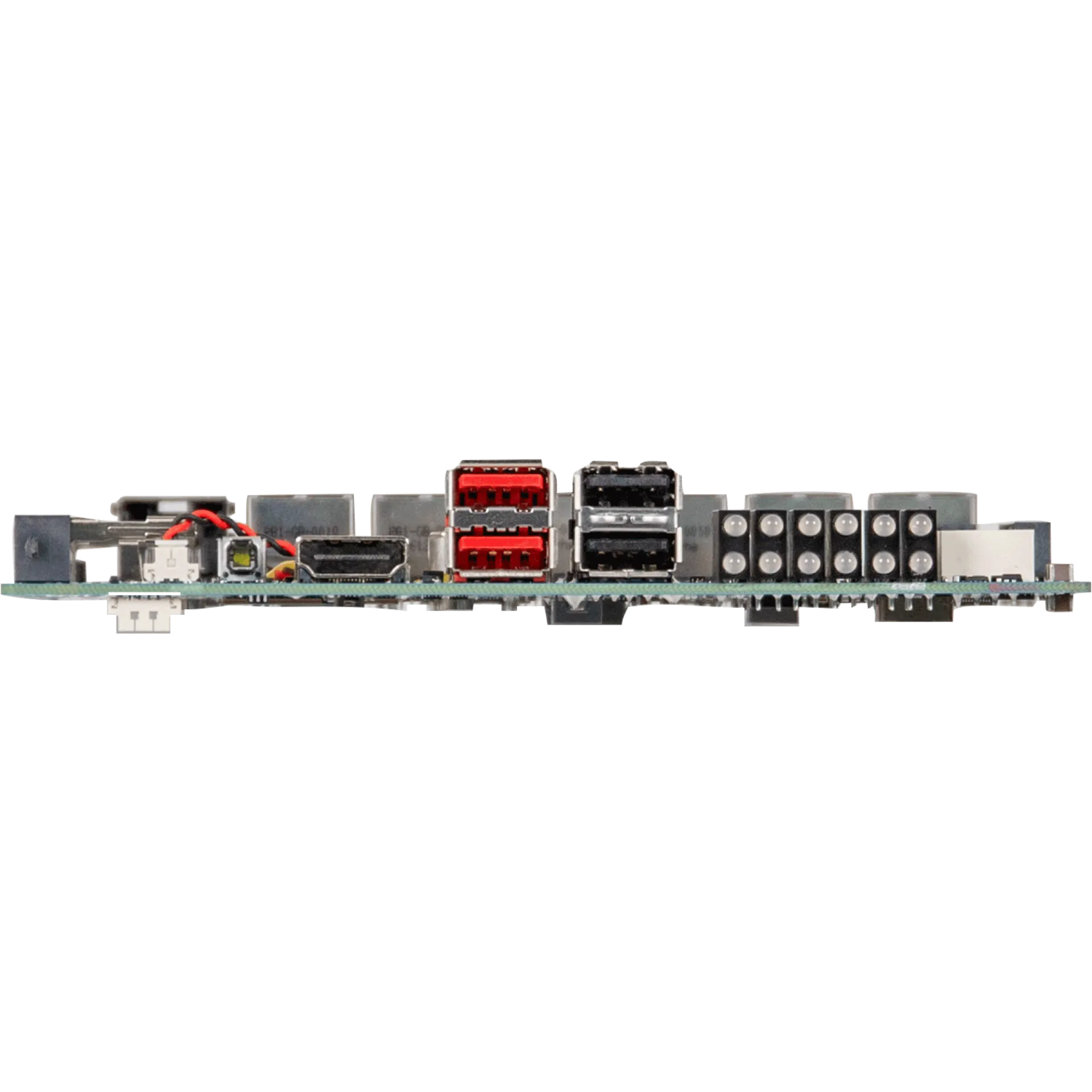

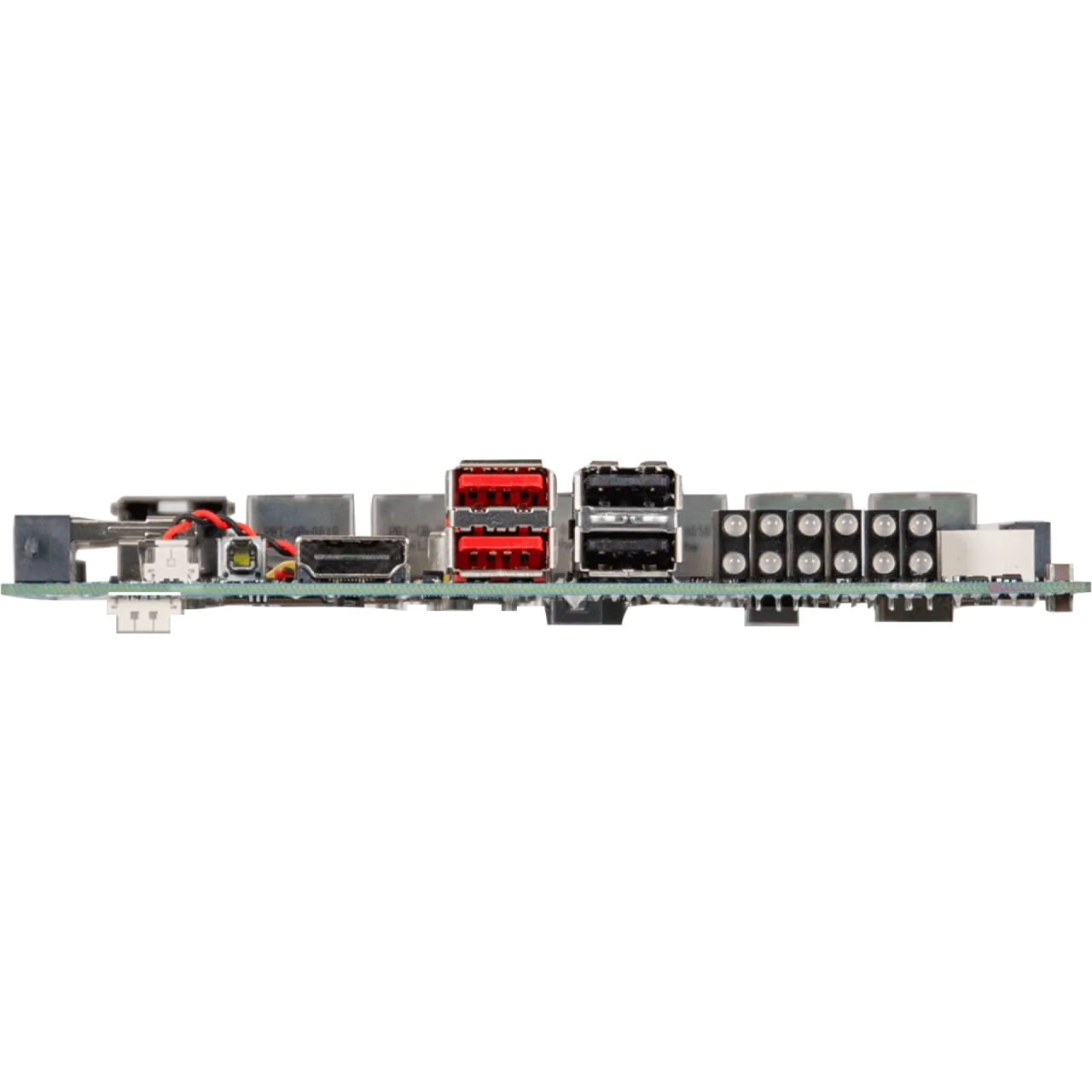

Front I/O
1 x HDMI
2 x USB 3.2 Gen 2 (10 Gbps)
2 x USB 2.0
1 x Power button
6 x LAN status LED

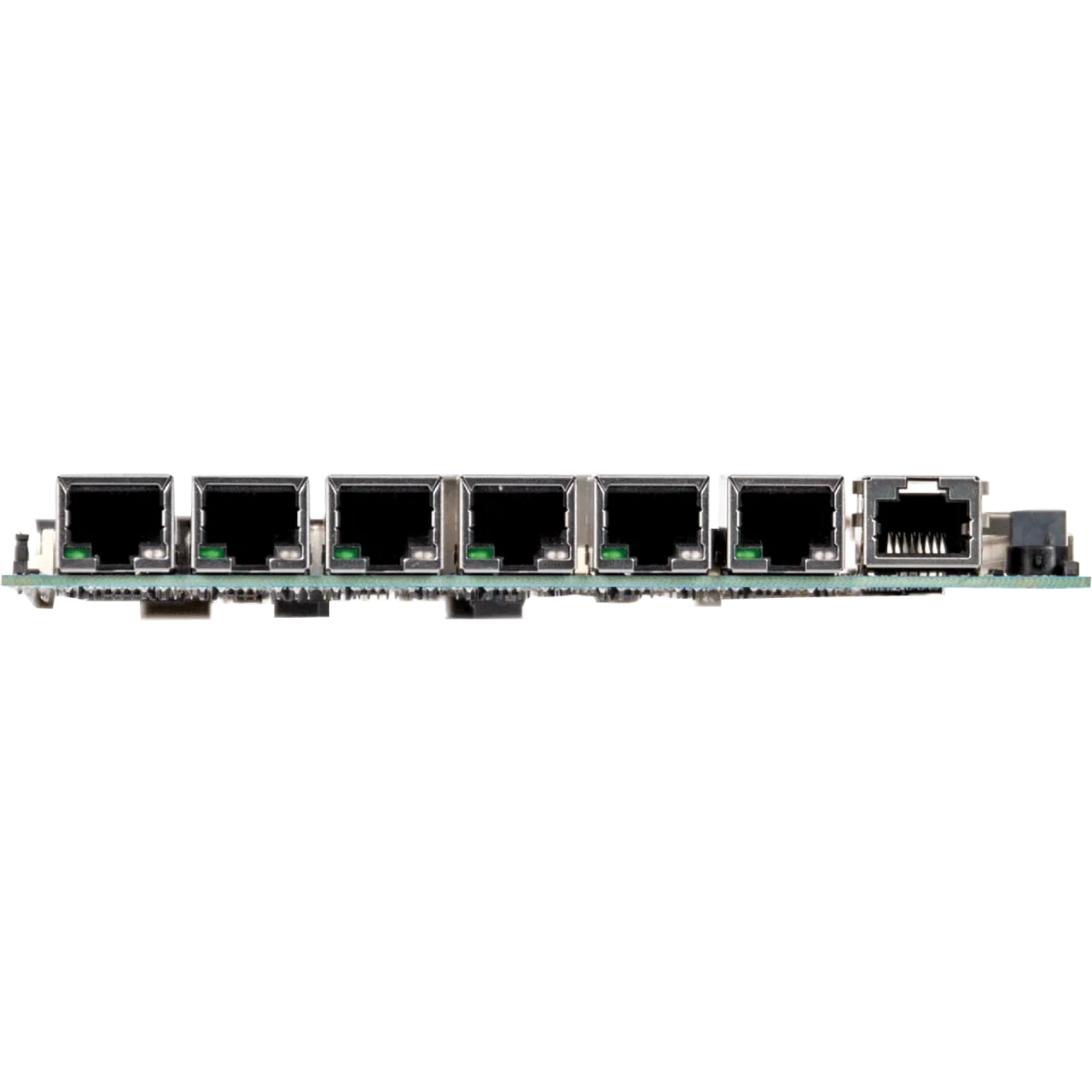

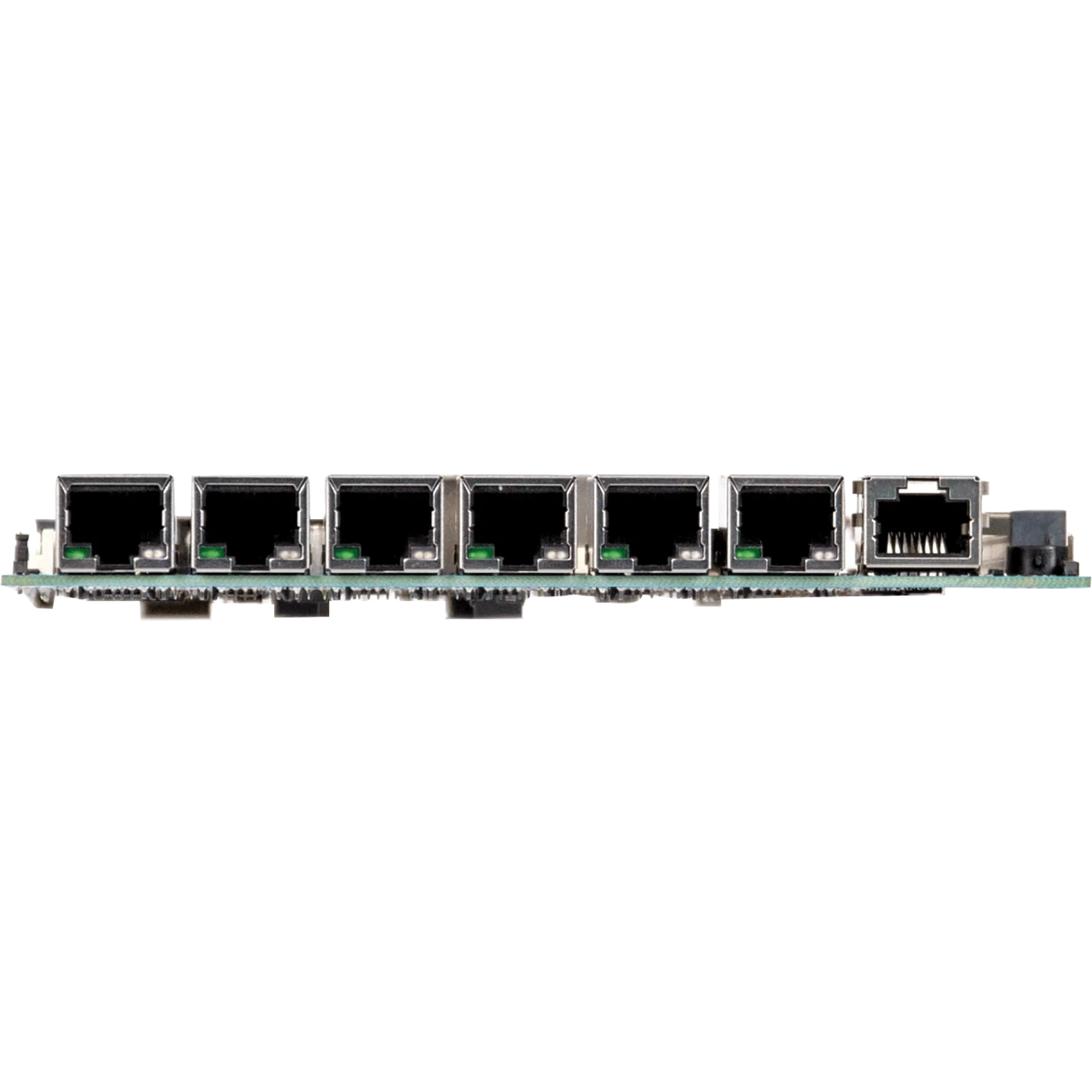

Rear l/O
6 x RJ45 LAN Ports
1 x Console Port (RS-232)(RJ45 Type)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 11 Enterprise LTSC 2024
Windows 11 IoT Enterprise LTSC 2024, x64
Windows 11 IoT Enterprise, version 24H2 x64
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Order Information
9MTWN1CSMR-SI (Box Packing)
Optional Kit
Fanless sink P/N: 25ST1-300022-A7GR
Heat spreader P/N: 25ST1-113109-Y0R
Fansink P/N: 25ST4-123103-Y0R
Select Operating System：
-
Chipset
File Name Version File Size Publish Date Download QBiP-N150C_Chipset Driver10.1.50.8 3.2 MB 2026-08-20 Download -
VGA
File Name Version File Size Publish Date Download QBiP-N150C_Graphic Driver32.0.101.7082 798 MB 2026-08-20 Download -
LAN
File Name Version File Size Publish Date Download QBiP-N150C_LAN Driver1125.27.50.919 5.0 MB 2026-08-20 Download -
Intel® Management Engine
File Name Version File Size Publish Date Download QBiP-N150C_Intel® Management Engine Driver2540.8.7.0 436.5 MB 2026-08-20 Download -
Fix LAN Name
File Name Version File Size Publish Date Download QBiP-N150C_Fix LAN Name2.0 MB 2026-08-20 Download -
For Serial port patch
File Name Version File Size Publish Date Download QBiP-N150C_For Serial port patchv3.2.6.8MS 1.7 MB 2026-08-20 Download -
Intel® Serial IO
File Name Version File Size Publish Date Download QBiP-N150C_Intel® Serial IO Driver5.123.1.1030 0.41 MB 2026-08-20 Download -
Hotfix
File Name Version File Size Publish Date Download QBiP-N150C Hotfix for kb50584113.8 GB 2026-08-20 Download
Drivers
-
M.2 2280 module
File Name Version File Size Publish Date Download QBiP-N150C M.2 M-key 2280 module listV1.0 0.26 MB 2026-08-20 Download -
Memory
File Name Version File Size Publish Date Download QBiP-N150C Memory listV1.0 0.27 MB 2026-08-20 Download
