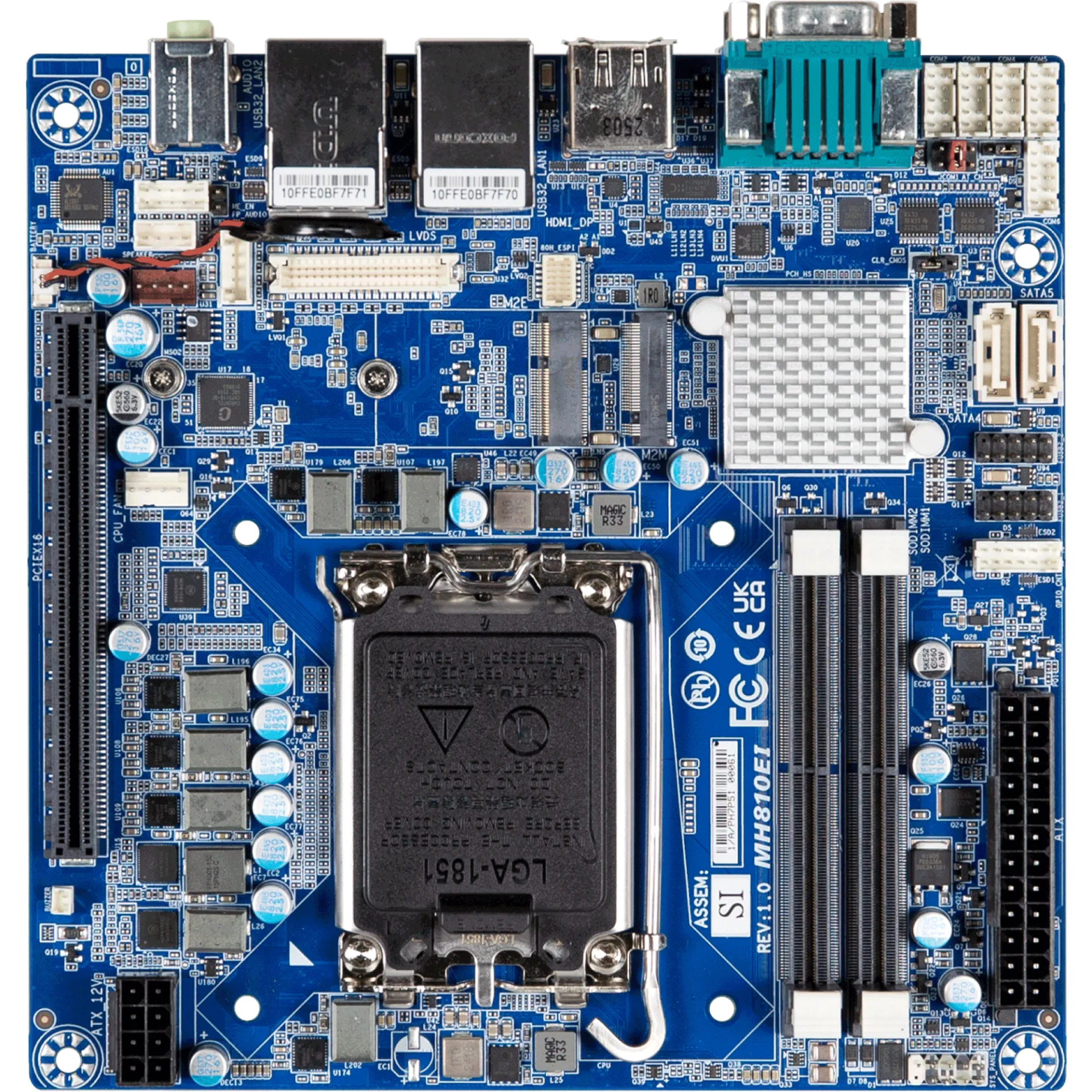

mITX-H810E
- New
Key Features
Mini-ITX with Intel® H810 Chipset, Support Intel® Core™ Ultra processors (Series 2), Dual channel DDR5 memory, PCIe, 6 x COM, 8 x USB, 2 x SATA 6Gb/s
• Mini-ITX form factor
• Support Intel® Core™ Ultra processors (Series 2)
• Intel® H810 Chipset
• Dual Channel DDR5, 2 x SO-DIMMs/CSO-DIMMs
• 1 x 2.5GbE LAN Port
• 1 x GbE LAN Port
• 2 x SATA 6Gb/s Ports
• HDMI, DP, VGA, LVDS for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 4 x COM Ports (RS-232)
Mini-ITX
mITX-H810E
Specification
Form Factor
Mini-ITX
170W x 170D (mm)
CPU
Support Intel® Core™ Ultra processors (Series 2) TDP under 65W
Socket
1 x LGA 1851
Chipset
Intel® H810 Chipset
Memory
2 x DDR5 SO-DIMM/CSO-DIMM sockets, Max. Capacity 128 GB
Support Dual channel DDR5 5600/6400 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
1 x 2.5GbE LAN Port (Intel® I226V)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.1 port, supporting a maximum resolution of 7680x4320 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen 4x16)
1 x 2280 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W speaker out header
4 x USB 2.0 headers
1 x COM header (RS-232/422/485)
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight control header
1 x Clear CMOS jumper
1 x Buzzer header
1 x AT/ATX mode select jumper

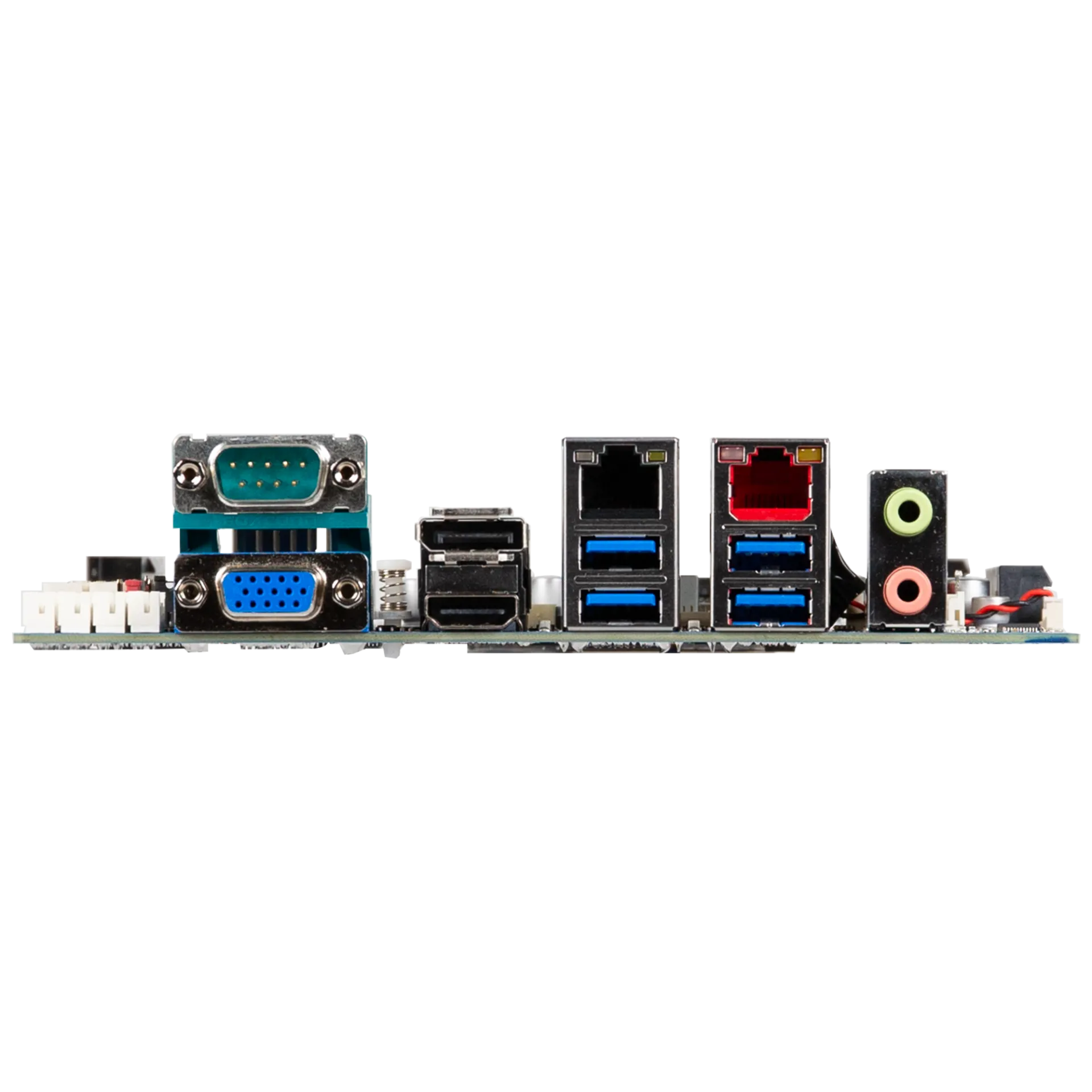

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display port
1 x VGA
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
TPM
Onboard TPM 2.0 security chip
Infineon SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size : 221 x 178 x 65 (mm)
Including:
IO Shield x 1 (P/N: 12AIO-MH610E-00R)
SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R)
Order Information
9MH810EIMR-SI (Box packing)
Optional Kit
CPU Cooler : 25ST0-037820-Y0R
CPU Cooler Backplate : 12KRH-0A1700-00R
