Mini-ITX

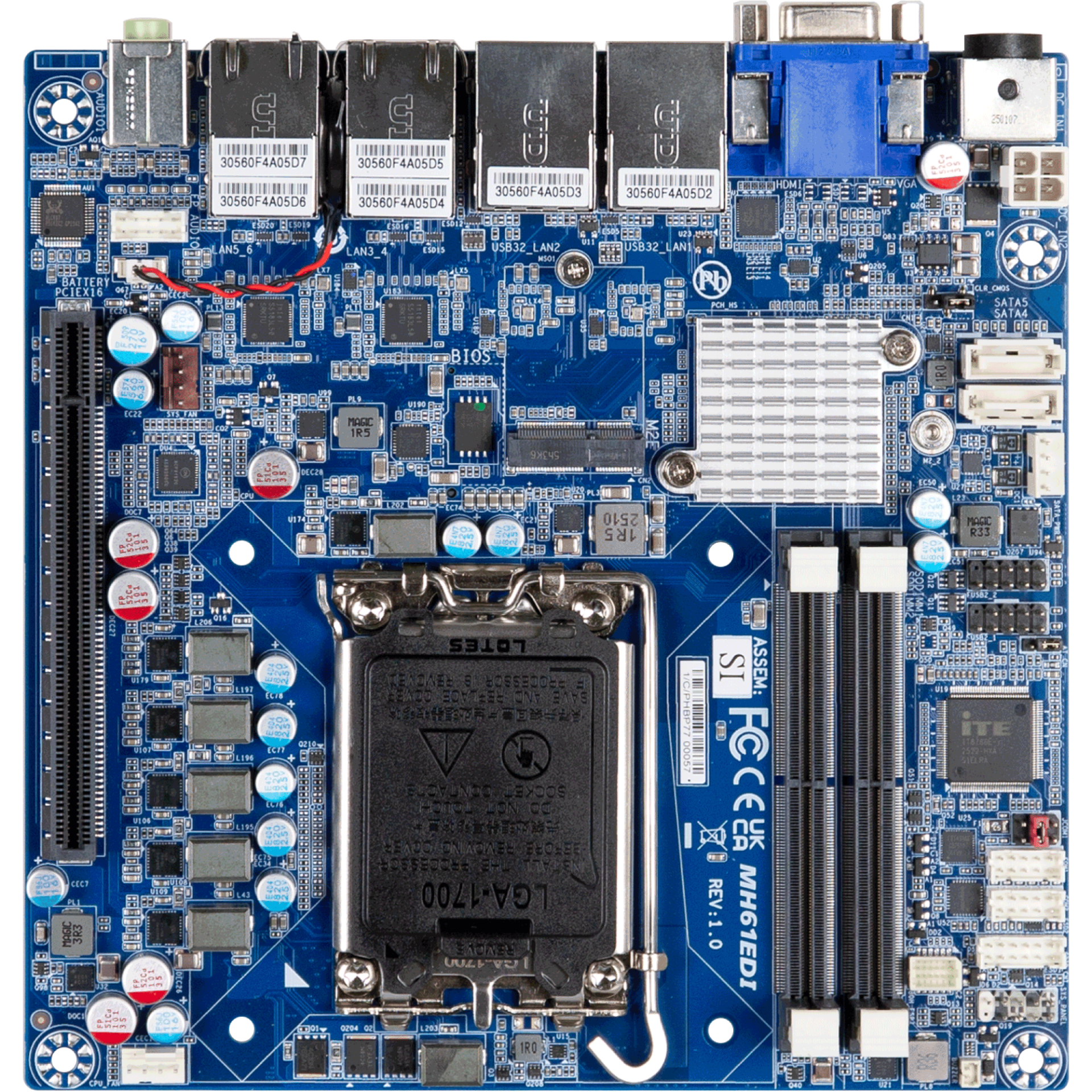

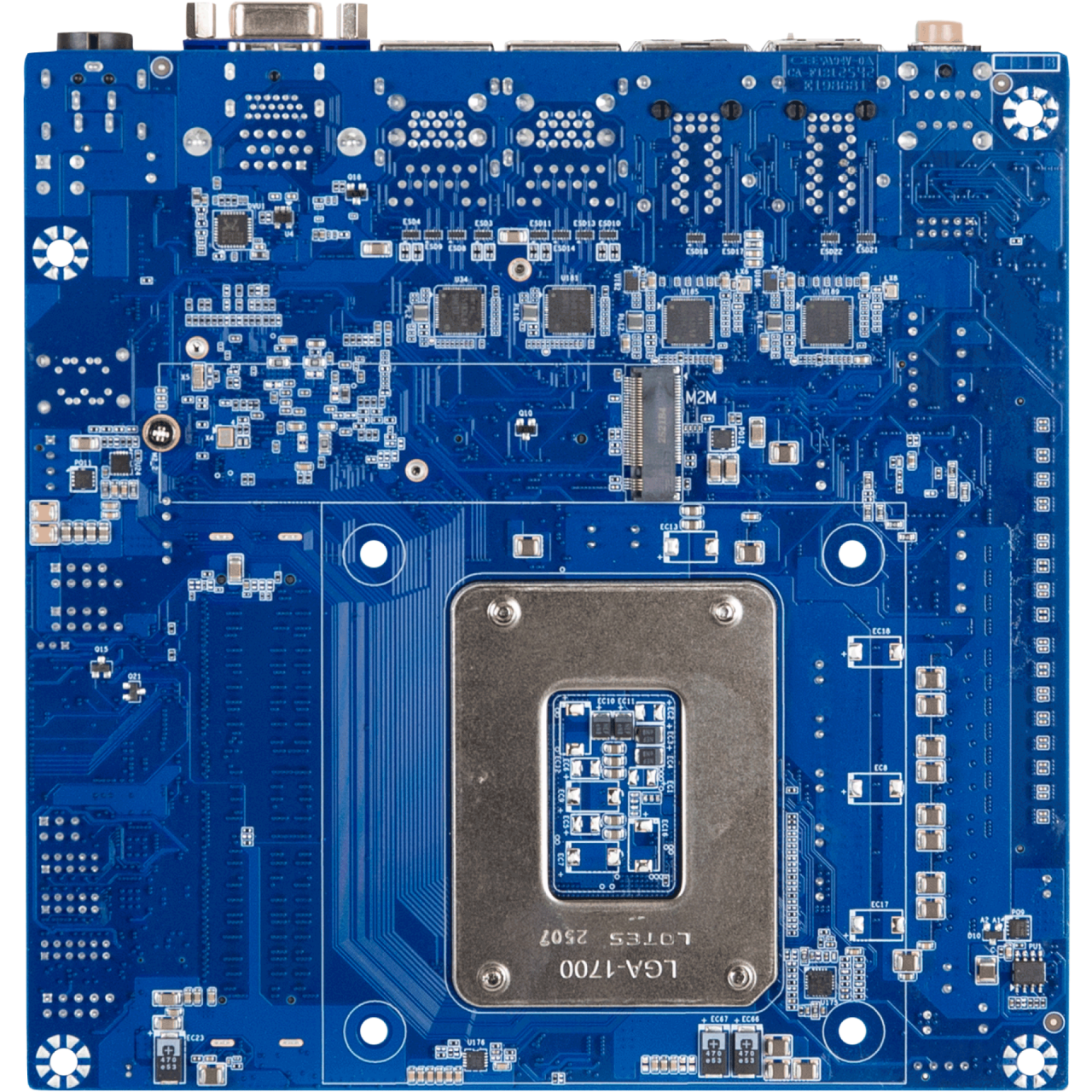

mITX-H61ED
- New
Key Features
Mini-ITX with Intel® H610E Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR5 memory, PCIe, 2 x COM, 8 x USB, 2 x SATA 6Gb/s
• Mini-ITX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® H610E Chipset
• Dual Channel DDR5, 2 x SO-DIMMs
• 6 x 2.5GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• HDMI, VGA ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232)
Mini-ITX
mITX-H61ED
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W
Socket
1 x LGA 1700
Chipset
Intel® H610E Chipset
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 96 GB
Support Dual channel DDR5 5600 MHz memory modules
Ethernet
6 x 2.5GbE LAN Ports (Intel® I226V)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC897
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen 4x16)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O
1 x 4-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232)
1 x GPIO (8-bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer header
1 x AT/ATX mode select jumper

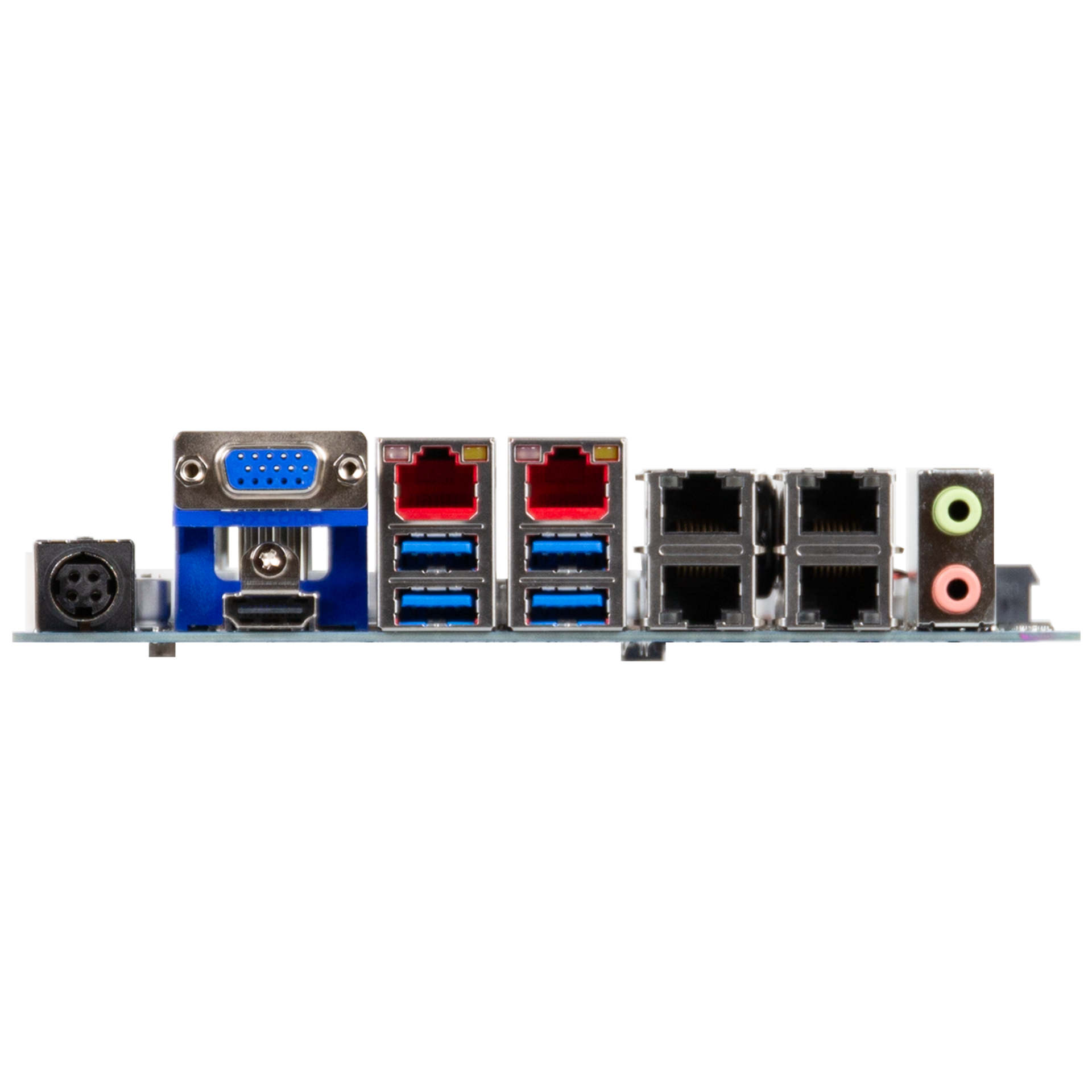

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x VGA
6 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~24VDC)
TPM
Onboard TPM 2.0 security chip
Infineon SLB9670VQ2.0
OS Compatibility
Windows 11 IoT Enterprise LTSC 64bits_24H2
Windows 10 IoT Enterprise LTSC 64bits_2021(21H2)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size : 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.8kg
Including:
IO Shield x 1 (P/N: 12AIO-MH61EC-00R)
SATA power Cable x 1 (P/N: 25CRI-300B01-K1R)
Order Information
9MH61EDIMR-SI (Box packing)
Optional Kit
CPU Cooler : 25ST0-037820-Y0R
CPU Cooler Backplate : 12KRH-0A1700-00R
