Mini-ITX

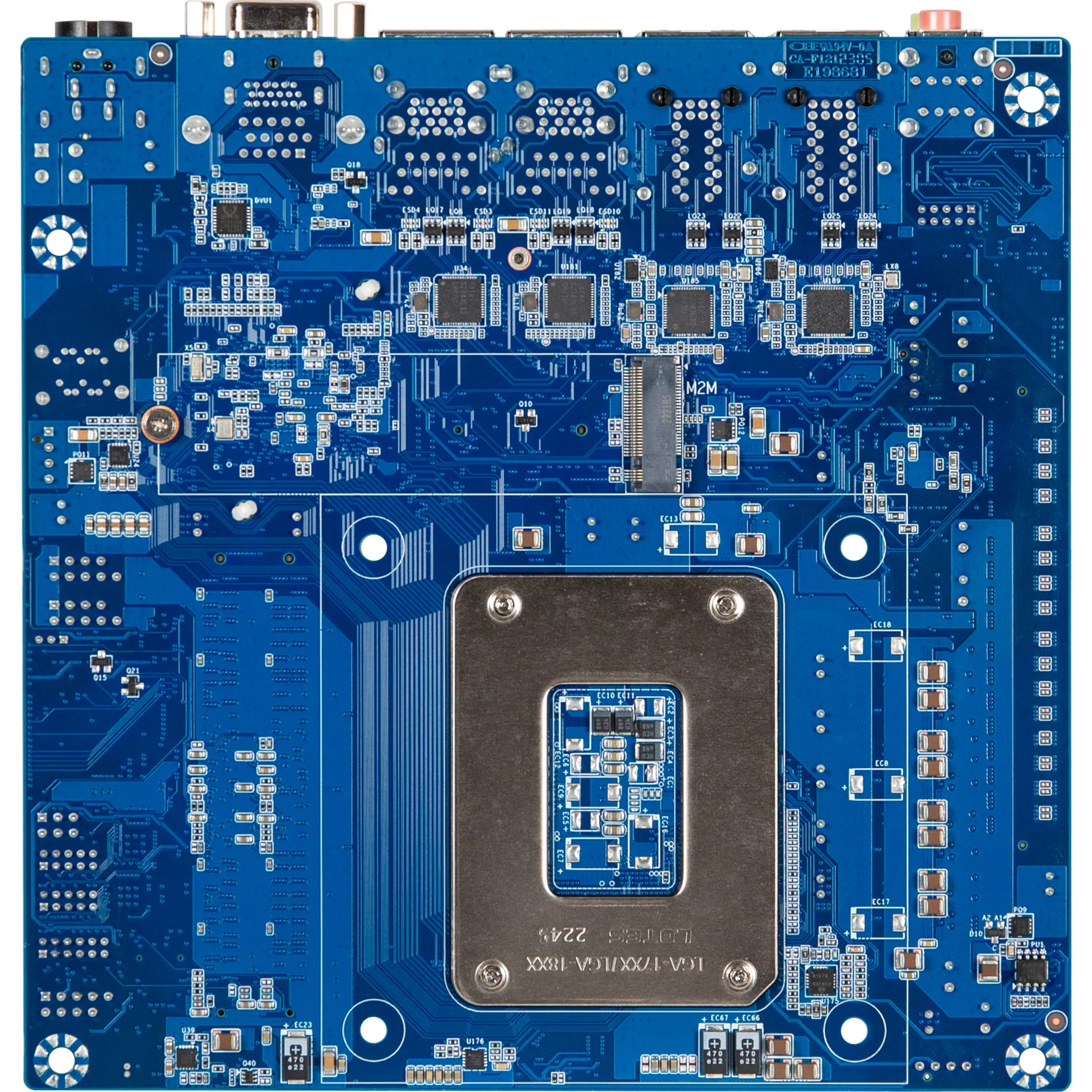

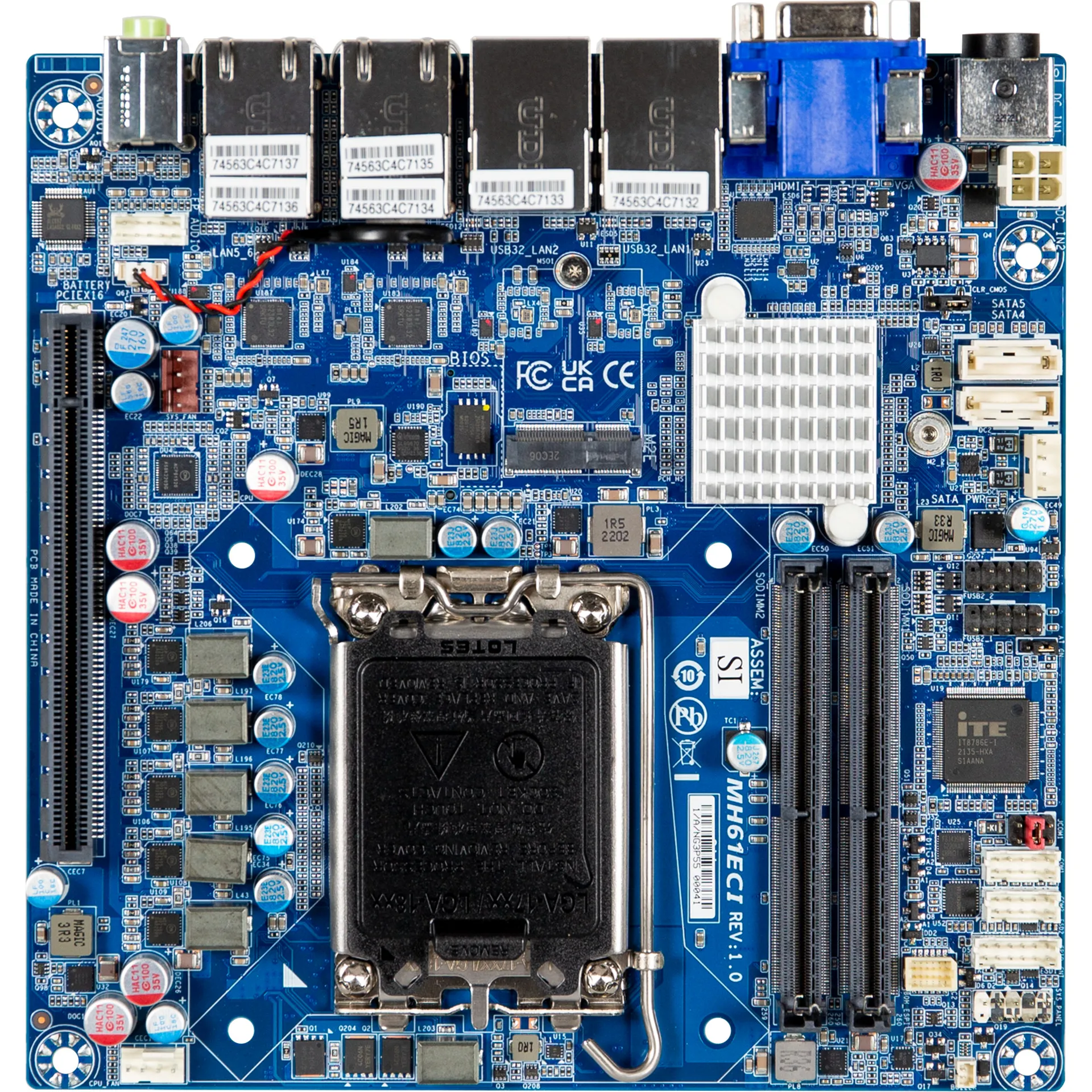

mITX-H61EC

Key Features

Mini-ITX with Intel® H610E Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 8 x USB, 2 x SATA 6Gb/s



• Mini-ITX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® H610E Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 6 x 2.5GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• HDMI, VGA ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232)

SHARE
fb_share
linkedin_share

Specification

Form Factor

Mini-ITX
170W x 170D(mm)

CPU

Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W

Socket

1 x LGA 1700

Chipset

Intel® H610E Chipset

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules

Ethernet

6 x 2.5GbE LAN Ports (Intel® I226V)

Video

Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio codec

Storage

2 x SATA 6Gb/s Ports

Expansion Slots

1 x PCIe x16 (Gen 4x16)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

Internal I/O

1 x 4-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232)
1 x GPIO (8-bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer header
1 x AT/ATX mode select jumper

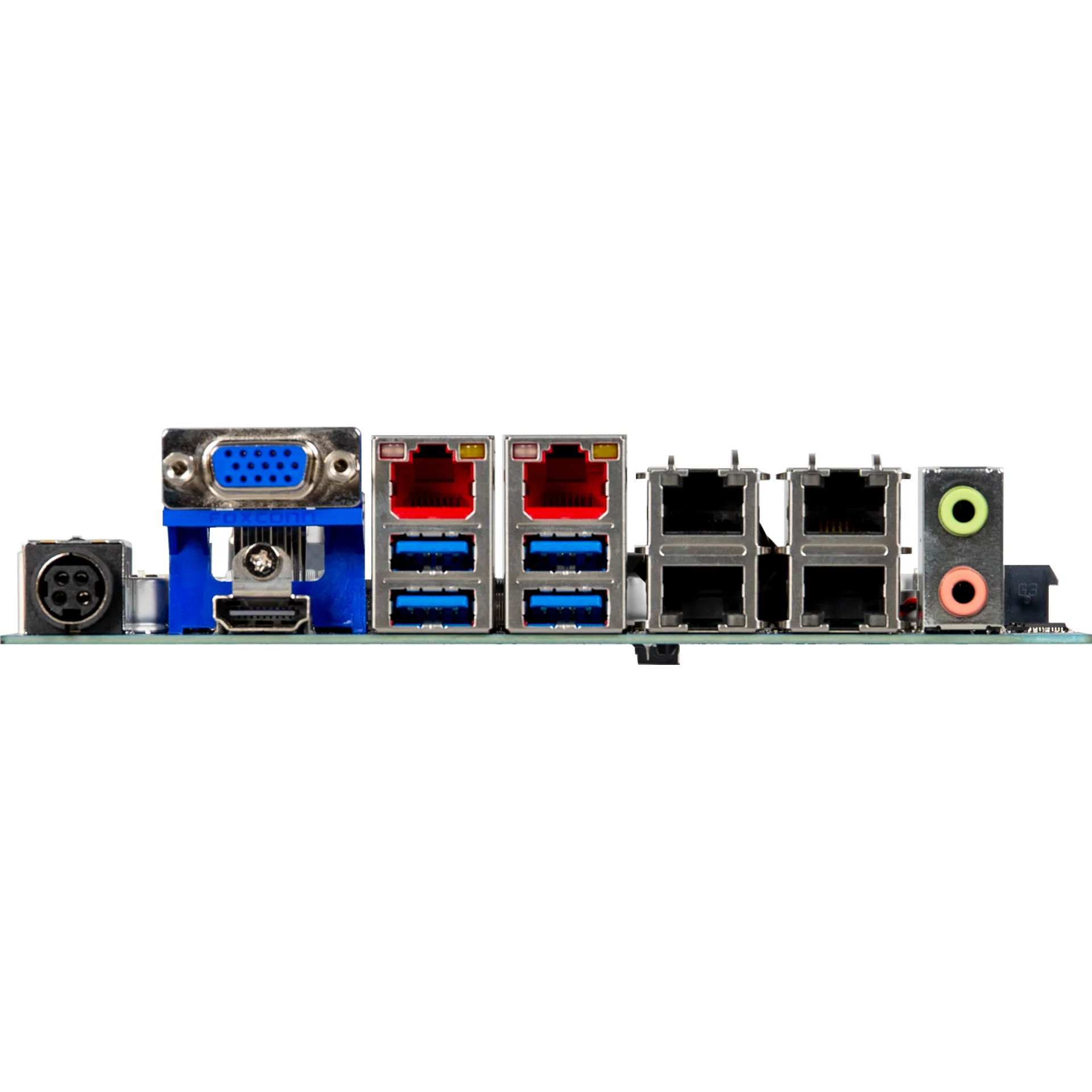

Rear l/O

2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x VGA
6 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~24VDC)

TPM

Onboard TPM 2.0 security chip
Infineon SLB9670VQ2.0

OS Compatibility

Windows 10/11 (x64)

Operating Properties

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size : 221 x 178 x 65 (mm)

Including:
IO Shield x 1 (P/N: 12AIO-MH61EC-00R)
SATA power Cable x 1 (P/N: 25CRI-300B01-K1R)

Order Information

9MH61ECIMR-SI (Box packing)

Optional Kit

CPU Cooler : 25ST0-037820-Y0R
CPU Cooler Backplate : 12KRH-0A1700-00R

Technical Support

All Downloads
請選擇驅動系統:

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    mITX-H61EC_Intel® Serial IO Driver
    30.100.2237.26 2.158 MB 2024-03-30 Download
  • VGA

    File Name Version File Size Publish Date Download
    mITX-H61EC_Graphic Driver
    31.0.101.3889 603.2 MB 2024-03-30 Download
  • Intel® Management Engine

    File Name Version File Size Publish Date Download
    mITX-H61EC_Intel® Management Engine Driver
    2240.3.4.0 293.6 MB 2024-03-30 Download
  • Intel® SST

    File Name Version File Size Publish Date Download
    mITX-H61EC_Intel® SST Driver (BIOS need at least F3 version)
    10.29.0.9677 113.2 MB 2024-05-08 Download
  • Audio

    File Name Version File Size Publish Date Download
    mITX-H61EC_Realtek Audio Driver
    6.0.9626.1 83.1 MB 2024-04-16 Download
  • LAN

    File Name Version File Size Publish Date Download
    mITX-H61EC_2.5G LAN Driver
    1.1.3.28 0.314 MB 2024-03-30 Download
    mITX-H61EC_2.5G LAN Driver Installation SOP
    1.1.3.28 0.554 MB 2024-03-30 Download
  • Chipset

    File Name Version File Size Publish Date Download
    mITX-H61EC_Chipset Driver
    10.1.37.7 4.409 MB 2024-03-30 Download

    User Manuals

  • File Name Version File Size Publish Date Download
    mITX-H61EC user manual
    V10 7.1 MB 2024-03-30 Download

Related Products

mITX-H610E

Mini-ITX with Intel® H610 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR5 memory, PCIe, 6 x COM, 8 x USB, 2 x SATA 6Gb/s

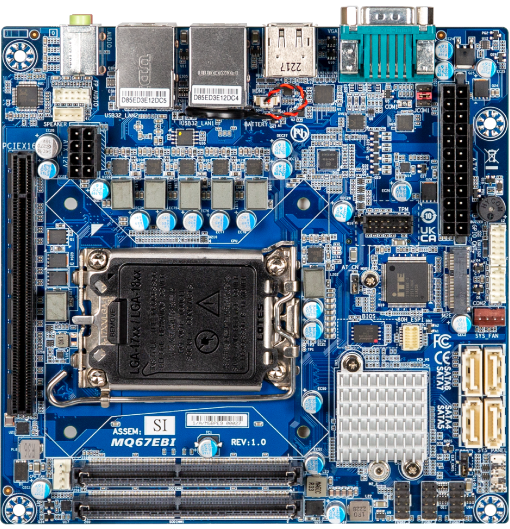

mITX-Q67EB

Mini-ITX with Intel® Q670E Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 4 x SATA 6Gb/s

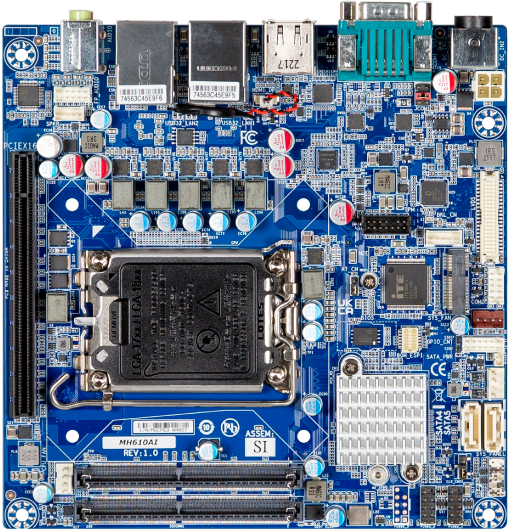

mITX-H610A
