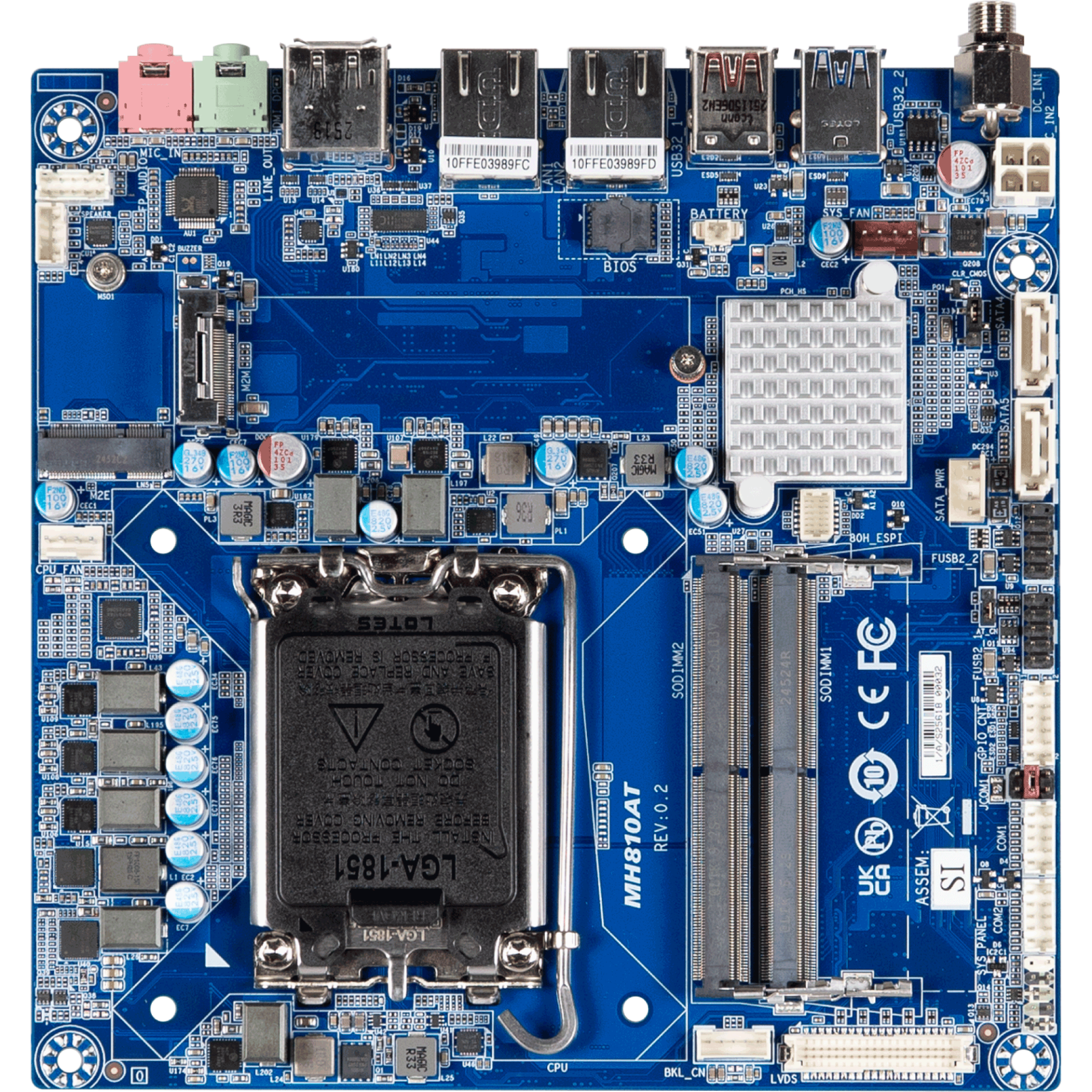

Thin Mini-ITX
iTXL-H810A
- Preliminary
Key Features
Thin Mini-ITX with Intel® H810 Chipset, support Intel® Core™ Ultra processors (Series 2), Dual Channel DDR5 Memory, 2 x COM, 8 x USB, 2 x SATA 6Gb/s
• Thin Mini-ITX form factor
• Support Intel® Core™ Ultra processors (Series 2)
• Intel® H810 Express chipset
• Dual Channel DDR5, 2 x SO-DIMMs/CSO-DIMMs
• 2 x GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• HDMI, Display Port, LVDS ports for Multiple Display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232)
Thin Mini-ITX
iTXL-H810A
Specification
Form Factor
Thin Mini-ITX
170W x 170D (mm)
CPU
Support for Intel® Core™ Ultra Processors (Series 2)
TDP under 65W /35W
Socket
1 x LGA 1851
Chipset
Intel® H810 Chipset
Memory
2 x DDR5 SO-DIMM/CSO-DIMM sockets, Max. Capacity 128 GB
Support Dual channel DDR5 5600/6400 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek RTL8111H)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI 2.0 port
1 x DP port
1 x LVDS port
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)
Internal I/O
1 x 4-pin ATX main power connector
1 x SATA Power connector (5V only)
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
1 x GPIO (8 bits) & SMBus header
4 x USB 2.0 headers
1 x COM header (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x Clear CMOS jumper
1 x Backlight Control header
1 x AT/ATX mode select jumper

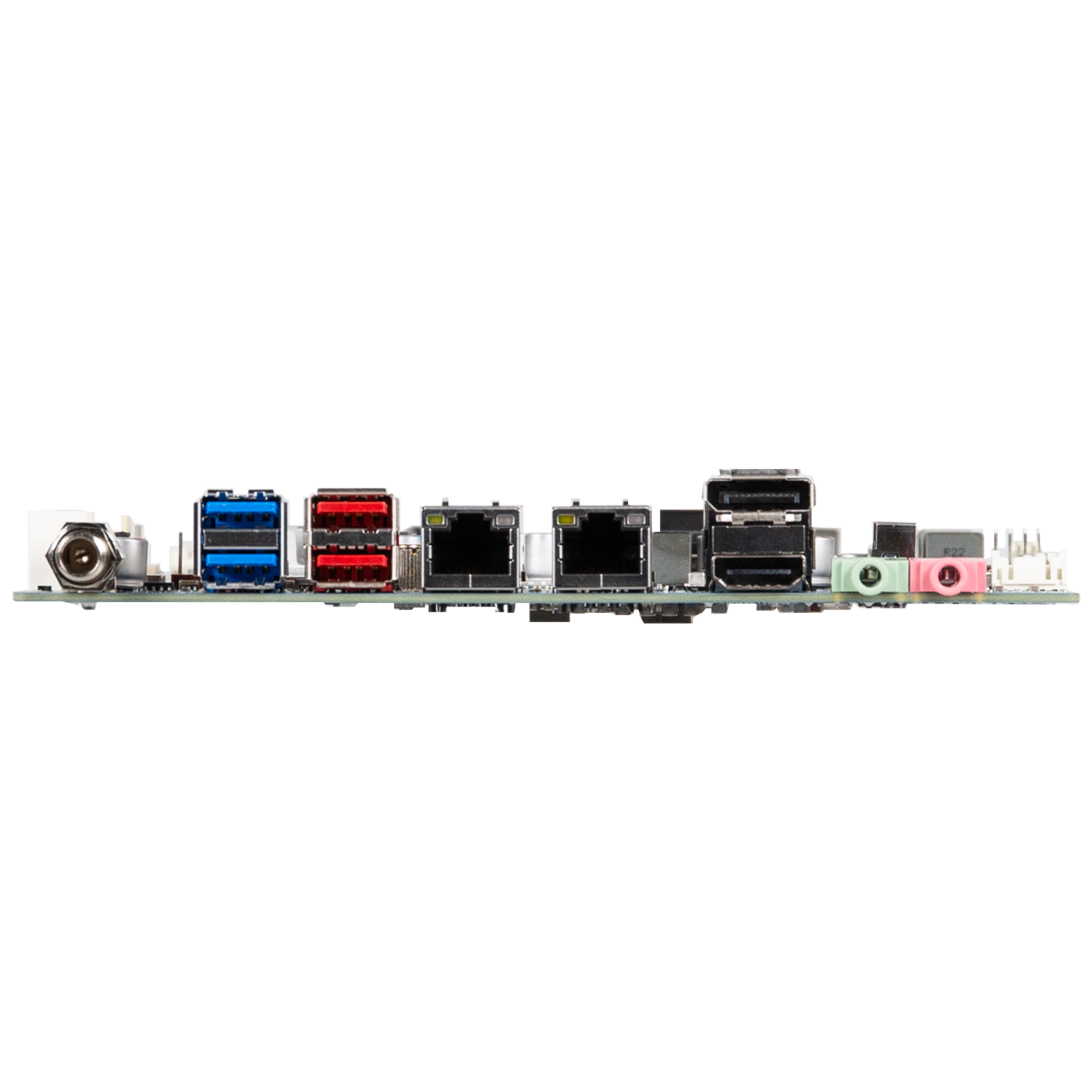

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~24VDC)
TPM
TPM Onboard TPM 2.0 security chip
INFINEON SLB9672VU2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
Standard IO Shield x 1 (P/N: 12AIO-MH610A-00R)
Low-Profile IO Shield x 1 (P/N: 12AIO-MH610A-10R)
SATA Power Cable x 1 (P/N: 25CRI-300B01-K1R)
Order Information
9MH810ATMR-SI (Box Packing)
