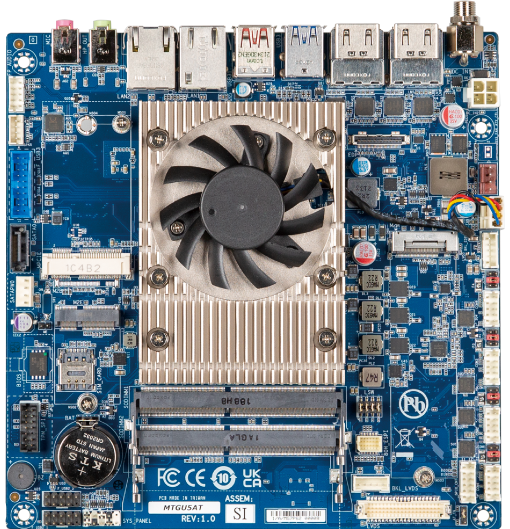

iTXL-1115G4EA-Top iTXL-1115G4EA-IO

Thin Mini-ITX

iTXL-1115G4EA

Key Features

• Thin Mini-ITX form factor
• Intel® Core™ i3-1115G4E Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 1 x 2.5GbE LAN Port
• 1 x SATA 6Gb/s Port
• 4 x COM Ports (RS-232/422/485 & RI/5V/12V)

SHARE
fb_share
linkedin_share
size_module

Data Sheet
handbook_module

User Manual
Add to Compare Add to Inquiry

Thin Mini-ITX

iTXL-1115G4EA

HOME Products Industrial Motherboards Thin Mini-ITX iTXL-1115G4EA
Add to Compare Add to Inquiry

Specification

Form Factor

Thin Mini-ITX
170W x 170D(mm)

CPU

Intel® Core™ i3-1115G4E Processor
10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz
TDP 28W
6 MB Smart Cache

Socket

1 x FCBGA1449

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

1 x GbE LAN Port (Intel® I219V)
1 x 2.5GbE LAN Port (Intel® I226V)

Video

Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz

(4 independent display outputs)

Audio

Realtek® ALC269

Storage

1 x SATA 6Gb/s Port (SATA RAID 0/1)

Expansion Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot
1 x 2230 M.2 E-key

Internal I/O

1 x 4-pin ATX main power connector
1 x SATA Power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
4 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x 2W Speaker out header
1 x Backlight Control header for eDP
1 x Backlight Control header for LVDS
1 x GPIO (8 bits) & SMBus header
1 x Buzzer
1 x AT/ATX mode select jumper

Rear l/O

2 x Audio Jacks (Line out, Mic in)
4 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
1 x DC Jack (+12~24VDC)

TPM

1 x TPM header (SPI)

OS Compatibility

Windows 10/11 (x64)

Operating Properties

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.8kg

Including:
Standard IO Shield x 1 (P/N: 12AIO-MTGU3A-00R)
Low-Profile IO Shield x 1 (P/N: 12AIO-MTGU00-00R)
SATA Power cable x 1 (P/N: 25CRI-300B01-K1R)

Order Information

9MTGU3ATMR-SI (Box Packing)

Optional Kit

TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
