QBiX Jetson Series (NVIDIA Jetson Systems)
QN-ORNX16GH-A1
- New
Key Features
Industrial system with NVIDIA® Jetson Orin NX 16GB, including Ampere GPU + Arm Cortex-A78AE v8.2 64-bit CPU + 16GB LPDDR5
• System Size : 210W x 169.8D x 55.2H (mm)
• NVIDIA® Jetson Orin NX 16GB
• Up to 100 TOPs
• 8 x GbE LAN Ports with PoE 15W/Port
• 2 x GbE LAN Ports
• Fan-Less system
• AI, NVR, Surveillance Application
QBiX Jetson Series (NVIDIA Jetson Systems)
QN-ORNX16GH-A1
Specification
Dimension
210W x 169.8D x 55.2H (mm)
AI Accelerator
NVIDIA® Jetson Orin™ NX
Jetson Orin NX 16GB
AI Performance
Up to 100 TOPs
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
GPU
NVIDIA® Ampere™ architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
Memory
16GB 128-bit LPDDR5 DRAM (Module)
Ethernet
8 x GbE LAN Ports with PoE 15W/Port, IEEE802.3af compliant, Total 120W
2 x GbE LAN Ports
Display output
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @ 60Hz
Storage
1 x SATA 6Gb/s (Swappable 2.5" HDD/SSD)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen4x1) for SSD
1 x 3052 M.2 B-Key for 4G/5G card (USB3 only)
1 x 2230 M.2 E-Key
1 x Mini PCIe slot
1 x SIM slot

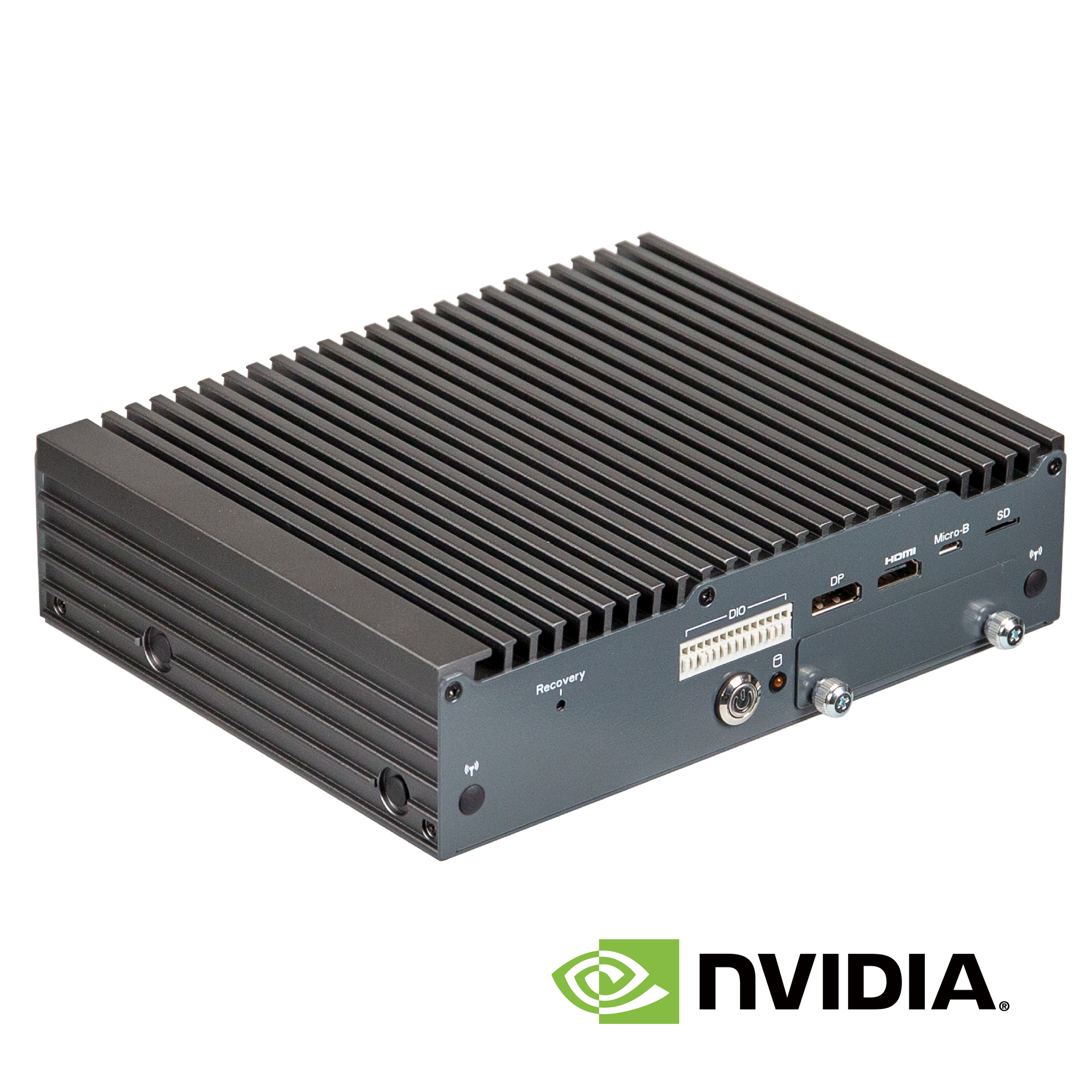

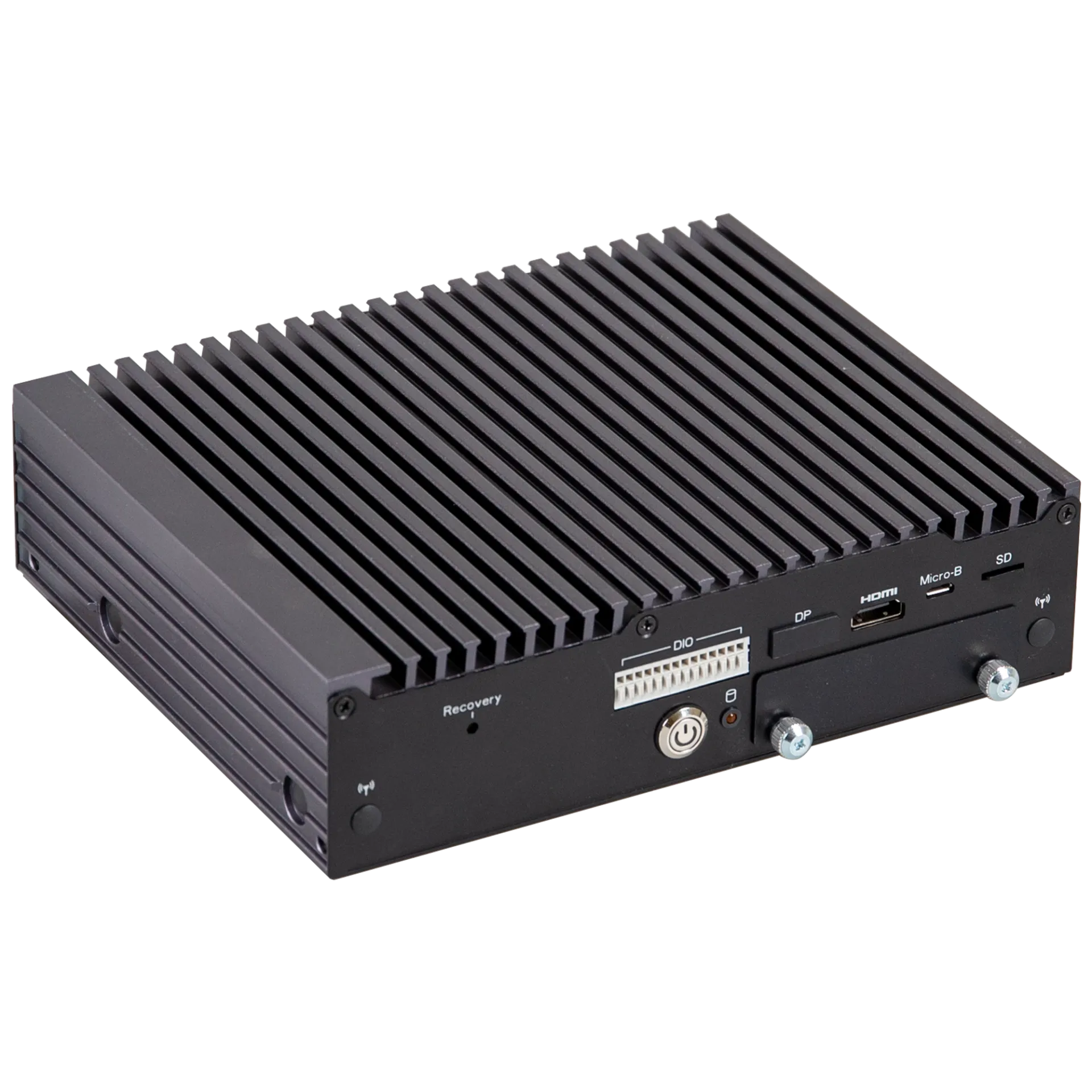

Front I/O
1 x Power button with LED
1 x HDD LED
1 x GPIO (12 bits)
1 x HDMI
1 x USB 2.0 Type Micro B
1 x Recovery button
2 x External Antenna Holes (Optional)

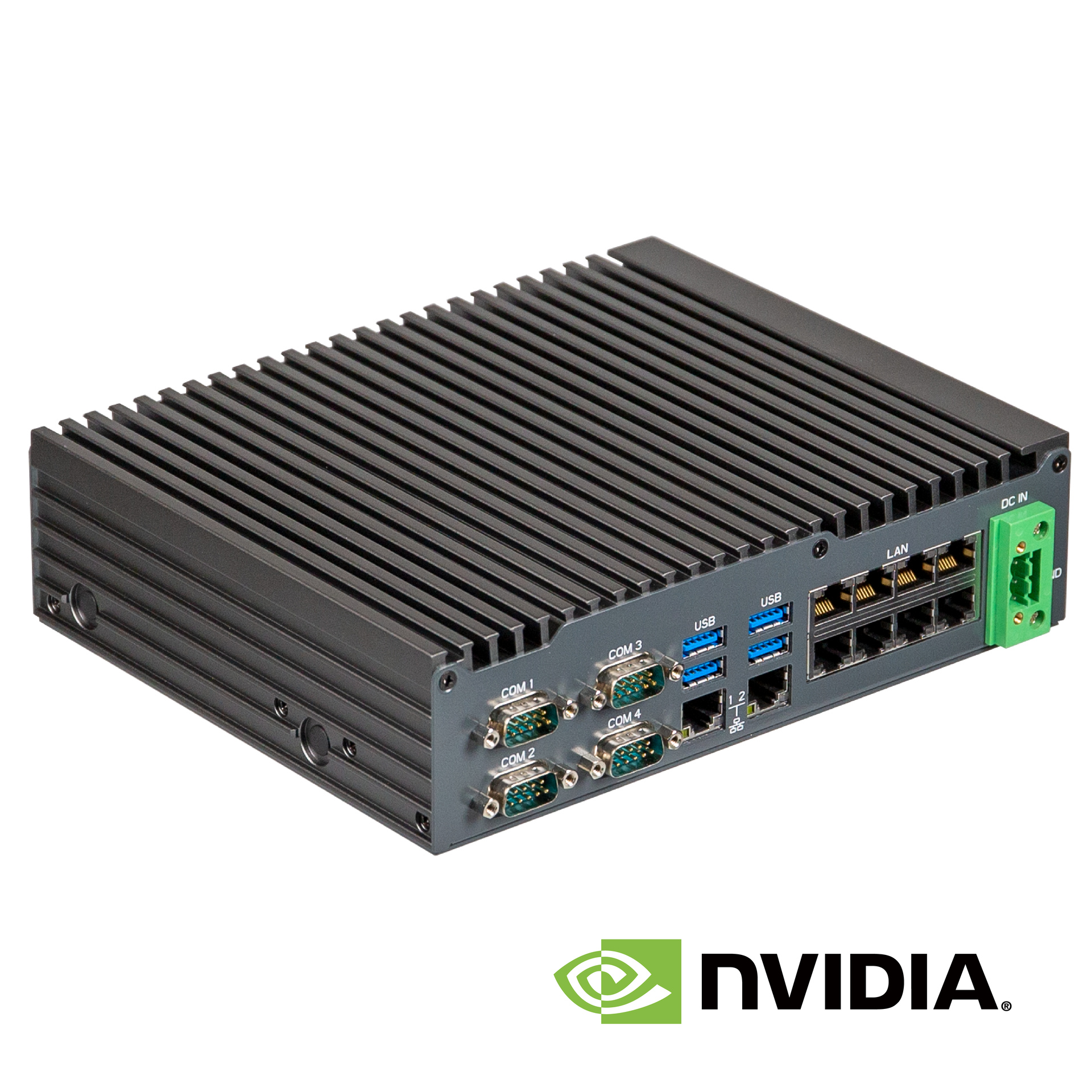

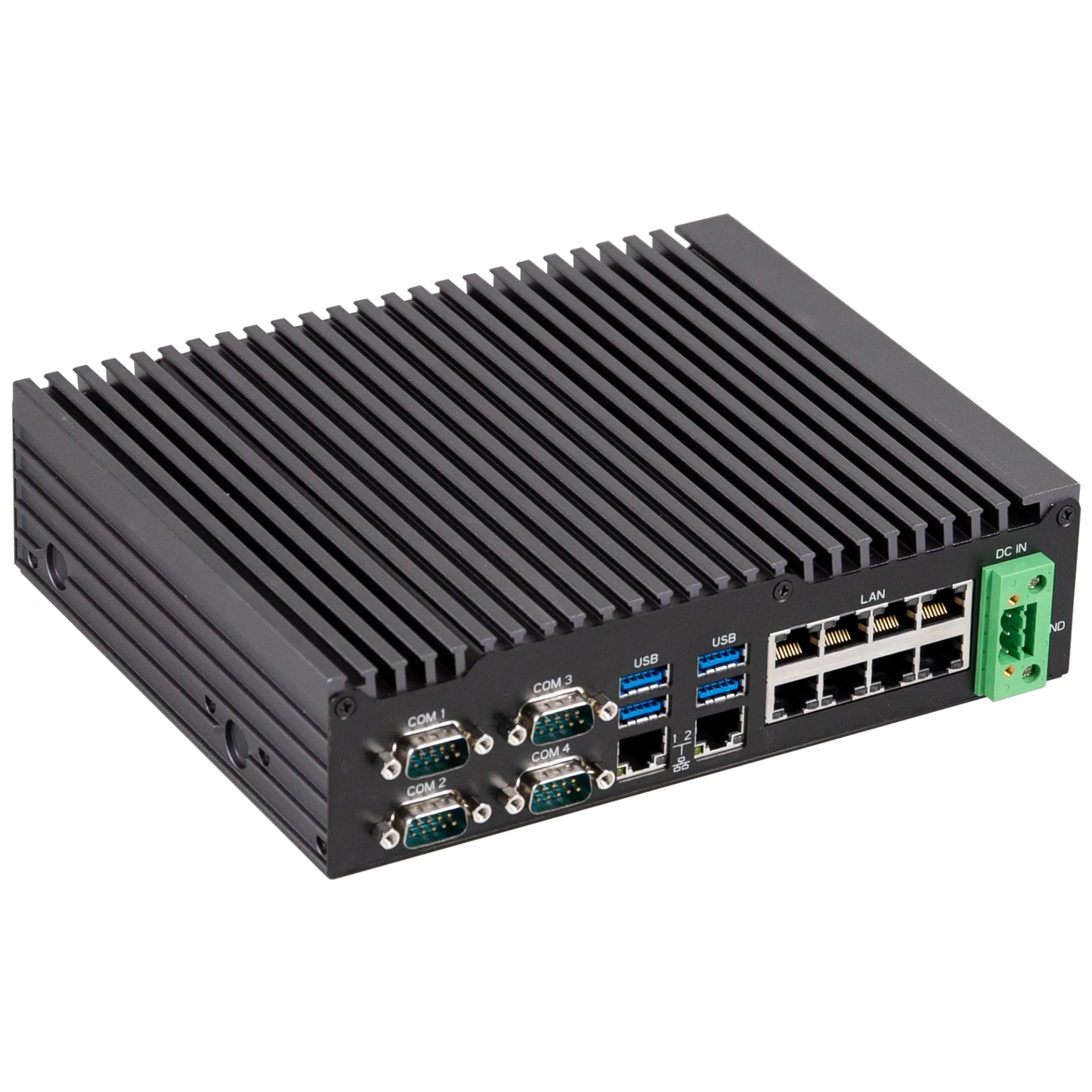

Rear l/O
4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 1
8 x GbE LAN Ports with PoE 15W/Port
2 x GbE LAN Ports
1 x 3-pin Terminal Block
Side I/O
4 x External Antenna Holes (Optional)
Power
+54VDC (PoE support)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 70°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 70°C @ 95% (non-condensing)
Use wide temperature range storage
Packing Content
Carton size: 528 x 303 x 353 (mm)
Packing Capacity: 4pcs
Single Box size: 316 x 281 x 125 (mm)
Single Box weight: Approx. 3kg
Including:
54V/180W Adapter x 1 (P/N: 25EP4-101807-F3S)
Power Cord: Optional (by region)
Screw for 2.5" HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00)
Order Information
9BQNORNXCMR-SI (Box packing)
(Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com)
-
