QBiX Jetson Series (NVIDIA Jetson Systems)
QN-ORAX64-A1
- Preliminary
Key Features
AI system with NVIDIA® Jetson AGX Orin 64GB
• System Size : 175W x 145D x 85H (mm)
• NVIDIA® Jetson AGX Orin™, up to 275 TOPS
• 64GB 256-bit LPDDR5
• AI, NVR, surveilance application
• Fanless system
QBiX Jetson Series (NVIDIA Jetson Systems)
QN-ORAX64-A1
Specification
Dimension
175W x 145D x 85H (mm)
AI Accelerator
NVIDIA® Jetson AGX Orin 64GB
AI Performance
Up to 275 TOPs
CPU
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3
GPU
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
Memory
64GB 256-bit LPDDR5
204.8GB/s
Ethernet
1 x GbE RTL8211F-CG
1 x GbE PCIE RTL8111H
4 x (PCIe) 10/100/1000Mbps Ethernets
(Optional 2 Ports PoE support) - RTL8111H
(POE_PSE min : Total 30W, 2 Ports x 15W)
Display output
1 x HDMI 2.0 port
Storage
1 x 64G eMMC 5.1 (Module)
2 x 2280 M.2 M-Key (SATA or PCIe Gen4)
Expansion-Slots
2 x 2280 M.2 M-Key (PCIe x4)
1 x 3052/3042 M.2 B-Key for 5G/LTE (USB 3.2 Gen 2 only)
1 x 2230 M.2 E-Key for WiFi 5/6
1 x M.2 - OOB module (optional)

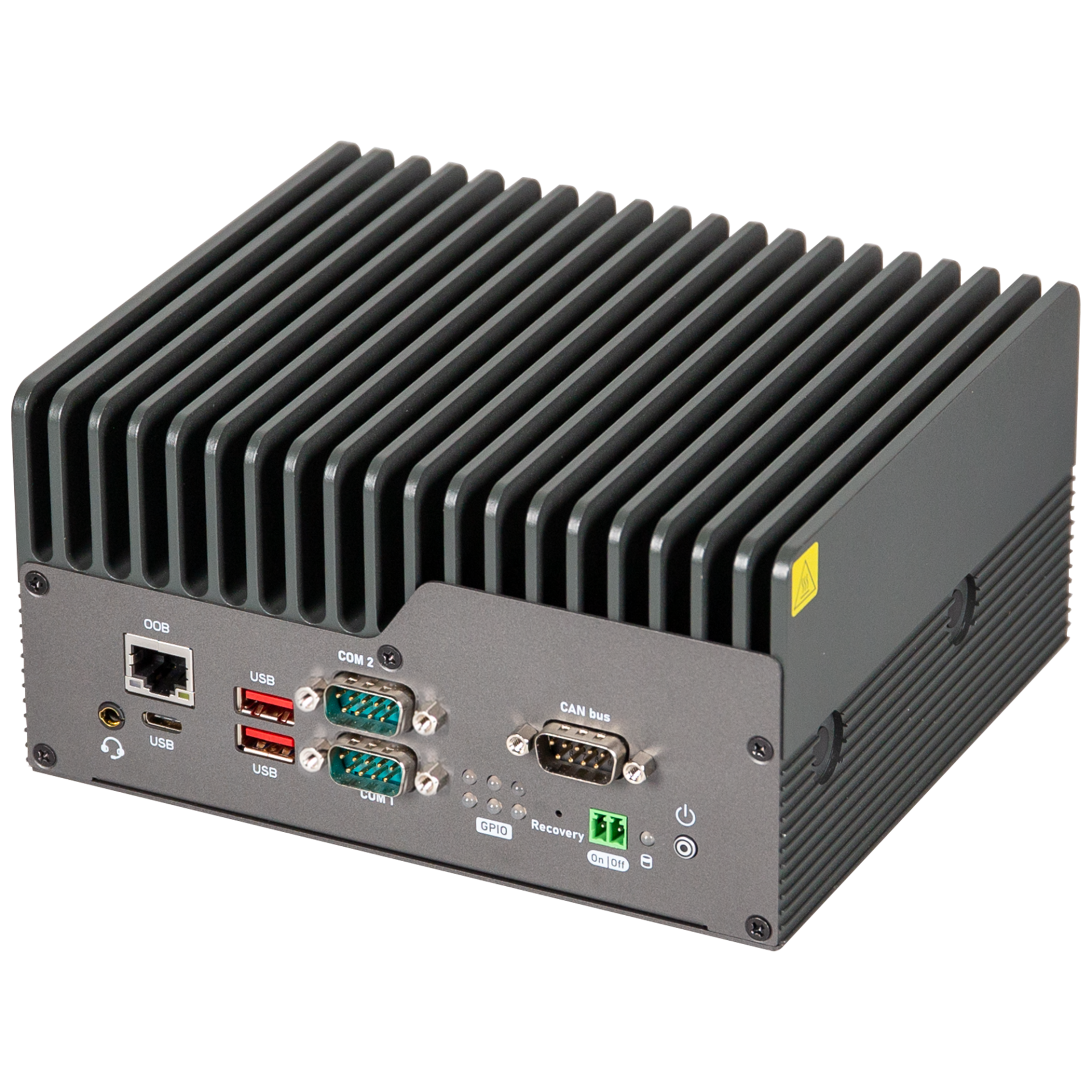

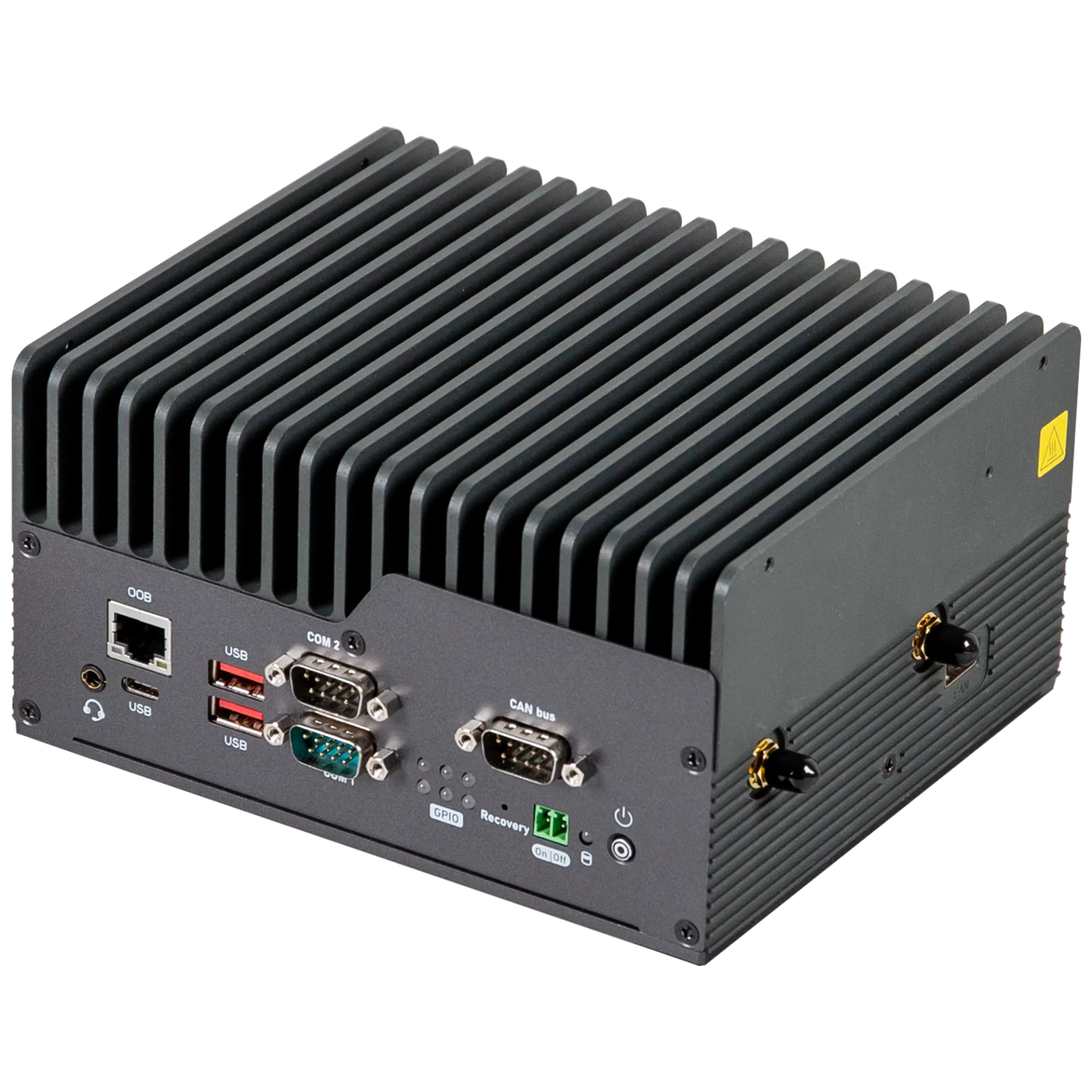

Front I/O
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 Type-C (OTG)
1 x Mic-in (Mono), line-out (Stereo)
1 x Power/reset button
2 x External Antenna Holes (Optional)
1 x Remote control header
2 x COM Ports (RS-232/422/485)

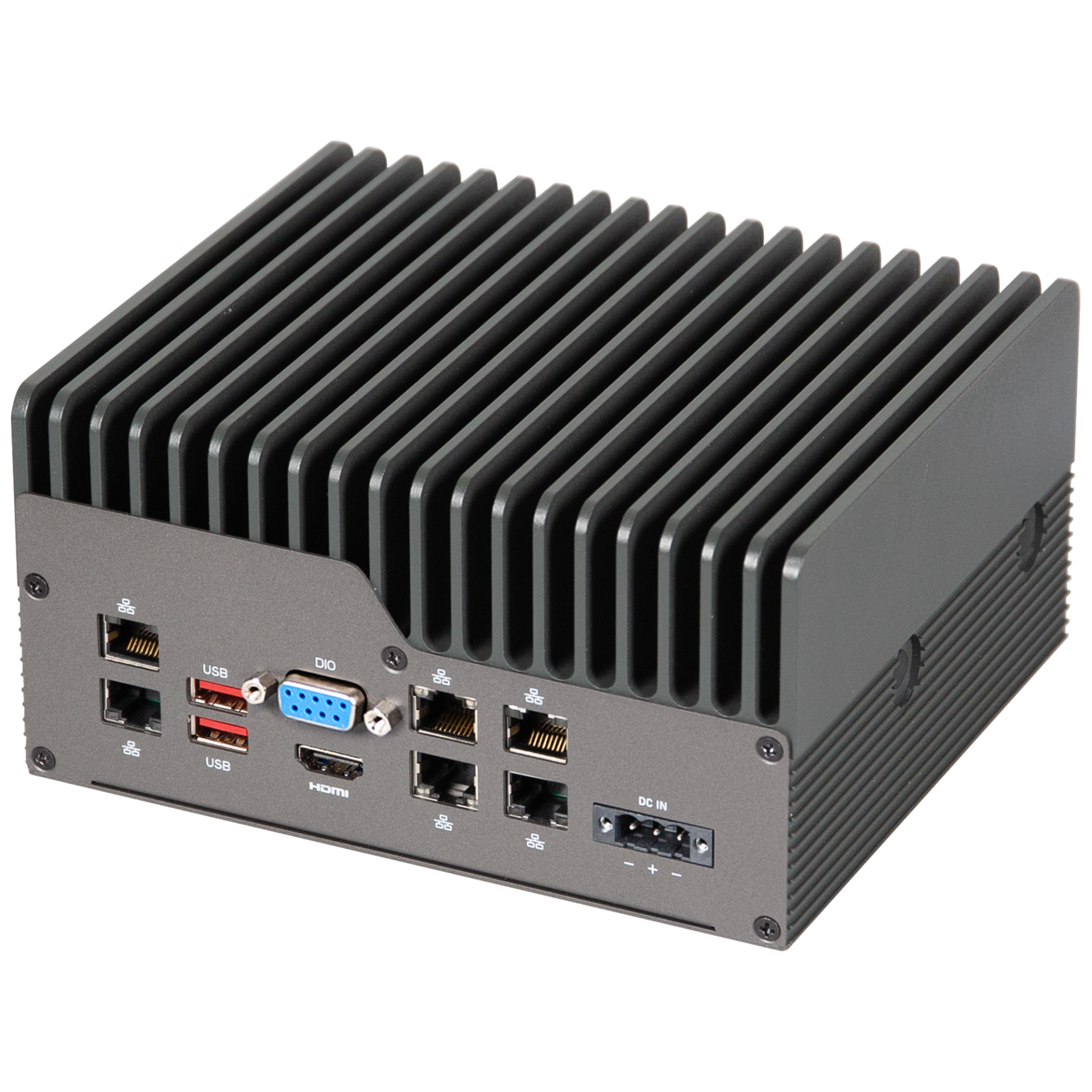

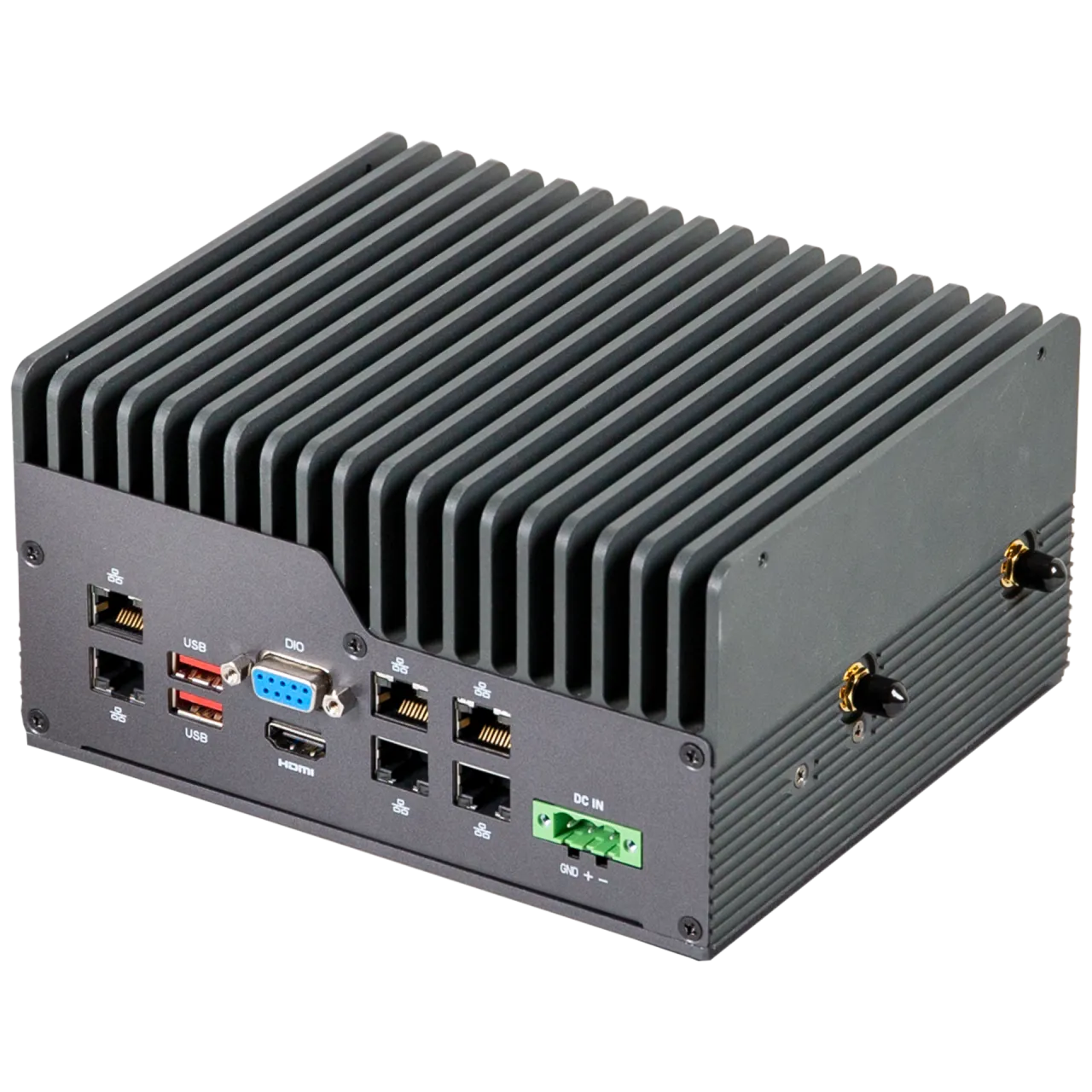

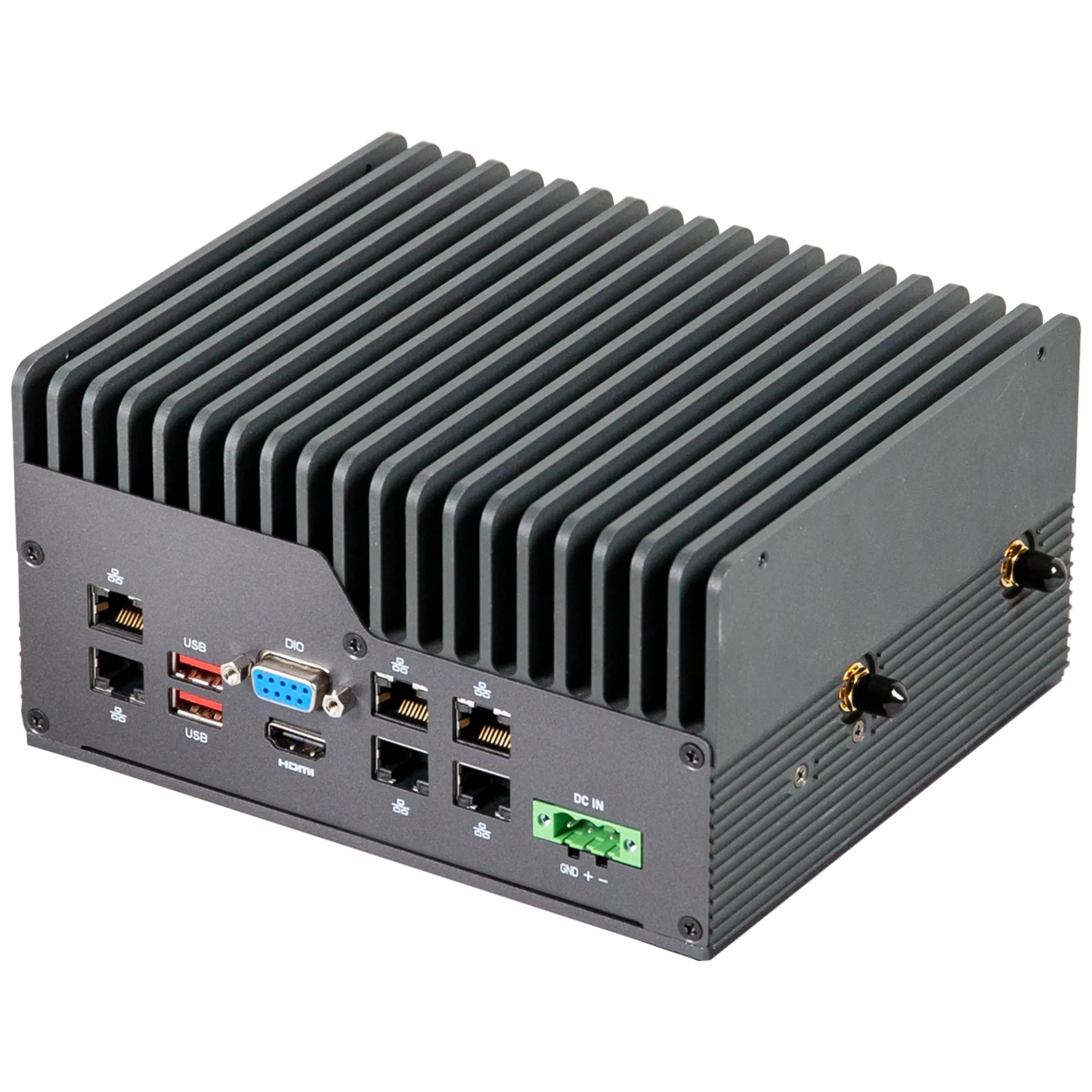

Rear l/O
2 x COM Ports (RS-232/422/485)
1 x 3-pin Terminal Block
1 x CANBus 2.0b, isolated (DB9)
6 x user defined LEDs (GPIO for user programming)
2 x GbE LAN Ports
4 x GbE LAN Ports (Support POE)
1 x HDMI
2 x USB 3.2 Gen 2
Side I/O
4 x External Antenna Holes (Optional)
Power
+19V~24VDC (Terminal Block)
Operation Temperature
Operating temperature: -20°C to 60°C
Order Information
9BQNORAXBMR-SI (Box packing)
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
