QBiX Mini Series (PICO Embedded Systems)
QM-G700A
- New
Key Features
Fanless Industrial system including PICO size board with MediaTek Genio 700/ Fanless Design/ Onboard 8GB LPDDR4x / 1 x HDMI
• System Size : 112W x 75.5D x 30.55H (mm)
• MediaTek Genio 700 (MT8390)
• Onboard 8GB LPDDR4x
• eMMC 64GB
• Fanless design
• Operating Temp. -20°C to 60°C
QBiX Mini Series (PICO Embedded Systems)
QM-G700A
Specification
Dimension
112W x 75.5D x 30.55H (mm)
CPU
MediaTek Genio 700 (MT8390)
2 x Arm Cortex-A78, 2.2GHz
6 x Arm Cortex-A55, 2.0GHz
AI Inference Computing Power
MediaTek 5th-Gen NPU 4.0 TOPS
(1x MDLA3.0 + 1x Tensilica VP6)
Memory
Onboard 8GB LPDDR4x
Ethernet
Realtek® RTL8211F-CG (10/100/1000 Mbps)
Graphics Support
Arm Mali-G57 MC3 GPU, Support OpenGL ES 1.1/2.0/3.2, and Vulkan 1.0/1.1 :
1 x HDMI 2.0, supporting a maximum resolution of 4096x2160 @60Hz (Android only 1920x1200 @60Hz)
Audio
MT6365 (Integrated)
Storage
eMMC v5.1 64GB (on board)
Expansion-Slots
1 x 2230 M.2 E-key slot (PCIe x1, USB2.0), supports WiFi6 : Azurewave AWXB468NF (IC:MT7921L)
1 x 3052 M.2 B-Key slot (USB3.0), supports 5G : QUECTEL RM500K-CN / RM520N-GL
Front I/O
1 x Micro SD Slot
2 x External Antenna Holes (Optional)

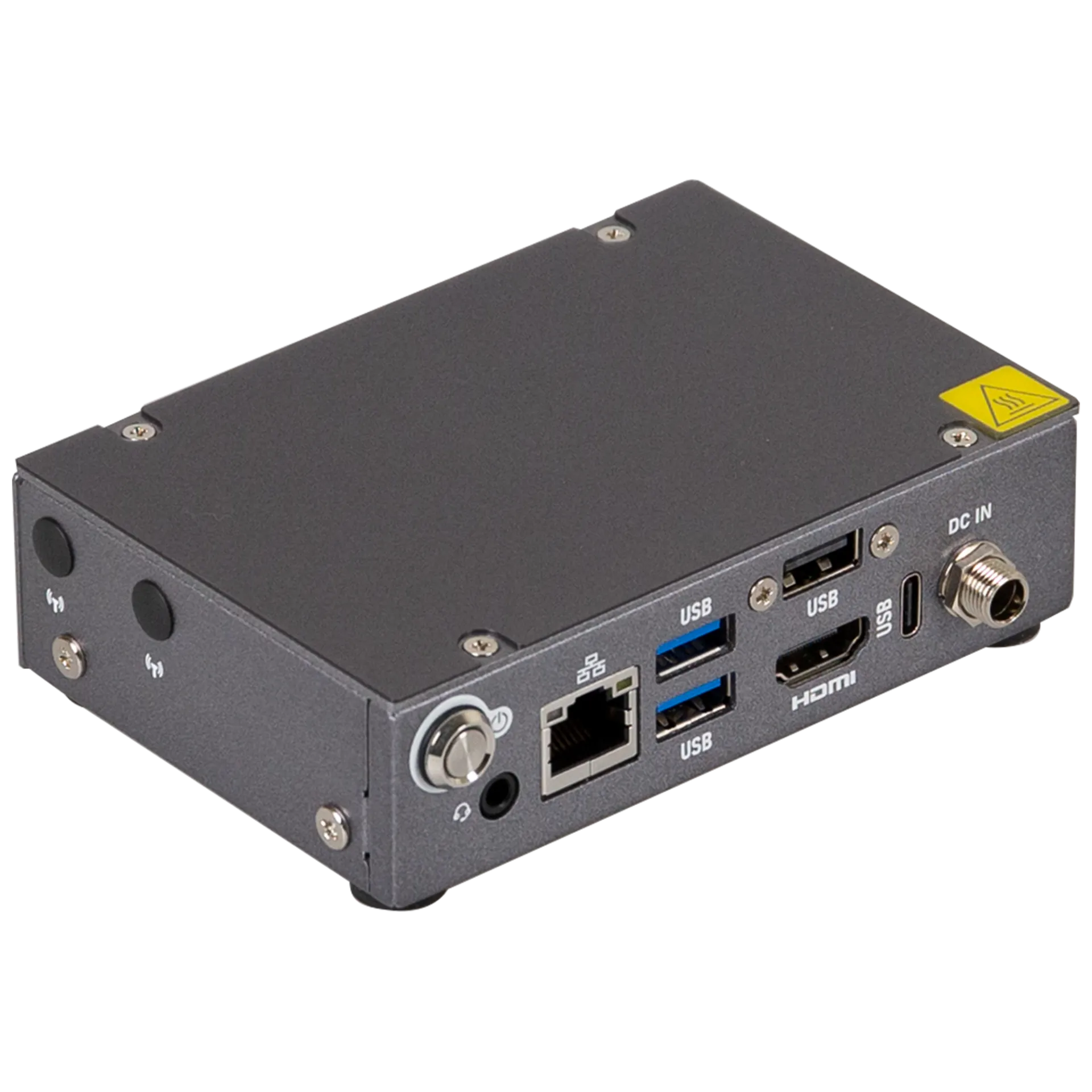

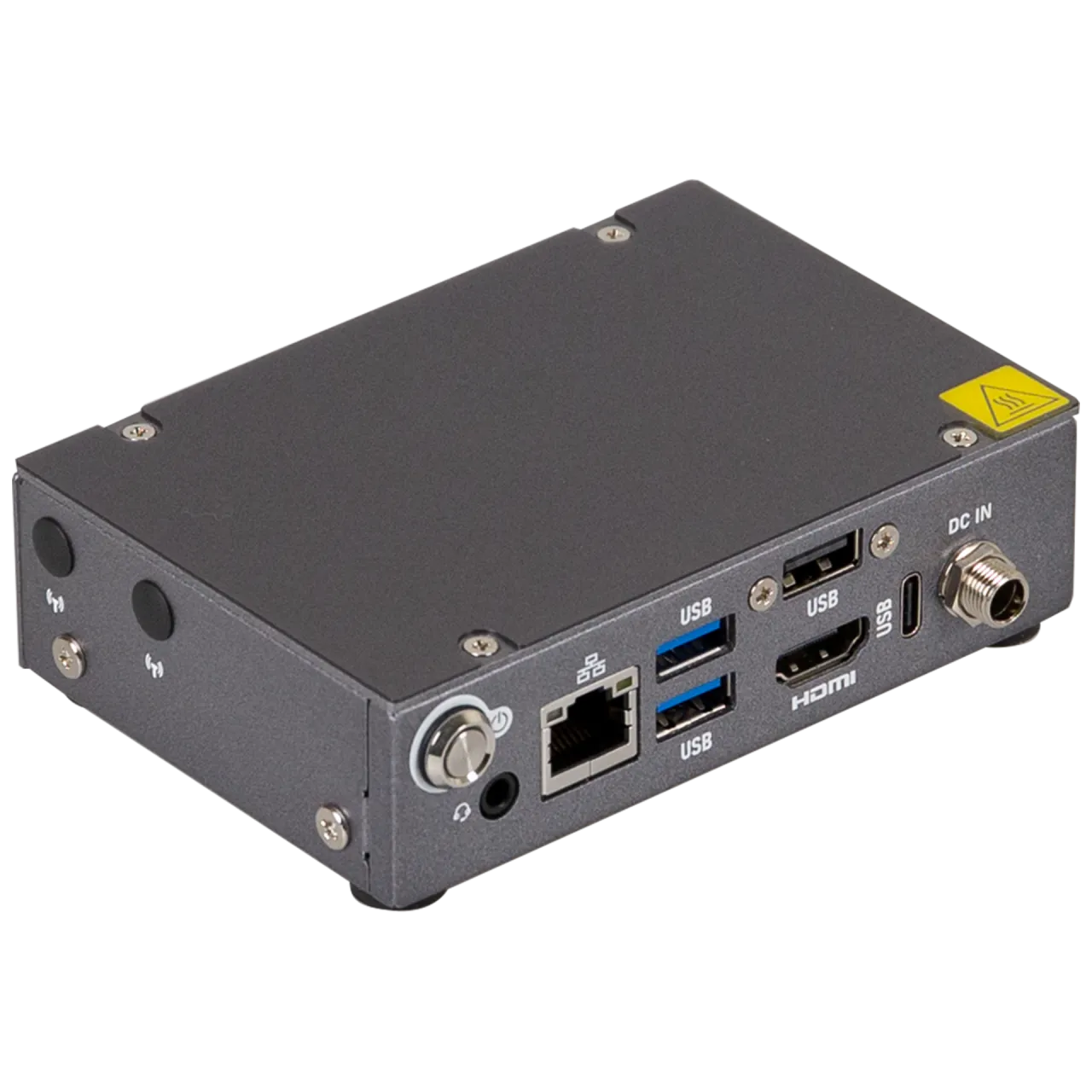

Rear l/O
1 x Power button with LED
1 x Combo audio jack (Headphone & Headset)
1 x RJ45 LAN Port
2 x USB 3.0 Ports (Host)
1 x USB 2.0 Port
1 x USB Type C (OTG)
1 x HDMI
1 x Screw Type DC Jack

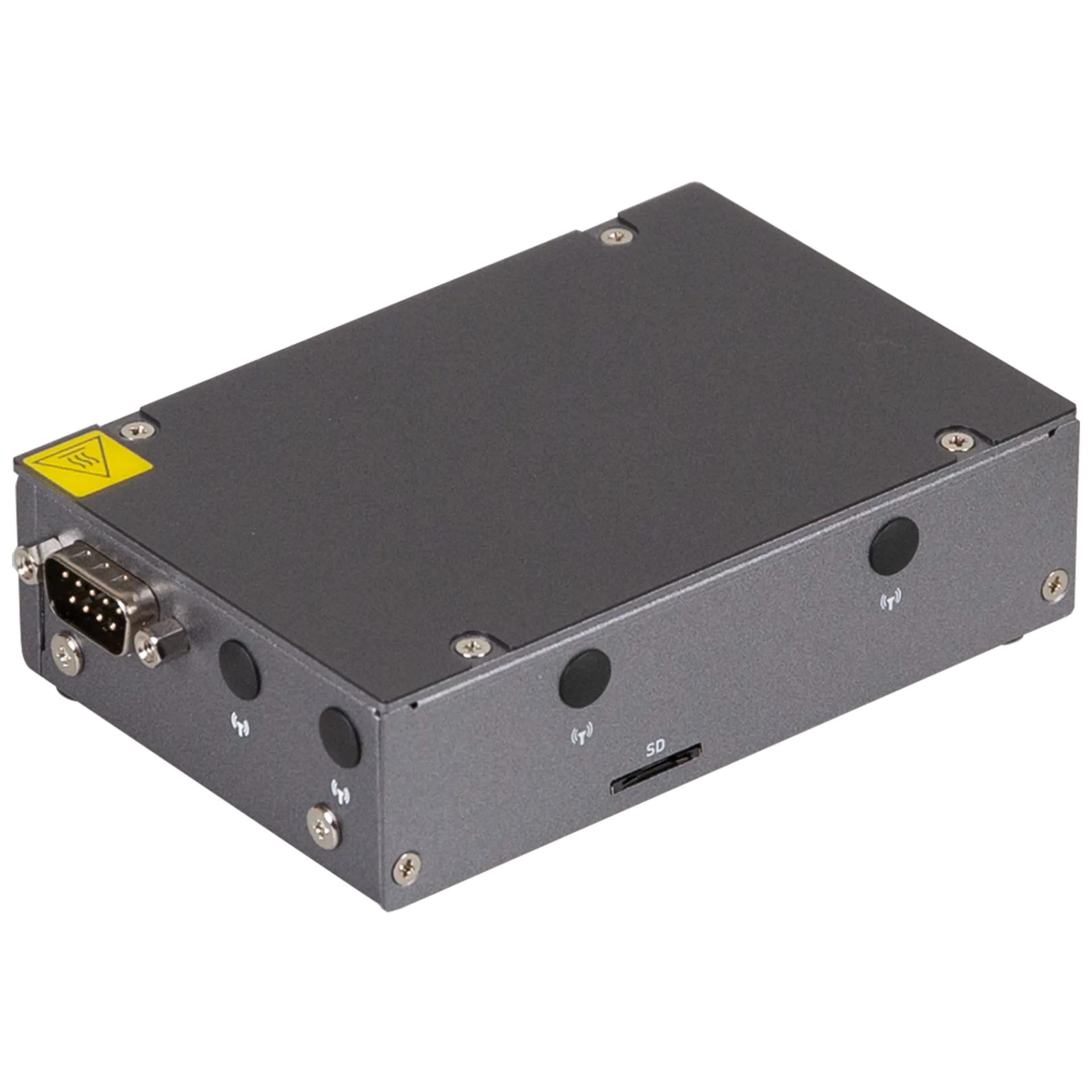

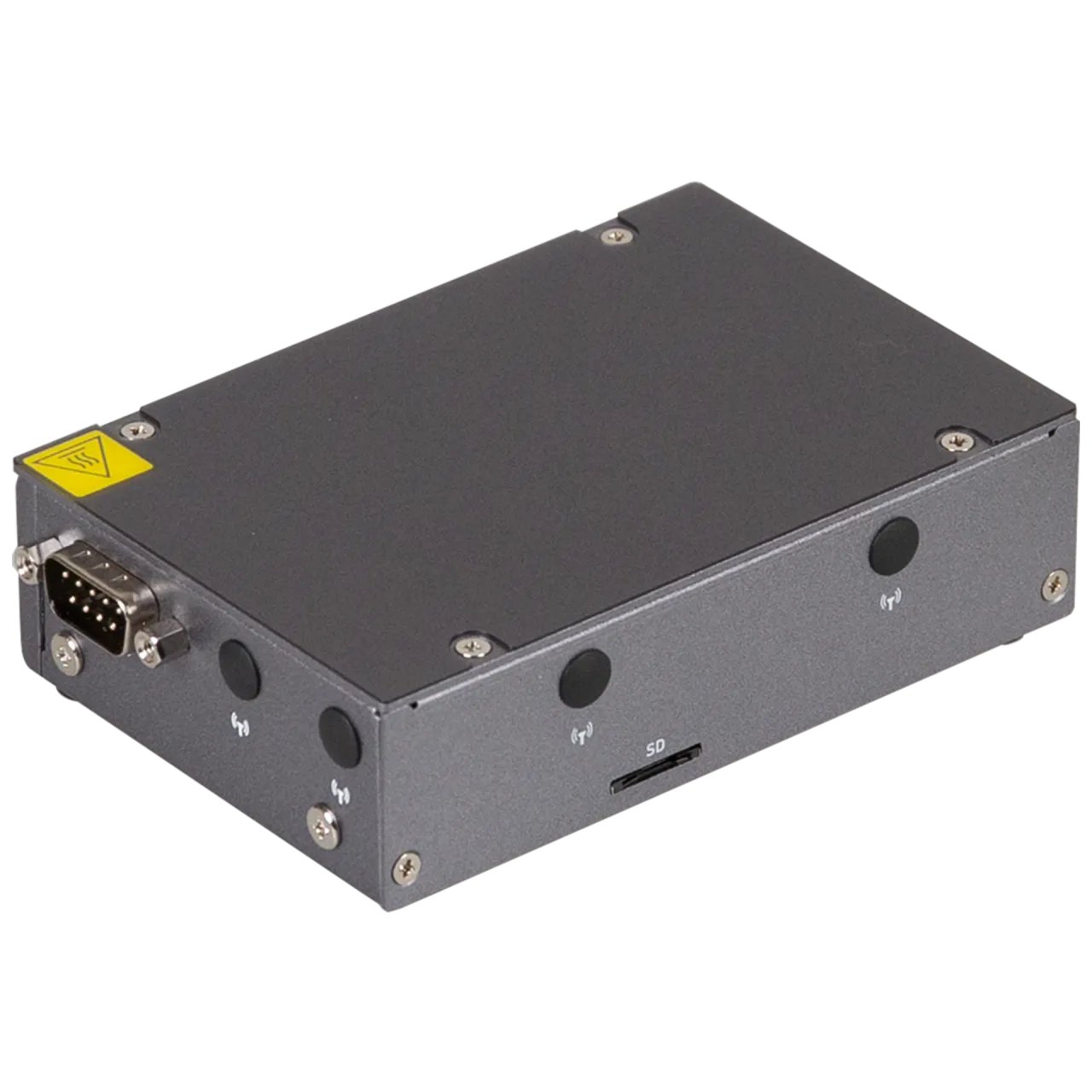

Side I/O
1 x GPIO (8 bits)
4 x External Antenna Holes (Optional)
Power
+12~24VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: -20°C to 60°C
Operating humidity: 40°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 60°C @ 95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-29, 50 G, half sine, 11 ms duration
OS Compatibility
Yocto 24.1
Ubuntu 22.04
Android 13 (by demand)
Packing Content
Carton size: 360 x 306 x 220 (mm)
Packing Capacity: 5
Single Box size: 286 x 178 x 66 (mm)
Single Box weight: Approx. 1.0kg
Including:
Power Cord: Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP0-1065W1-A3S)
Wall mount bracket x 2 (P/N:25HBA-G70020-U2R)
Order Information
9BQMG700AMR-SI (Box packing)
Remark
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
-
