QBiX Mini Series (PICO Embedded Systems)
QM-7433REA-A1
- New
Key Features

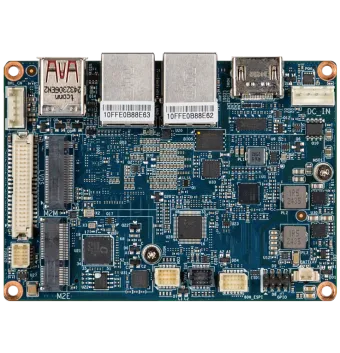

Fanless Industrial system including PICO size board with Intel® Atom x7433RE/ Fanless Design/ Single Channel DDR5 up to 16GB/ 1 x HDMI
• System Size : 120W x 80D x 52H(mm)
• Intel® Atom x7433RE Processor
• Single Channel DDR5, 1 x SO-DIMM
• 1 x COM Port (RS-232/422/485)
• 1 x GPIO (4-bits)
• 2 x GbE LAN Ports
• Fanless design
• Operating Temp. -20°C to 70°C
QBiX Mini Series (PICO Embedded Systems)
QM-7433REA-A1
Specification
Dimension
120W x 80D x 52H (mm)
CPU
Intel® Atom™ x7433RE Processor
Intel 7, 4 cores, up to 3.40 GHz
Memory
1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek RTL8111H)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen3x2)
1 x 2230 M.2 E-Key

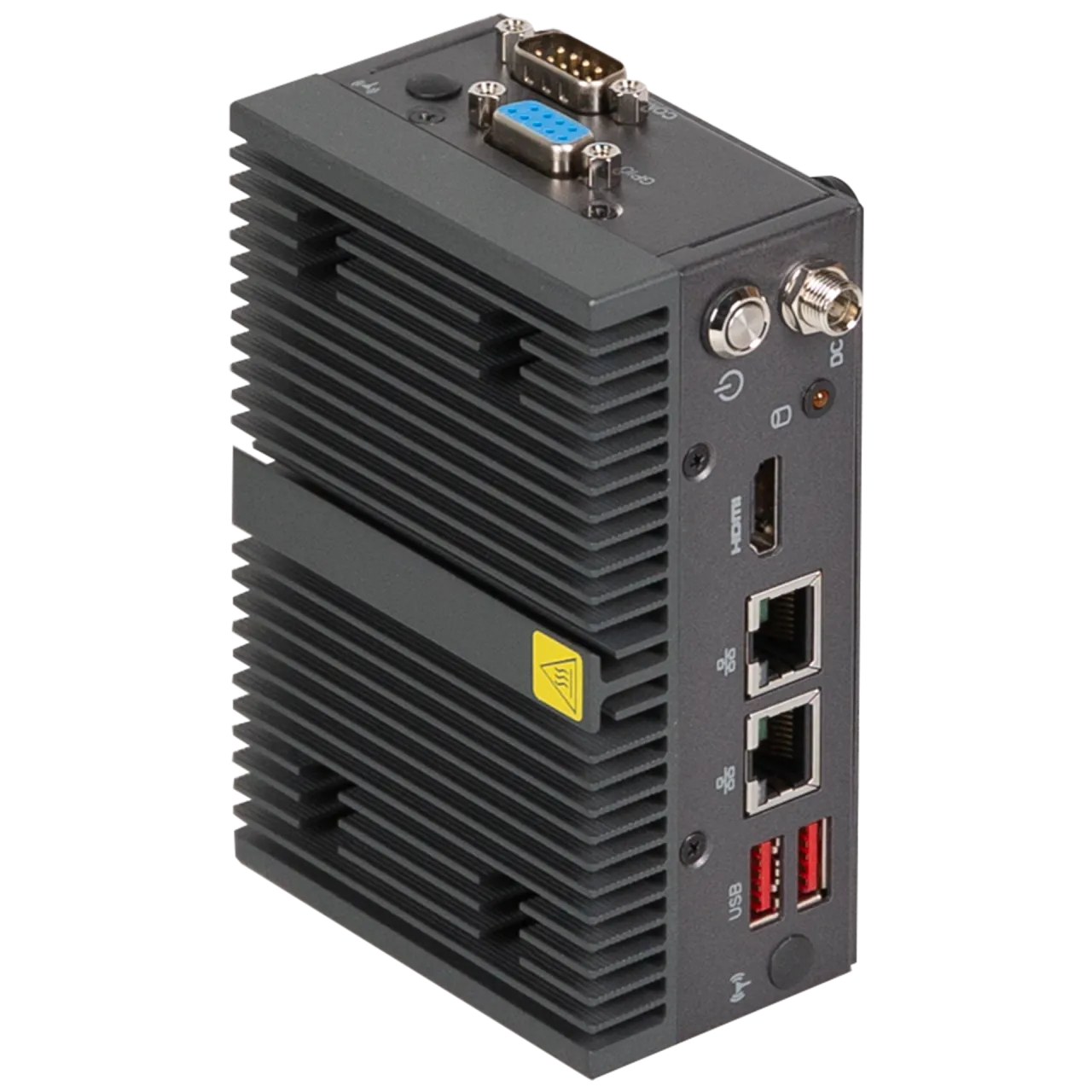

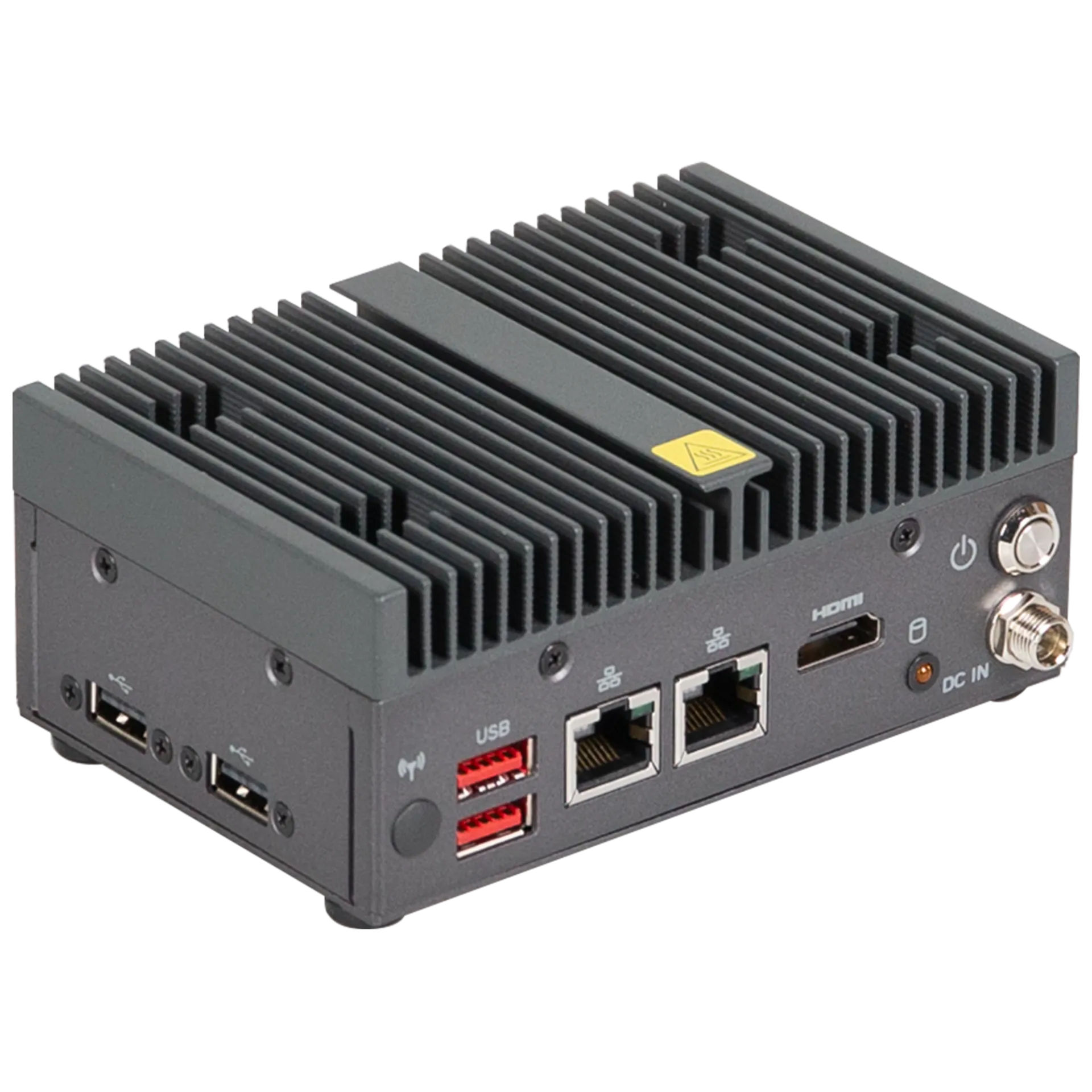

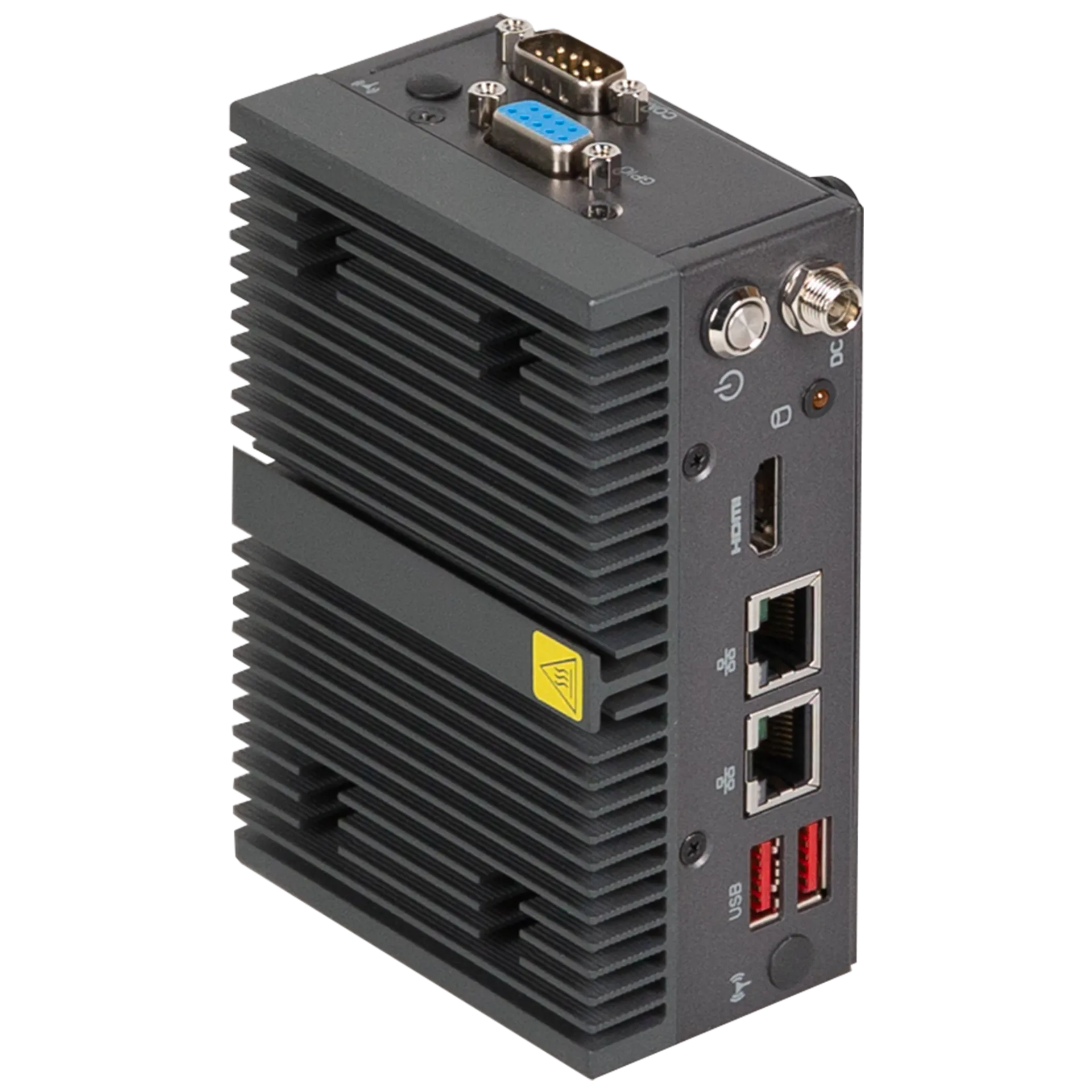

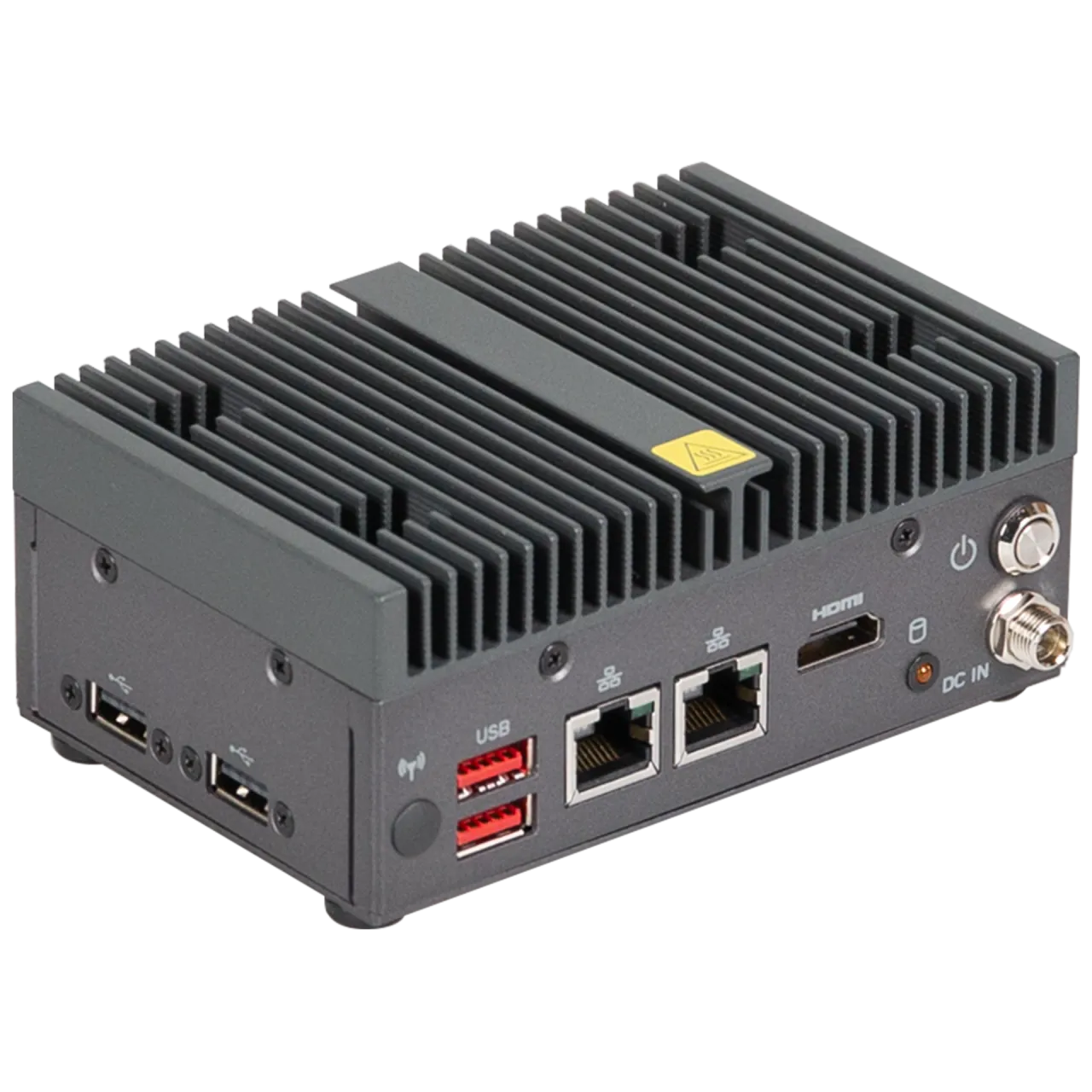

Front I/O
2 x RJ45 LAN Ports
1 x USB 3.2 Gen 2x1
1 x USB 3.2 Gen 1
1 x HDMI
1 x DC IN
1 x Power button
1 x HDD LED
1 x External Antenna Hole (Optional)

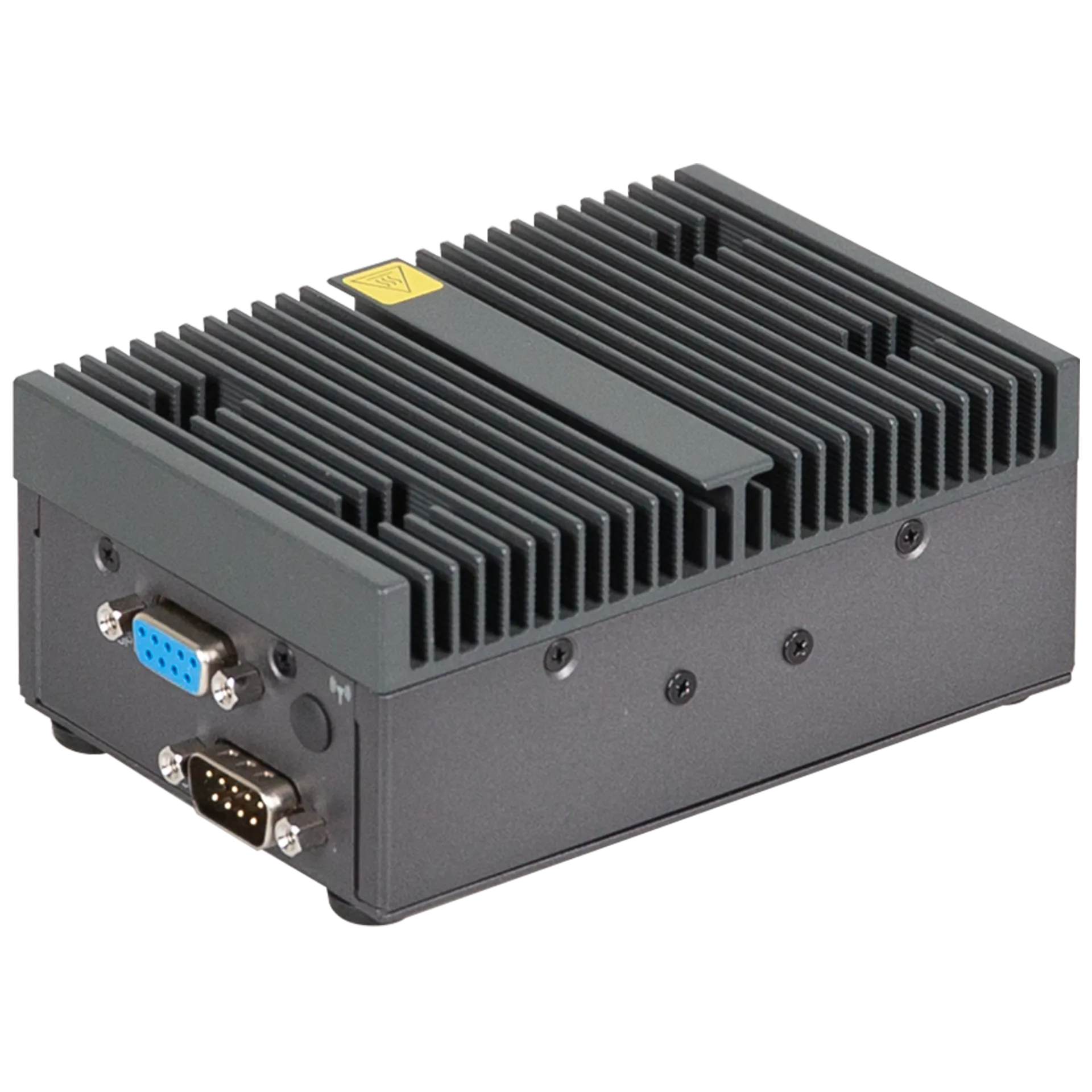

Side I/O
2 x USB 2.0
1 x COM Port (RS-232/422/485)
1 x GPIO (4 bits)
1 x External Antenna Hole (Optional)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
Power
+12VDC (Adapter 12V/48W)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 40°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 60°C @ 95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-29, 50 G, half sine, 11 ms duration
Packing Content
Carton size: 360 x 306 x 220 (mm)
Packing Capacity: 5
Single Box size: 286 x 178 x 66 (mm)
Single Box weight: Approx. 1.0kg
Including:
Power Cord : Optional (by region)
PSU ADP 12V 48W x 1 (P/N: 25EP0-700480-A3S)
Mounting
Wall mount P/N: 25HB4-743320-A8R x 2 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 12SZ-000001-00R x 1 (Screw) (Optional)
Order Information
6BQM7433AMR-SI (Box packing)
(Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com)
