QBiX Pro Series (3.5" Embedded Systems)

QBiX-Pro-RPLA1315EH-A2

Key Features

Industrial system with Intel® Core™ i3-1315UE Processor/ Fanless Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI



• System Size : 178W x 125D x 52.7H (mm)
• Intel® Core™ i3-1315UE Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 2 x 2.5GbE LAN Ports

SHARE
fb_share
linkedin_share

Specification

Dimension

178W x 125D x 52.7H(mm)

CPU

Intel® Core™ i3-1315UE Processor
Intel® 7, 6 cores, 2P+4E, 8 threads, up to 4.5 GHz

Chipset

SoC

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x 2.5GbE LAN Ports (Intel® I226V)

Graphics Support

Integrated Graphics Processor - Intel® UHD Graphics for 13th Gen. Intel® Processors:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® ALC269

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot

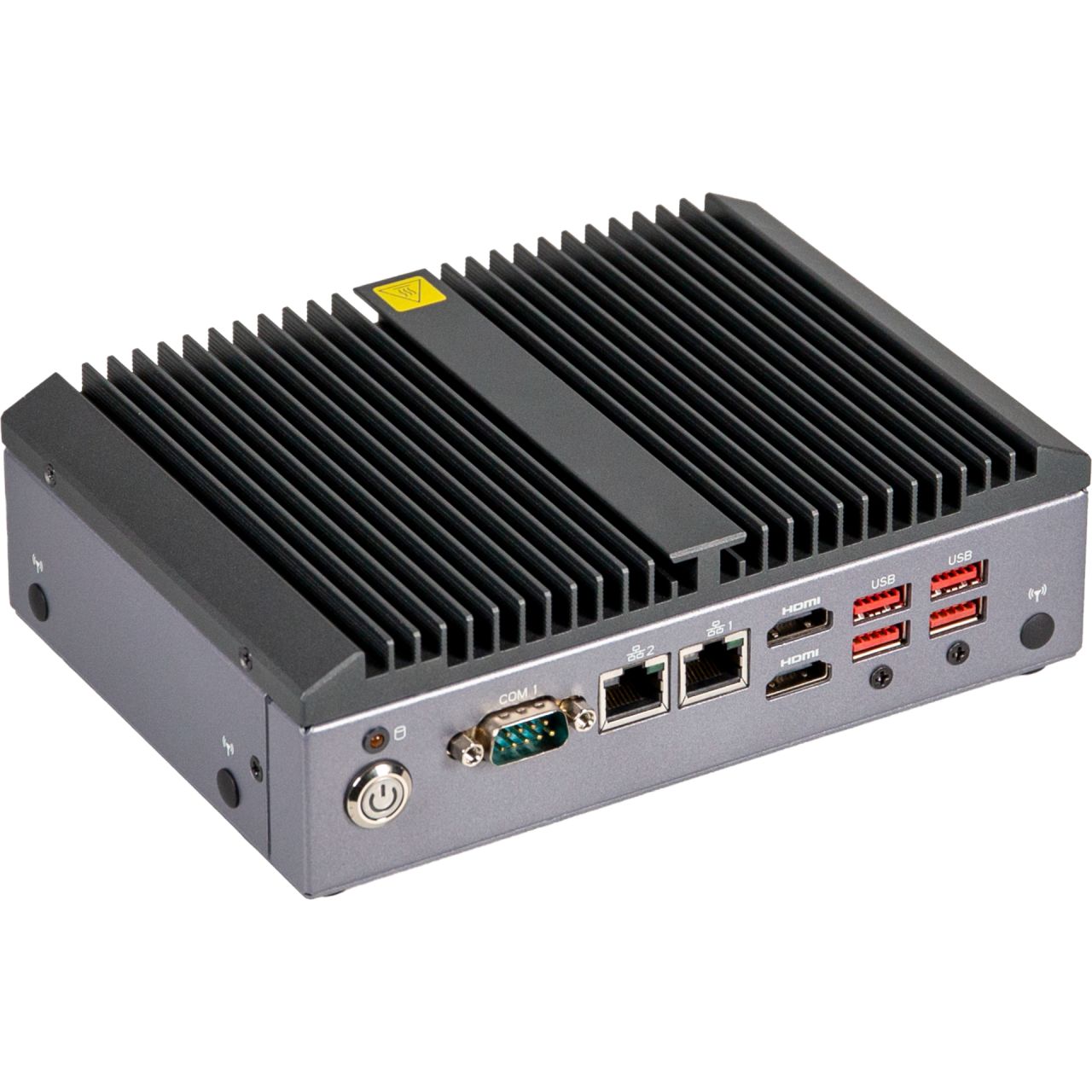

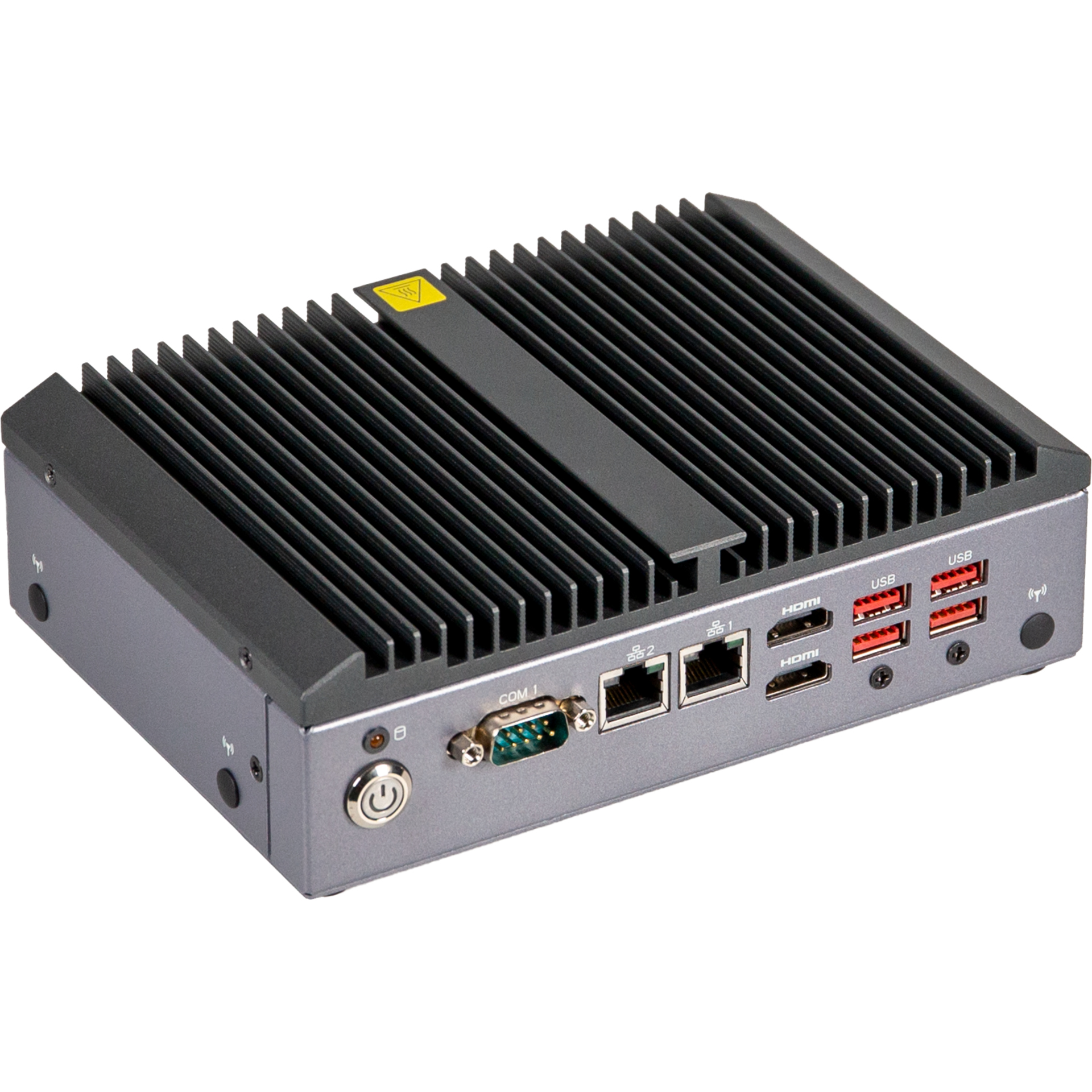

Front I/O

2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x External Antenna Hole (Optional)

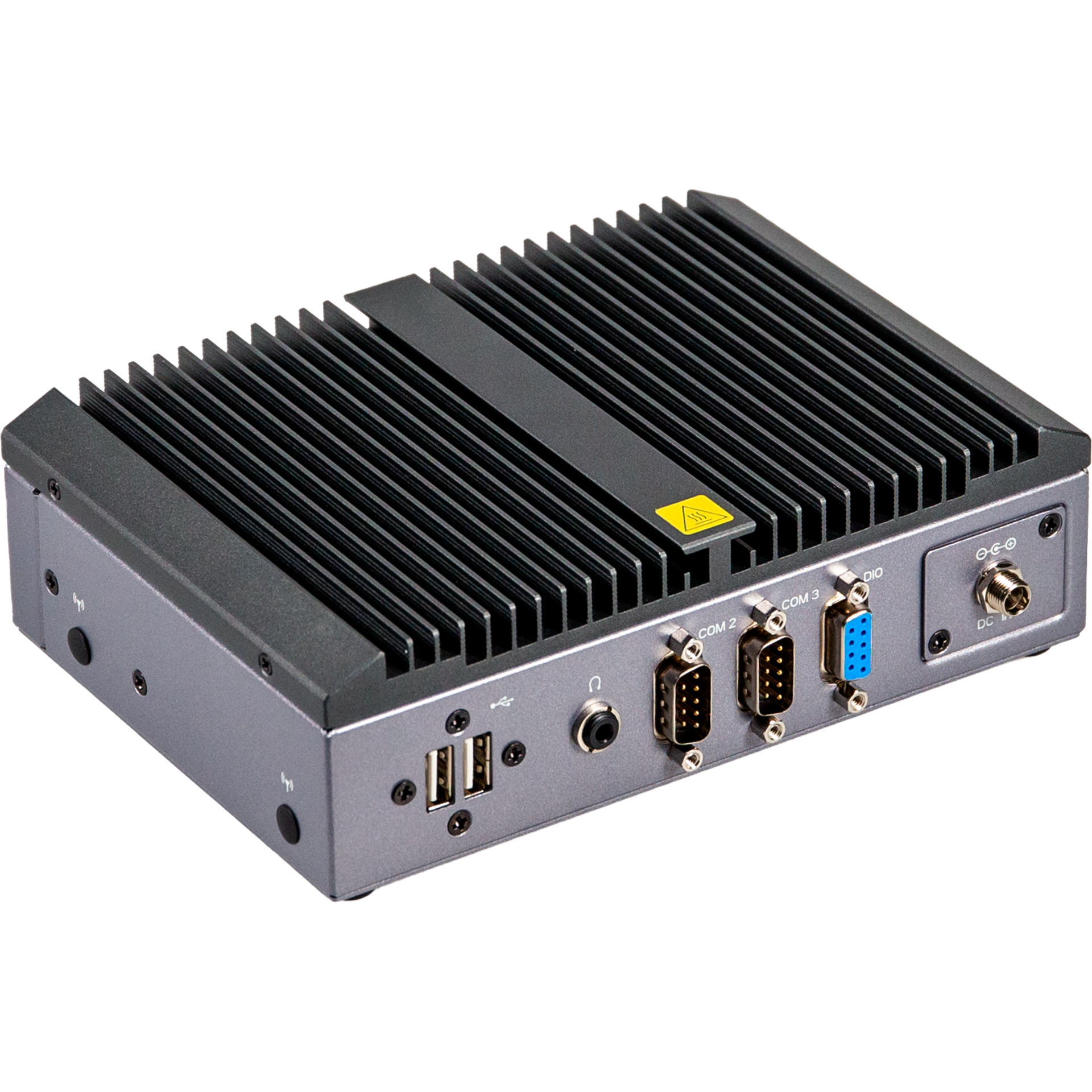

Rear l/O

2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x Screw Type DC Jack

Side I/O

2 x External Antenna Holes (Optional)

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9672VU2.0

Power

+9V~36VDC (Adapter 19.5V/135W)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 3kg

Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-070000-S9R)
Power Cord : Optional (by region)
PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)

Mounting

Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)

Order Information

6BQP1315AMR-SI (Box packing)

Technical Support

All Downloads
Select Operating System:

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_Intel® Serial IO Driver
    30.100.2237.26 3.0 MB 2024-04-02 Download
  • VGA

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_Graphic Driver
    31.0.101.4255 618.5 MB 2024-05-03 Download
  • Intel® Management Engine

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_Intel® Management Engine Driver
    2251.4.2.0 247.6 MB 2024-05-03 Download
  • Intel® RST

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_Intel® RST Driver
    19.5.2.1049 5.2 MB 2024-04-02 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_Realtek Audio Driver
    6.0.9679.1 84.4 MB 2024-08-13 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_2.5G LAN Driver
    1.1.3.28 0.314 MB 2024-04-02 Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_2.5G LAN Driver Installation SOP
    1.1.3.28 0.567 MB 2024-04-02 Download
  • Chipset

    File Name Version File Size Publish Date Download
    QBiX-Pro-RPLA1355H/1335H/1315EH-A1/A2_Chipset Driver
    10.1.36.7 4.5 MB 2024-04-02 Download
