QBiX Pro Series (3.5" Embedded Systems)

QBiX-Pro-EHLA6412H-A2

Key Features

Industrial system with Intel® Celeron® J6412 Processor/ Fanless Design/ Dual Channel DDR4 up to 32GB/ 2 x HDMI



• System Size : 178W x 125D x 52.7H (mm)
• Intel® Celeron® J6412 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 1 x COM Port (RS-232)
• 2 x GbE LAN Ports

SHARE
fb_share
linkedin_share

Specification

Dimension

178W x 125D x 52.7H(mm)

CPU

Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I210AT)

Graphics Support

Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot

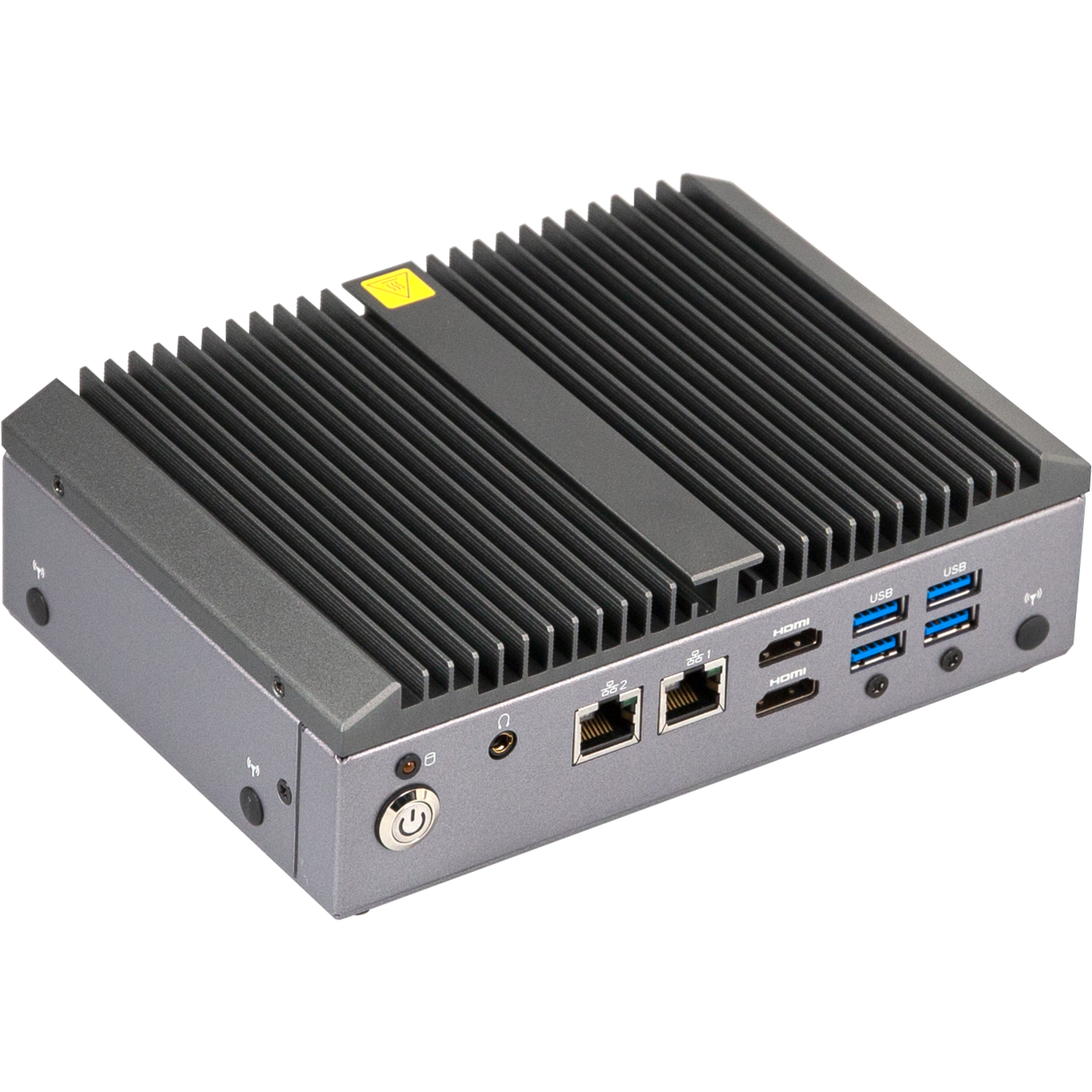

Front I/O

2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Headphone Jack

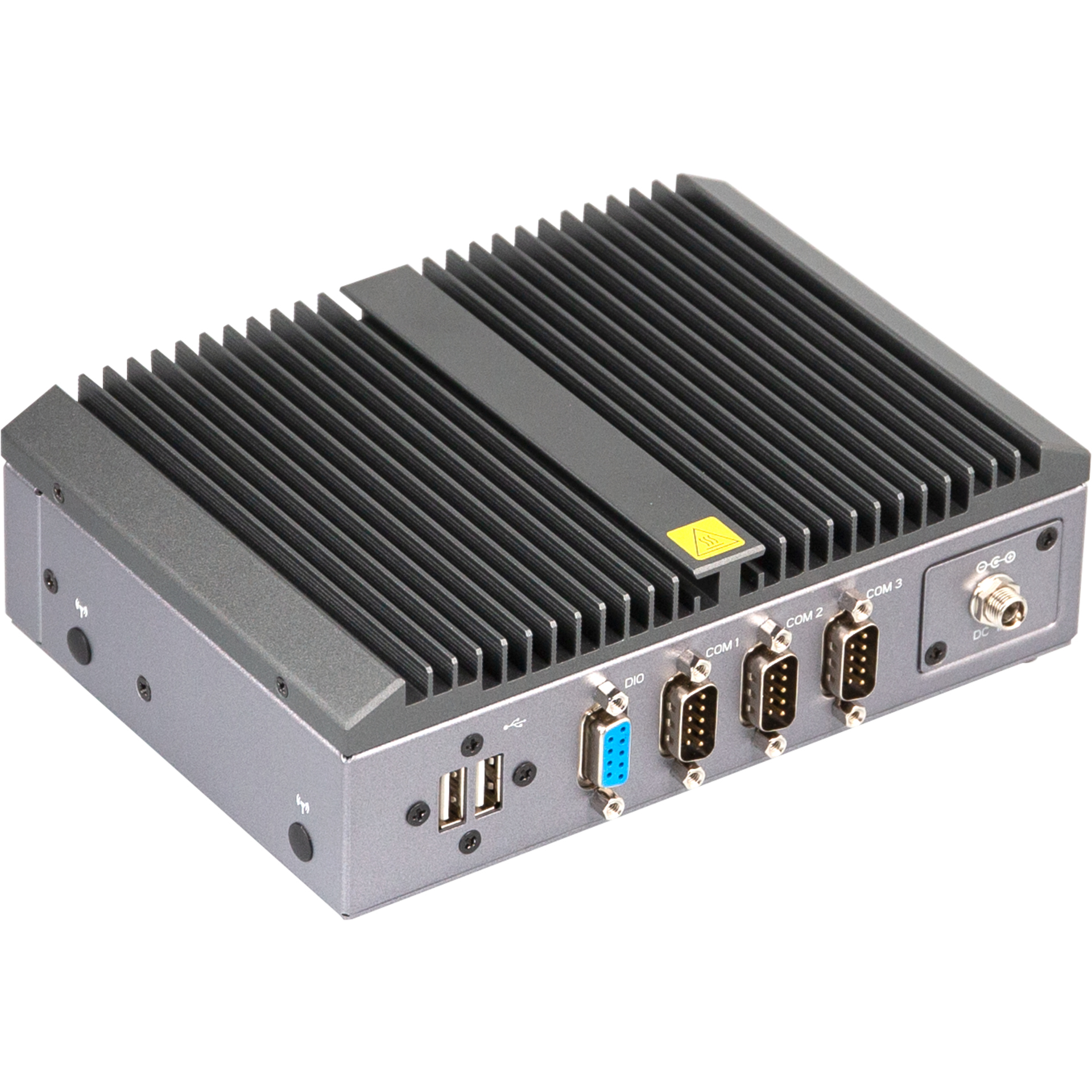

Rear l/O

2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232)
1 x GPIO (8 bits)
1 x Screw Type DC Jack

Side I/O

2 x External Antenna Holes (Optional)

Power

+12V~36VDC (Adapter 19V/65W)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.0kg

Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-150001-S9R)
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)

Mounting

Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)

Order Information

6BQP6412AMR-SI (Box packing)

Technical Support

All Downloads
Select Operating System:

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A1/A2_Intel® Serial IO Driver
    5.123.1.1023 0.373 MB 2024-04-01 Download
  • VGA

    File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A1/A2_Graphic Driver
    31.0.101.2121 499.1 MB 2024-04-01 Download
  • Intel® Management Engine

    File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A1/A2_Intel® Management Engine Driver
    2251.4.2.0 650.1 MB 2024-04-01 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A1/A2_Realtek Audio Driver
    6.0.9279.1 48.1 MB 2024-04-01 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A1/A2_1G LAN Driver
    12.18.12.1 704.7 MB 2024-04-01 Download
  • Chipset

    File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A1/A2_Chipset Driver
    10.1.25.5 3.8 MB 2024-04-01 Download

    User Manuals

  • File Name Version File Size Publish Date Download
    QBiX-Pro-EHLA6412H-A2 user manual
    V10 11.5 MB 2024-06-05 Download

Related Products

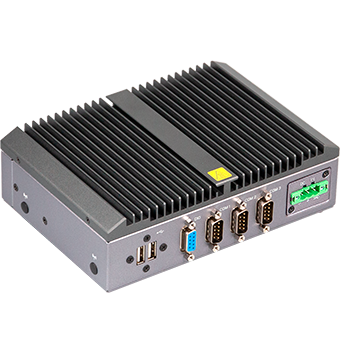

QBiX-Pro-EHLA6412H-A1

Industrial system with Intel® Celeron® J6412 Processor/ Fanless Design/ Dual Channel DDR4 up to 32GB/ 2 x HDMI

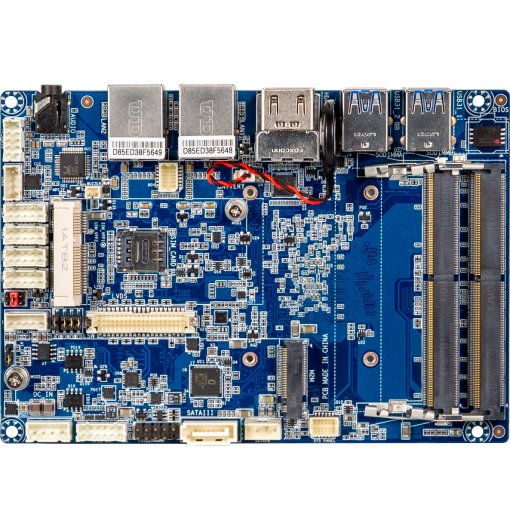

QBiP-6412A
