QBiX Pro Series (3.5" Embedded Systems)

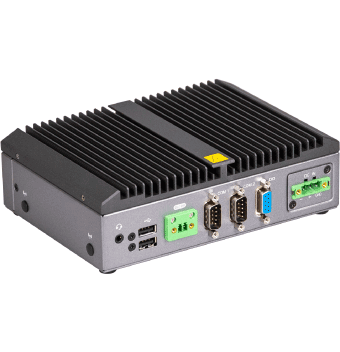

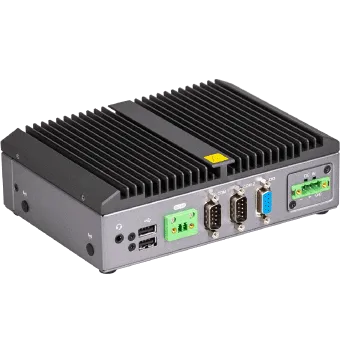

QBiX-Pro-AMDA2314H-A2
- New
Key Features
Industrial system with AMD Ryzen™ R2314 Embedded Processor/ Fanless Design/ Dual Channel DDR4 up to 64GB/ 4 x HDMI
• System Size: 178W x 125D x 52.7H(mm)
• AMD Ryzen™ R2314 Embedded Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 4 x HDMI for multiple displays
• 2 x GbE LAN Ports
QBiX Pro Series (3.5" Embedded Systems)
QBiX-Pro-AMDA2314H-A2
Specification
Dimension
178W x 125D x 52.7H(mm)
CPU
AMD Ryzen™ R2314 Embedded Processor
14nm, 4 cores, 4 threads, 2.1 GHz, up to 3.5 GHz
Socket
1 x FP5
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2667 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek RTL8111H-CG)
Graphics Support
Integrated Graphics Processor - AMD Radeon™ Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(4 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen3x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
4 x HDMI
1 x Power button with LED
1 x HDD LED
1 x External Antenna Hole (Optional)
Rear l/O
2 x USB 2.0
1 x Remote control
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Combo audio jack (Headphone & Headset)
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0
Power
+9V~36VDC (Adapter 19.5V/135W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.0kg
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
Thermal Pad for WiFi x 1 (P/N: 25ST3-200060-T5R)
2-pin Terminal Blocks Male Plug x 1 (P/N: 25IO0-EC3812-D2R)
SATA Cable x 1 (P/N: 25CF4-170020-S9R)
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
Mounting
Wall mount P/N: 25EC4-743302-A8R x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 12SZ-000001-00R x 1 (Screw) (Optional)
Order Information
6BQP2314AMR-SI (Box packing)
