QBiX Pro Series (3.5" Embedded Systems)

QBiX-Pro-ADNAN97H-A1

  • New

Key Features

Industrial system with Intel® Processor N97/ Fanless Design/ Single Channel DDR5 up to 16GB/ 2 x HDMI



• System Size : 178W x 125D x 52.7H(mm)
• Intel® Processor N97
• Single Channel DDR5, 1 x SO-DIMM
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 1 x COM Port (RS-232)
• 2 x 2.5GbE LAN Ports

SHARE
fb_share
linkedin_share
  • HDMI logo
  • USB3.2_Gen2_10Gbps logo
  • Fanless design logo
  • Dual LAN support logo
  • Wide Range Voltage Input
  • Rugged system logo
  • 2.5" HDD support logo

Specification

Dimension

178W x 125D x 52.7H(mm)

CPU

Intel® Processor N97
Intel 7, 4 cores, 4 threads, up to 3.60 GHz

Memory

1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory modules

Ethernet

2 x 2.5GbE LAN Ports (Intel® I225V)

Graphics Support

Integrated Graphics Processor - Intel® UHD Graphics support:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® ALC897

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2)
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot

Front I/O

2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0

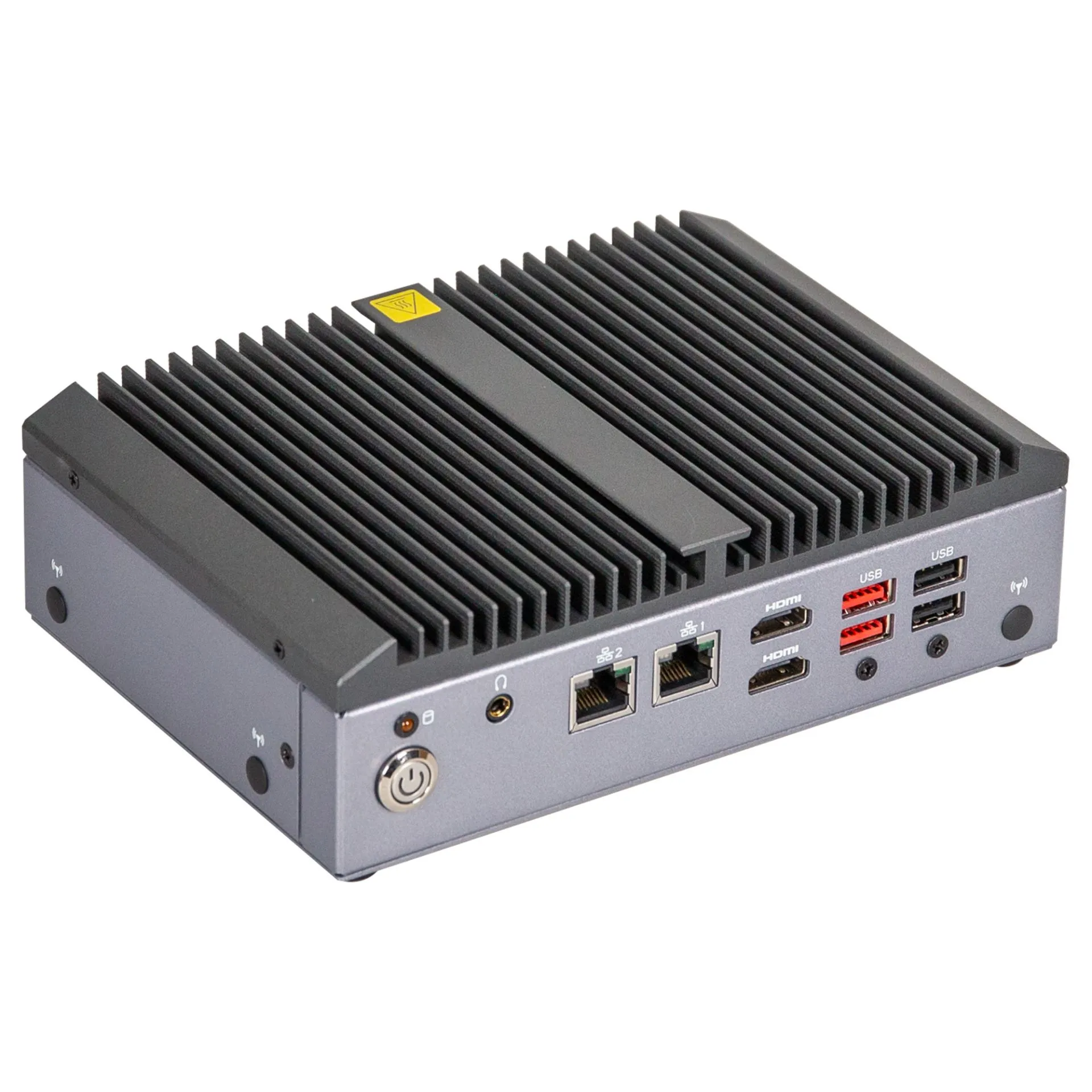

2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Headphone jack

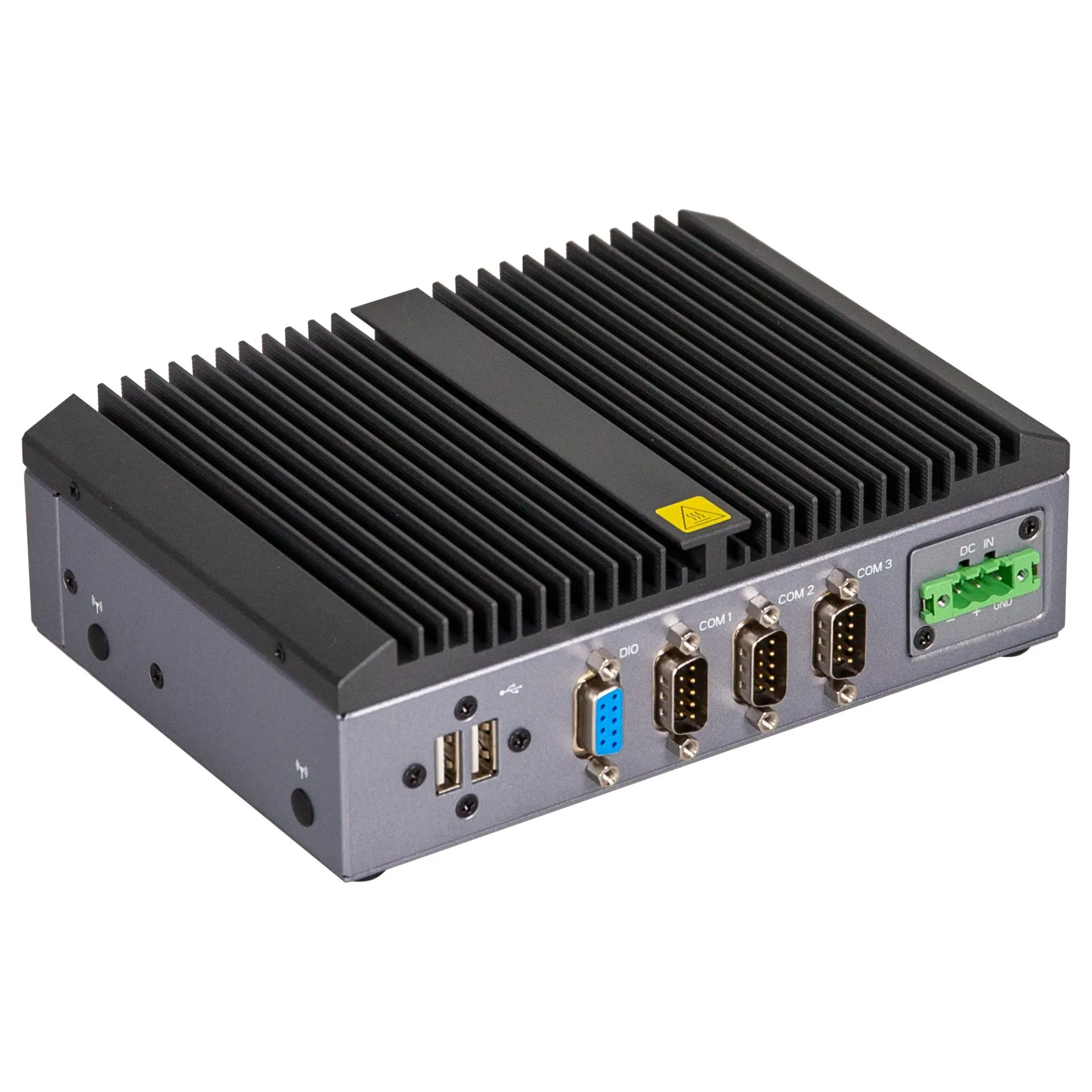

Rear l/O

2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232)
1 x GPIO (8 bits)
1 x 3-pin Terminal Block

Side I/O

2 x External Antenna Holes (Optional)

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0

Power

+12V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 1.5kg

Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-150001-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)

Mounting

Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)

Order Information

6BQPN970AMR-SI (Box packing)

Technical Support

All Downloads

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Intel® Serial IO Driver
    30.100.2229.4 2.2 MB 2024-05-29 Download
  • VGA

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Graphic Driver
    31.0.101.4502 583.6 MB 2024-05-29 Download
  • Intel® Management Engine

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Intel® Management Engine Driver
    2251.4.2.0 675.0 MB 2024-05-29 Download
  • Intel® SST

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Intel® SST Driver
    10.29.0.8467 114.6 MB 2024-05-29 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Realtek Audio Driver
    6.0.9567.1 81.8 MB 2024-05-29 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_2.5G LAN Driver
    1.1.3.28 0.314 MB 2024-05-29 Download
    QBiX-Pro-ADNAN97H-A1/A2_2.5G LAN Driver Installation SOP
    1.1.3.28 0.554 MB 2024-05-29 Download
  • Chipset

    File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Chipset Driver
    10.1.50.8 4.5 MB 2024-05-29 Download

    User Manuals

  • File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1 user manual
    V10 13.6 MB 2024-06-05 Download
  • File Name Version File Size Publish Date Download
    QBiX-Pro-ADNAN97H-A1/A2_Intel® SST Driver Installation SOP
    10.29.0.8467 0.51 MB 2024-05-29 Download
