QBiX Lite Series (Digital Signage Players)
QBiX-Lite SDM Kits
Key Features
Media Display System with Intel® Smart Display Module (Intel® SDM) Support
• SDM Chassis Kit (Support SDM module)
• System Size : 195W x 158D x 30H (mm)
QBiX Lite Series (Digital Signage Players)
QBiX-Lite SDM Kits
QBiX-Lite series, a media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market.

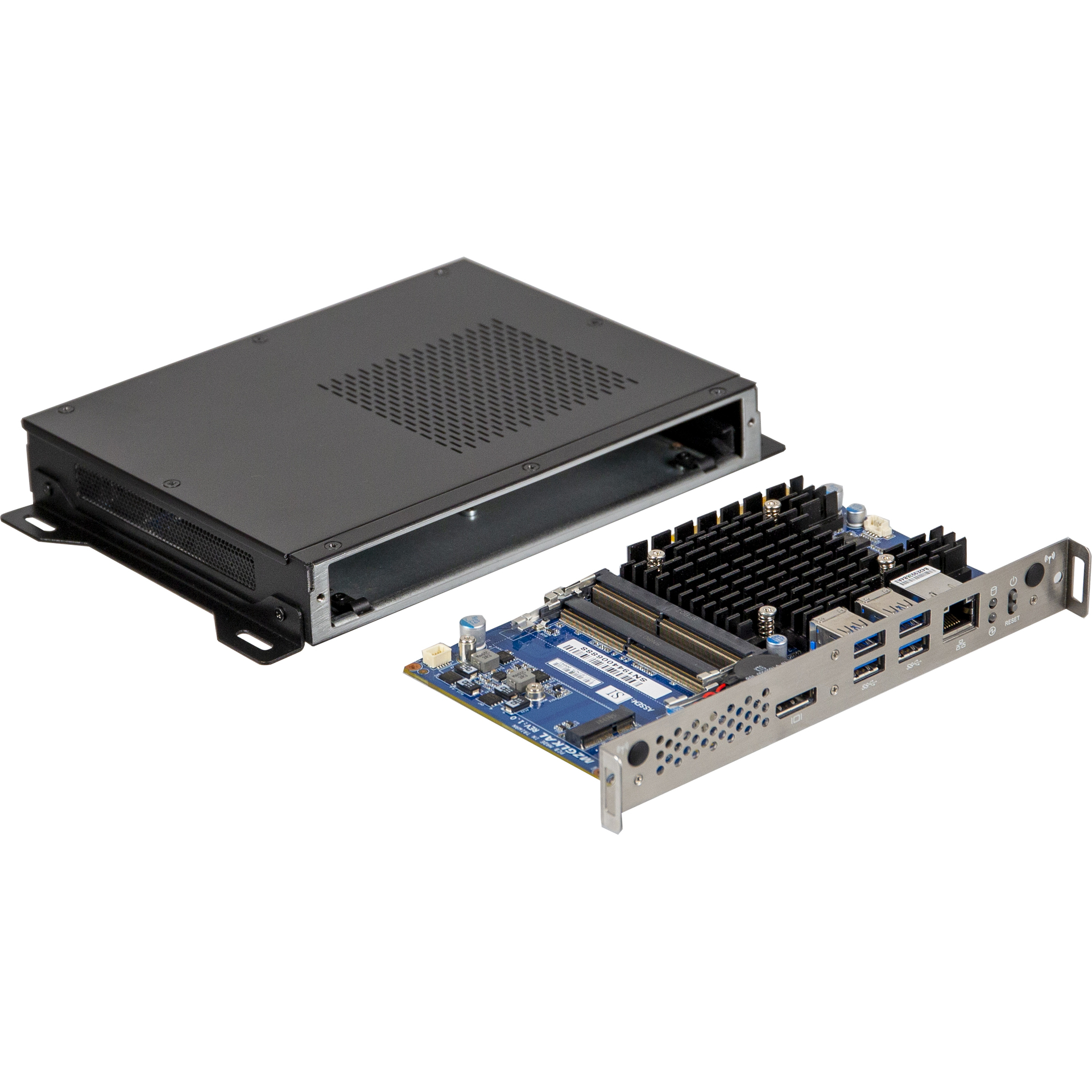

QBiX-Lite SDM Kits is one of the product line to be integrated with our Smart Display Module series, it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel. With powerful Intel® SDM Support, it provides 2 to 3 independent display outputs of 4K resolutions with high computing performance and stability. Not only you can choose your preferred SDM module, but you can also upgrade and switch to a higher spec of SDM in the future without changing the whole digital signage equipment. SAVE COST and SAVE TIME!!!
Specification
Dimension
195W x 158D x 30H(mm)
CPU
Support SDM module as follows:
SDM-1345EAL
SDM-1335AL
SDM-1315AL
SDM-1185G7EL
SDM-1165G7L
SDM-1135G7L
SDM-1115G4L
Memory
Depends on SDM module:
SDM-1345EAL (2 x DDR5 SO-DIMM sockets, Dual Channel 5200 MHz memory Module, Max. Capacity 64 GB)
SDM-1335AL (2 x DDR5 SO-DIMM sockets, Dual Channel 5200 MHz memory Module, Max. Capacity 64 GB)
SDM-1315AL (2 x DDR5 SO-DIMM sockets, Dual Channel 5200 MHz memory Module, Max. Capacity 64 GB)
SDM-1185G7EL (16GB LPDDR4x-4267 MT/s (Soldered)
SDM-1165G7L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)
SDM-1135G7L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)
SDM-1115G4L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)
Ethernet
Depends on SDM module:
SDM-1345EAL (1 x 2.5GbE LAN Port)
SDM-1335AL (1 x 2.5GbE LAN Port)
SDM-1315AL (1 x 2.5GbE LAN Port)
SDM-1185G7EL (1 x 2.5GbE LAN Port)
SDM-1165G7L (1 x GbE LAN Port)
SDM-1135G7L (1 x GbE LAN Port)
SDM-1115G4L (1 x GbE LAN Port)
Graphics Support
Depends on SDM module:
SDM-1345EAL (2 x HDMI 2.1, 1 x HDMI 2.0, 1 x Display Port, 1 x DP 1.4 through USB type C (8k)
SDM-1335AL (2 x HDMI 2.1, 1 x HDMI 2.0, 1 x Display Port, 1 x DP 1.4 through USB type C (8k)
SDM-1315AL (2 x HDMI 2.1, 1 x HDMI 2.0, 1 x Display Port, 1 x DP 1.4 through USB type C (8k)
SDM-1185G7EL (2 x HDMI 2.1, 2 x HDMI 2.0, 1 x DP 1.4 through USB type C (8k)
SDM-1165G7L (3 x HDMI 2.0, 1 x Display Port)
SDM-1135G7L (3 x HDMI 2.0, 1 x Display Port)
SDM-1115G4L (3 x HDMI 2.0, 1 x Display Port)
(4 independent display outputs)
Audio
Intel® Integrated Audio
Storage
Depends on SDM module:
SDM-1345EAL (--)
SDM-1335AL (--)
SDM-1315AL (--)
SDM-1185G7EL (1 x 128GB M.2 2280 SSD)
SDM-1165G7L (--)
SDM-1135G7L (--)
SDM-1115G4L (--)
Expansion-Slots
Depends on SDM module:
SDM-1345EAL (1 x 2280 M.2 M-Key (PCIe Gen4x4), 1 x 2230 M.2 E-key (WiFi/BT)
SDM-1335AL (1 x 2280 M.2 M-Key (PCIe Gen4x4), 1 x 2230 M.2 E-key (WiFi/BT)
SDM-1315AL (1 x 2280 M.2 M-Key (PCIe Gen4x4), 1 x 2230 M.2 E-key (WiFi/BT)
SDM-1185G7EL (1 x 2230 M.2 E-Key (WiFi/BT), 1 x 3052 M.2 B-key (Support 5G)
SDM-1165G7L (1 x 2280 M.2 M-Key (PCIe Gen3x4, SATA6Gb/s), 1 x 2230 M.2 E-key (WiFi/BT)
SDM-1135G7L (1 x 2280 M.2 M-Key (PCIe Gen3x4, SATA6Gb/s), 1 x 2230 M.2 E-key (WiFi/BT)
SDM-1115G4L (1 x 2280 M.2 M-Key (PCIe Gen3x4, SATA6Gb/s), 1 x 2230 M.2 E-key (WiFi/BT)

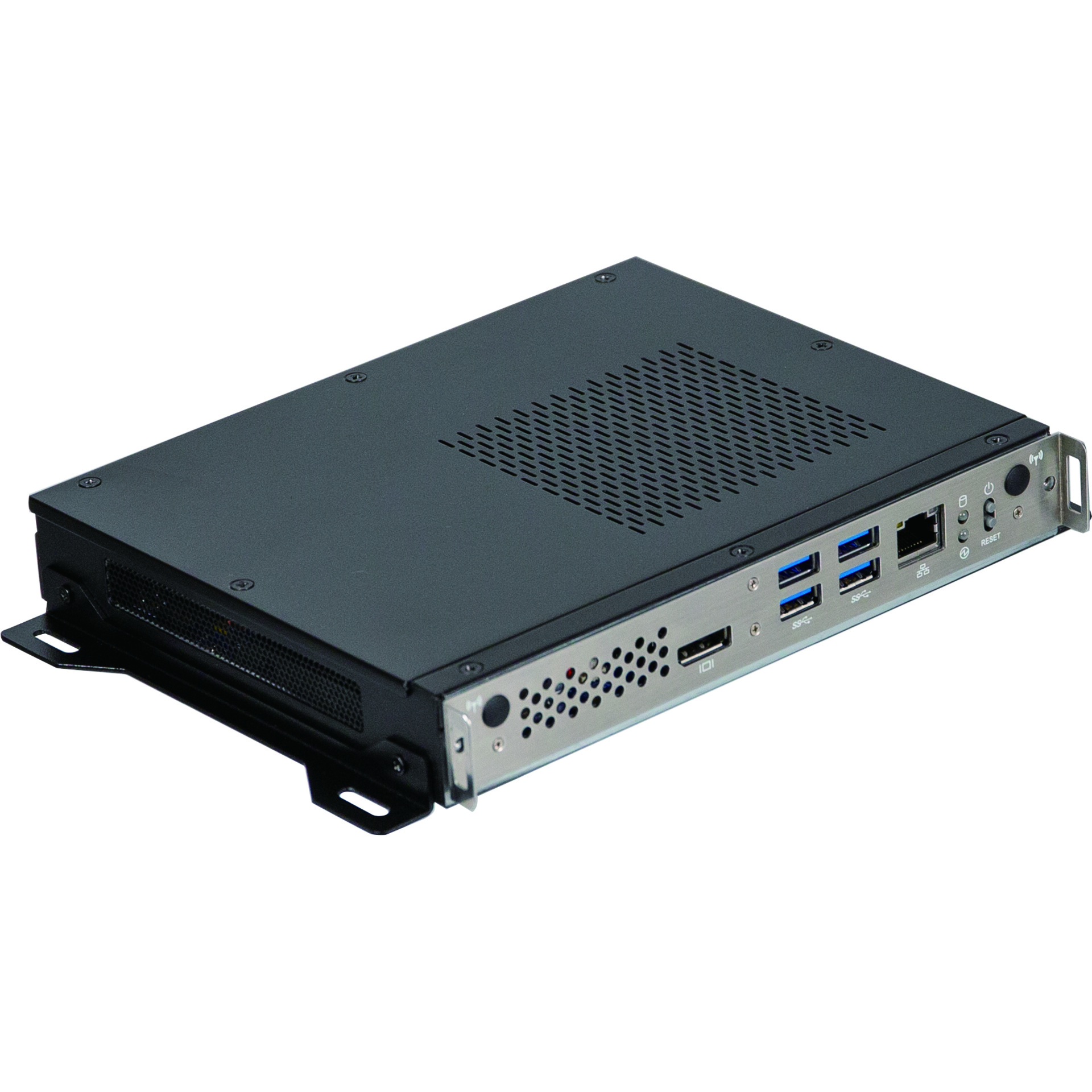

Front I/O
Depends on SDM module

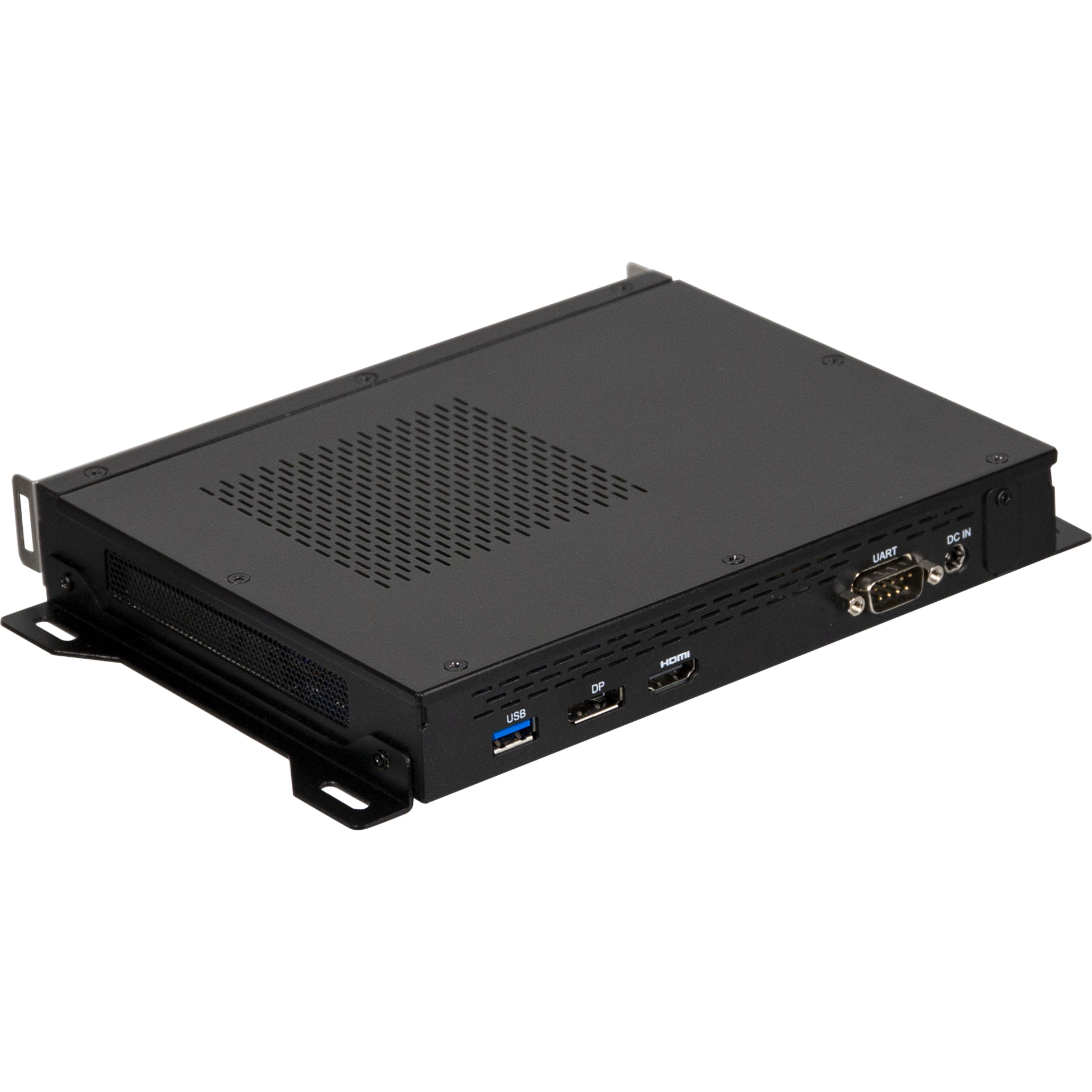

Rear l/O
1 x USB 3.2 Gen 1
1 x Display Port (Co-lay with front Display Port)
1 x HDMI (2 x HDMI for SDM-1185G7EL)
1 x UART
1 x DC-Jack
1 x 2x2 Power connector
Power
+12V/+19V/+24VDC (Adapter 19V/65W)
(Adapter 19V/90W for SDM-1135G7L, SDM-1115G4L)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 469 x 382 x 381 (mm)
Packing Capacity: 10pcs
Single Box size: 345 x 221 x 70 (mm)
Including:
Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
PSU ADP 19V 65W 100-240VAC x 1 : 25EP2-10065Q-A3S or
PSU ADP 19V 90W 100-240VAC x 1 : 25EP4-10090D-F3S (for SDM-1135G7L, SDM-1115G4L)
Power Cord : Optional (by region)
Order Information
6BSD4000AMR-SI
