QBiX DIN Rail Series (Din Rail Embedded Systems)

QBiX-DR-EHLA6412H-A1

Key Features

DIN Rail industrial system with Intel® Celeron® J6412 Processor



•System Size : 160W x 118D x 62.6H (mm)
•Intel® Celeron® J6412 Processor
•Single Channel DDR4 3200 MHz
•4 x COM Ports (RS-232/422/485 & RI/5V/12V)
•1 x GPIO Port (8 Bits)
•2 x GbE LAN Ports

SHARE
fb_share
linkedin_share

QBiX DIN Rail Series (Din Rail Embedded Systems)

QBiX-DR-EHLA6412H-A1

Specification

Dimension

160W x 118D x 62.6H (mm)

CPU

Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W

Memory

1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB
Support Single Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I210AT)

Graphics Support

Integrated Graphics Processor-
Intel® UHD Graphics for 10th Gen Intel® Processors:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio codec

Storage

1 x 2.5” HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support
1 x Vertical USB 2.0

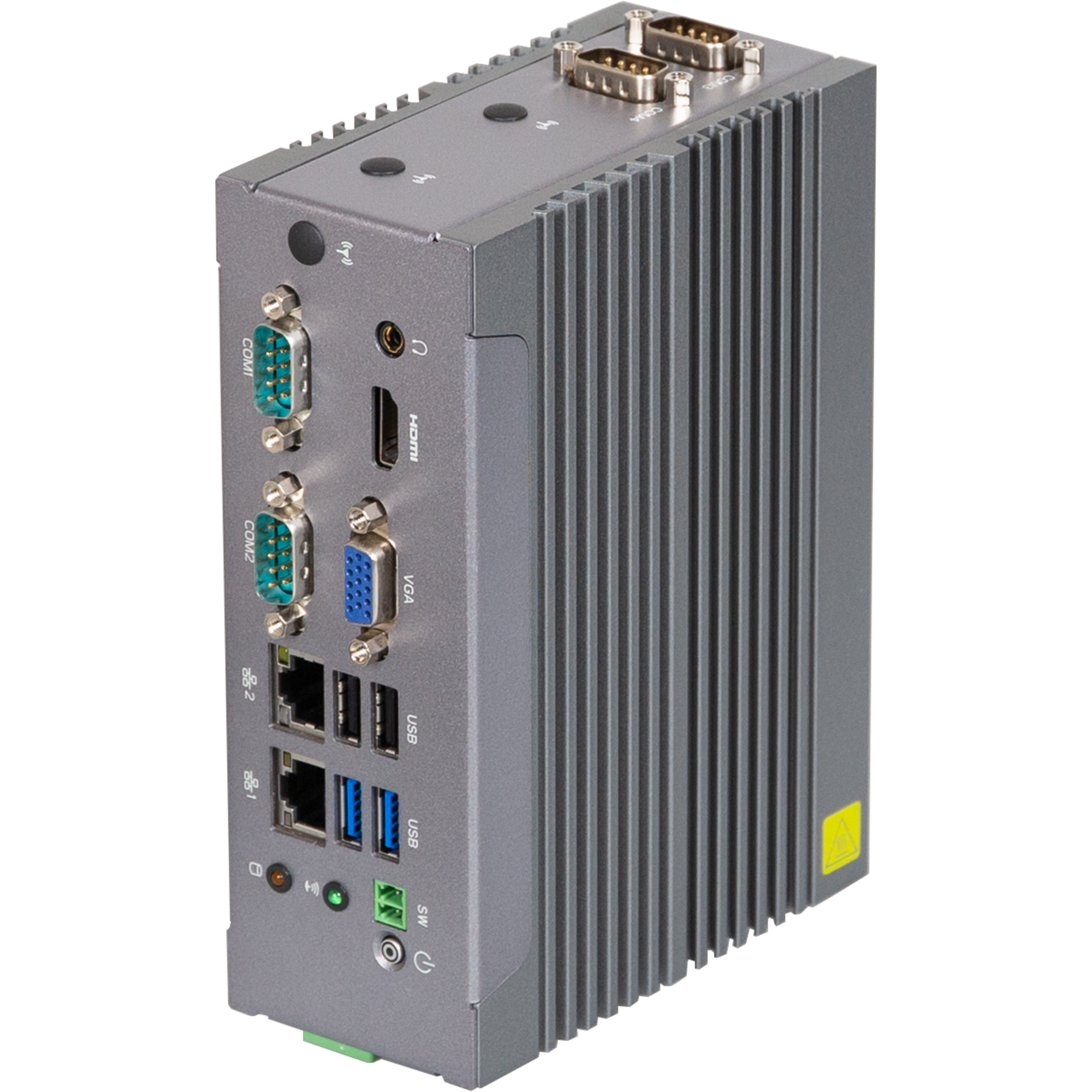

Front I/O

2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x Power button with LED
1 x WiFi/HDD LED
1 x Remote control connector
1 x Headphone Jack
1 x External Antenna Hole (Optional)

Rear l/O

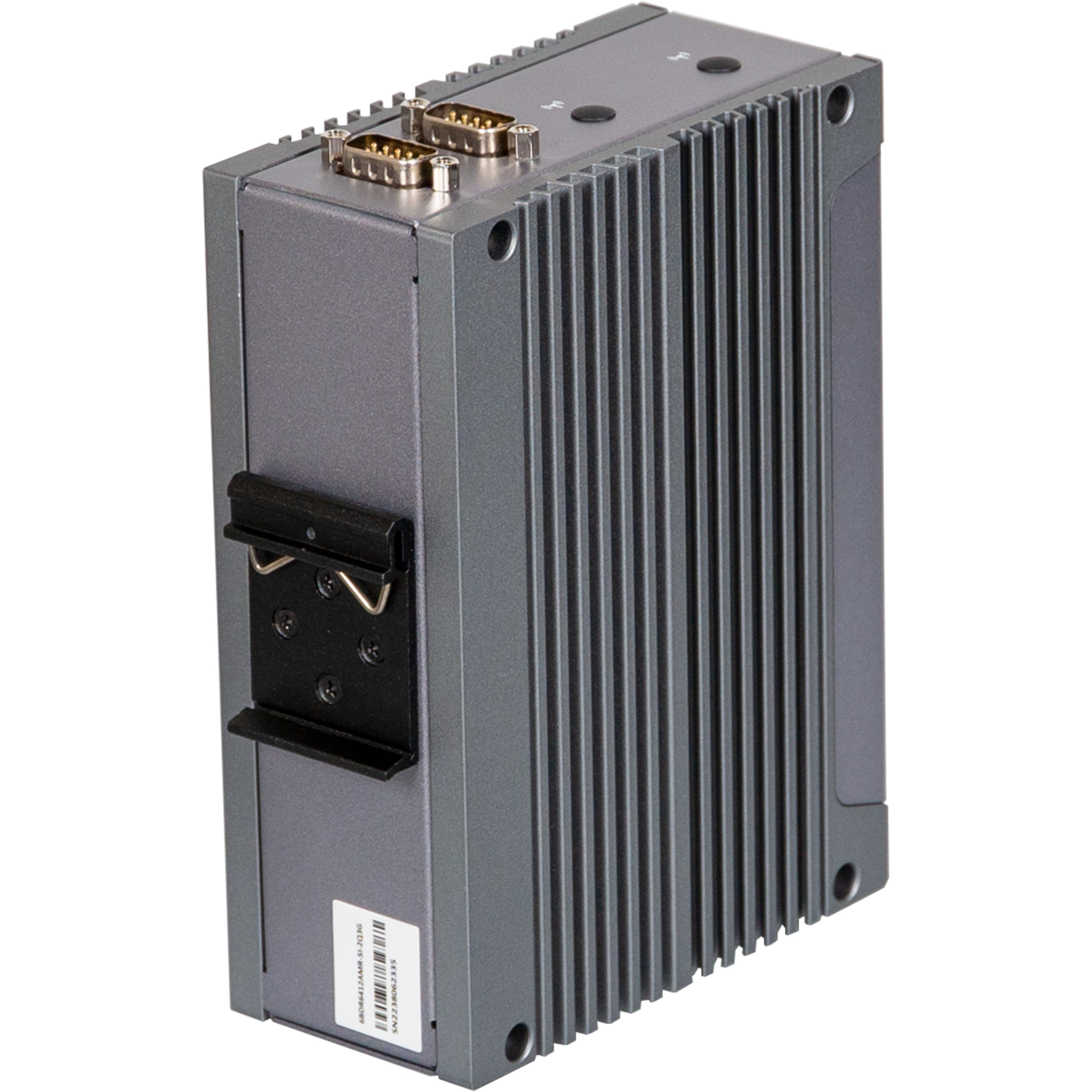

1 x Din Rail Mounting Support

Side I/O

1 x GPIO (8 bits)
1 x 3-pin Terminal Block
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x External Antenna Holes (Optional)

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 416 x 409 x 347 (mm)
Packing Capacity: 6pcs

Single Box size: 308 x 191 x 130 (mm)
Single Box weight: Approx. 1.8kg

Including:
Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)
Terminal Blocks 1*2P x 1 (P/N: 25IO0-EC3500-D2R)
Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
SATA cable x 1 (P/N: 25CF4-500500-S9R)
SATA power cable x 1 (P/N: 25CRI-190920-S9R)
Screw HDD M3x4L x 4 (P/N: 25984G-1C014-S00)

Mounting

DIN Rail
Wall mount (Optional)

Order Information

6BDR6412AMR-SI (Box packing)
