Key Features

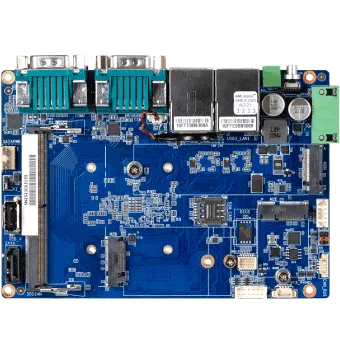

DIN Rail industrial system with Intel® Atom® x7433RE Processor
•System Size : 160W x 118D x 62.6H (mm)
•Intel® Atom® x7433RE Processor
•Single Channel DDR5 4800 MHz
•3 x COM Ports (RS-232/422/485 & RI/5V/12V)
•1 x GPIO Port (8 Bits)
•2 x 2.5GbE LAN Ports
•1 x CANBus
QBiX DIN Rail Series (Din Rail Embedded Systems)
QBiX-DR-AMLA7433REH-A1
HOME
Products
Embedded Systems
QBiX DIN Rail Series (Din Rail Embedded Systems)
QBiX-DR-AMLA7433REH-A1
Specification
Dimension
160W x 118D x 62.6H (mm)
CPU
Intel® Atom® x7433RE Processor
Intel 7, 4 cores, up to 3.40 GHz
Memory
1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226IT)
Graphics Support
Integrated Graphics Processor-
Intel® UHD Graphics:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen3x1, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B-key with SIM Slot –4G/5G Support
1 x Vertical USB 2.0

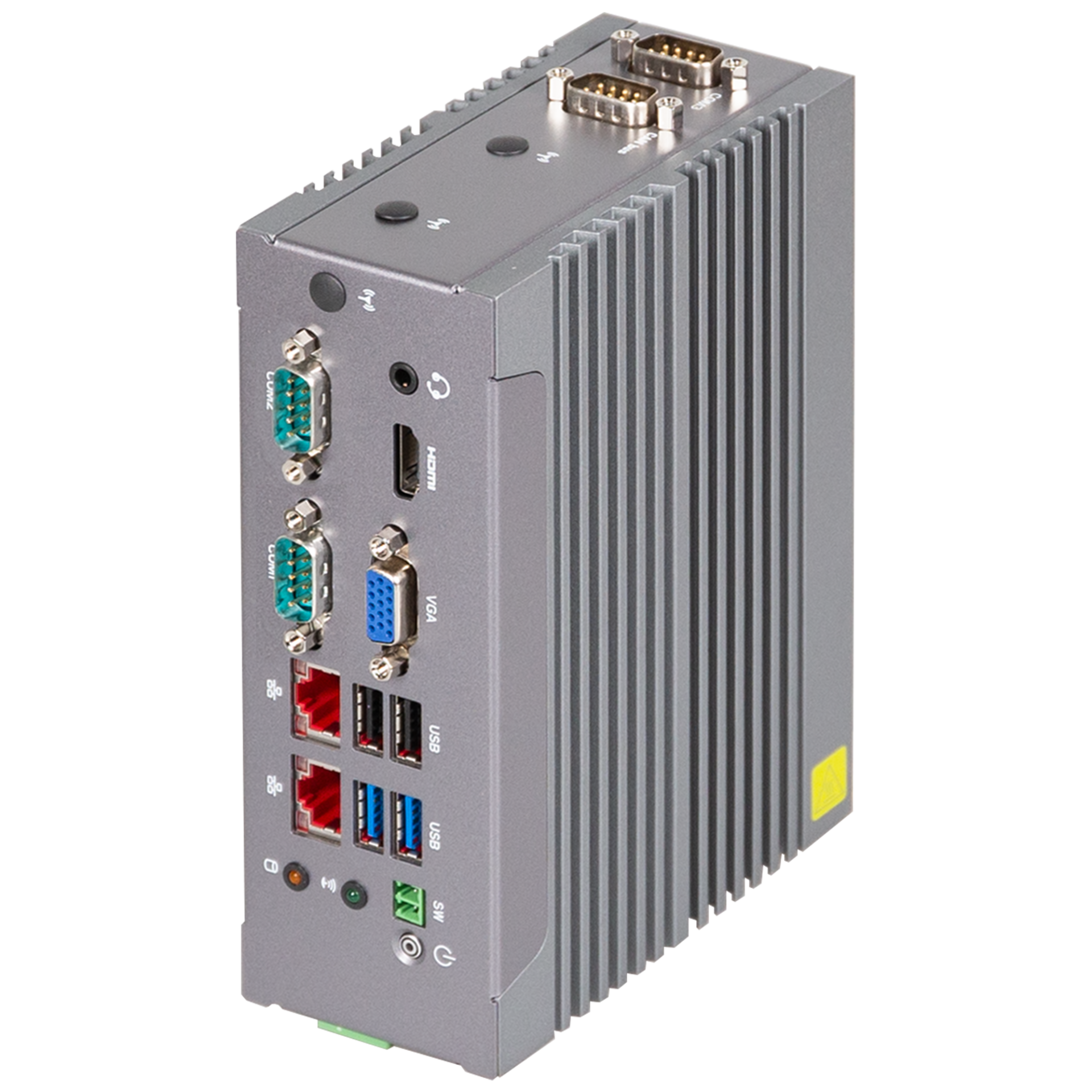

Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x Power button with LED
1 x WiFi/HDD LED
1 x Remote control connector
1 x Combo audio jack (Headphone & Headset)
1 x External Antenna Hole (Optional)
Rear l/O

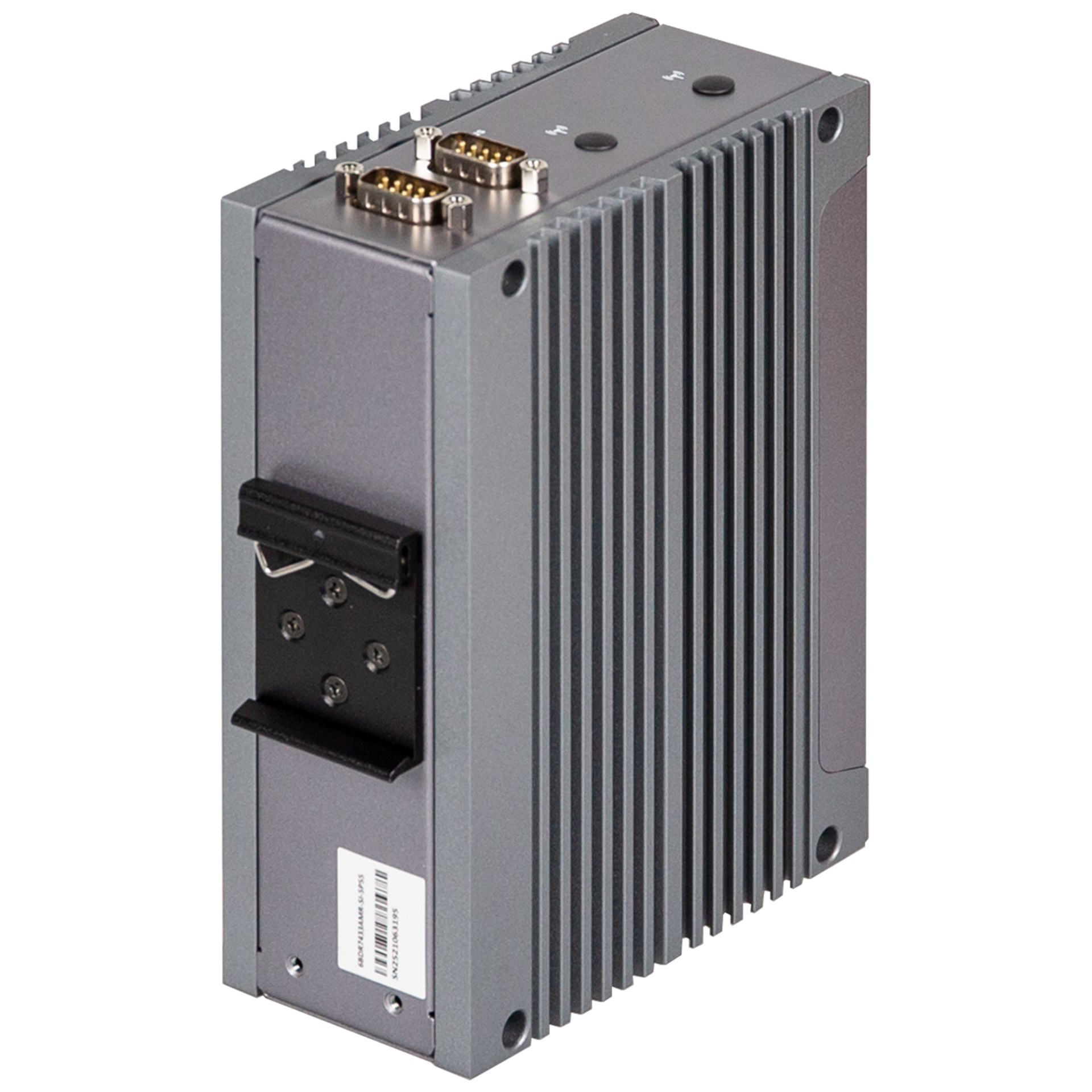

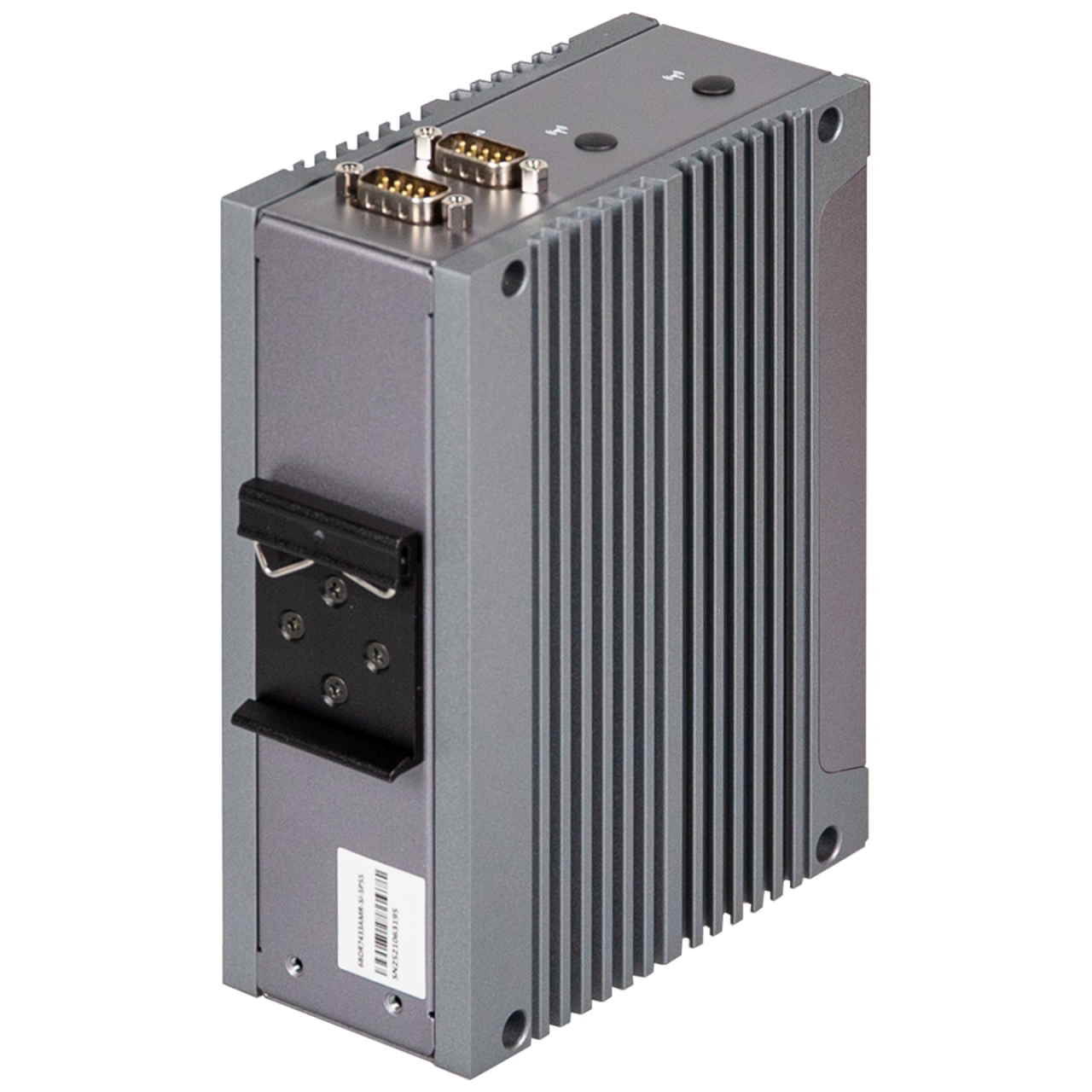

1 x Din Rail Mounting Support
Side I/O
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x CANBus
2 x External Antenna Holes (Optional)
TPM
Onboard TPM 2.0 security chip
Nuvoton NPCT764AABYX
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 40°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 60°C @ 95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 347 (mm)
Packing Capacity: 6pcs
Single Box size: 308 x 191 x 130 (mm)
Single Box weight: Approx. 2.0kg
Including:
Terminal Blocks for DC IN, 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)
Terminal Blocks for SW, 1*2P x 1 (P/N: 25IO0-EC3500-D2R)
Terminal Blocks for GPIO, 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
Screw HDD M3x4L x 4 (P/N: 25984G-1C014-S00)
Mounting
DIN Rail
Wall mount (Optional)
Order Information
6BDR7433AMR-SI (Box packing)
(Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com)
Optional Kit
Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
