QBi Pro (3.5" SBC)
QBiP-x7433REC
- New
Key Features
3.5" SubCompact Embedded Motherboard with Intel® Atom® x7433RE Processor, Single Channel DDR5 memory, 6 x LAN, 2 x COM, 1 x USB 3.2 Gen 2 (10 Gbps), 1 x USB 3.2 Gen 1 (5 Gbps), 2 x USB 2.0
• 3.5" SBC
• Intel® Atom® x7433RE Processor
• Single Channel DDR5, 1 x SO-DIMM
• 6 x 2.5GbE LAN Ports
• 2 x COM Ports (RS-232)
• TPM on board
QBi Pro (3.5" SBC)
QBiP-x7433REC
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Atom® x7433RE Processor
Intel 7, 4 cores, up to 3.40 GHz
TDP 9W
Socket
1 x FCBGA1264
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory module
Ethernet
6 x 2.5GbE LAN Ports (Realtek® RTL8125D)
Video
Integrated Graphics Processor -Intel® UHD Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen3x2)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin box power connector (DC in +12V~36VDC)
1 x CPU fan header
1 x COM header (RS-232)
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header

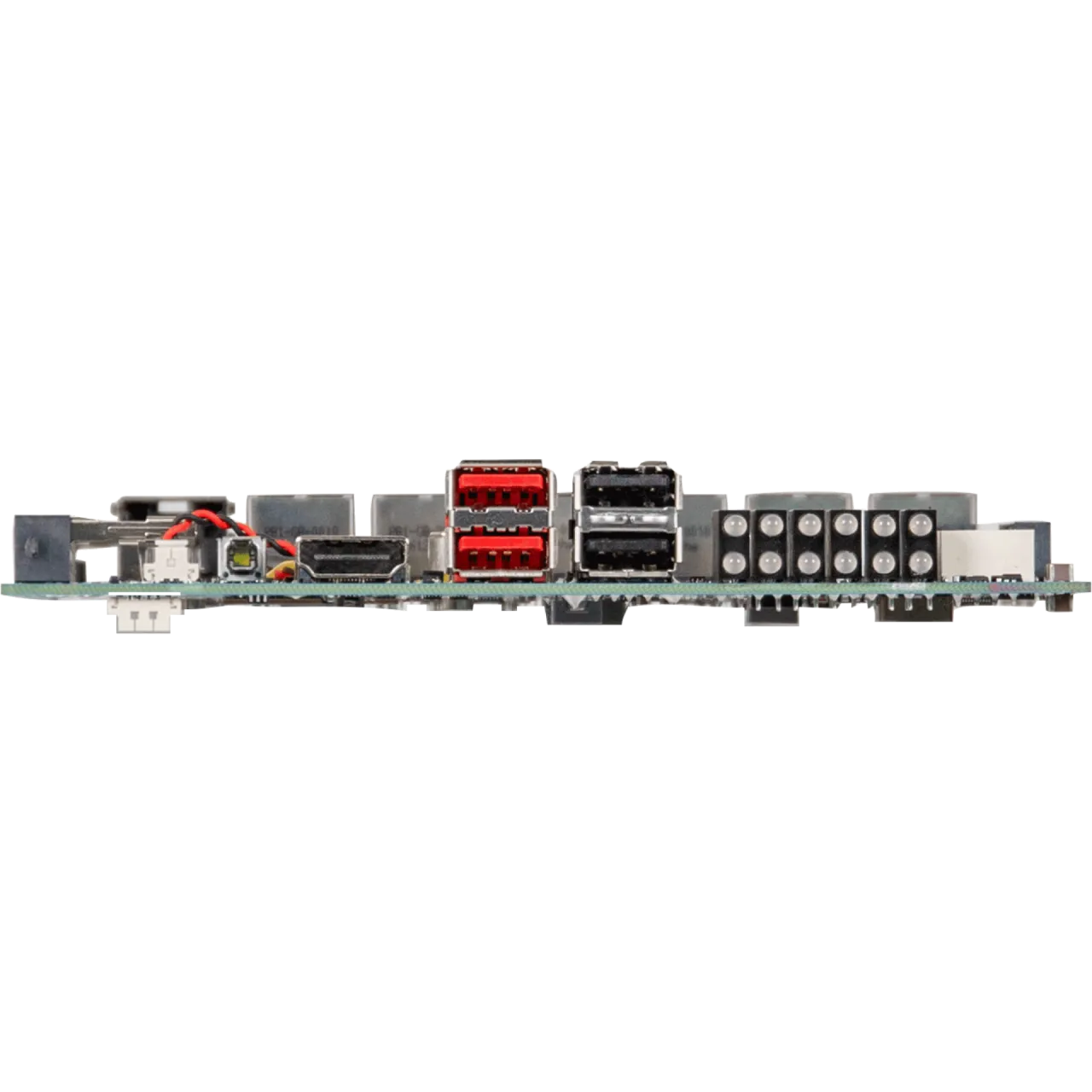

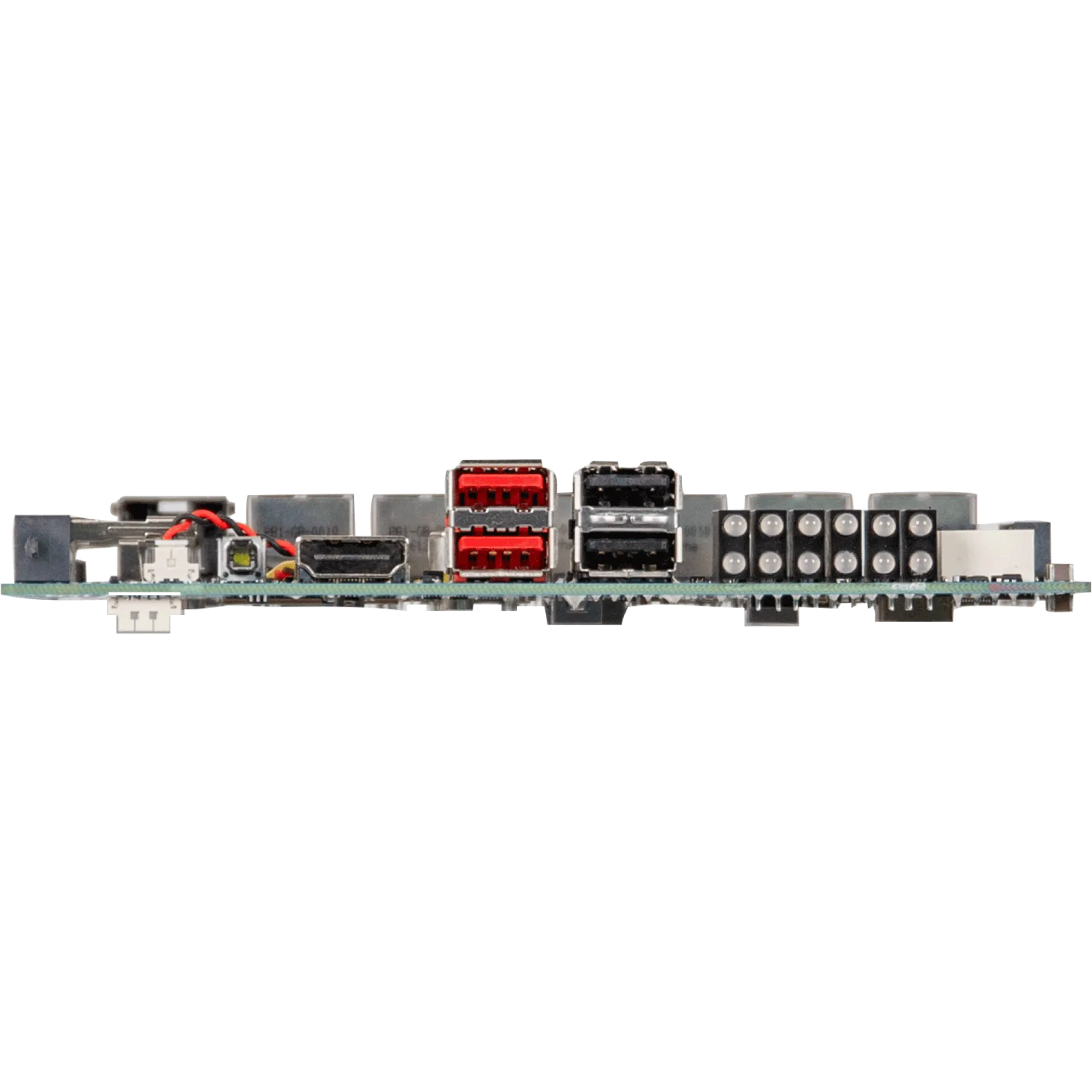

Front I/O
1 x HDMI
1 x USB 3.2 Gen 2 (10 Gbps)
1 x USB 3.2 Gen 1 (5 Gbps)
2 x USB 2.0
1 x Power button
6 x LAN status LED

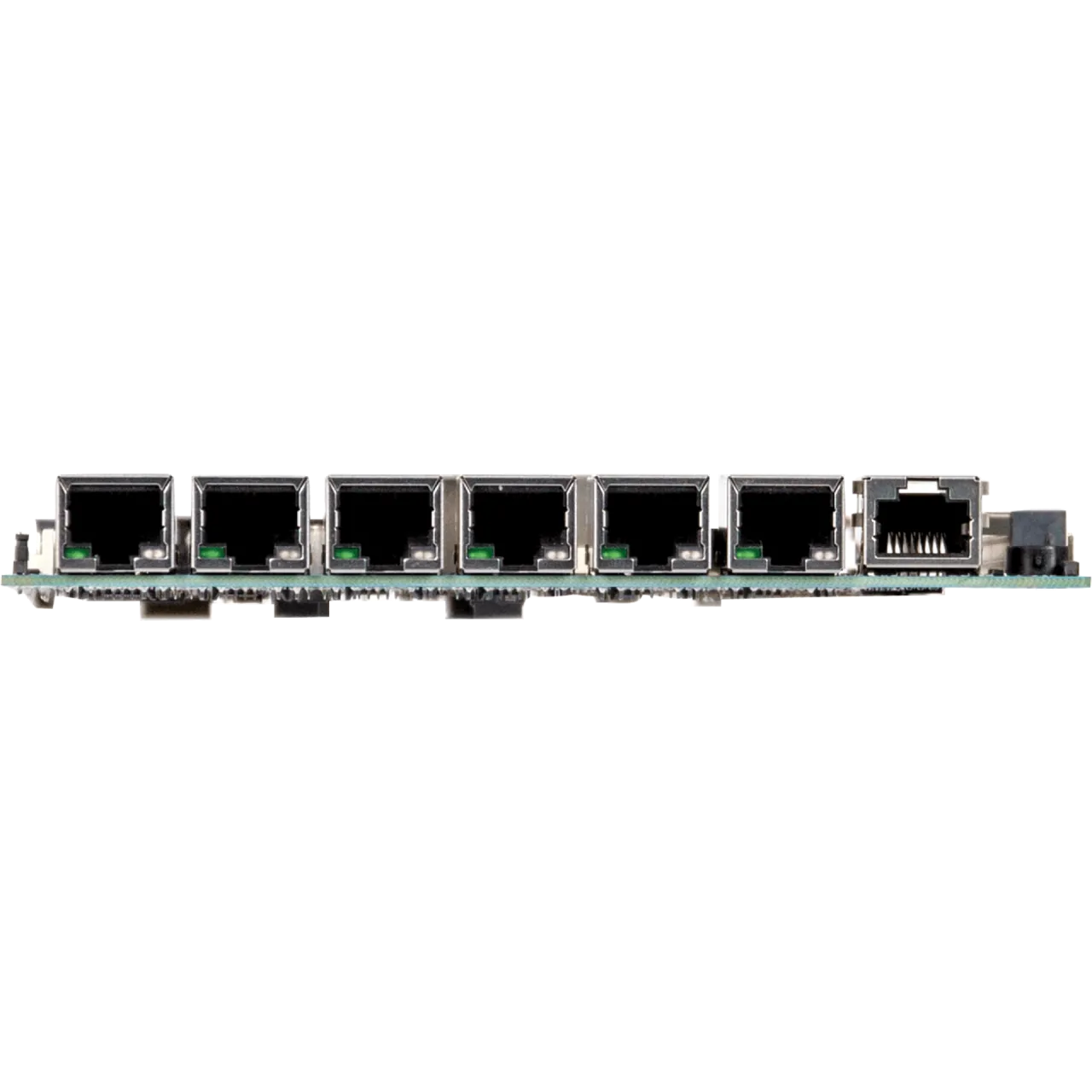

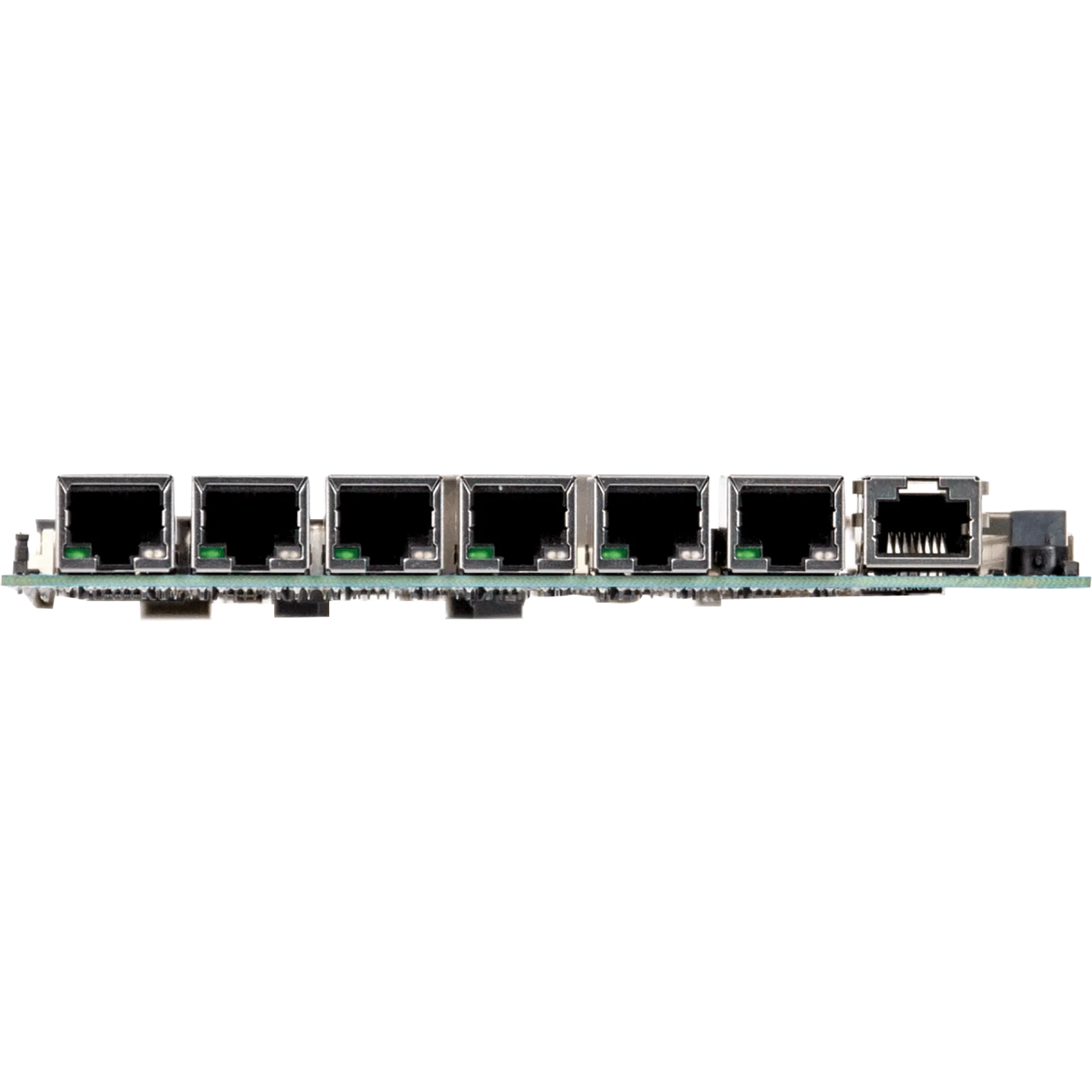

Rear l/O
6 x RJ45 LAN Ports
1 x Console Port (RS-232)(RJ45 Type)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 11 Enterprise LTSC 2024
Windows 11 IoT Enterprise LTSC 2024, x64
Windows 11 IoT Enterprise, version 24H2 x64
Windows 10 IoT Enterprise LTSC 2021, x64
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Order Information
9MASLECSMR-SI (Box Packing)
Optional Kit
Fanless sink P/N: 25ST1-300022-A7GR
Heat spreader P/N: 25ST1-113109-Y0R
Fansink P/N: 25ST4-123103-Y0R
