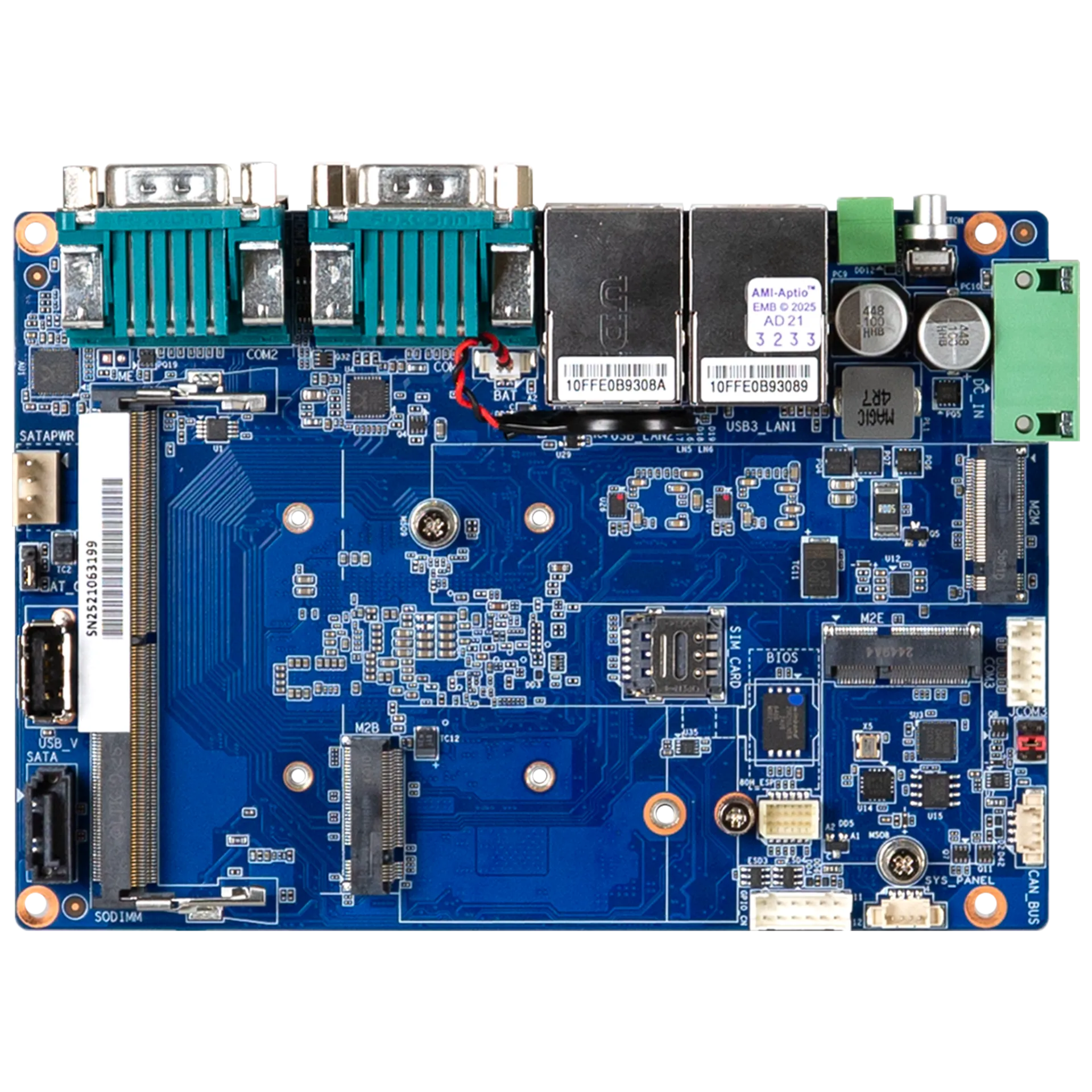

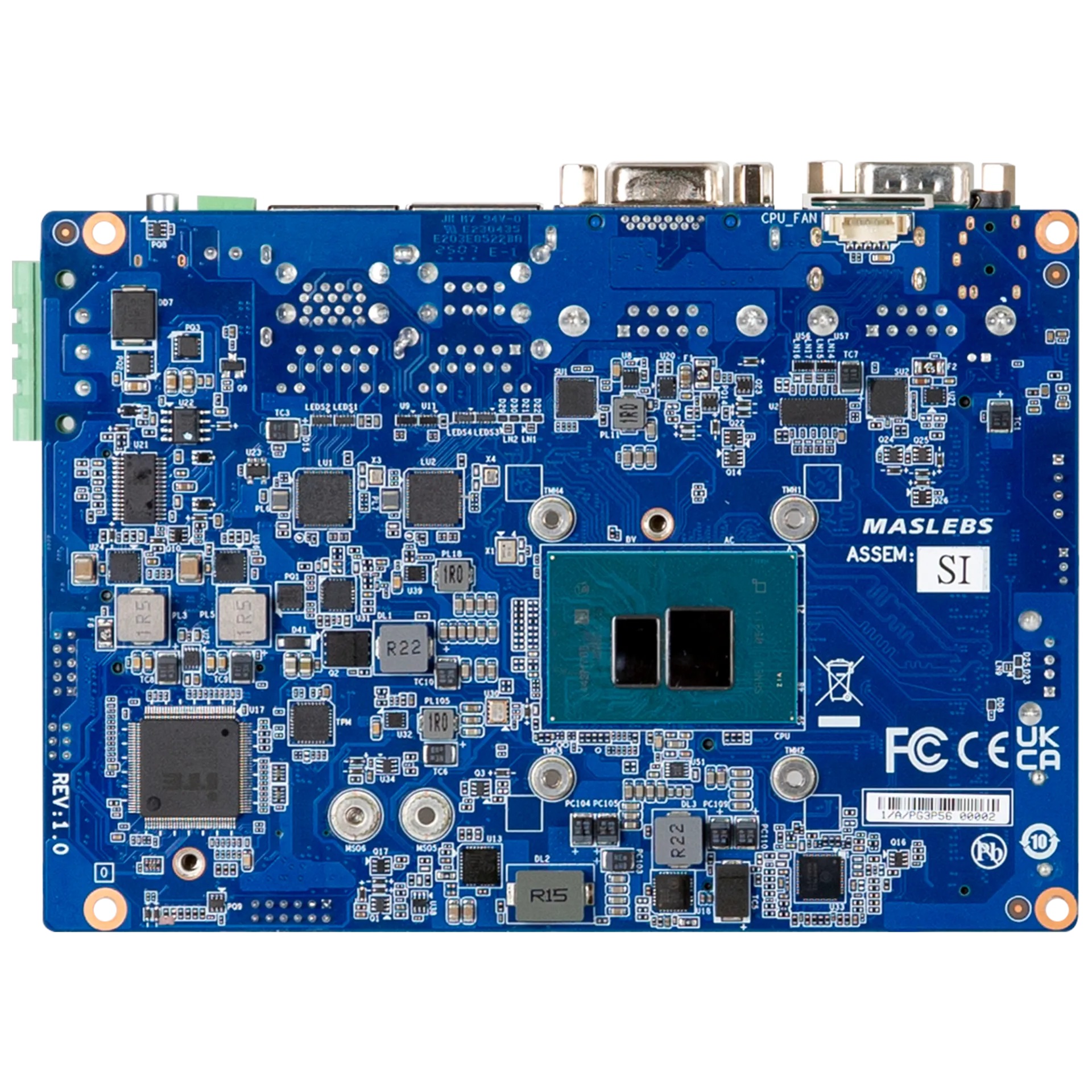

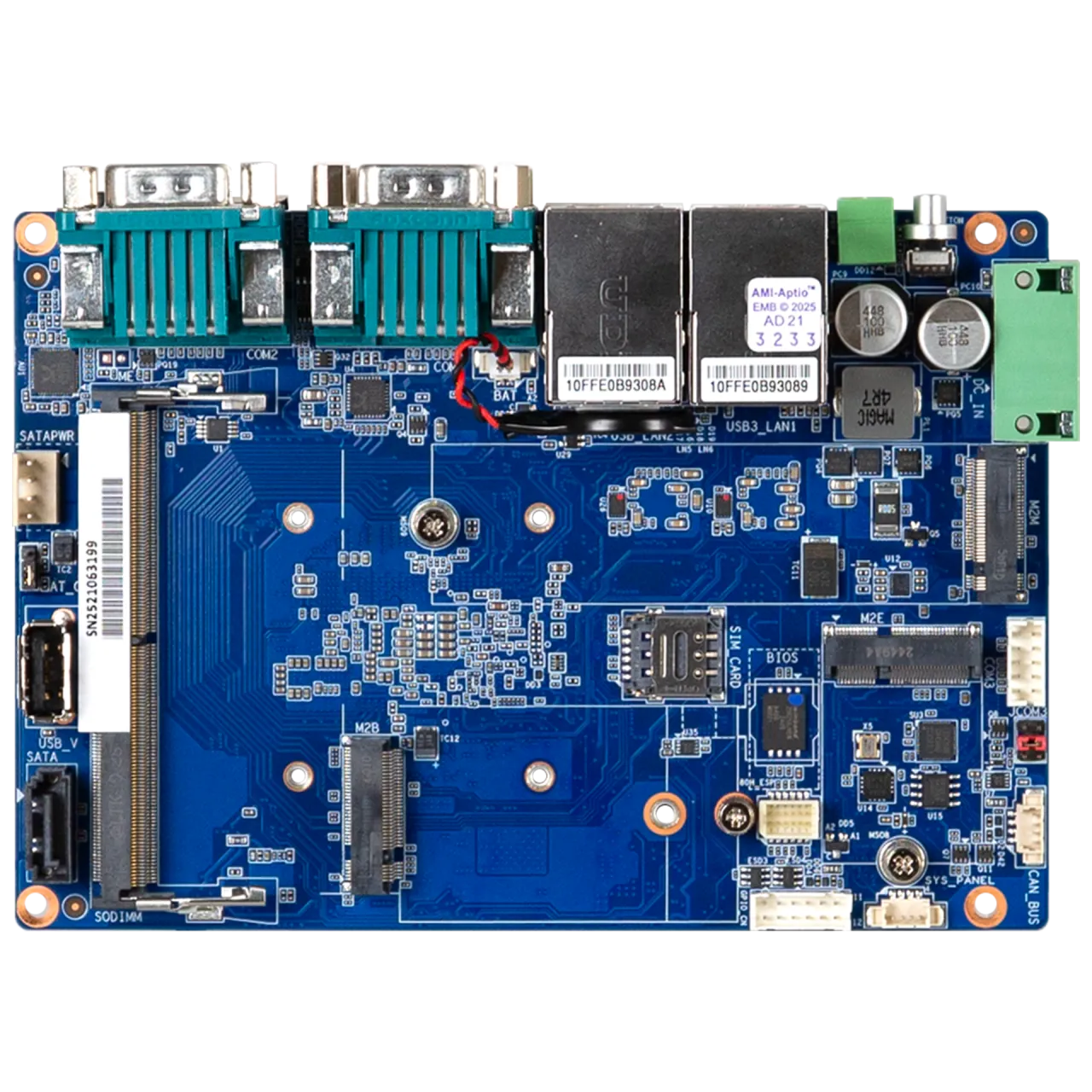

QBi Pro (3.5" SBC)
QBiP-x7433REB
- New
Key Features
3.5” SubCompact Embedded Motherboard with Intel® Atom® x7433RE Processor, Single Channel DDR5 memory, CANBus, Remote control, 3 x COM, TPM on board
• 3.5" SBC
• Intel® Atom® x7433RE Processor
• Single Channel DDR5, 1 x SO-DIMM
• 2 x 2.5GbE LAN Ports
• 1 x SATA 6Gb/s Port
• HDMI, VGA ports for multiple display
• 3 x COM Ports (RS-232/422/485 & RI/5V/12V)
• TPM on board
QBi Pro (3.5" SBC)
QBiP-x7433REB
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Atom® x7433RE Processor
Intel 7, 4 cores, up to 3.40 GHz
TDP 9W
Socket
1 x FCBGA 1264
Memory
1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226IT)
Video
Integrated Graphics Processor -Intel® UHD Graphics:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen3x1, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B-key with SIM Slot – 4G/5G Support
1 x Vertical USB 2.0
Internal I/O
1 x CPU fan header
1 x SATA Power header
1 x Front panel header
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x CANBus header
1 x AT/ATX mode select jumper
1 x GPIO (8 bits) header

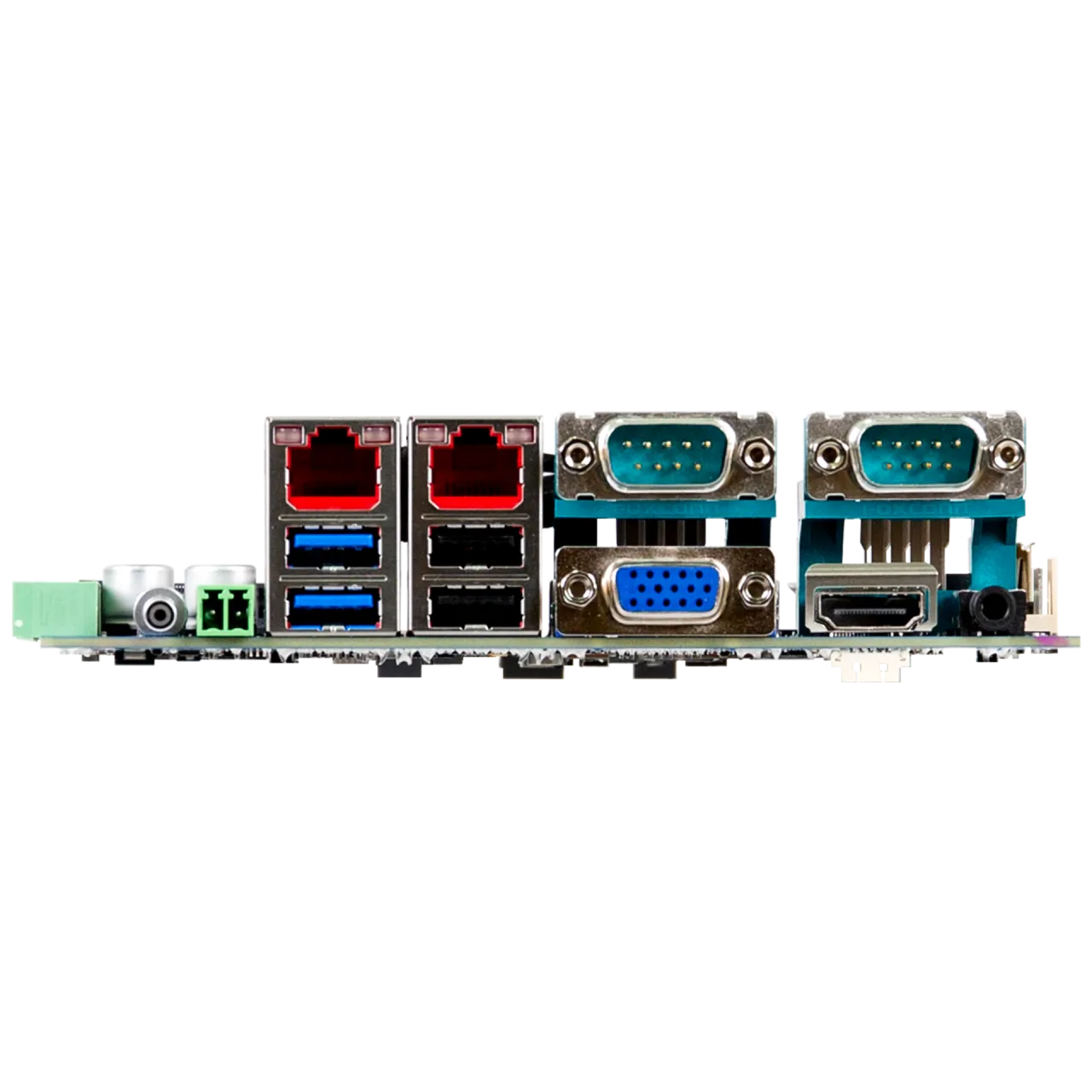

Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x USB 2.0
1 x HDMI
1 x VGA
1 x Remote control header
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x Power button with LED
1 x Combo audio jack (Headphone & Headset)
Side I/O
1 x 3-pin Terminal Block (DC in +9V~36VDC)
TPM
Onboard TPM 2.0 security chip
Nuvoton NPCT764AABYX
OS Compatibility
Windows 11 IoT Enterprise LTSC 2024(24H2) 64bits
Windows 10 IoT Enterprise LTSC 2021(21H2) 64bits
Ubuntu 22.04.5 LTS
Ubuntu 24.04.1 LTS
Ubuntu 24.10
Operating Properties
Operating temperature: -20°C to 70°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MASLEBSMR-SI (Box Packing)
Optional Kit
Heat spreader P/N: 25ST1-113109-Y0R
Fansink P/N: 25ST4-123103-Y0R
