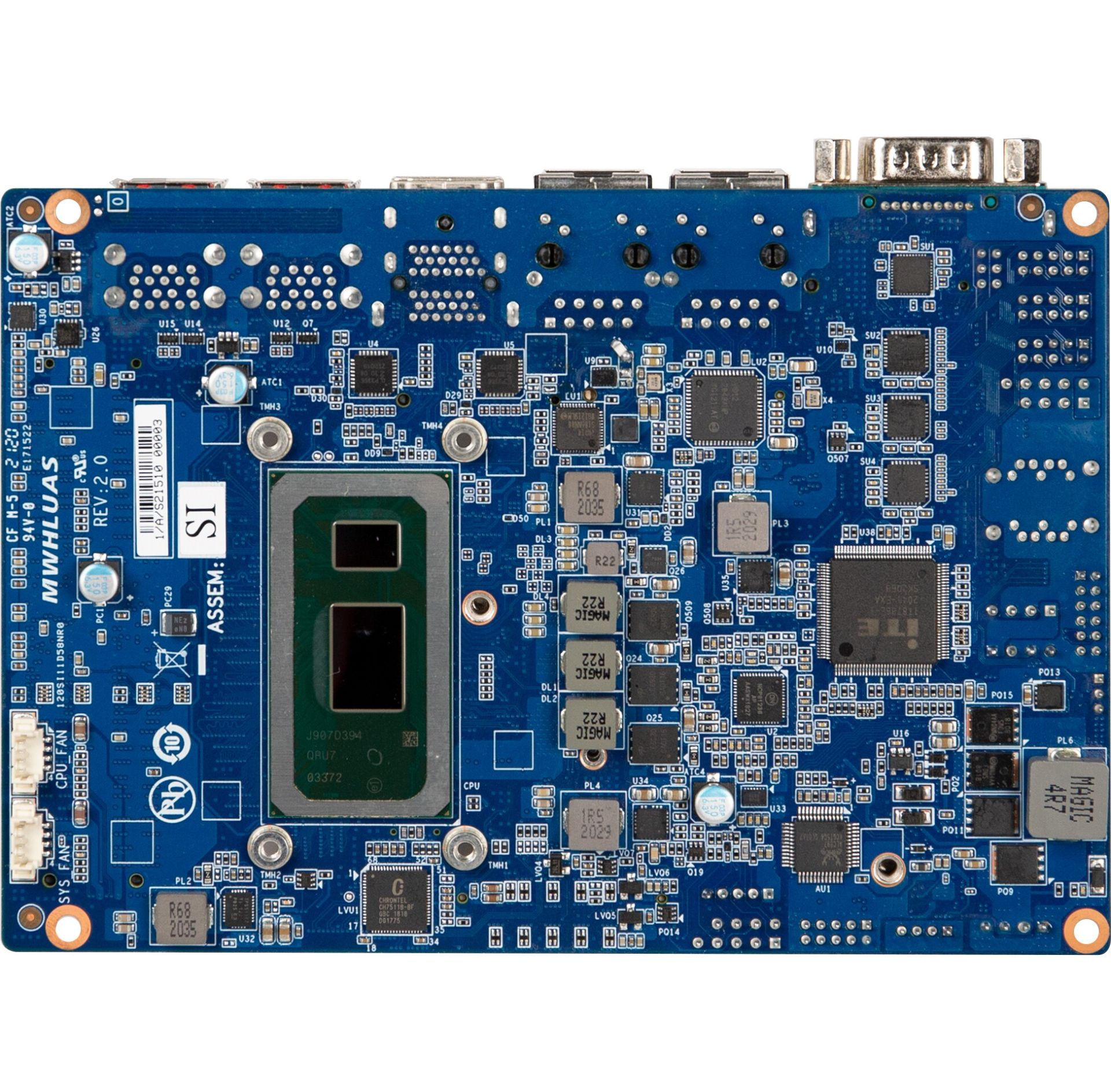

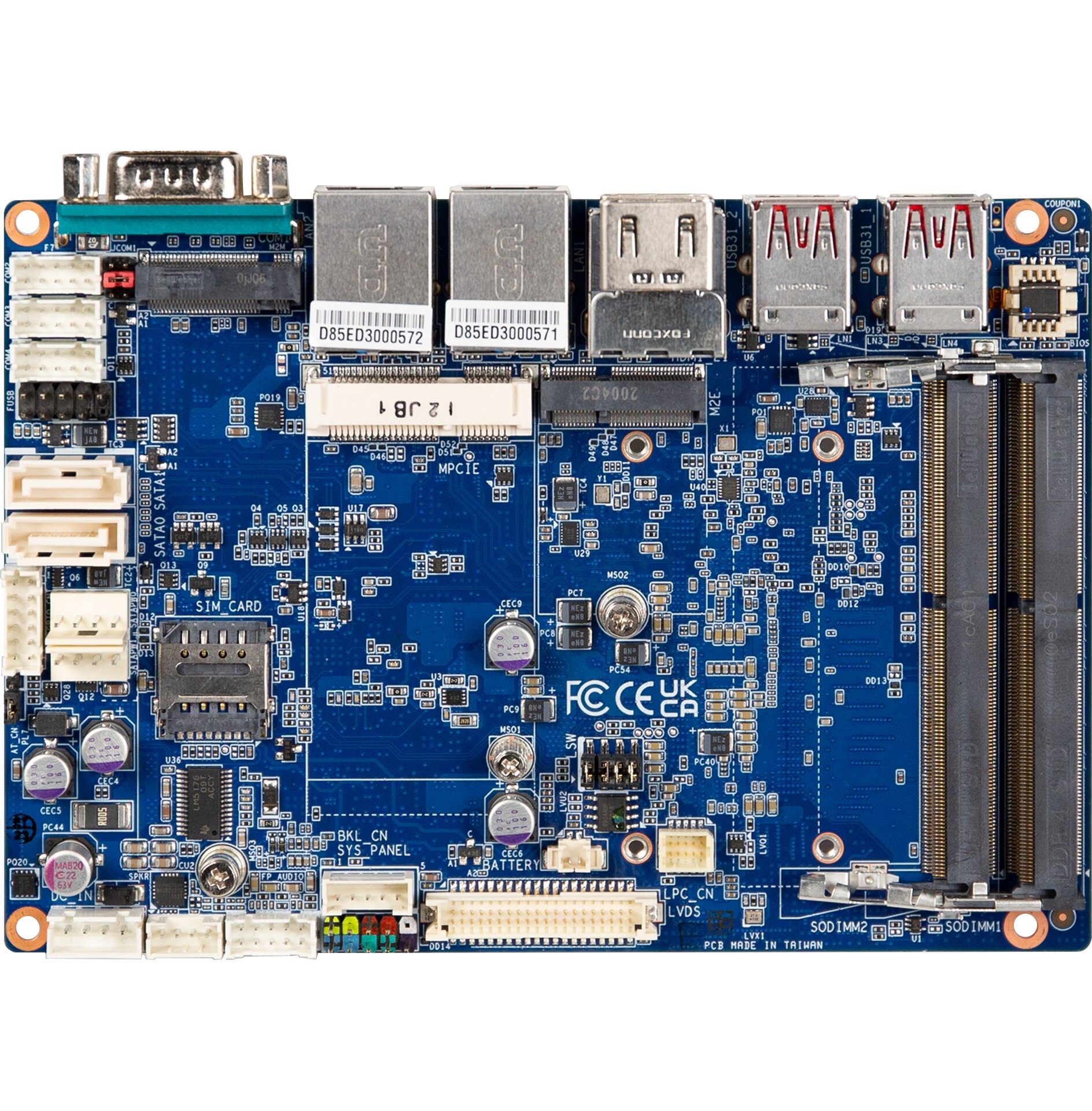

QBi Pro (3.5" SBC)

QBiP-8365A

Key Features

3.5” SubCompact Board with 8th Generation Intel® Core™ i5-8365UE Processor, Dual Channel DDR4 memory, 4 x COM, 2 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 2 x USB 2.0



• 3.5" SBC
• Intel® Core™ i5-8365UE Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• 2 x HDMI, LVDS ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 3 x COM Ports (RS-232)
• 4 x USB 3.2 Gen 2x1

SHARE
fb_share
linkedin_share

Specification

Form Factor

3.5" SBC
146W x 101.7D(mm)

CPU

Intel® Core™ i5-8365UE Processor
14nm, 4 cores, 8 threads, up to 4.10 GHz
vPro support, TDP 15W
6 MB Smart Cache

Socket

1 x FCBGA1528

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2400 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)

Video

Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2304 @24Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz

(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

2 x SATA 6Gb/s Ports (SATA RAID 0/1/5)

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

Internal I/O

1 x 4-pin box power connector (DC in +9V~36VDC) (+48VDC for Optional)
2 x SATA Power headers
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header

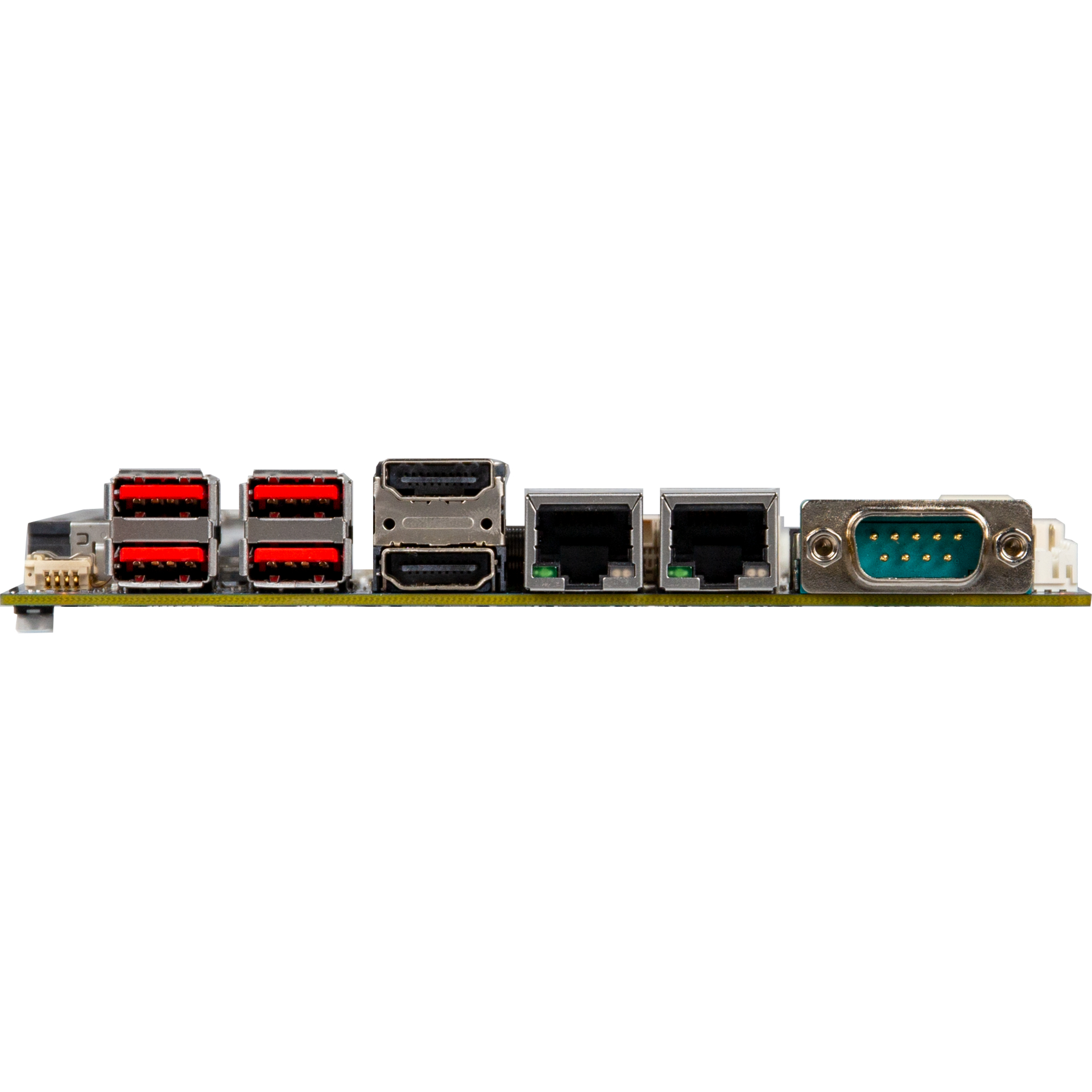

Rear l/O

1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1

TPM

1 x TPM header

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg

Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)

Order Information

9MWHLUESMR-SI (Box Packing)

Optional Kit

Fanless Heatsink P/N: 25ST1-153108-A7R
Fansink P/N: 25ST4-113100-A7R
Heat spreader P/N: 25ST5-8265A0-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R

Technical Support
