QBi Pro (3.5" SBC)

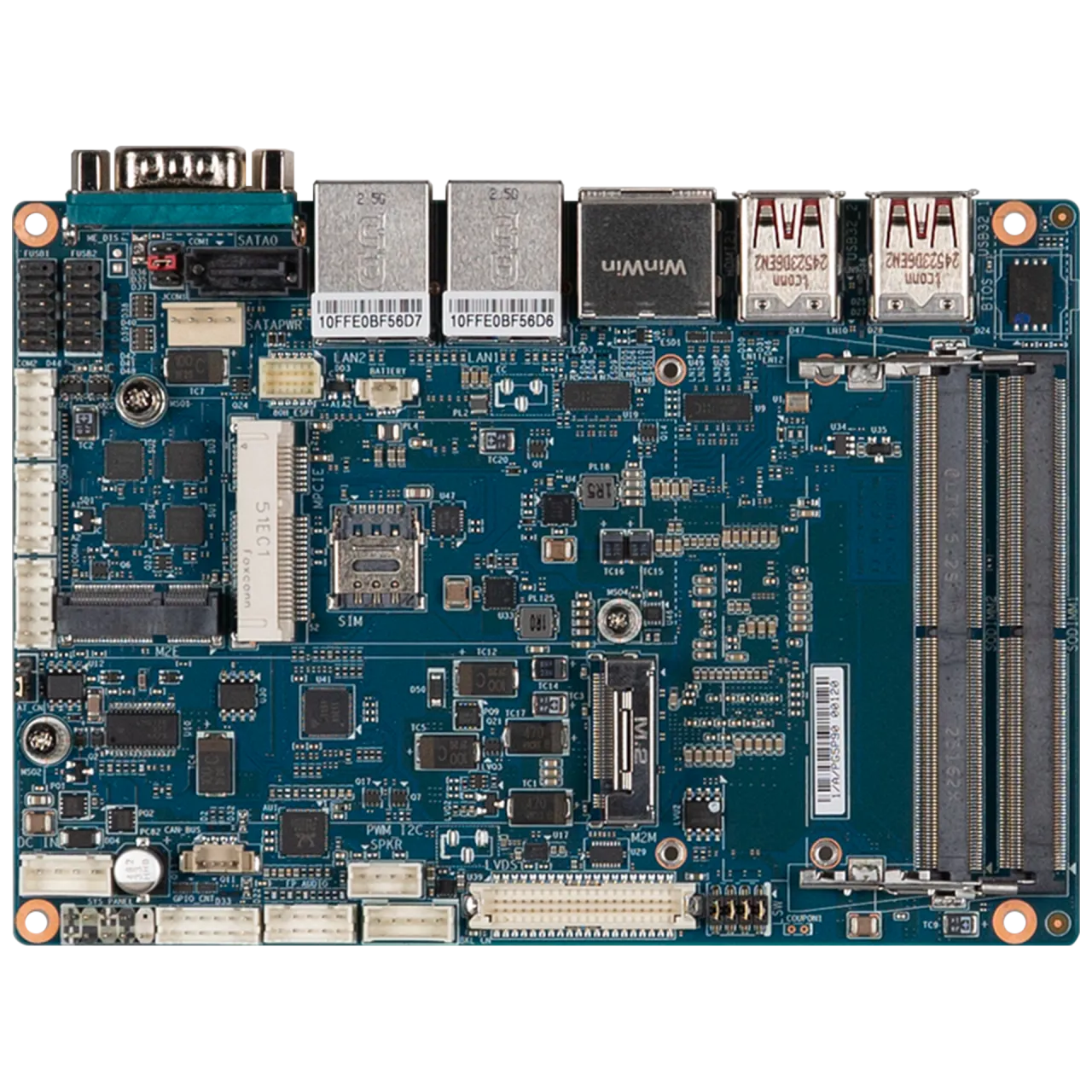

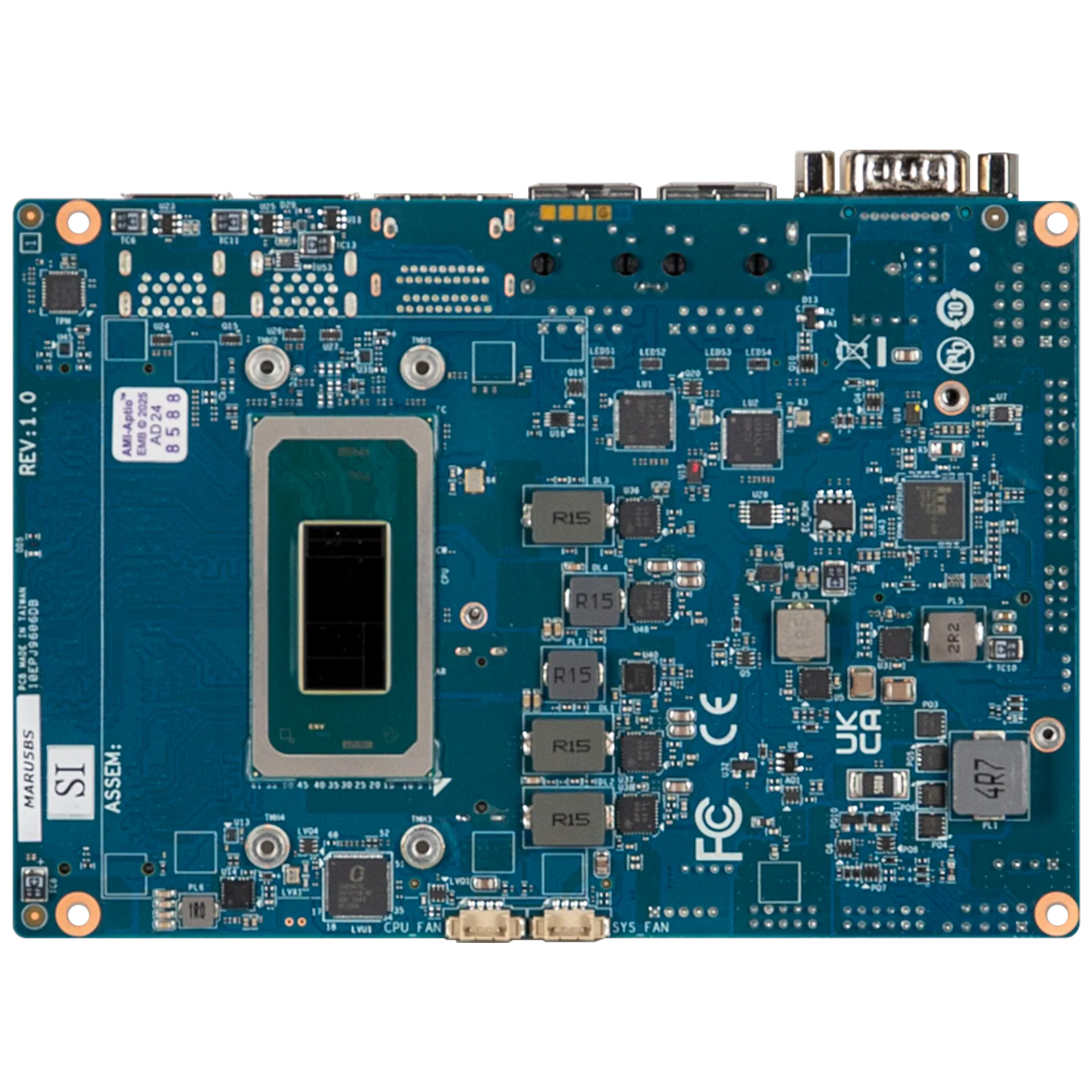

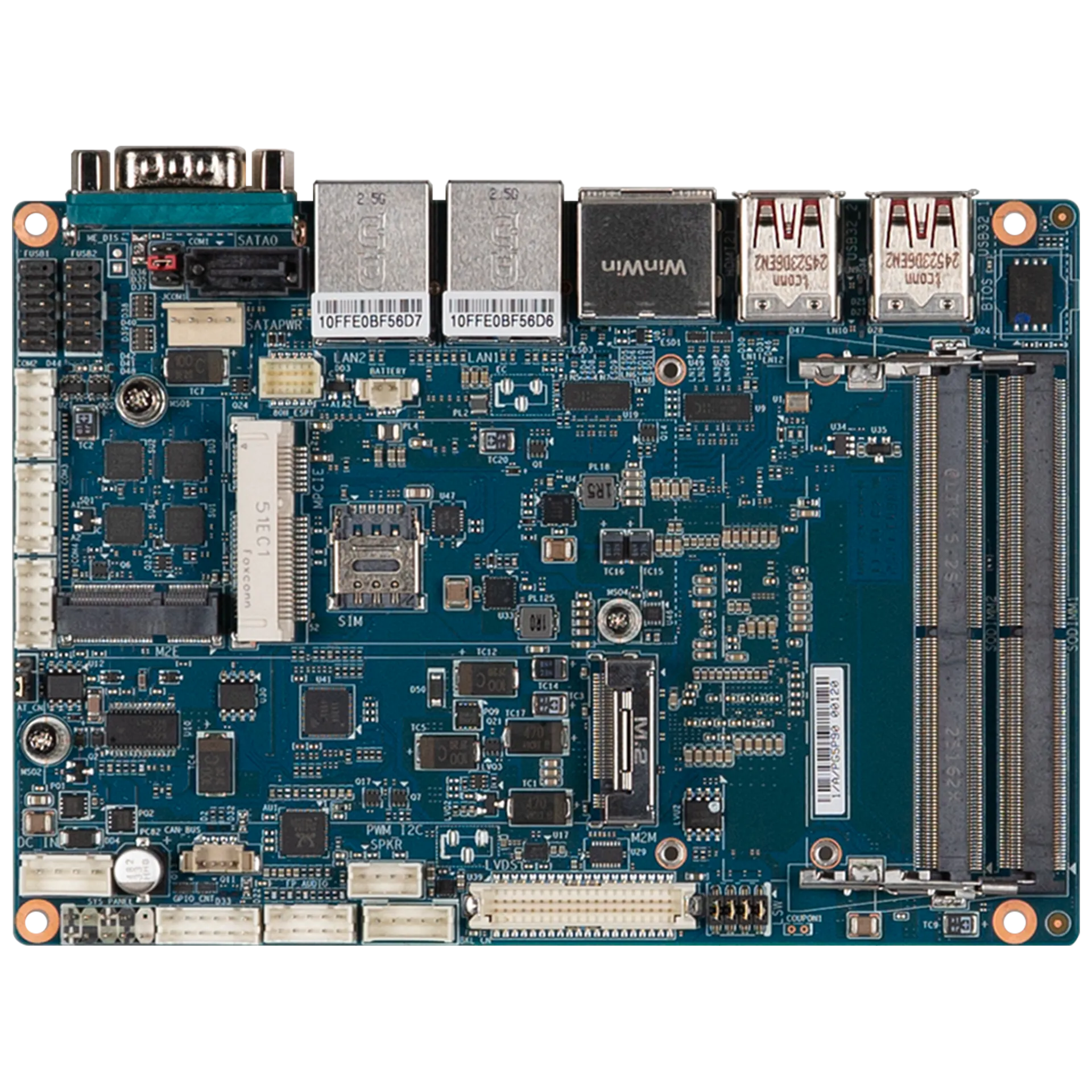

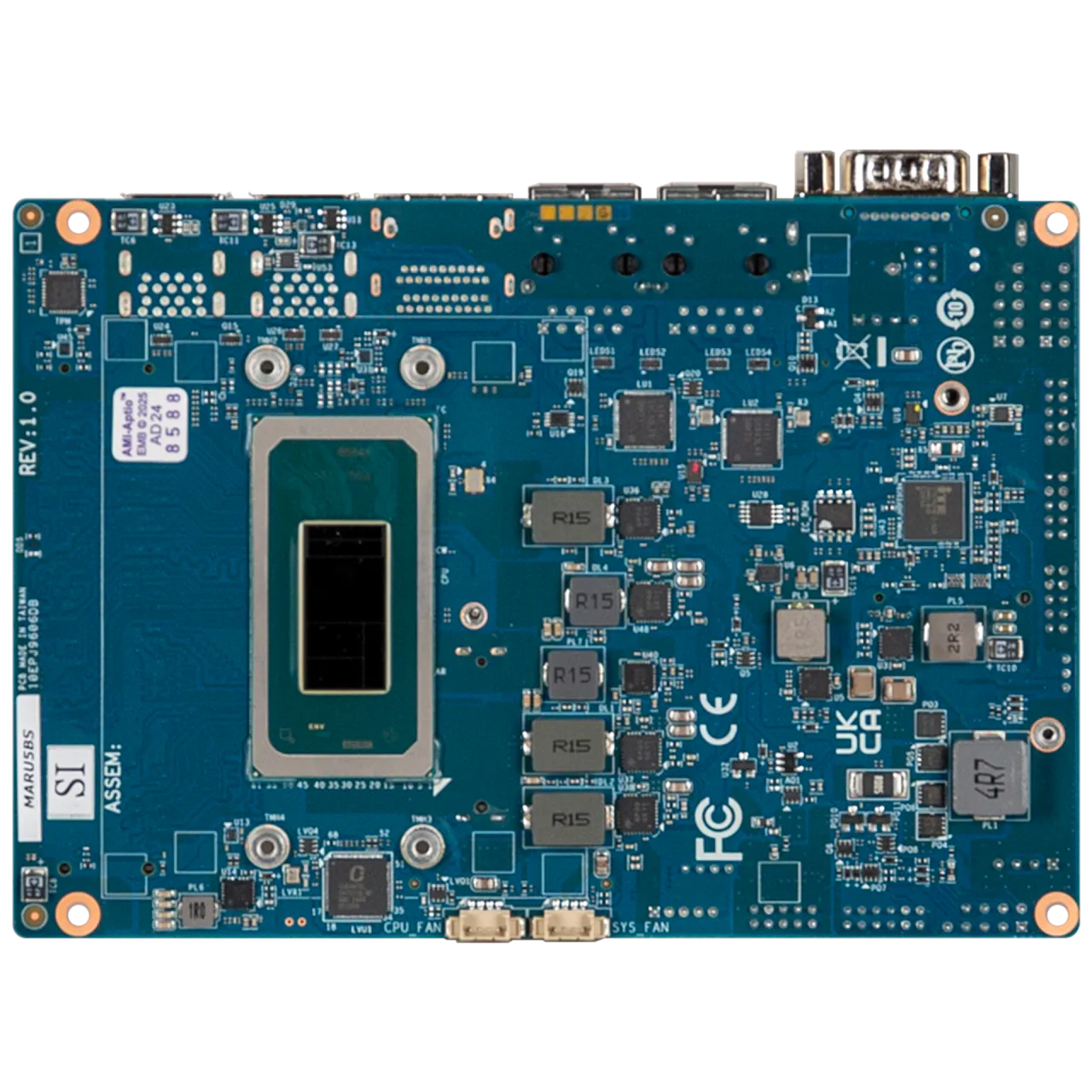

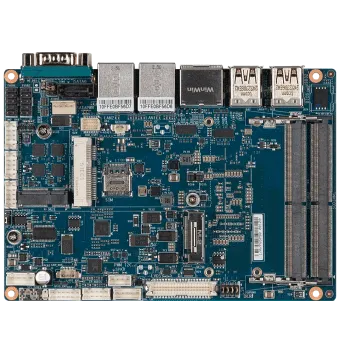

QBiP-255UB
- New
Key Features
3.5" SubCompact Board with Intel® Core™ Ultra 7 Processor 255U, Dual Channel DDR5 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0
• 3.5" SBC
• Intel® Core™ Ultra 7 Processor 255U
• Dual Channel DDR5, 2 x SO-DIMMs / CSO-DIMMs
• 2 x 2.5GbE LAN Ports
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen4 x4 interface
• 2 x HDMI, LVDS ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 3 x COM Ports (RS-232/422/485)
• 4 x USB 3.2 Gen 2x1
• 1 x CAN Bus header
QBi Pro (3.5" SBC)
QBiP-255UB
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Core™ Ultra 7 Processor 255U
Intel® 3, 12 cores, 2P+8E+2LPE, 14 threads, up to 5.20 GHz
TDP 15W
12 MB Smart Cache
Socket
1 x FCBGA2049
Memory
2 x DDR5 SO-DIMM/CSO-DIMM sockets, Max. Capacity 128 GB
Support Dual Channel DDR5 5600/6400 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V & I226LM)
Video
Integrated Graphics Processor - Intel® Graphics:
2 x HDMI2.1 port, supporting a maximum resolution of 7680x4320 @60Hz (HDMI 2 port support HDMI CEC)
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Internal I/O
1 x 4-pin box power connector (DC in +9V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x CANBus header

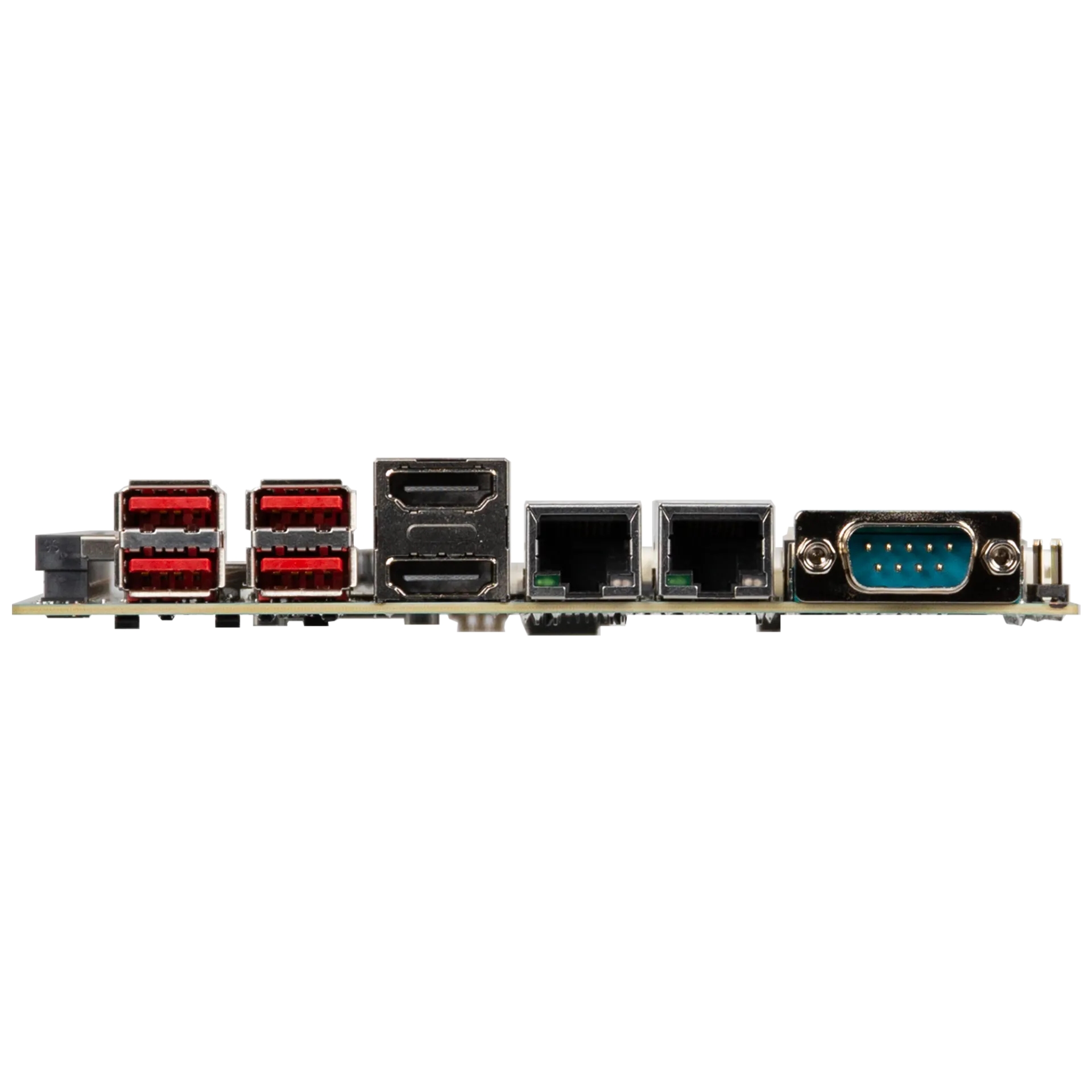

Rear l/O
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672XU2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Thermal pad for Memory x 1 (P/N: 25ST3-290300-S7R)
Order Information
9MARU7BSMR-SI (Box Packing)
Optional Kit
Fanless sink P/N: 25ST1-113105-A7R
Heat spreader P/N: 25ST1-713000-Y0R
Fansink P/N: 25ST4-113104-A7R
