Key Features

Embedded Compact Board with Intel® Processor N97, Single Channel DDR5 memory, 1 x COM , 1 x SATA 6Gb/s, 6 x USB, TPM on board



• Embedded IPC Motherboard
• Intel® Processor N97
• Single Channel DDR5, 1 x SO-DIMM
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• 2 x HDMI Ports for multiple display
• 1 x COM Port (RS-232)

SHARE
fb_share
linkedin_share

Specification

Form Factor

Embedded Compact Board
105W x 110D (mm)

CPU

Intel Processor N97
Intel 7, 4 cores, up to 3.60 GHz
TDP 12W

Socket

1 x FCBGA1264

Memory

1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules

Ethernet

2 x GbE LAN Ports (Realtek® RTL8111H)

Video

Integrated Graphics Processor - Intel® UHD Graphics support:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® ALC269

Storage

1 x SATA 6Gb/s Port

Expansion Slots

1 x 2280 M.2 M-Key (PCIe Gen 3x1, SATA 6Gb/s)
1 x 2230 M.2 E-Key

Internal I/O

1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers

Front I/O

2 x USB 3.2 Gen 2x1
1 x Power button with LED
1 x COM Port (RS-232)
1 x Combo audio jack (Headphone & Headset)

Rear l/O

2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x HDMI
1 x Screw type DC Jack (+12V~19VDC)

TPM

Onboard TPM 2.0 security chip
NUVOTON NPCT760AABYX

OS Compatibility

Windows 10/11 (x64)

Operating Properties

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg

Including:
SATA power cable 150mm x 1 (P/N: 25CRI-300B01-K1R)

Order Information

9MADN9AHMR-SI (Box Packing)

Optional Kit

Fanless Heatsink P/N: 25ST1-1231Z9-A7R
Fansink P/N: 25ST4-123104-A7R
Heat spreader P/N: 25ST1-113109-Y0R

Technical Support

All Downloads
Select Operating System:

    Drivers

  • Intel® Serial IO

    File Name Version File Size Publish Date Download
    QBi-N97A_Intel® Serial IO Driver
    30.100.2229.4 2.2 MB 2024-03-31 Download
  • VGA

    File Name Version File Size Publish Date Download
    QBi-N97A_Graphic Driver
    31.0.101.4502 583.6 MB 2024-03-31 Download
  • Intel® Management Engine

    File Name Version File Size Publish Date Download
    QBi-N97A_Intel® Management Engine Driver
    2251.4.2.0 675.0 MB 2024-03-31 Download
  • Intel® SST

    File Name Version File Size Publish Date Download
    QBi-N97A_Intel® SST Driver
    10.29.0.8467 114.6 MB 2024-03-31 Download
    QBi-N97A_Intel® SST Driver Installation SOP
    10.29.0.8467 0.51 MB 2024-03-31 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBi-N97A_Realtek Audio Driver
    6.0.9524.1 50.4 MB 2024-03-31 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBi-N97A_1G LAN Driver for Win10
    10065 4.8 MB 2024-03-31 Download
    QBi-N97A_1G LAN Driver for Win11
    1168.13.424.2023 4.8 MB 2024-03-31 Download
  • Chipset

    File Name Version File Size Publish Date Download
    QBi-N97A_Chipset Driver
    10.1.50.8 4.5 MB 2024-03-31 Download

    User Manuals

  • File Name Version File Size Publish Date Download
    QBi-N97A User Manual
    V1.0 5.4 MB 2024-04-19 Download

Related Products

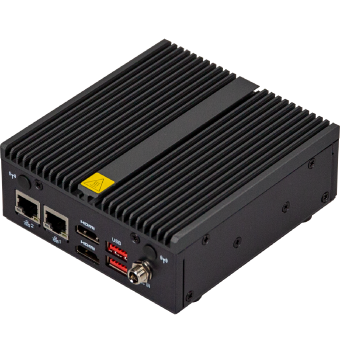

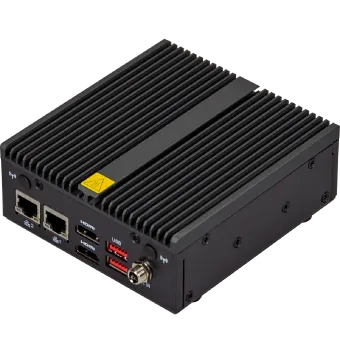

QBiX-ADNAN97-A1
