QBi (10x10 M/B)

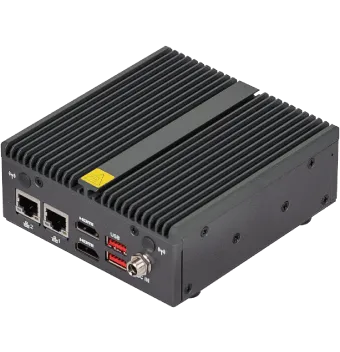

QBi-N150A
- New
Key Features
Embedded Compact Board with Intel® Processor N150, Single Channel DDR5 memory, 1 x COM , 1 x SATA 6Gb/s, 7 x USB, TPM on board
• Embedded IPC Motherboard
• Intel® Processor N150
• Single Channel DDR5, 1 x SO-DIMM
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• 2 x HDMI, 1 x DP 1.4 through USB type C
• 1 x COM Port (RS-232)
QBi (10x10 M/B)
QBi-N150A
Specification
Form Factor
Embedded Compact Board
105W x 110D (mm)
CPU
Intel® Processor N150
Intel 7, 4 cores, up to 3.60 GHz
TDP 6W
Socket
1 x FCBGA1264
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111H)
Video
Integrated Graphics Processor -
Intel® UHD Graphics support:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB Type C (DP Alt.mode)
(3 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 3x1, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
Front I/O
2 x USB 3.2 Gen 2x1
1 x Power button with LED
1 x COM Port (RS-232)
1 x Combo audio jack (Headphone & Headset)
1 x USB 3.2 Gen2 type-C (ALT mode)
Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x HDMI
1 x Screw type DC Jack (+12V~19VDC)
TPM
Onboard TPM 2.0 security chip
NUVOTON NPCT760AABYX
OS Compatibility
Windows 11 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Including:
SATA power cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information
9MTWN1AHMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-1231Z9-A7R
Fansink P/N: 25ST4-123104-A7R
Heat spreader P/N: 25ST1-113109-Y0R
