Wide Temperature Series

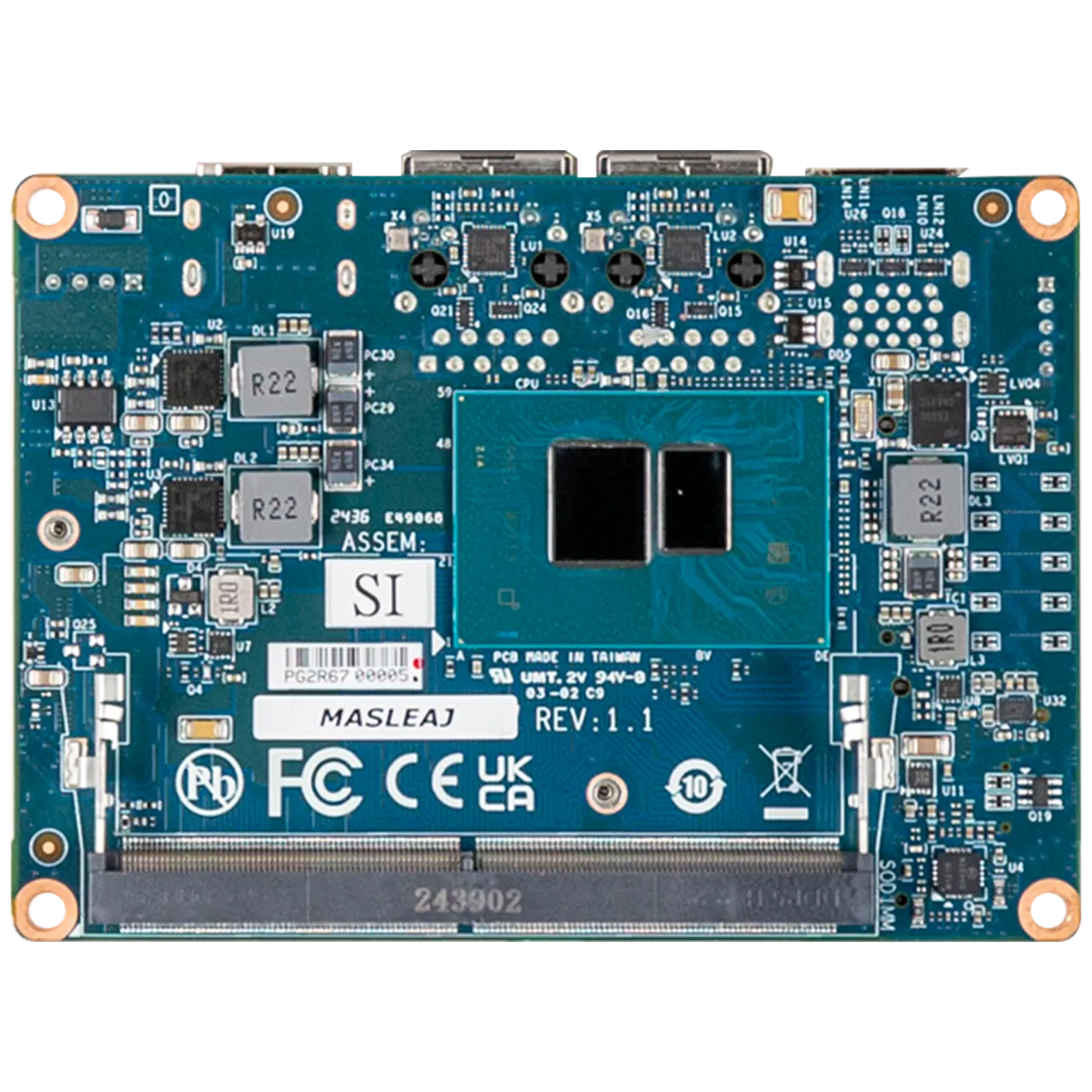

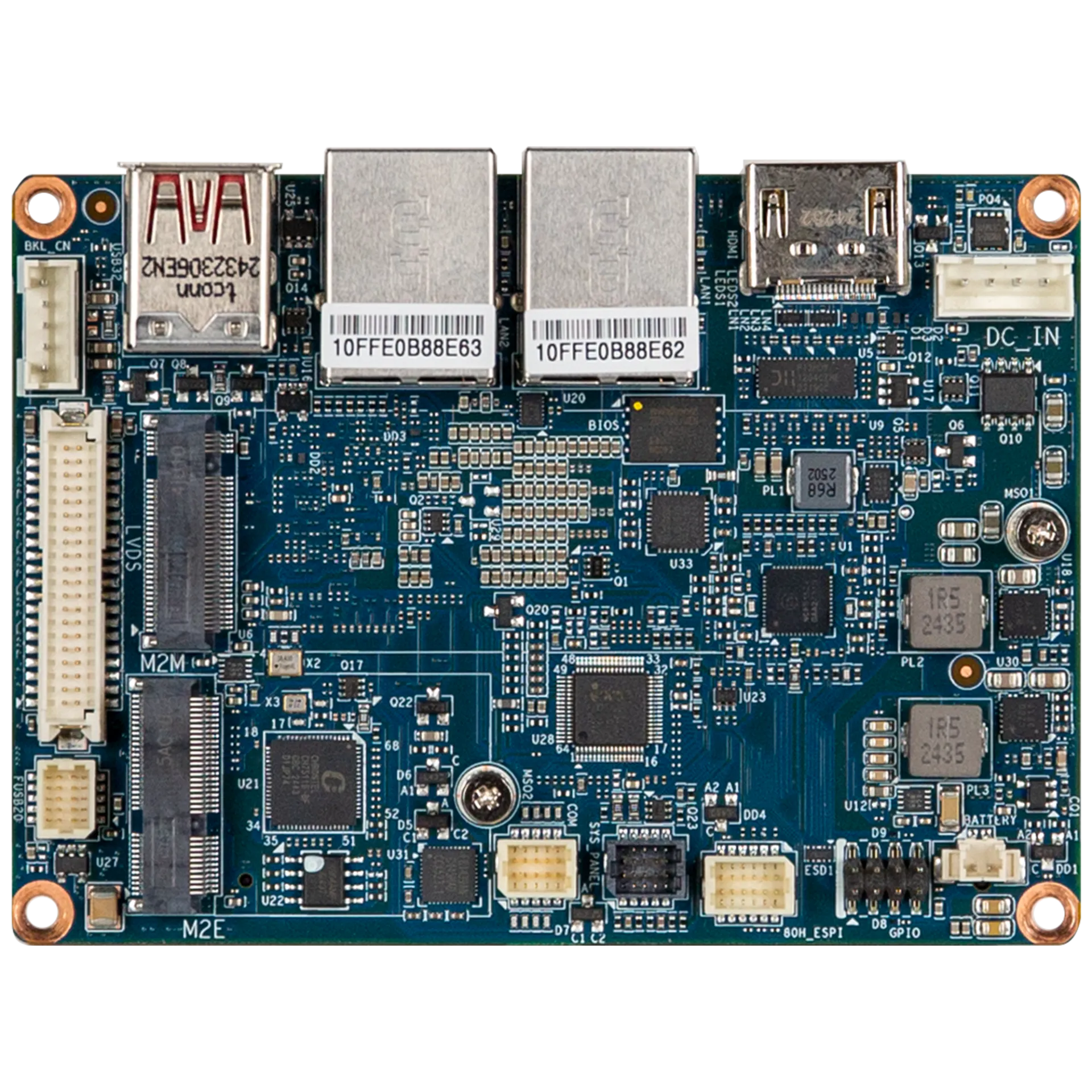

PICO-x7433REAT
- New
Key Features
PICO-ITX with Intel® Atom® x7433RE Processor, Single Channel DDR5 memory, 2 x USB 2.0, 1 x USB 3.2 Gen 2x1, 1 x USB 3.2 Gen 1, Wide Temperature Board
- PICO-ITX form factor
- Intel® Atom® x7433RE Processor
- Single Channel DDR5, 1 x DIMM
- 1 x HDMI Port
- 1 x USB 3.2 Gen 1
- 1 x USB 3.2 Gen 2x1
- 2 x USB 2.0
- Wide Temperature Board
Wide Temperature Series
PICO-x7433REAT
Specification
Form Factor
PICO ITX 100W x 72D (mm)
CPU
Intel® Atom® x7433RE Processor
Intel 7, 4 cores, up to 3.40 GHz
TDP 9W
Socket
FCBGA1264
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB Support Single Channel DDR5 4800 MHz memory module
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111H)
Video
Integrated Graphics Processor - Intel® UHD Graphics support: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (2 independent display outputs)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 3x2)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)
Internal I/O
1 x 4-pin box power connector (+12VDC)
1 x Front panel header
1 x COM header (RS-232/422/485)
2 x USB 2.0 headers
1 x GPIO (4-bits) header
1 x Backlight Control header

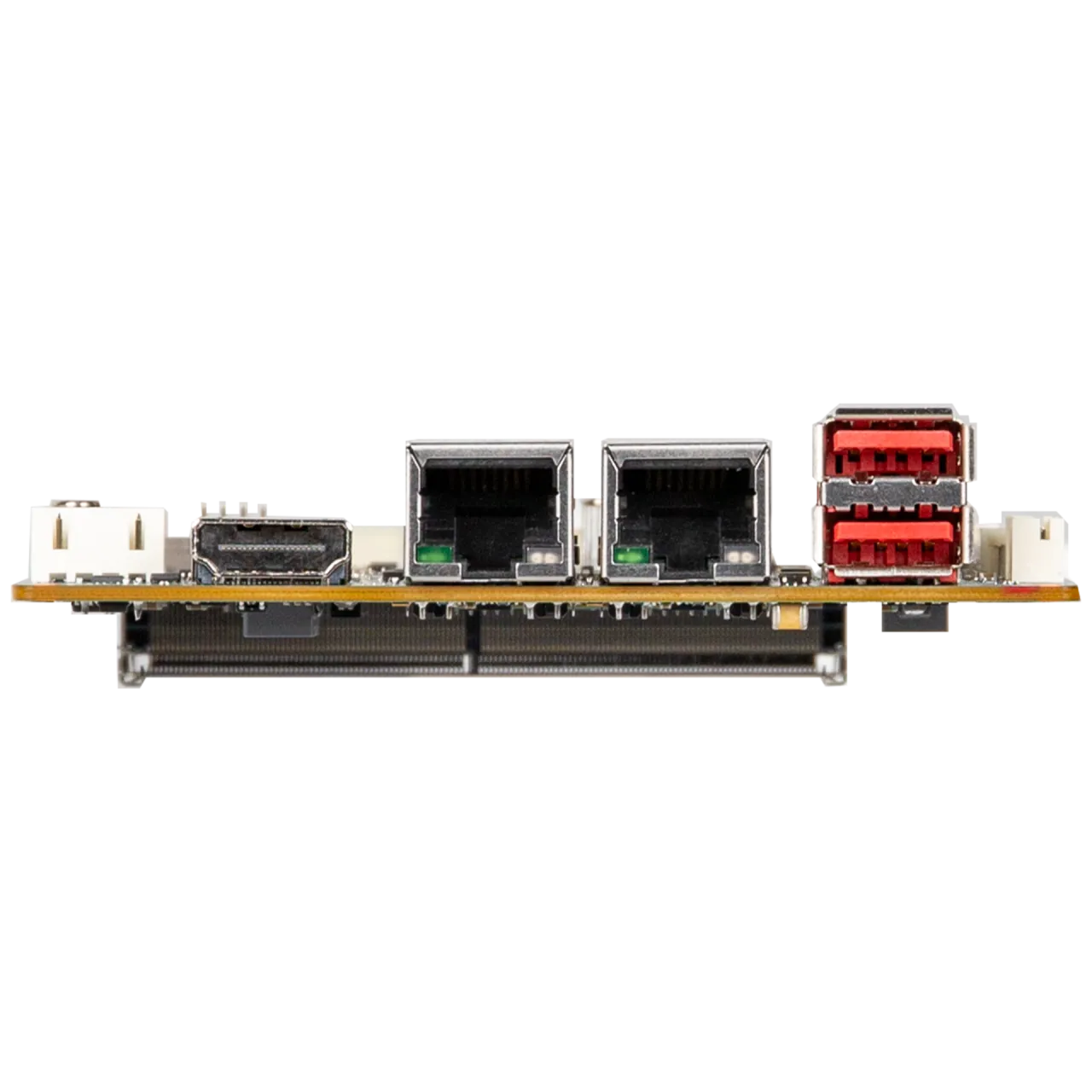

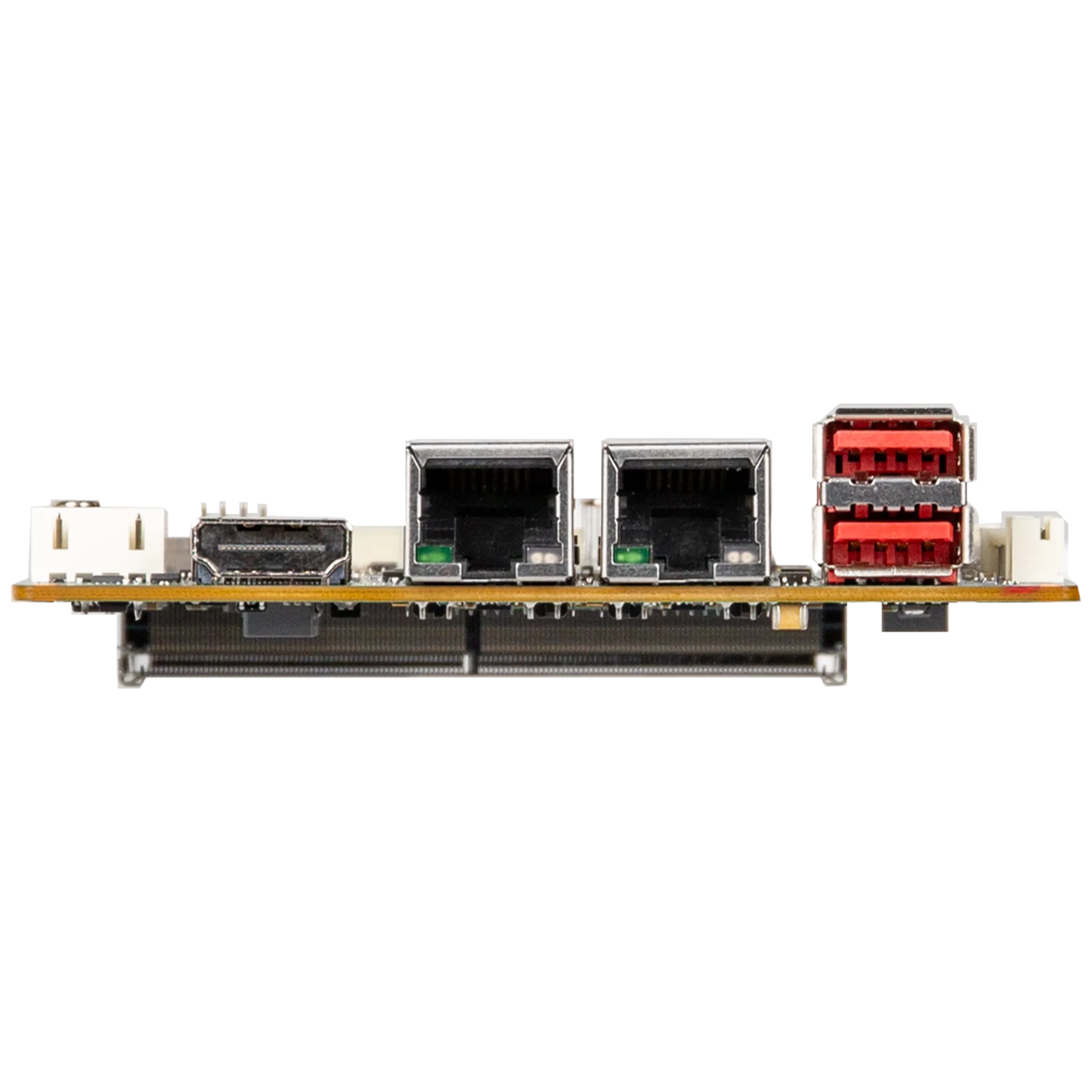

Rear l/O
1 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2x1
2 x RJ45 LAN Ports
1 x HDMI
TPM
Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0
Operating Properties
Operating temperature: -40°C to 85°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 384 x 251 x 211 (mm)
Packing Capacity: 20pcs
Single Box size: 168 x 112 x 34 (mm)
Order Information
9MASLEAJMT-SI1 (Box packing)
Optional Kit
Fanless sink P/N: 25ST1-1231ZD-Z1R
WiFi module Heatsink P/N: 25ST1-1531Z2-S7R
M.2 SSD Heatsink P/N: 25ST1-1231ZE-S7R
