User Manual
-
File Name Version File Size Publish Date Download PICO-G700A_G510A user manualV1.0 4.4 MB 2026-01-15 Download
User Manuals
Pico-ITX

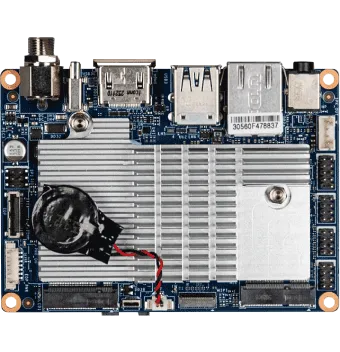

PICO-G700A
- New
Key Features
PICO-ITX with MediaTek Genio 700, Onboard LPDDR4X 8GB, eMMC 64GB, 2 x USB 3.0, 1 x USB Type-C OTG
- PICO-ITX form factor
- MediaTek Genio 700 (MT8390)
- Onboard 8GB LPDDR4X
- eMMC 64GB
- HDMI, MIPI, eDP for dual Display support
- Wide voltage support 12~24V
Pico-ITX
PICO-G700A
Specification
Form Factor
PICO ITX
100W x 72D (mm)
CPU
MediaTek Genio 700 (MT8390)
2 x Arm Cortex-A78, 2.2GHz
6 x Arm Cortex-A55, 2.0GHz
AI Inference Computing Power
MediaTek 5th-Gen NPU 4.0 TOPS
(1x MDLA3.0 + 1x Tensilica VP6)
Memory
Onboard 8GB LPDDR4X
Ethernet
Realtek® RTL8211F-CG (10/100/1000 Mbps)
Video
Arm Mali-G57 MC3 GPU, Support OpenGL ES 1.1/2.0/3.2, and Vulkan 1.0/1.1 :
1 x HDMI 2.0, supporting a maximum resolution of 4096x2160 @60Hz (Android only 1920x1200 @60Hz)
1 x MIPI-DSI (DSI 7" 1920x1200) (supports panel model : SHENZHEN STARTEK KD070FHFID078-01C021A)
1 x eDP (2 x Lan), supporting a maximum resolution of 1920x1080 @60Hz (supports panel model : BOE PV156FHM-N20)
(2 independent display outputs)
Audio
MT6365 (Integrated)
Storage
eMMC v5.1 64GB (on board)
Expansion Slots
1 x 2230 M.2 E-key slot (PCIe x1, USB2.0), supports WiFi6 : Azurewave AWXB468NF (IC:MT7921L)
1 x 3052 M.2 B-Key slot (USB3.0), supports 5G : QUECTEL RM500K-CN / RM520N-GL / RM500Q-GL
Internal I/O
1 x Front panel header
1 x Speaker header
2 x UART
1 x GPIO (8 bits) header
1 x MIPI-DSI
2 x USB 2.0 headers
1 x eDP power header
1 x Nano SIM card slot
1 x Micro SD card slot
Rear l/O
1 x DC In power jack - System adapter 12~24V
2 x USB 3.0 Ports (Host)
1 x USB Type C (OTG)
1 x RJ45 LAN Port
1 x HDMI
1 x Combo audio jack (Headphone & Headset)
OS Compatibility
Yocto 24.1
Ubuntu 22.04
Android 13 (by demand)
Operating Properties
Operating temperature: -20°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 384 x 251 x 211 (mm)
Packing Capacity: 20pcs
Single Box size: 168 x 112 x 34 (mm)
Order Information
9MG700UJMR-SI (Box packing)
-
