Smart Display Module (SDM)
CIBPU
Key Features

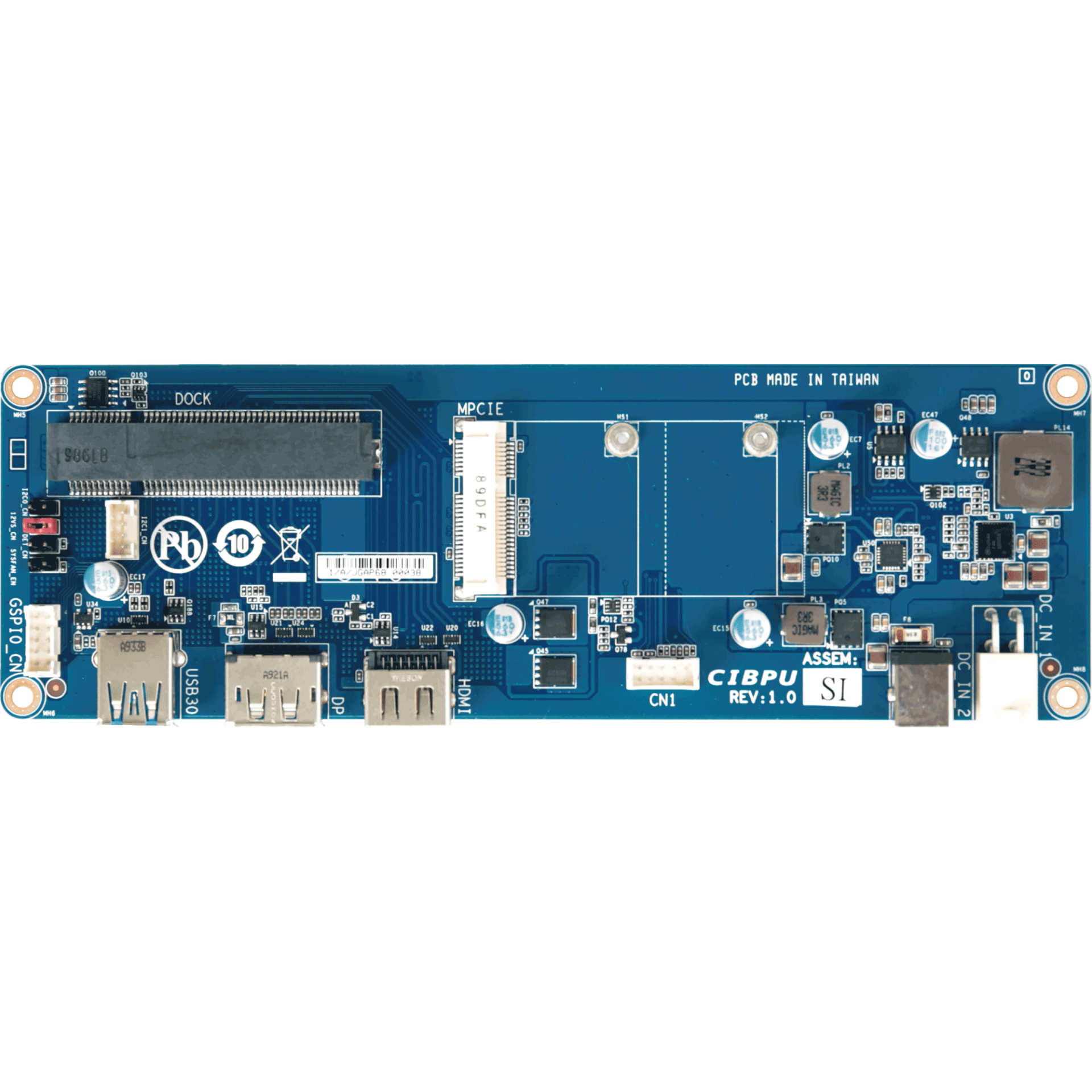

SDM Docking board
• Size : 190W x 62D (mm)
• 1 x PCIe x8 slot for SDM-L module
• Environment : Operation 0°C to 55°C
Smart Display Module (SDM)
CIBPU
Specification
Dimension
190W x 62D (mm)
Expansion Slots
1 x PCIe x8 slot for SDM-L module
1 x Full-size Mini PCIe (PCIe only)
Internal I/O
2 x I2C
1 x GPIO
1 x UART (TX, RX only)

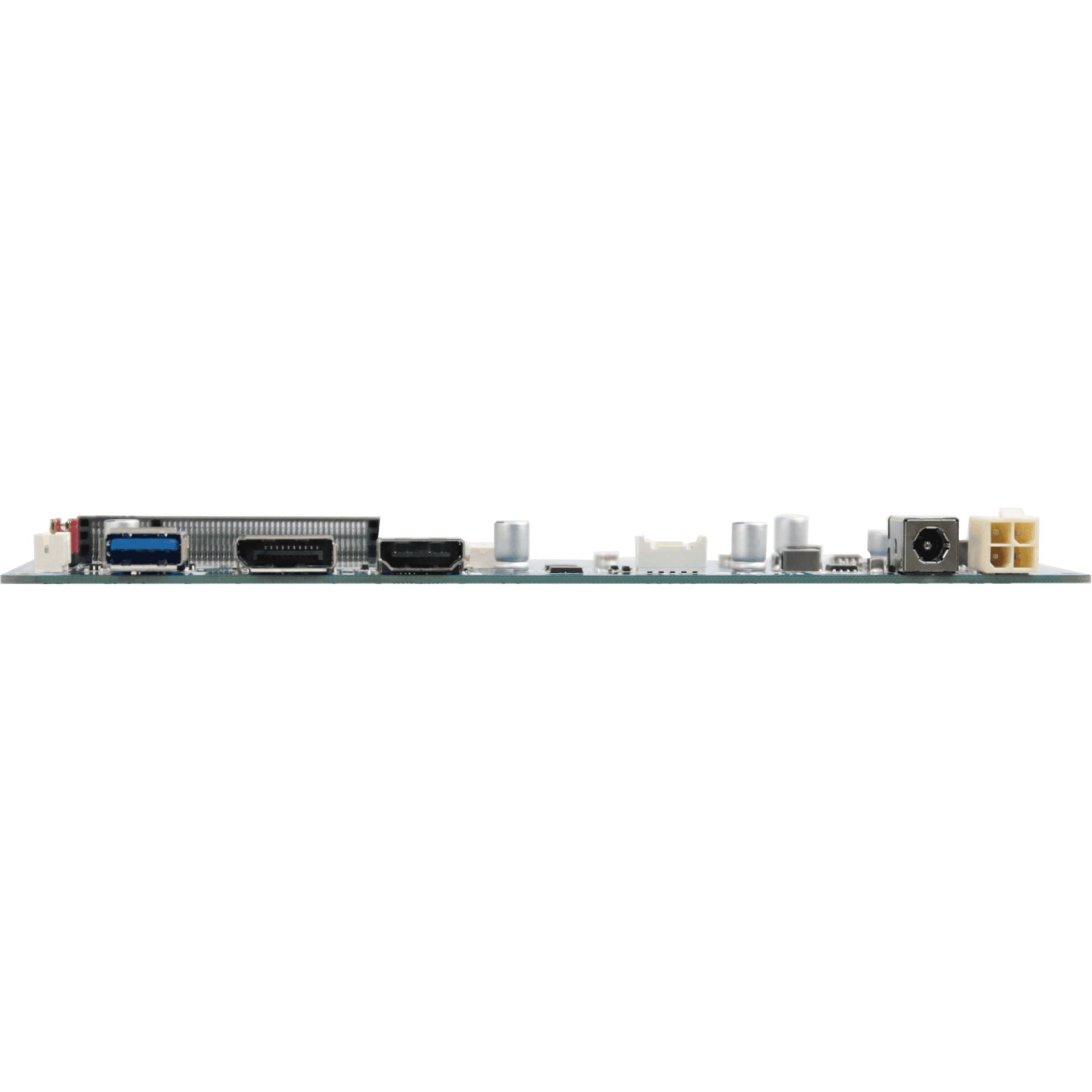

Rear l/O
1 x USB 3.2 Gen 1
1 x Display Port
1 x HDMI
1 x DC-Jack
1 x 2x2 power connector
Operating Properties
Operating temperature: 0°C to +55°C
Order Information
9CIBPUNR-SI (Bulk packing)
