ATX-Q870A
- Preliminary

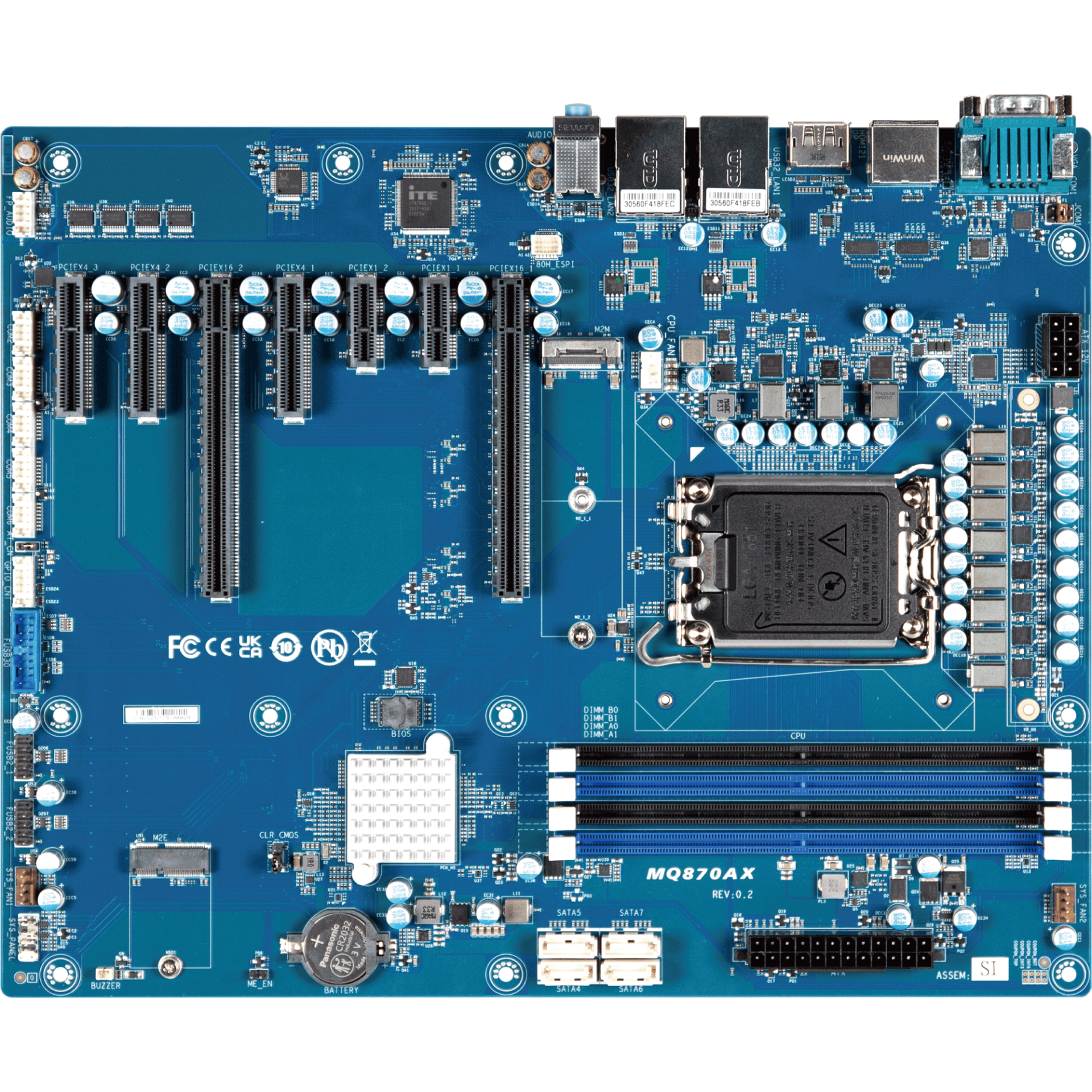

Key Features
ATX with Intel® Q870 Chipset, support Intel® Core™ Ultra processors (Series 2), Dual channel DDR5 memory, 6 x COM, 10 x USB, 4 x SATA 6Gb/s, up to 7 x PCIe expansion slots
• ATX form factor
• Support Intel® Core™ Ultra processors (Series 2)
• Intel® Q870 Chipset
• Dual Channel DDR5, 4 x DIMMs
• 2 x 2.5GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• Up to 7 x PCIe expansion slots
• 10 x USB Ports
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 4 x COM Ports (RS-232)
ATX
ATX-Q870A
Specification
Form Factor
ATX
305W x 244D (mm)
CPU
Support Intel® Core™ Ultra processors (Series 2)
TDP under 125W
Socket
1 x LGA 1851
Chipset
Intel® Q870 Chipset
Memory
4 x DDR5 DIMM sockets, Max. Capacity 192 GB
Support Dual channel DDR5 5600 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V & I226LM)
Video
Integrated Graphics Processor – depends on CPU:
2 x HDMI 2.1 port
1 x DP port
1 x D-sub port
(4 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x SATA 6Gb/s Ports
RAID
RAID 0/1/5/10
Expansion Slots
1 x PCIe x16 (Gen 5x16)(PCIEX16_1)
* The PCIEX16_1 slot shares bandwidth with the PCIEX16_2 slot.
* The PCIEX16_1 slot operates at up to x8 mode when a device is installed in the PCIEX16_2 slot.
1 x PCIe x16 (Gen 5x8)(PCIEX16_2)
3 x PCIe x4 (Gen 4x4)
2 x PCIe x1 (Gen 4x1)
1 x 2280/2242 M.2 M-Key (PCIe Gen5x4)
1 x 2230 M.2 E-Key
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

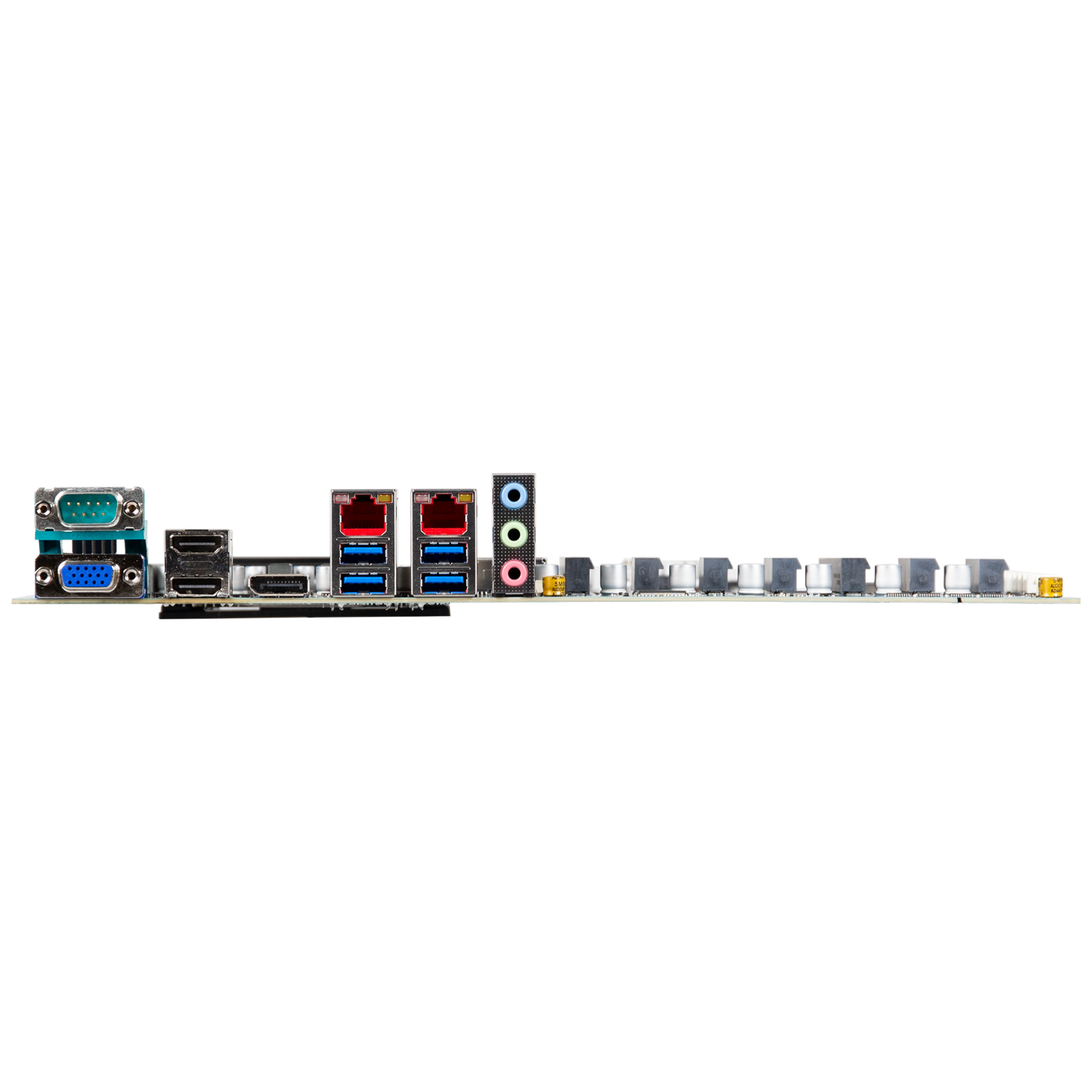

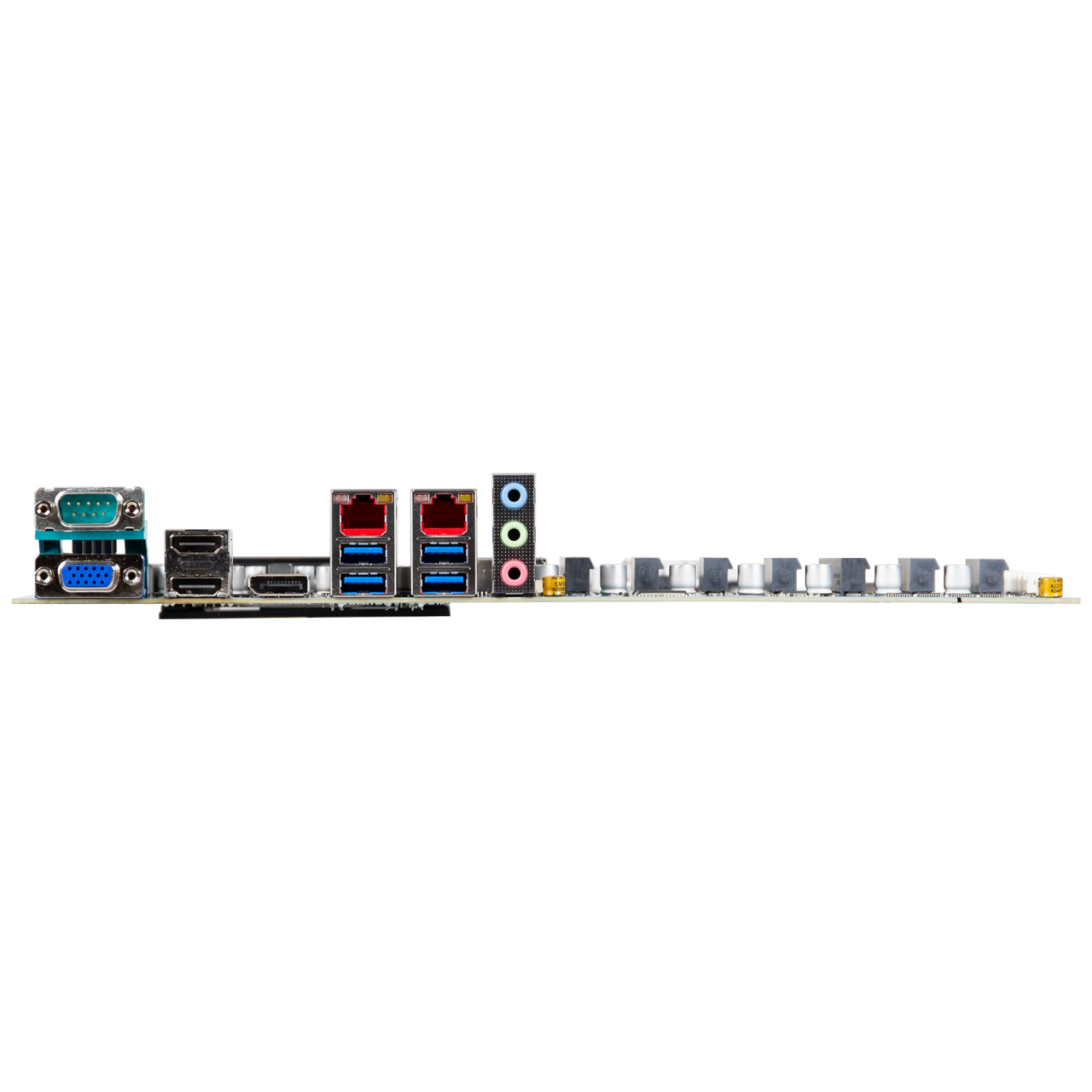

Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Packing Content
Carton size: 679 x 430 x 399 (mm)
Packing Capacity: 10pcs
Single Box size: 360 x 330 x 80 (mm)
Including:
IO Shield x 1
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)
COM Cable x 5 (P/N: 25CF8-300601-D3R)
Order Information
9MQ870AXMR-SI (Box packing)
Remark
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
