2022-07-18
Press Releases
New Launch : Embedded System with Intel® Elkhart Lake Platforms
GIGAIPC, an embedded solution-focused subsidiary from GIGABYTE, previously successfully launched industrial-grade of motherboards with Intel® Elkhart Lake processors. Now, more product options for users to choose to satisfy the kind of device deployment they need.

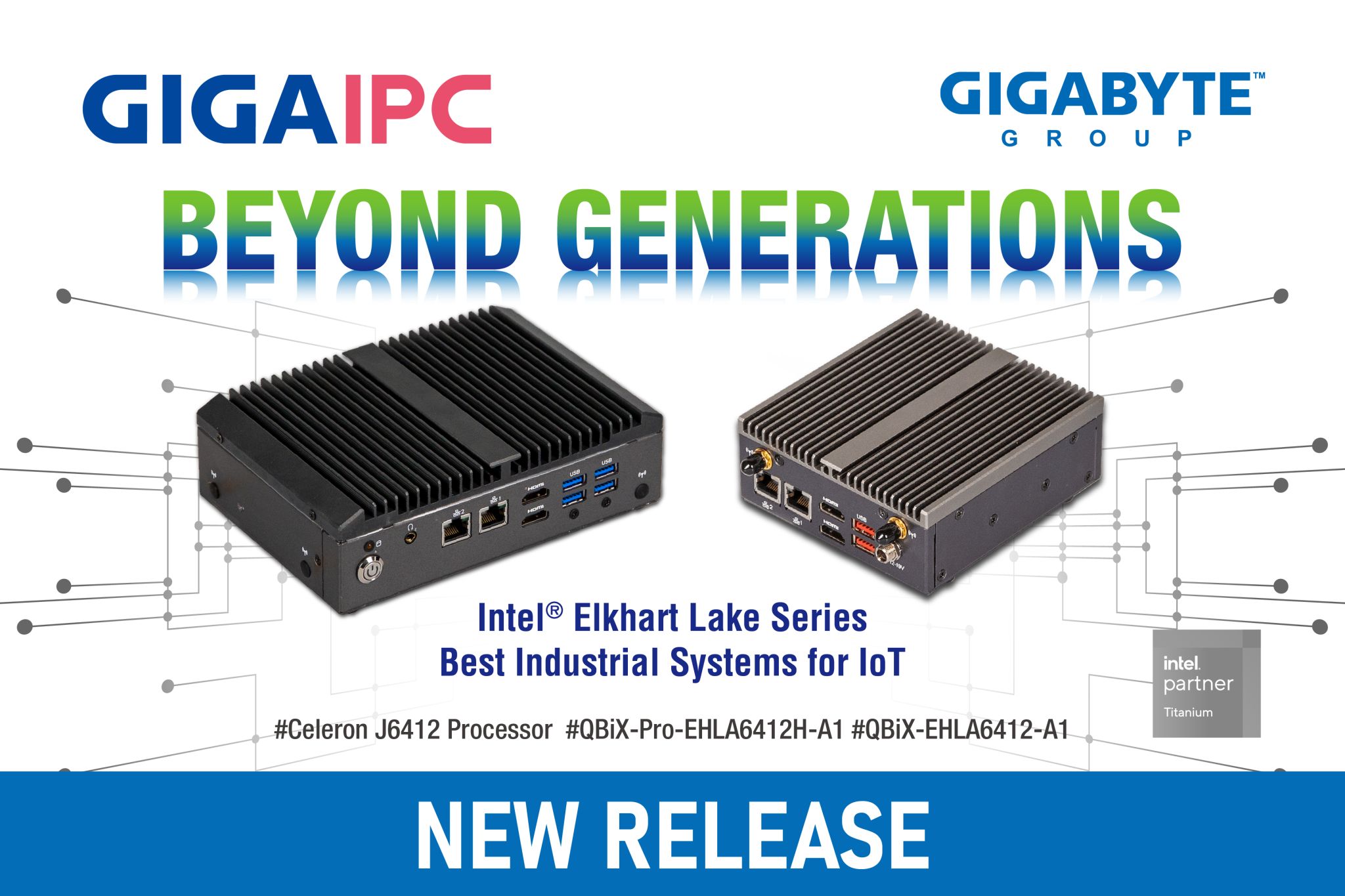

QBiX-Pro-EHLA6412H-A1 / QBiX-EHLA6412-A1 are both fanless design that allows them to perform noiseless at operating temperatures of 0°C to +50°C. They are both covered with rugged aluminum enclosure for better heat dissipation in order to keep high computing performance in severe working environments. These slim-type yet compact embedded systems are ideal for any field of space-limited applications, such as factory automation, healthcare, smart-retail and any other IPC applications.
Both standalone embedded devices support up to 32G DDR4 3200 MHz, two Gigabit RJ45 Ethernet ports, multiple I/O features of USB 3.2 Gen 2 / USB 2.0 ports / M.2 2230 2280 expansion slots and different numbers of COM ports for communication based on the product designs. QBiX-Pro-EHLA6412H-A1 features wide-ranging power input of +9 to 36 VDC while QBiX-EHLA6412-A1 supports +12V~19VDC. In addition, they both support 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/ 5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
| Model | ||
|---|---|---|
| M/B | ||
| CPU | Intel® Celeron® J6412 Processor (Code Name: Elkhart Lake) | |
| Memory | 2 x DDR4 SO-DIMM, Max. Capacity 32 GB | 1 x DDR4 SO-DIMM, Max. Capacity 32 GB |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) | -- |
| LAN | 2 x GbE LAN Ports | |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s, support NVMe SSD) 1 x Full-size mini PCIe w/ SIM slot |
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |
| Power Supply | +9V~36VDC (Full Range) | +12V~19VDC |
