QBi Pro (3.5" SBC)
QBiP-N150C
- New
Produkteigenschaften

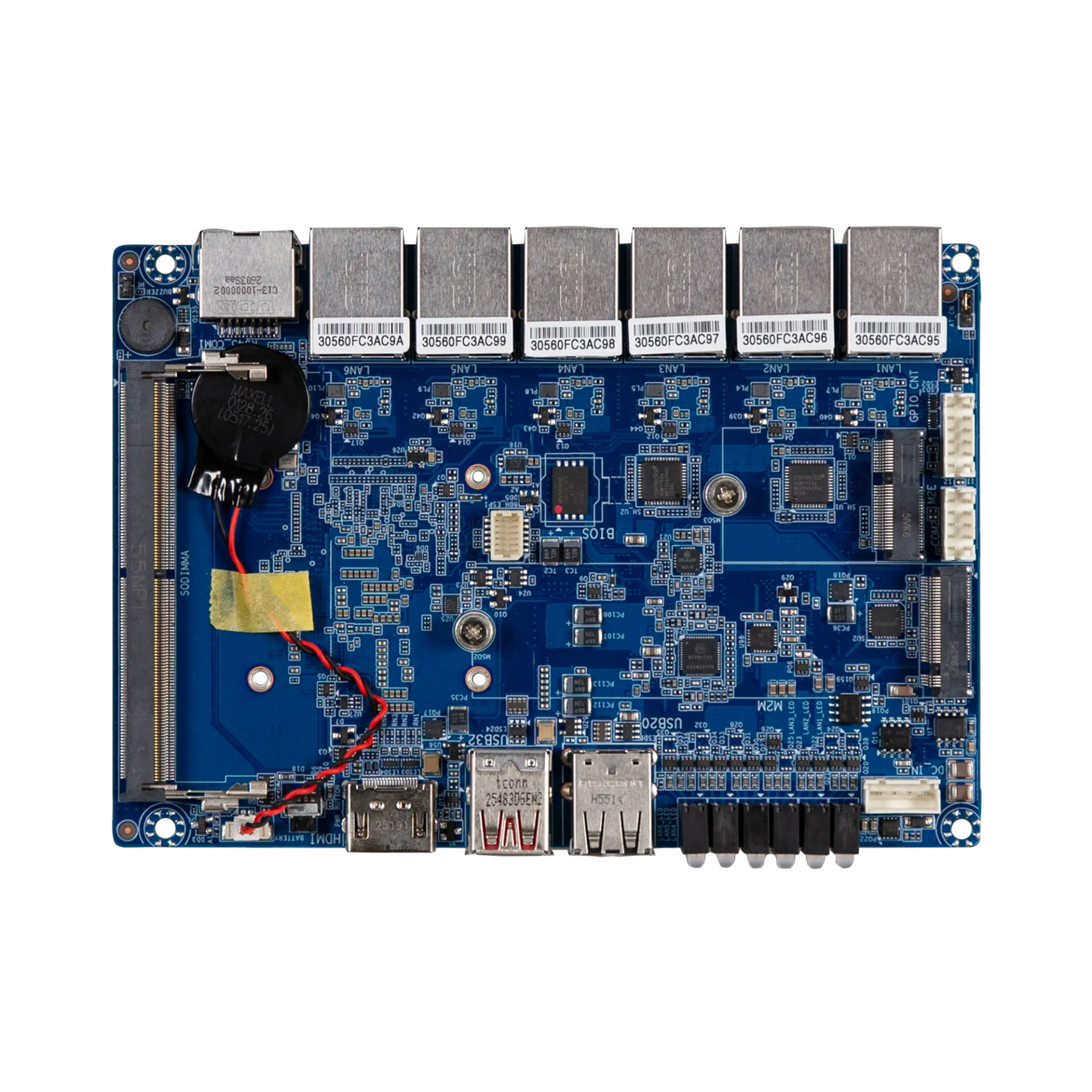

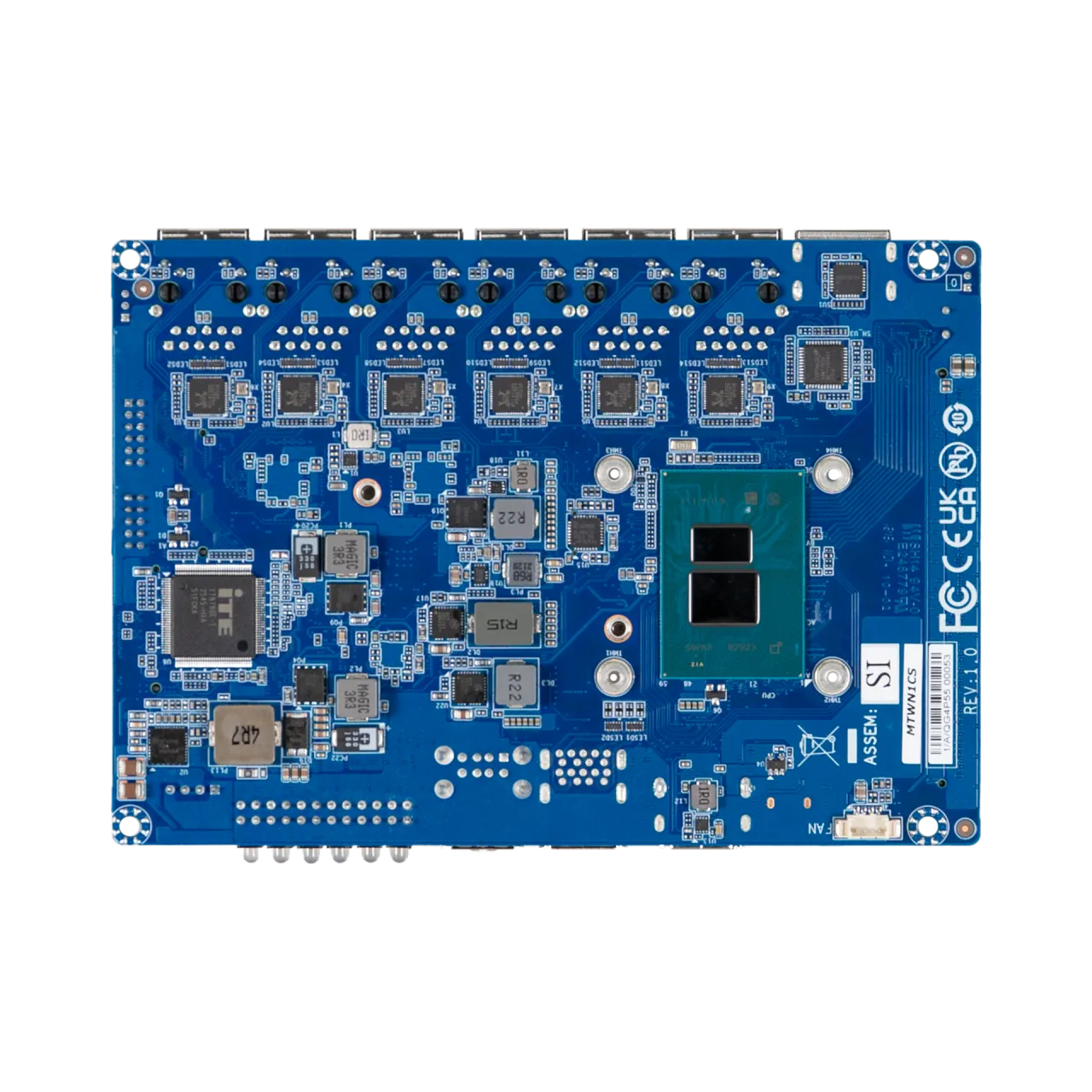

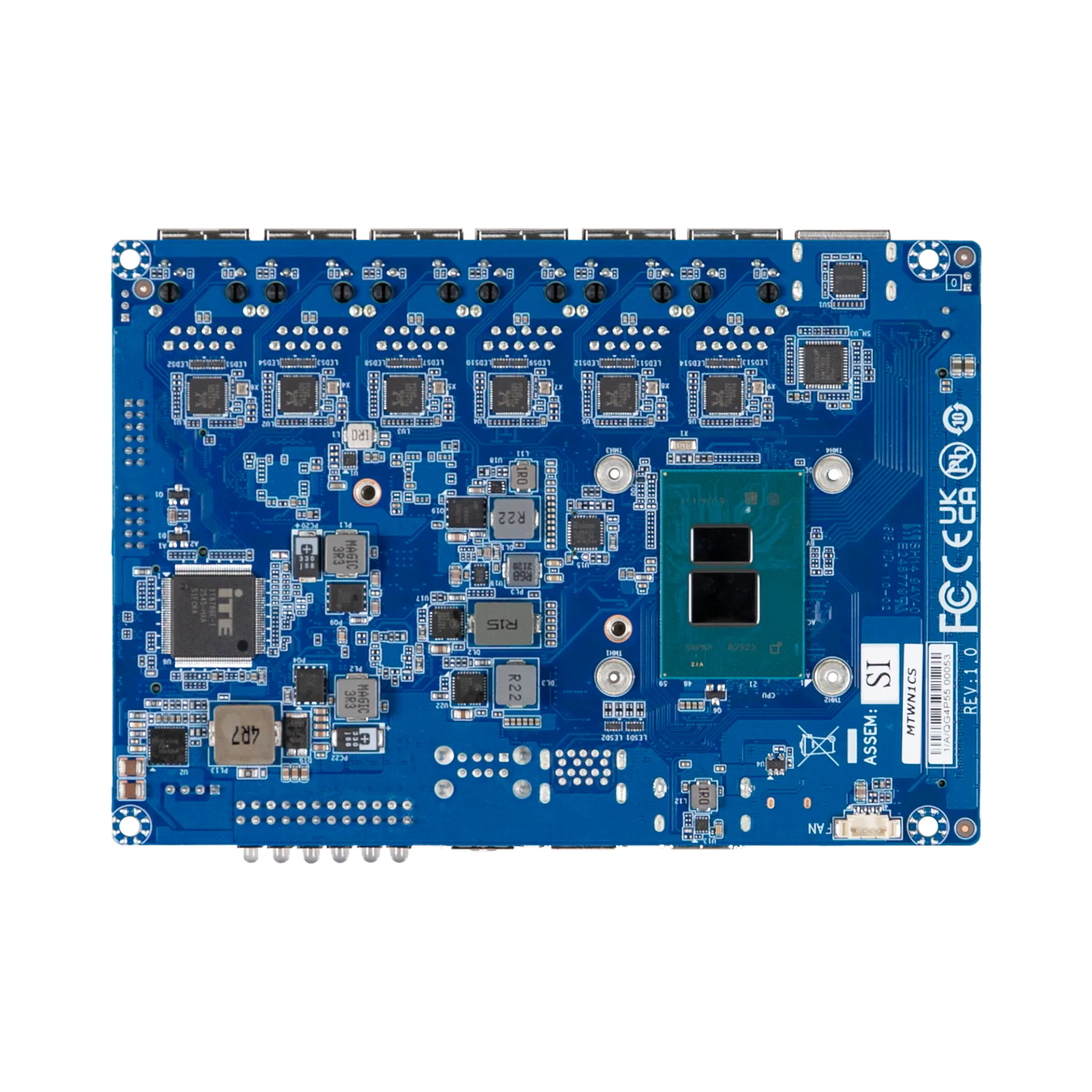

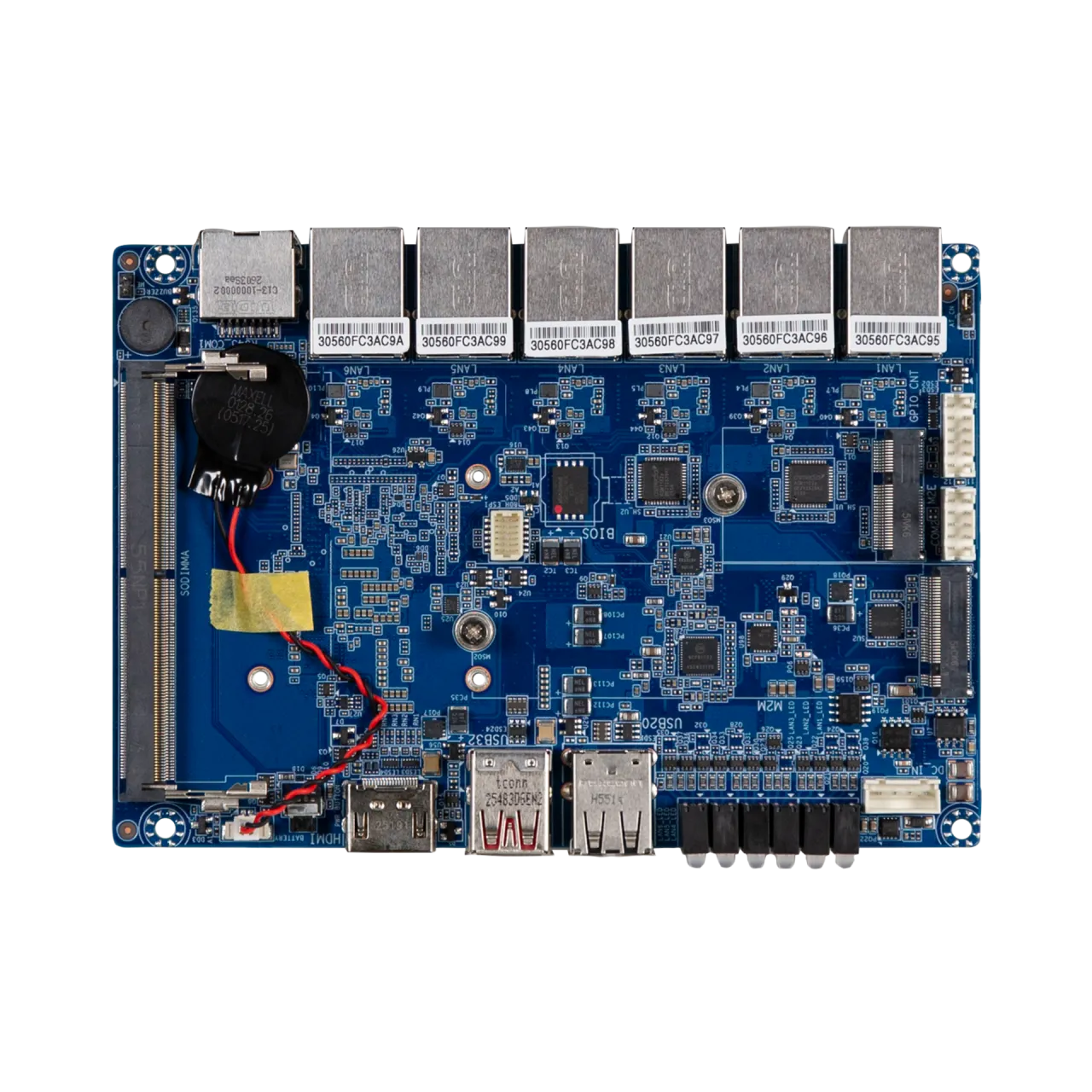

3.5" SubCompact Embedded Motherboard with Intel® Processor N150, Single Channel DDR5 memory, 1 x COM, 6 x LAN, 2 x USB 3.2 Gen 2x1, 2 x USB 2.0
• 3.5" SBC
• Intel® Processor N150
• Single Channel DDR5, 1 x SO-DIMM
• 6 x 2.5GbE LAN Ports
• 1 x COM Port (RS-232)
• TPM on board
QBi Pro (3.5" SBC)
QBiP-N150C
Produktspezifikationen
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Processor N150
Intel 7, 4 cores, up to 3.60 GHz
TDP 6W
Socket
1 x FCBGA1264
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
Ethernet
6 x 2.5GbE LAN Ports (Realtek® RTL8125D)
Video
Integrated Graphics Processor - Intel® Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin box power connector (DC in +12V~36VDC)
1 x CPU fan header
1 x Front panel header
1 x COM header (RS-232)
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) header

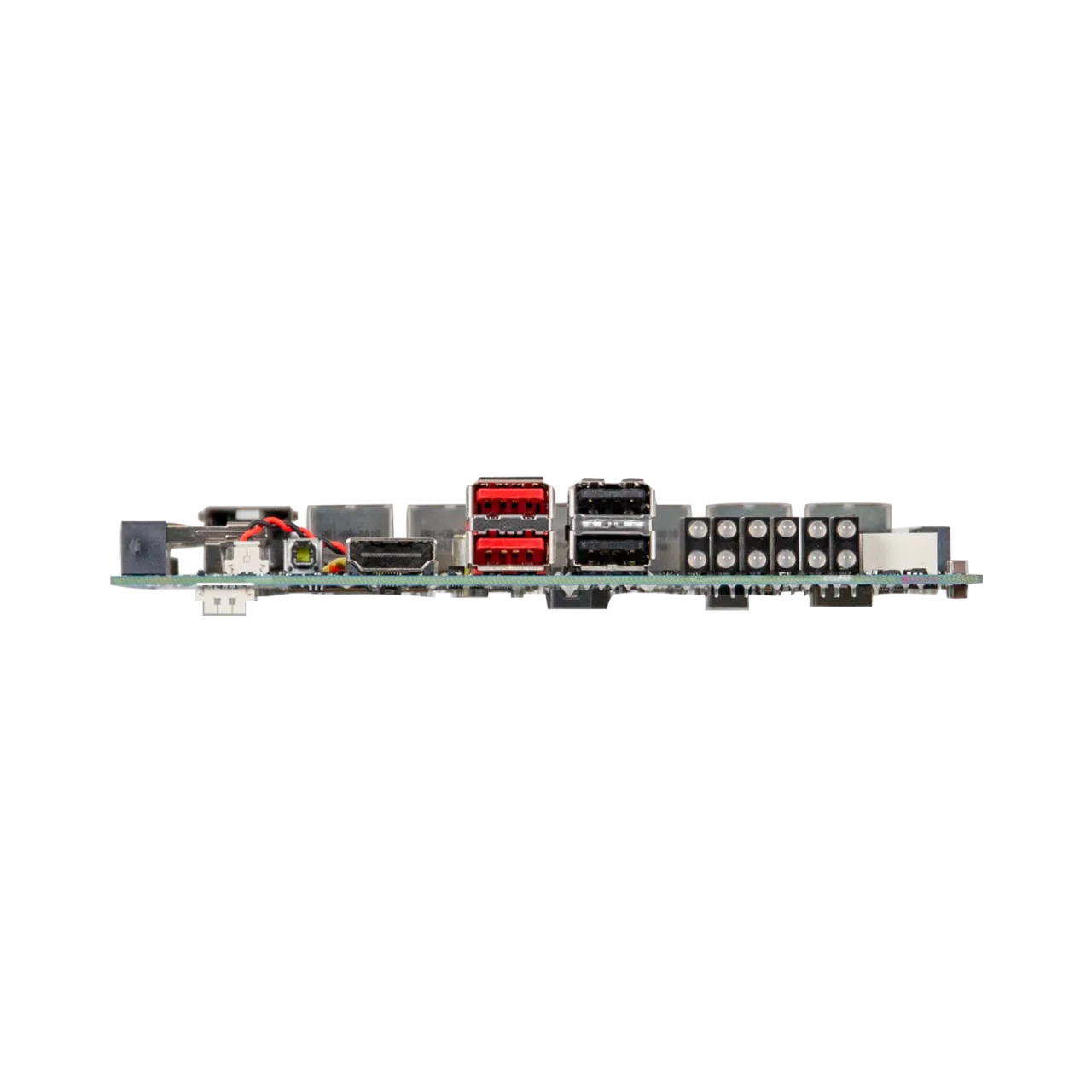

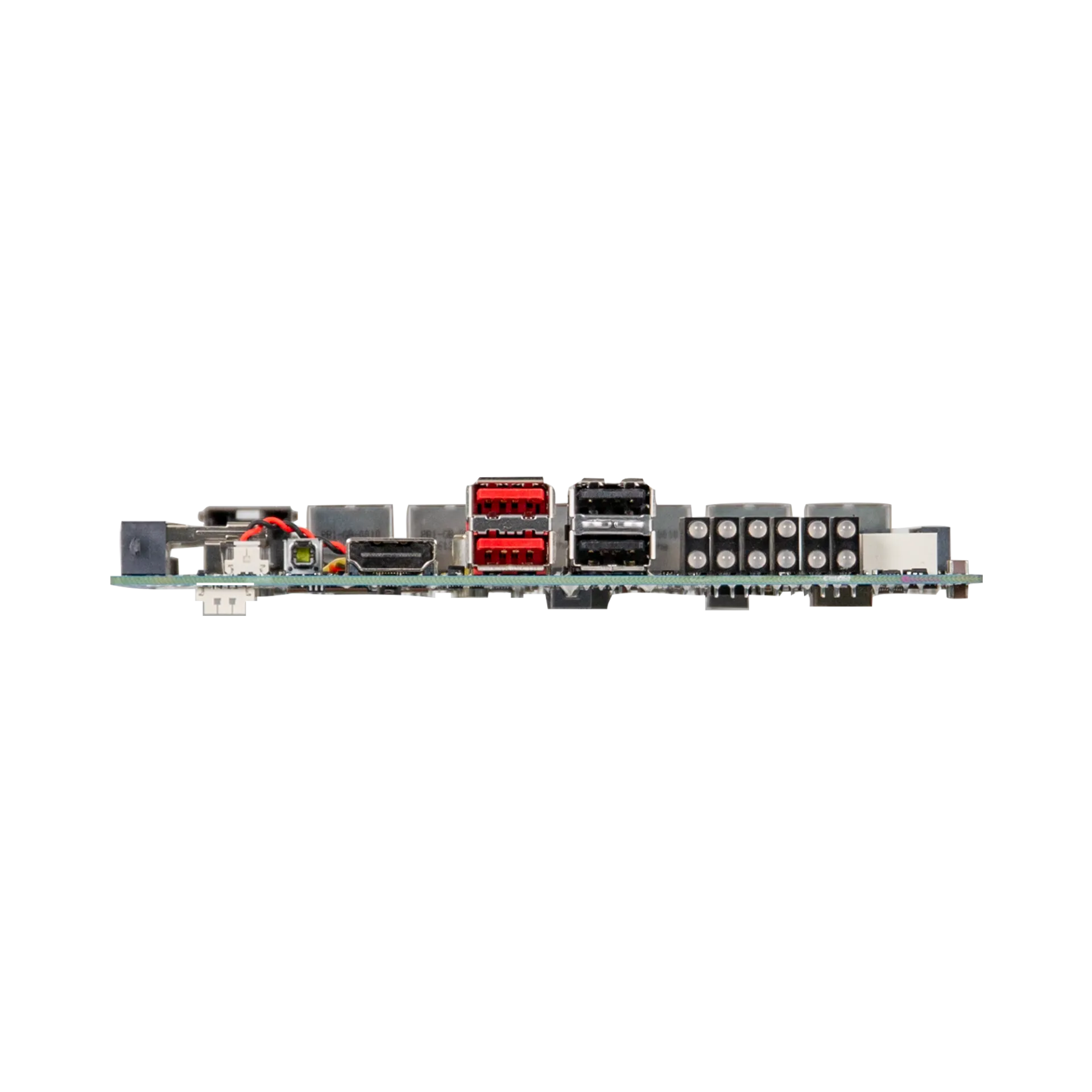

Front I/O
1 x HDMI
2 x USB 3.2 Gen2
2 x USB 2.0
1 x Power button
6 x LAN status LED

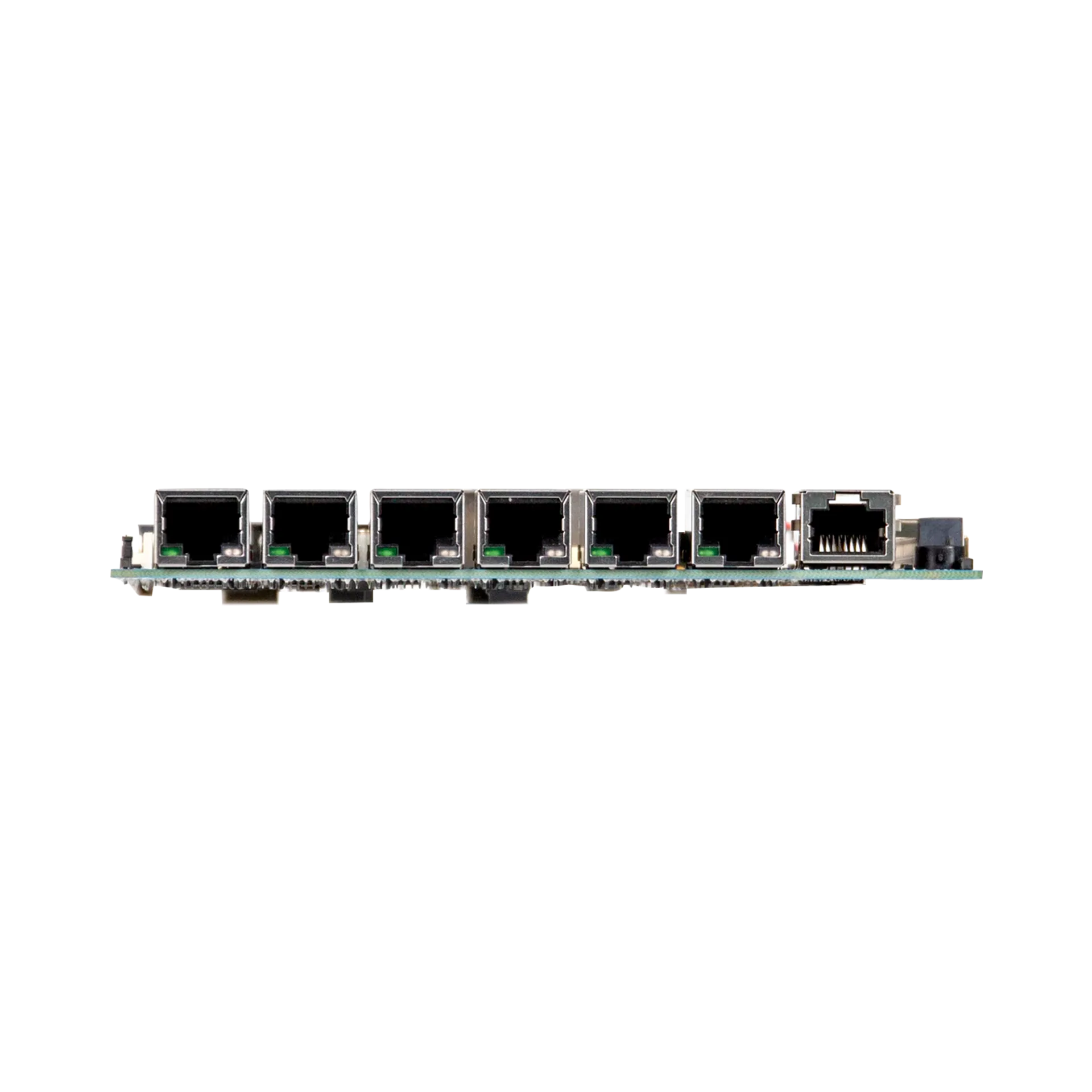

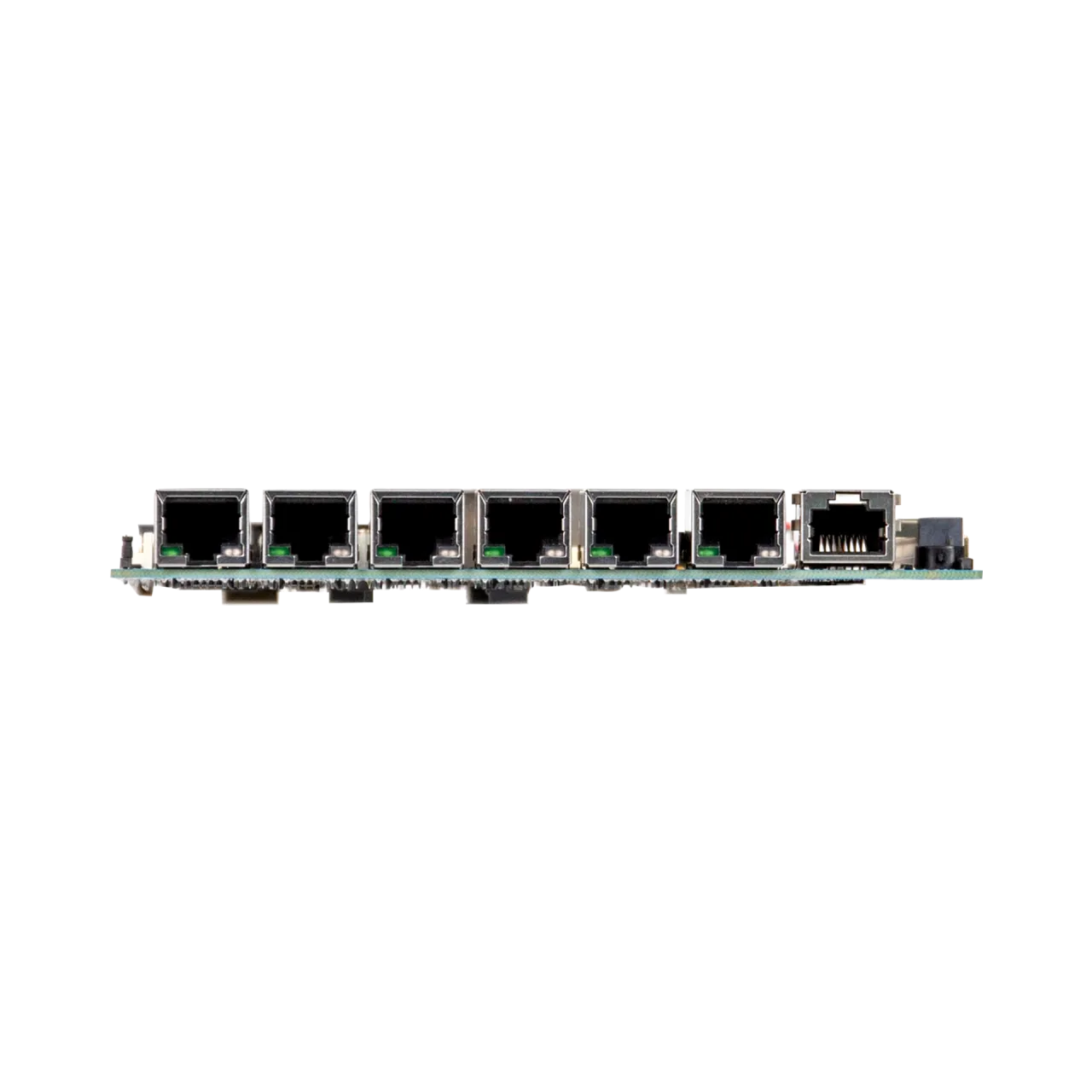

Rear l/O
6 x RJ45 LAN Ports
1 x Console
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Order Information
9MTWN1CSMR-SI (Box Packing)
