2024-01-15
Pressemitteilungen
New Launch: Embedded System with Intel® 13th gen processors
GIGAIPC, an industrial solution-focused subsidiary from GIGABYTE, is launching breakthrough and innovative range of products powered by Intel® 13th Gen Intel® Core™ mobile processors (Code Name: Raptor Lake-U, 15W). This new U-series combines the best of both worlds for enthusiast levels of performance in a thin-and-light form factor. Designed with the experiences that matter most in mind, embedded solutions powered by 13th Gen Intel® Core™ mobile processors offer a premium choice for everyone.
This revolutionary 13th Gen Intel® Core™ mobile processors deliver leadership in performance architecture. Up to 2 Performance cores—or “P-cores”—maximize single-thread performance and responsiveness, while up to 8 efficient cores—or “E-cores”—deliver scalable, multi-threaded performance and efficient offload of background tasks for modern multi-tasking.
QBiP-1315EB / QBiP-1335B / QBiP-1355B are integrated with Intel® Core™ i3-1315UE / i5-1335U /i7-1355U Processors, 15W, to achieve high-performance computing with lower power consumption and intelligently make instant, optimal adjustments to workloads and workflows to the target applications including machine vision, smart retail, industrial automation, and digital signage.

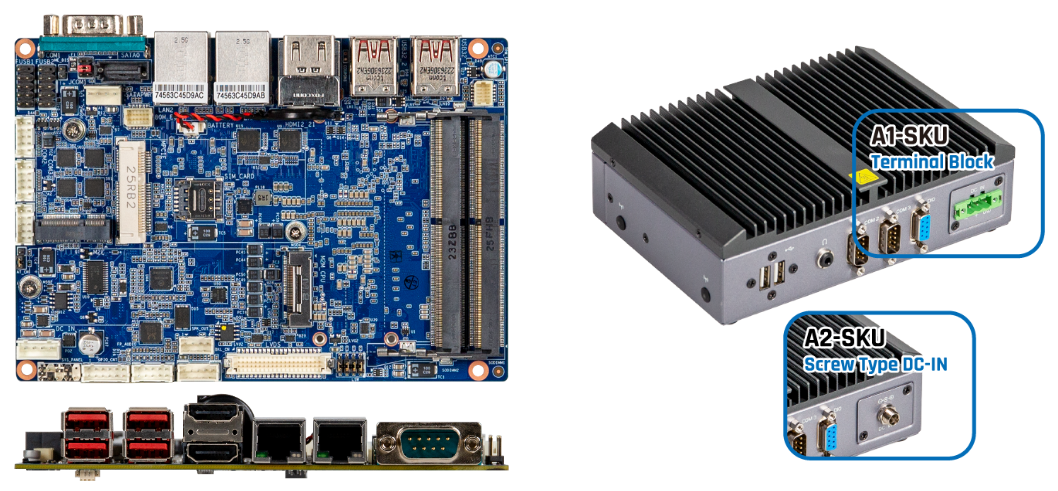

The related embedded systems contains 2 different SKUs: QBiX-Pro-RPLA1315EH/1335H/1355H-A1 and A2, of various DC-in design to suit in different working environment based on the required application at the end. Exceptionally small, yet powerful fanless design effortlessly accelerates heat transfer to facilitate heavier workloads, flexible I/O expandability making it the perfect compact solution for bringing high performance to any project.
| Model | QBiP-1355B QBiP-1335B QBiP-1315EB |
QBiX-Pro-RPLA1355H-A1 QBiX-Pro-RPLA1335H-A1 QBiX-Pro-RPLA1315EH-A1 |
QBiX-Pro-RPLA1355H-A2 QBiX-Pro-RPLA1335H-A2 QBiX-Pro-RPLA1315EH-A2 |
|
|---|---|---|---|---|
| Order Information | 9MRLU7BSMR-SI 9MRLU5BSMR-SI 9MRLU3BSMR-SI |
6BQP1355AMR-SI (CTO) 6BQP1335AMR-SI (CTO) 6BQP1315AMR-SI (CTO) |
||
| CPU | i7-1355U / i5-1335U / i3-1315UE Processors* | |||
| Memory | 2 x DDR4 SO-DIMM,3200 MHz, Max. Capacity 64 GB | |||
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) | |||
| LAN | 2 x 2.5GbE LAN Ports (Intel® I226V) | |||
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot |
|||
| Internal I/O (MB) Front I/O (SYSTEM) |
1 x 4-pin box power connector (DC in +9V~36VDC)
|
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1 2 x HDMI 1 x Power button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 & RI/5V/12V) |
||
| Rear I/O |
1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x HDMI |
2 x USB 2.0
2 x COM Ports (RS-232/422/485) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x 3-pin Terminal block : +12V~36VDC (Full Range) |
2 x USB 2.0
2 x COM Ports (RS-232/422/485) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x Screw Type DC Jack : +12V~36VDC (Adapter 19.5V/135W) |
|
| TPM | 1 x TPM header (SPI) | |||
- i3-1315UE is NEX (IOTG) SKU, i5-1335U/i7-1355U are CCG SKU. However, i5-1345UE/i7-1365UE NEX (IOTG) SKU are also ready for SKU build if any project requests. Please contact your salesperson for more details.
