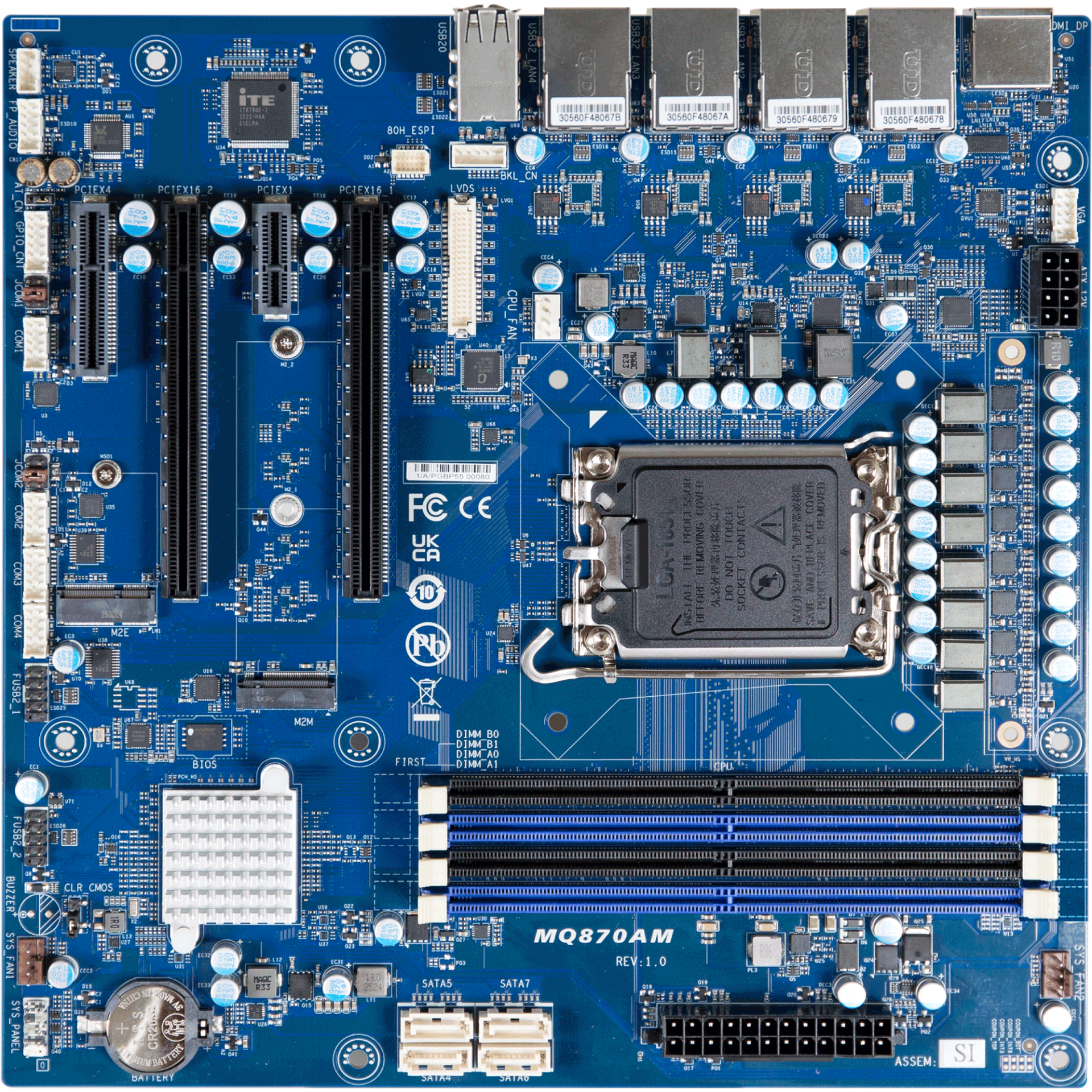

uATX-Q870A
- Preliminary
概要・特長
Micro-ATX with Intel® Q870 Chipset, support Intel® Core™ Ultra processors (Series 2), Dual channel DDR5 memory, PCIe, 4 x COM, 16 x USB, 4 x SATA 6Gb/s
• Micro ATX form factor
• Support Intel® Core™ Ultra processors (Series 2)
• Intel® Q870 Chipset
• Dual Channel DDR5, 4 x DIMMs
• 4 x 2.5GbE LAN Port
• 4 x SATA 6Gb/s Ports
• Up to 4 x PCIe expansion slots
• 16 x USB Ports
• 2 x COM Port (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232)
製品仕様
Form Factor
Micro ATX
244W x 244D(mm)
CPU
Support Intel® Core™ Ultra processors (Series 2)
TDP under 125W
Socket
1 x LGA 1851
Chipset
Intel® Q870 Chipset
Memory
4 x DDR5 DIMM sockets, Max. Capacity 192 GB
Support Dual channel DDR5 5600 MHz memory modules
Ethernet
4 x 2.5GbE LAN ports (Intel I226LM/ I226V)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.1 port
1 x DP port
1 x VGA port
1 x LVDS port
(4 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x SATA 6Gb/s Ports
RAID
RAID 0/1/5/10
Expansion Slots
2 x PCIe x16
1 x PCIe x1 (Gen 4x1)
1 x PCIe x4 (Gen 4x4)
1 x 2280/2260 M.2 M-Key (PCIe Gen 4x4, NVME)
1 x 2230 M.2 E-Key
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Speaker header
1 x VGA header
1 x Backlight Control header
4 x USB 2.0 headers
2 x COM headers (RS-232/422/485 & RI/5V/12V)
2 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Clear CMOS jumper
1 x AT/ATX mode select jumper

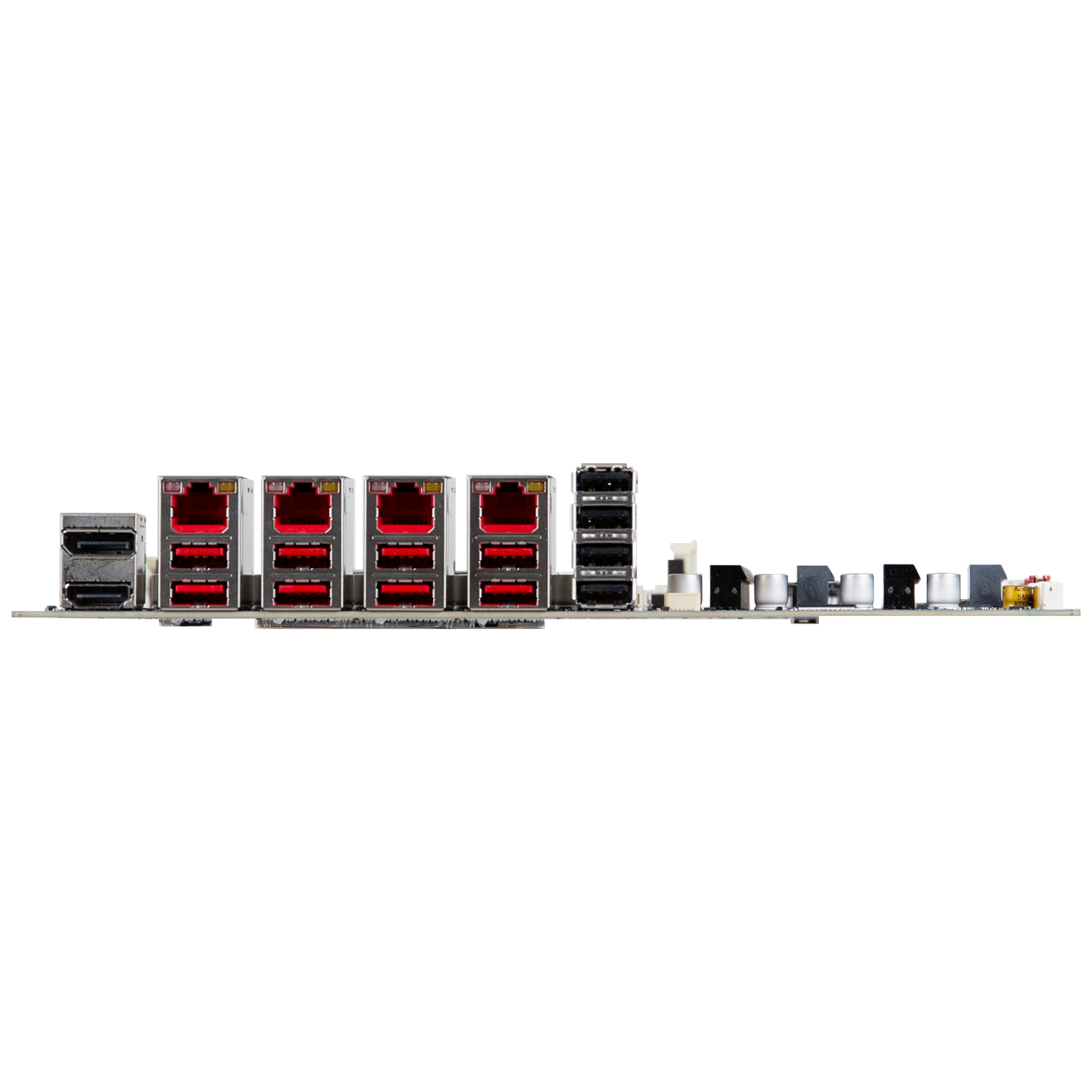

Rear l/O
1 x HDMI
1 x Display Port
4 x RJ45 LAN Ports
8 x USB 3.2 Gen 2x1
4 x USB 2.0
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Packing Content
Carton size: 360 x 354 x 390 (mm)
Packing Capacity: 5pcs
Single Box size: 350 x 330 x 65 (mm)
Single Box weight: Approx. 0.65kg
Including:
IO Shield x 1 (P/N: 12AIO-MQ47EA-00R)
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)
Order Information
9MQ870AMMR-SI (Box packing)
Remark
∗ All specifications are subject to change without notice. Please contact with your sales representative for more information.
