QBiX Lite Systems
QBiX-Lite-AMDA2314H-A1
- New
概要・特長
Industrial system with AMD Ryzen™ R2314 Embedded Processor/ Fan Design/ Dual Channel DDR4 up to 64GB/ 4 x HDMI
• System Size: 234W x 155D x 30H (mm)
• AMD Ryzen™ R2314 Embedded Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 4 x HDMI 2.0 for multiple displays
• 2 x GbE LAN Ports
• TPM on board
製品仕様
Dimension
234W x 155D x 30H (mm)
CPU
AMD Ryzen™ R2314 Embedded Processor
14nm, 4 cores, 4 threads, 2.1 GHz, up to 3.5 GHz
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2677 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek RTL8111H-CG)
Graphics Support
Integrated Graphics Processor - AMD® Radeon™ Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
*Support EDID emulation with AMD graphic driver/utility
(4 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen3x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot

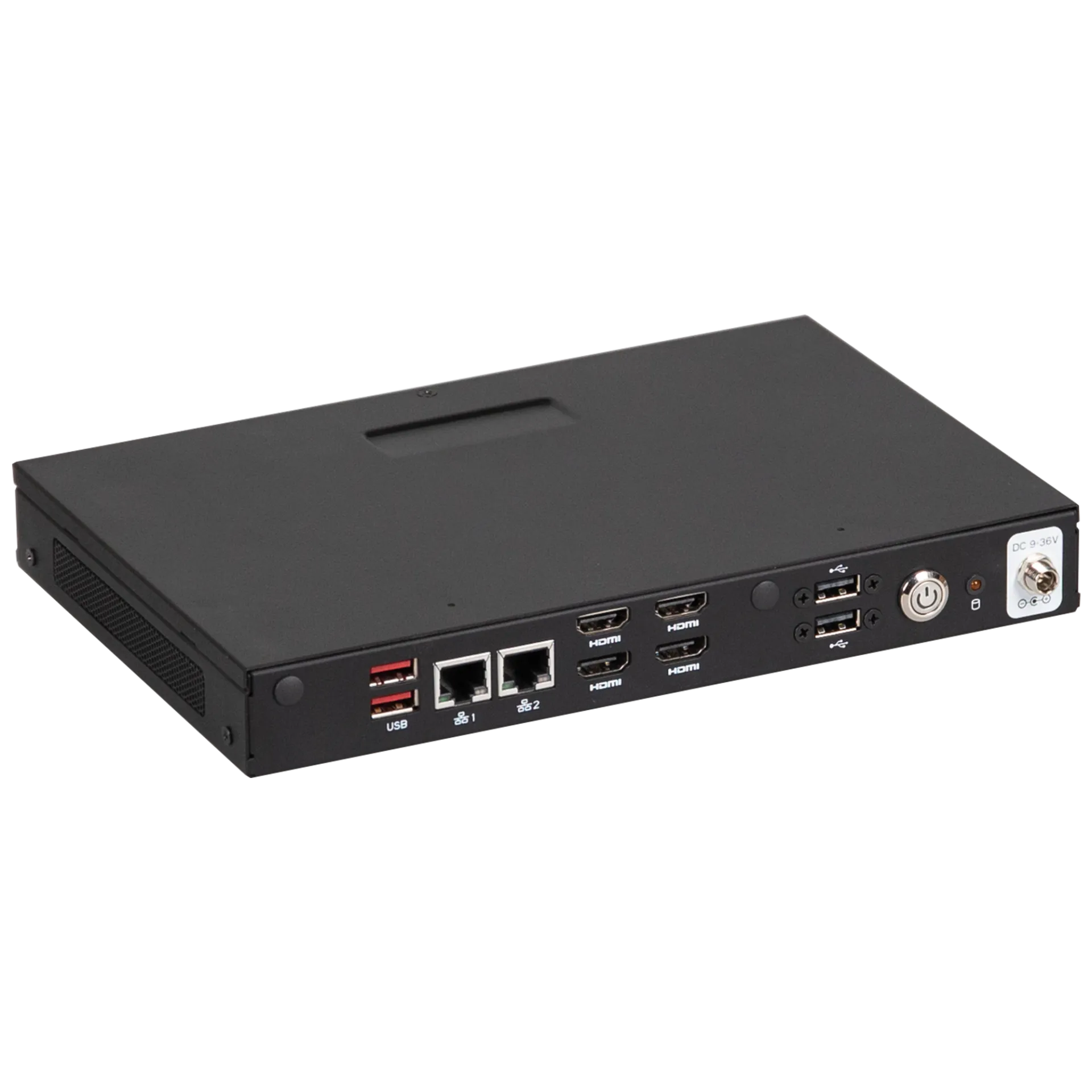

Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0
4 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Screw Type DC Jack
Rear l/O

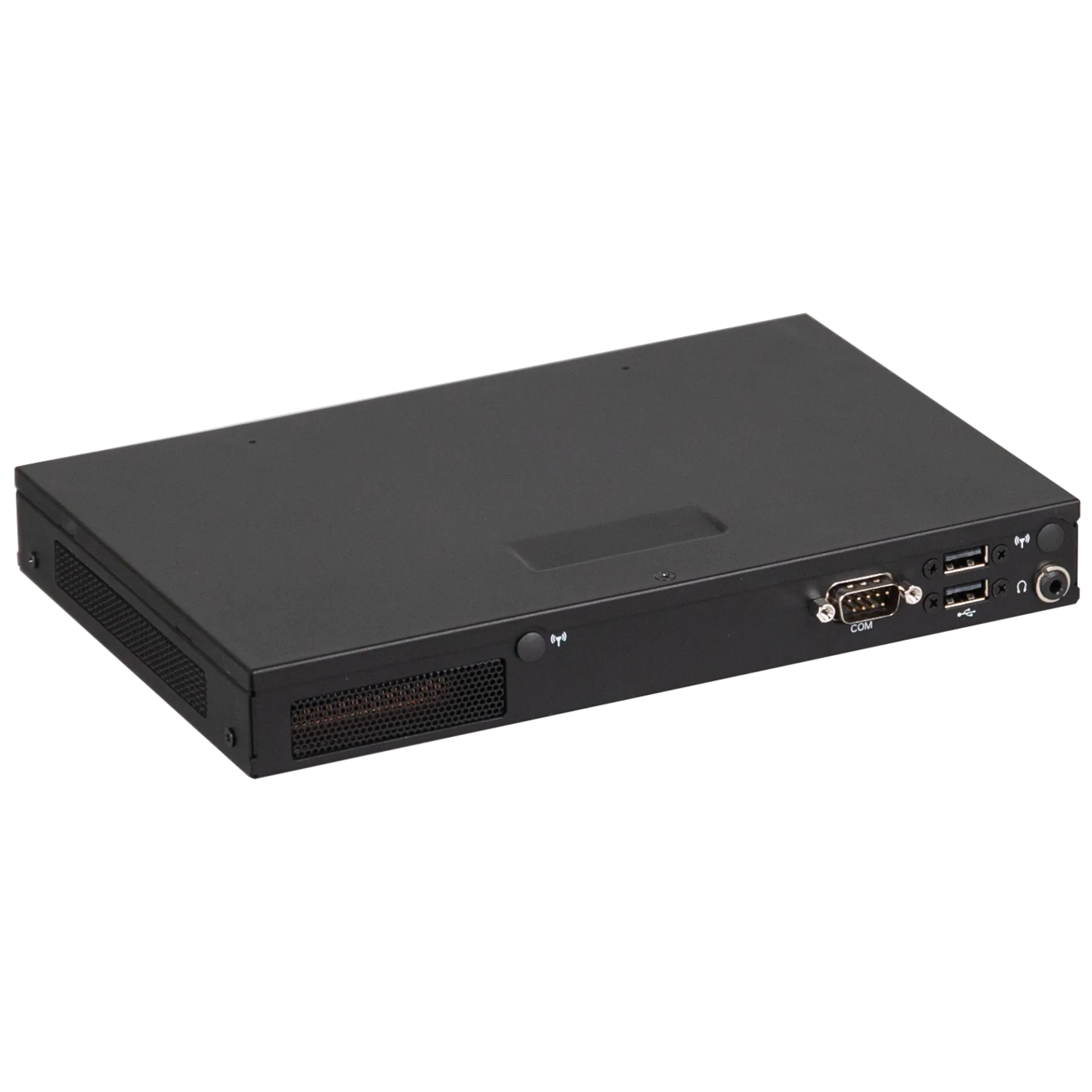

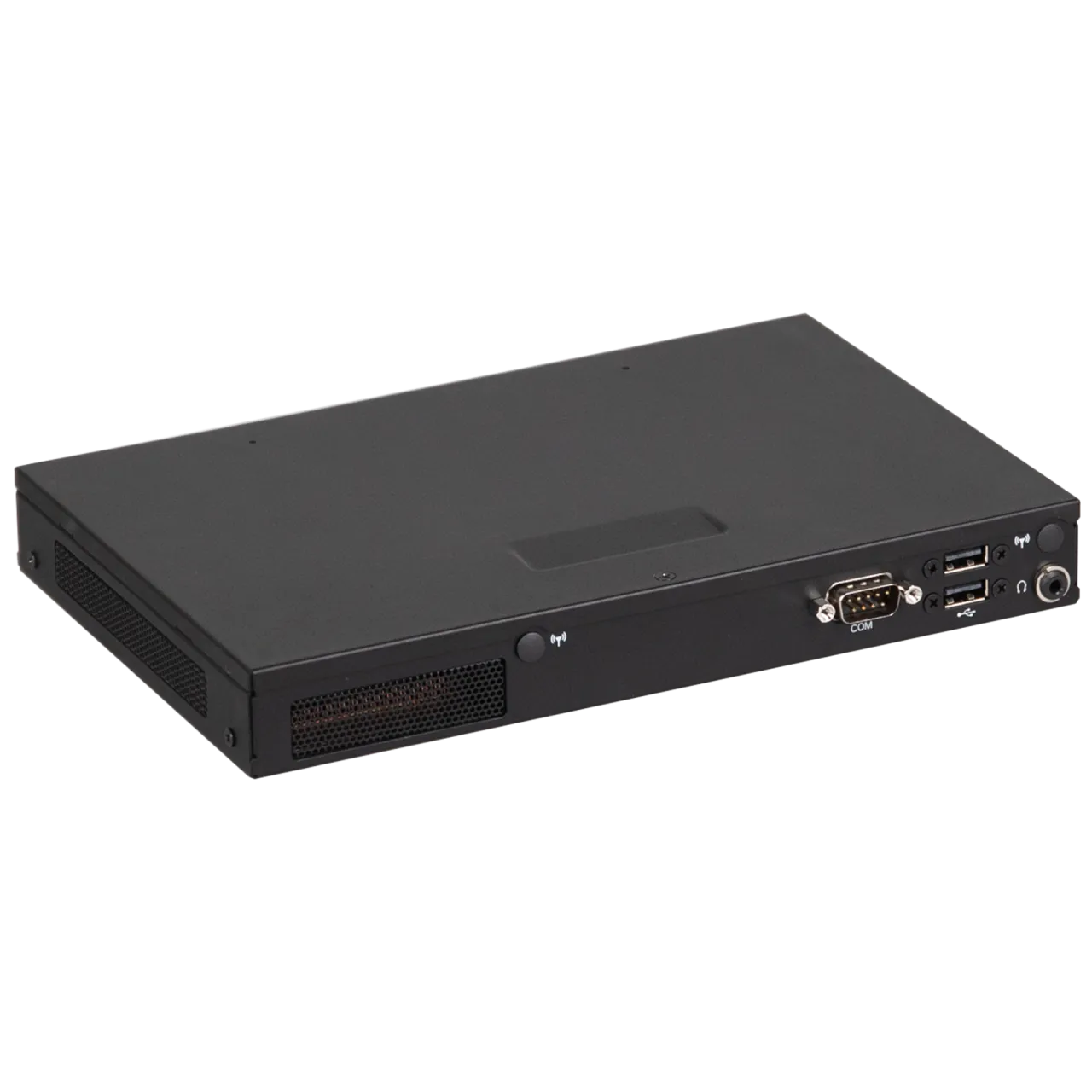

1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x USB 2.0
1 x Headphone Jack
2 x External Antenna Holes (Optional)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0
Power
+9V~36VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 481 x 300 x 375 (mm)
Packing Capacity: 5pcs
Single Box size: 336 x 279 x 90 (mm)
Including:
Bracket for Wall Mount x 2 (P/N: 25HBA-160520-S9R) + Screw x 4 (P/N: 25KS9-130600-S0R)
HDD screw x 4 (P/N: 25KS2-13004G-S0R)
Thermal pad for M.2 WiFi module x 1 (P/N: 25ST3-223220-Z0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
Power Cord : Optional (by region)
SATA Cable x 1 (P/N: 25CF4-160000-S9R)
Mounting
Wall mount (Default)
VESA 75/100 (Optional)
Order Information
6BQL2314AMR-SI (Box packing)
