Caractéristiques du produit
Industrial system with Intel® H310 Chipset, support for Intel® 9th/8th Gen Processor / Display Port/ DVI-D port/ VGA port/ USB 3.2 Gen 1/ USB 2.0/COM Ports /4 GbE LAN Ports /M.2 slots
•System Size : 224W x 257D x 77H (mm)
•Support Intel® 9th/8th Gen Processor
•Dual Channel DDR4, 2 x SO-DIMMs
•DVI-D, VGA & DP ports for multiple display
•4 x GbE LAN Ports
•4 x COM Ports
•8 x USB Ports
QBiX Jumbo Series (High Performance Modular IPC)
QBiX-JMB-CFLA310H-A1
Accueil
Présentation du produit
Systèmes embarqués
QBiX Jumbo Series (High Performance Modular IPC)
QBiX-JMB-CFLA310H-A1
QBiX-JMB-CFLA310H-A1 is a high-performance fanless embedded computer featured with Intel® H310 Express Chipset and supported Intel® 9th/8th gen Core™ i processor in LGA1151 package, to provide powerful computing and excellent graphic performance. It's mainly designed for edge computing applications, machine vision, robotic image detection, machine automation, surveillance system in factory, logistics and even healthcare systems, to increase production efficiency.
In addition, it offers 1 x Display Port, 1 x DVI-D Port and 1 x VGA Port for two independent display outputs, rich I/O interface of 4 x USB 3.2 Gen 1, 4 x USB 2.0, 2 x switchable COM Ports (RS-232/422/485 & RI/5V/12V), 2 x RS232 COM Ports, 4 GbE LAN Ports and expantion M.2 slots to connect multiple devices and implement industrial applications. This system supports full range 12-48V DC power inputs for operating temperature of -20°C~50°C . The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 3 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.

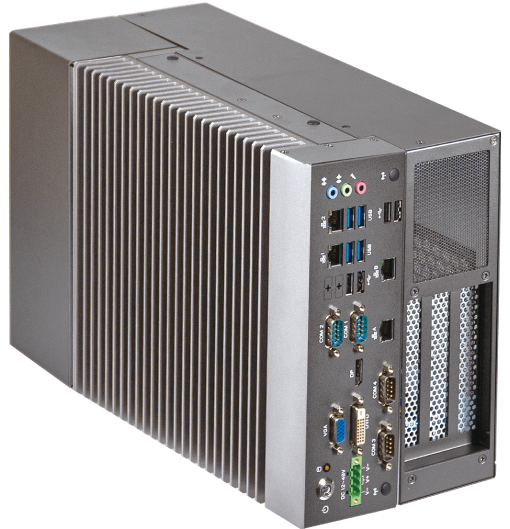

With an optional riser card support, GIGAIPC offers another Machine Vision Solution : QBiX-JMB-CFLA310HG-A1, the integration system of QBiX-JMB-CFLA310H-A1 and discrete GFX card.
QBiX-JMB-CFLA310H-A1 QBiX-JMB-CFLA310HG-A1
Spécifications du produit
Dimension
224W x 257D x 77H(mm)
CPU
Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
Chipset
Intel® H310 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
3 x GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics support:
1 x DP port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
3 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O
1 x Power Switch/Power/HDD LED
3 x Audio Jacks (Line in, Line out, Mic in)
1 x Display port
1 x DVI-D
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
4 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
4 x USB 2.0
1 x 4-pin Terminal Block
2 x External Antenna Holes (Optional)
Power
+12V~48VDC (Full Range)
Operation Temperature
Operating temperature: -20°C to 50°C (CPU 65W TDP)
Operating temperature: -20°C to 60°C (CPU 35W TDP)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 300 x 351 x 166 (mm)
Packing Capacity: 1
Weight: Approx. 4.7kg
Including:
Screw M3x4L x 12 (P/N: 25984G-1C014-S00)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
Order Information
9BQJH310AMR-SI (Box packing)
(Built in Components: Please contact with your sales representative for more information
or e-mailed to : sales@gigaipc.com)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
