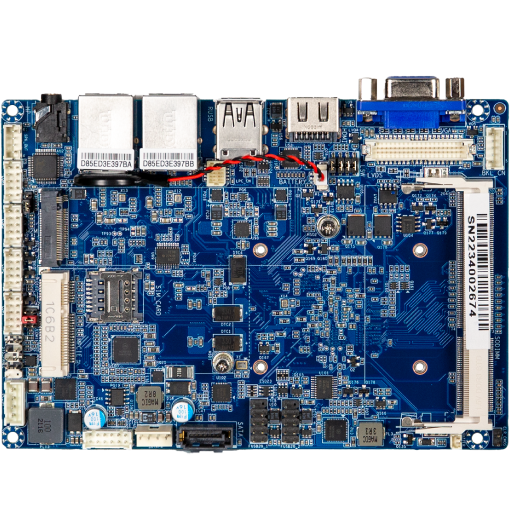

QBiP-1900AT
- EOL
Produkteigenschaften
3.5” SubCompact Wide Temperature Embedded Motherboard with Intel® Celeron® J1900 Processor, Single Channel DDR3L memory, 4 x COM, 1 x SATA 3Gb/s, 6 x USB, Temp -40°C to 85°C
• 3.5" SBC
• Intel® Celeron® J1900 Processor
• Single Channel DDR3L, 1 x SO-DIMM
• 2 x GbE LAN Ports
• 1 x SATA 3Gb/s Port
• M.2 with SATA 3Gb/s
• HDMI, VGA, LVDS ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 2 x COM Ports (RS-232)
• Wide Temperature Embedded Motherboard
Wide Temperature Series
QBiP-1900AT
QBiP Wide Temperature Series are 3.5" SubCompact Boards designed for applications in harsh environment or extreme temperature conditions. It supports two temperature ranges : -20°C to 70°C and -40°C to 85°C, with fan-less thermal solutioin, for different level of performance in various operating environments.
QBiP-1900AT is equipped with Intel® Celeron® J1900 low power SoC of 10W TDPs, dual channel DDR3L memory up to 8G and rich I/O interfaces of 4 x COM Ports (2 x switchable and 2 x RS-232), 1 x GPIO (8 bits) and 6 x USB etc, for flexible functionality to fulfill versatile industrial requirements. Furthermore, it provides great expansion with 2280 M.2 M-key slot to support SATA 3Gb/s SSD and SIM slot for cellular connection.
Produktspezifikationen
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Celeron® J1900 Processor
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W
Socket
1 x FCBGA 1170
Memory
1 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Single channel DDR3L 1333 MHz memory module
Ethernet
2 x GbE LAN Ports (Intel® I211AT)
Video
Integrated Graphics Processor -Intel® HD Graphics 500:
1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays)
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 3Gb/s Port
Expansion Slots
1 x 2280 M.2 M-Key (SATA 3Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Internal I/O
1 x 4-pin box power connector (DC in +9V~36VDC) (+48VDC Optional)
1 x SATA Power header
1 x System fan header
1 x Front panel header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x Buzzer header
Rear l/O
1 x Headphone Jack
1 x HDMI
1 x VGA
2 x RJ45 LAN Ports
1 x USB 2.0
1 x USB 3.2 Gen 1
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: -40°C to 85°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 375 x 324 x 293 (mm)
Packing Capacity: 10pcs
Single Box size: 256 x 175 x 59 (mm)
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Fanless Heatsink x 1 (P/N: 25ST1-153107-A7R)
Order Information
9MBAYTASMR-SI1 (Box Packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
