New Launch : Industrial M/B with AMD Ryzen™ V2000 processors

GIGAIPC, an embedded solution-focused subsidiary from GIGABYTE, newly launched AMD Ryzen™ V2000-based industrial motherboards aimed at industrial and commercial applications.  AMD’s Ryzen™ Embedded V2000 series processors adapt 7nm manufacturing process, Zen 2 cores and AMD Radeon graphics, to offer power efficiency and high-performance display capabilities of up to four independent 4K displays outputs.  Other than that, it offers up to 30-percent higher single-thread CPU performance and up to 40-percent better graphics performance, comparing to the earlier V1000 generation, and 10-year longevity support which is essential to embedded solution providers/users.

mITX-2748A is mini-ITX motherboard with V2748 embedded SoC, 8 cores, 16 threads, 2.9 GHz/4.25GHz and 45W TDP.  Abundant IO placements, such as 4 x USB 3.2 Gen 2x1, 2 x COM Ports (RS-232/422/485 & RI/5V/12V), 2 x Audio Jacks (Line out, Mic in), 2 x RJ45 LAN Ports, and other switchable COM headers, GPIO(8 bits) & SMBus header, TPM headers and a 12-24V DC input, take good care of the needs for system design and integrations.  More expansion is available through PCIe x16 slot and M.2 M-key and E-key.  Of course, it supports up to four independent 4K displays via DP 1.4 ports (or 1 x LVDS port of 1080P switched from DP) to create immersive digital experiences in retail, gaming, medical, factory automation and AIoT applications.

▲mITX-2748A

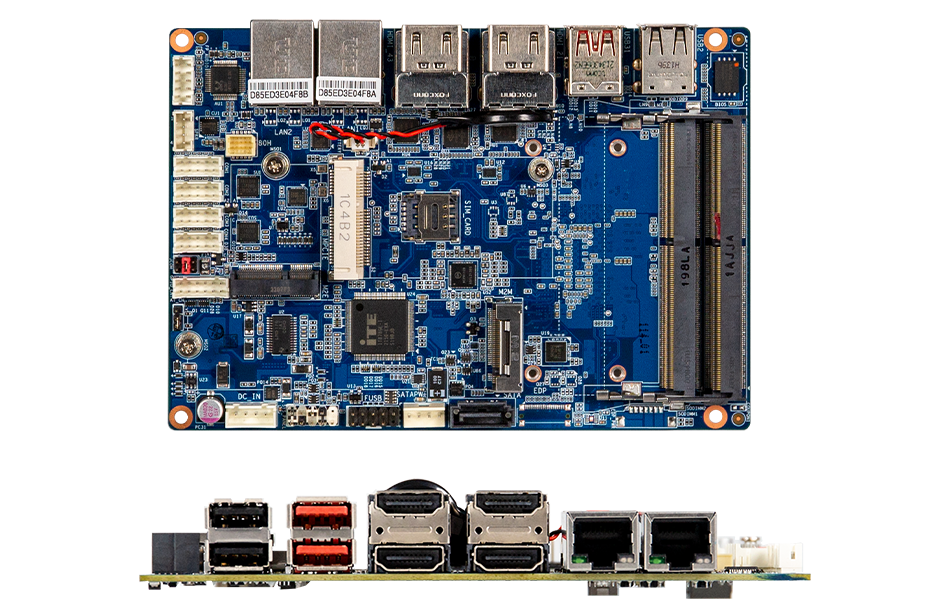

QBiP-2718A is 3.5" SBC with V2718 Embedded Processor, perfectly designed for POS, kiosk, digital signage, and factory automation applications.  It supports dual DDR4 SO-DIMM sockets, max. 32 GB and one storage via SATA connector.  Through the size of only146W x 101.7D(mm) , it still covers plenty of IO ports / headers, such as:
* 4 x HDMI 2.1, supporting max. 4096x2160 resolution @144Hz
* 2 x GbE LAN Ports
* 2 x USB 3.2 Gen 2x1
* 2 x USB 2.0.
* 1 x 2W Speaker out header
* 1 x 4-pin box power connector (DC in +9V~48VDC) and more.
It's suitable for environment-constraint applications.

▲mITX-2748A

GIGAIPC is aggressively developing more AMD product options for gaming industry.  A brand new industrial-grade motherboard (Model Name: mITX-1505A) with gaming HW features, supported by AMD Ryzen™ Embedded R1505G, Radeon™ Vega 3 Graphics, is on the way to the market.  Please stay tuned!!!
