2022-06-20
Pressemitteilungen
New Launch: Industrial M/B with Intel® Elkhart Lake Platforms
GIGAIPC Releases Industrial Motherboards with Intel® Elkhart Lake Platform
GIGAIPC, an embedded solution-focused subsidiary from GIGABYTE, proudly presents various industrial-grade motherboards with Intel® latest platform, which provides robust computing performance but low power consumption, for IOT applications.
Intel® Elkhart Lake processors offer up to a 1.7x improvement in single-thread performance, up to a 1.5x improvement in multi-thread performance, and up to 2x performance improvement in graphics compared to previous generation processors. Intel UHD Graphics can support up to three 4Kp60 simultaneous displays, and offers integrated high speed connectivity with up to three integrated 2.5GbE MAC's all with time sensitive networking (TSN) capability.
WHAT YOU CAN DO WITH ELKHART LAKE
Industrial Automation
Industrial system often operate in an “always on” state, requiring high levels of reliability and uptime that require making operations smarter, more connected, and more autonomous.
Smart Retail
Enable capabilities such as facial recognition for authentication at ATMs or intelligent vending machines, object detection for cashier-free checkout, people counting, and audience analytics.
Healthcare
eading hospitals are using data analytics, machine learning, and artificial intelligence to identify which patients are most at risk so they can respond more swiftly to life-threatening events.
GIGAIPC 3.5" SBC is currently available with Intel® Celeron® N6210 / J6412 Processors with a TDP range of 6.5W to 10W, a maximum of up to 3.0GHz burst frequency, up to 50% improved CPU performance from previous generation.
Rich I/O connectivity and expansion flexibilities on 3.5" Elkhart Lake SBC allow numerous peripherals and include 4 x USB 3.2 Gen 2x1, 2 x USB 2.0, 4 x COM headers (1 x Switchable and 3 x RS232), 1 x SATA 6Gb/s Port, 1x 2280 M.2 M-Key and 1x mPCIe interface, as well as dual Gigabit Ethernet ports for high-speed connections to wired devices.
| Model |
QBiP-6210A / QBiP-6412A (146 x 101.7mm)
|
|---|---|
| CPU | Intel® Celeron® N6210 / J6412 Processors |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB |
| Storage | 1 x SATA 6Gb/s Port |
| Ethernet | 2 x GbE LAN Ports |
| Video | Integrated Graphics Processor -Intel® UHD Graphics for 10th Gen Intel® Processors: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @24Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |

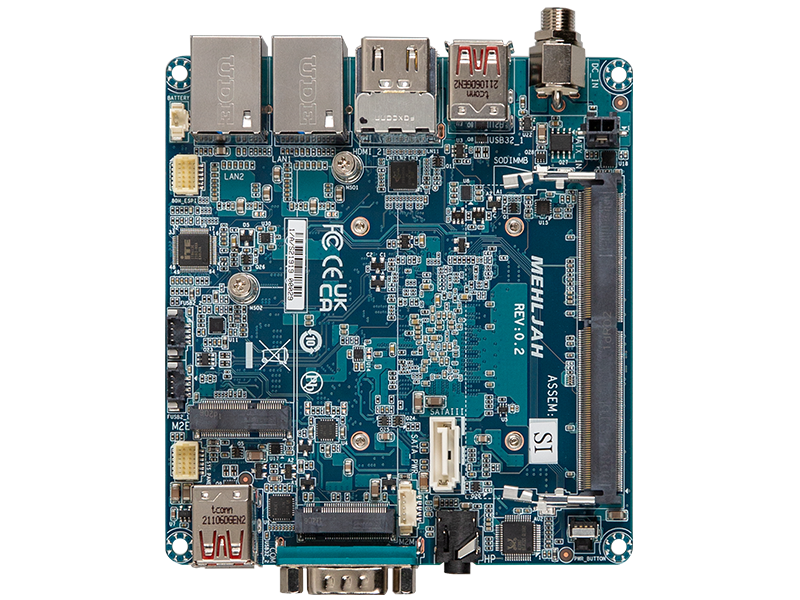

GIGAIPC 10x10 MB, QBi series of palm-size industrial motherboard with Intel® Celeron® J6412 Processors, also brings full-featured computing and IoT services for industrial or commercial purposes.
Rich I/O connectivity and expansion flexibility include 2 x USB 3.2 Gen 2x1, 2 x USB 2.0, 1 x RS232 COM header, 1 x SATA 6Gb/s Port, 1x 2280 M.2 M-Key and 1x 2230 E-Key, dual GbE LAN ports as well as Screw type DC Jack (+12V~19VDC), to comply with what manufacturer's design requests
| Model |
QBi-6412A (105 x 110mm)
|
|---|---|
| CPU | Intel® Celeron® J6412 Processors |
| Memory | 1 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB |
| Storage | 1 x SATA 6Gb/s Port |
| Ethernet | 2 x GbE LAN Ports |
| Video | Integrated Graphics Processor -Intel® UHD Graphics for 10th Gen Intel® Processors: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
